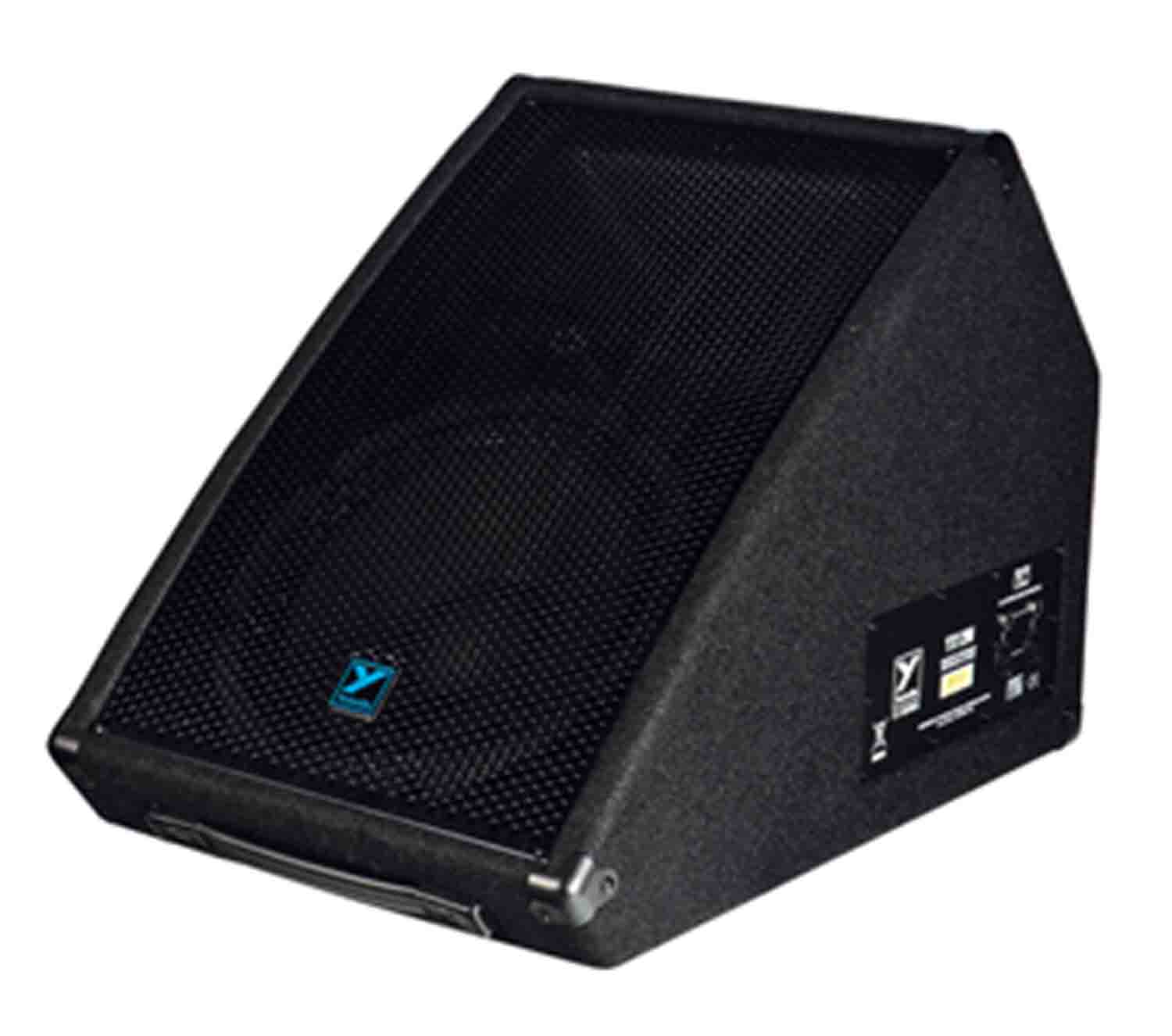

Yorkvile YX12MC Legacy Series 12" Stage Monitor - 200 Watts

The Yorkvile YX12MC Legacy Series 12" Stage Monitor - 200 Watts delivers outstanding performance in a highly cost-effective monitor package. Engineered in North America, the YX12M benefits from Yorkville's forty plus years of PA enclosure design experience in the creation of this compact passive monitor enclosure.

The YX12M uses a single 12-inch driver and an injection molded 90° x 30° ABS Waveguide horn with 1-inch throat and 1.4-inch neodymium compression driver. Yorkville's tried and true dual-bulb CTL protection system protects the horn driver's aluminum diaphragm ensuring unmatched reliability in the field. The YX12 is built road-ready with easy-to-clean, durable black carpet covering, solid internal plywood bracing and reinforced internal component mounts.

Designed with working musicians in mind, the YX12M uses a rugged 5/8-inch plywood cabinet construction, metal input plate, and a custom punched, perforated metal grille to protect the speaker components.

Product Specifications:

System Type: 2-Way

Active or Passive: Passive

Power Rating (Watts): 200

Biampable: No

Max SPL (dB): 122

Driver Configuration: 12 inch / 1.4 inch

HF Driver(s): 1.4-inch Aluminum (1 inch Throat)

HF Horn: Injection Molded ABS

HF Dispersion (°H x °V): 90 x 30

HF Protection: CTL

LF Driver(s): 12-inch Ceramic

LF Power Rating(Watts): 200

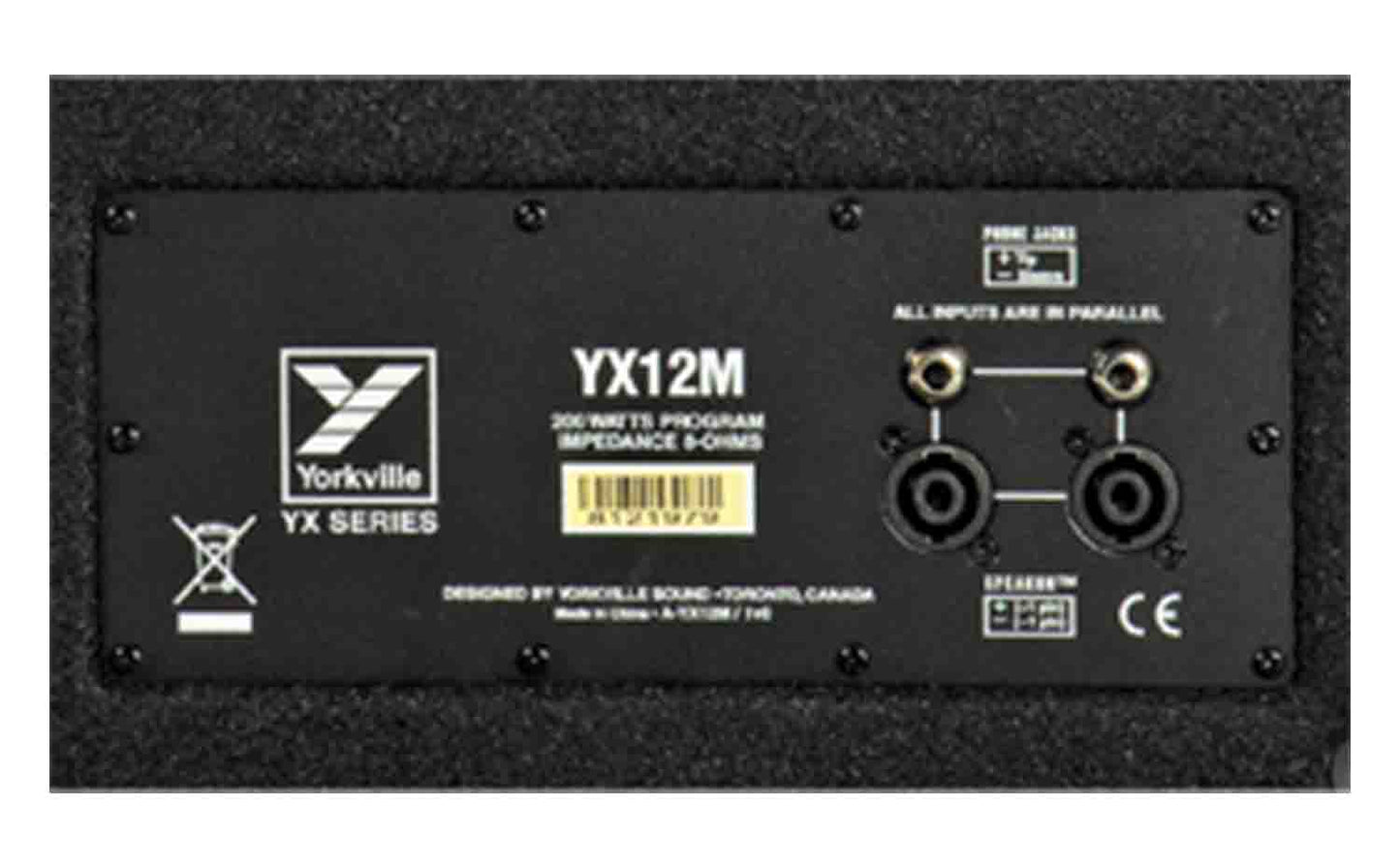

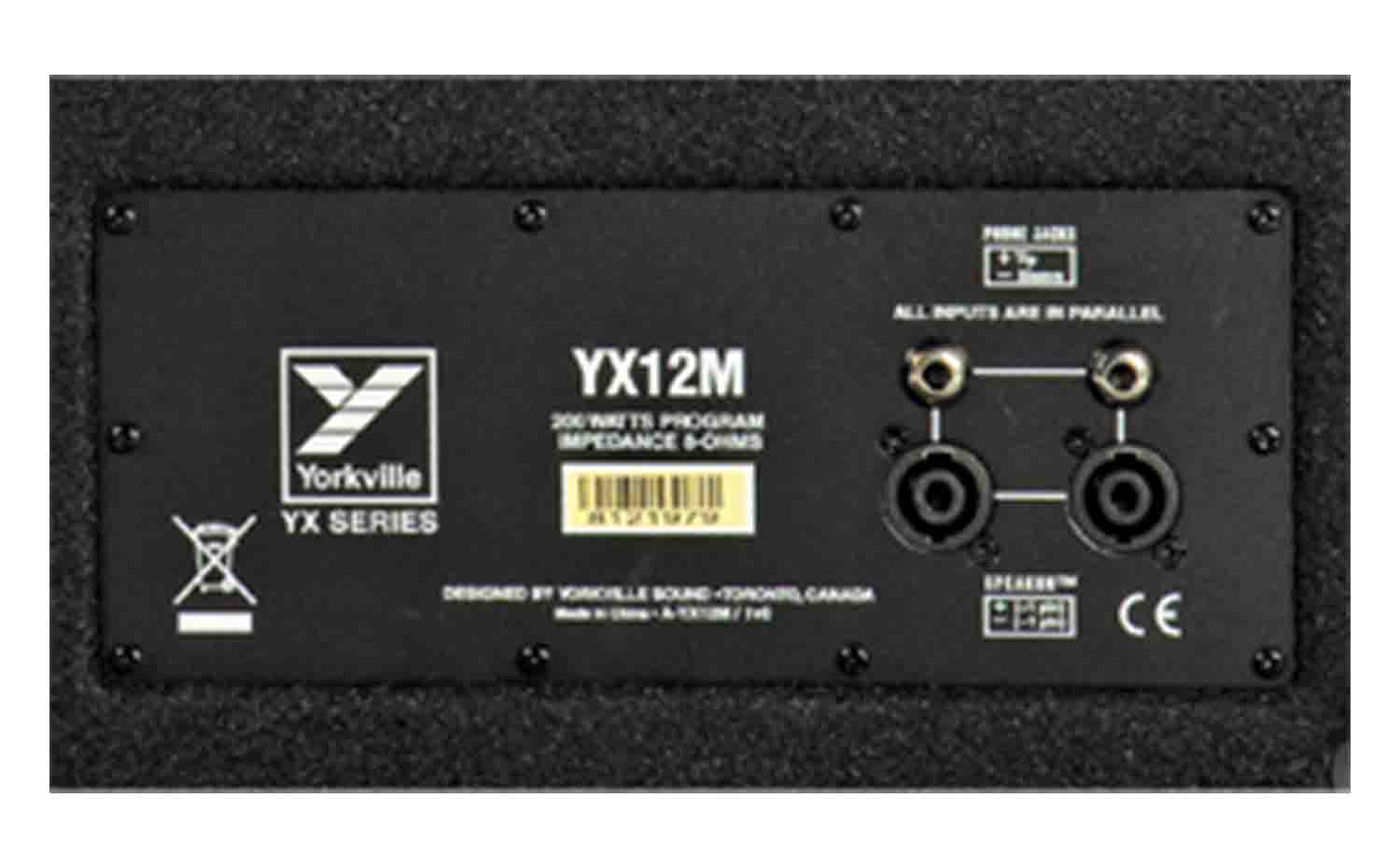

Inputs - 1/4" Jacks: 2

Inputs - Speakon 4-pin: 2

Feet: Plastic Glides

Strap Handles: 1

Covering / Finish: Black Ozite

Dimensions (DWH xbackW, inches): 24 x 19.5 x 17.75 x 16

Dimensions (DWH xbackW, cm): 61 x 49.5 x 45.1 x 40.6

Weight (lbs/kg): 33 / 15
