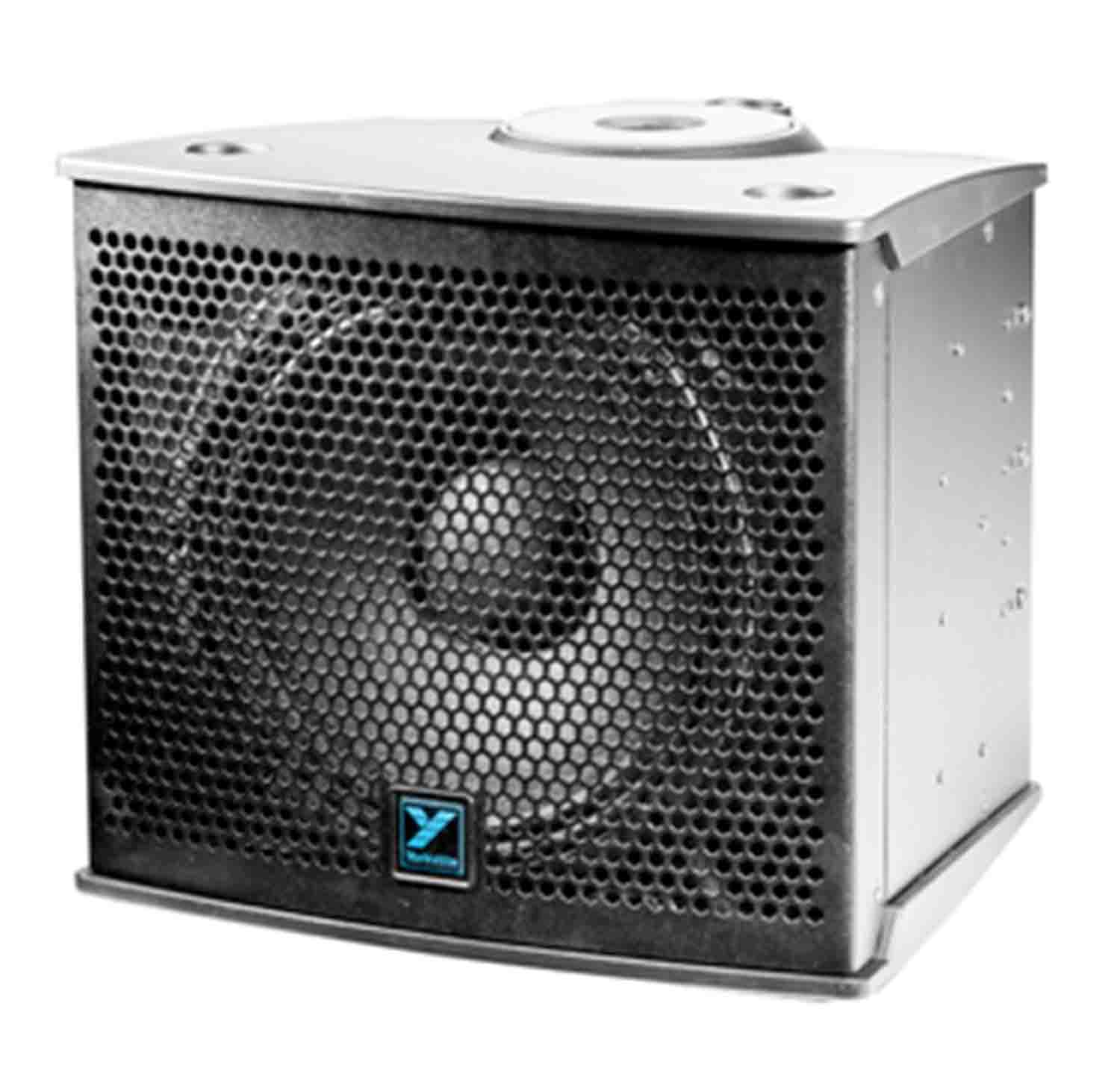

Yorkvile NX10C Legacy Series 10" Coaxial Active Loudspeaker - 300 Watt

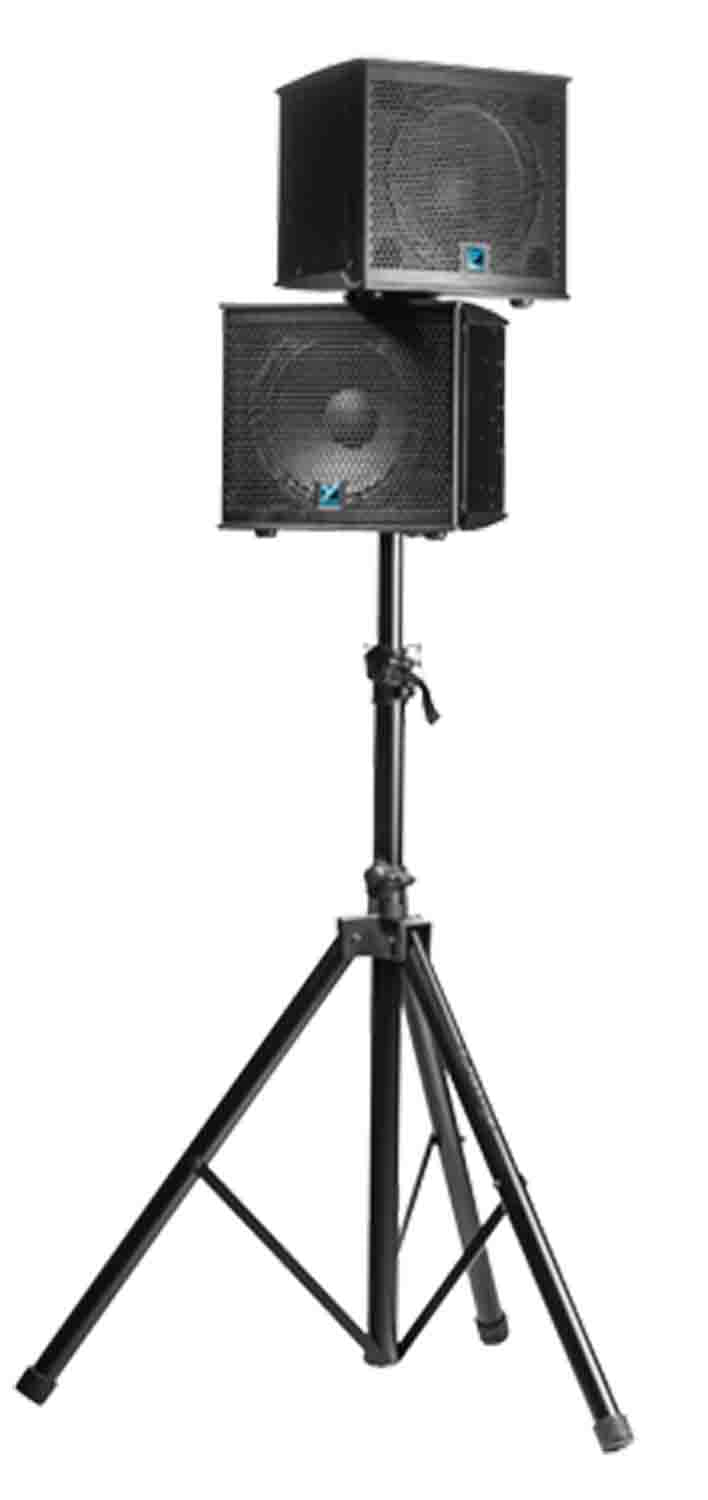

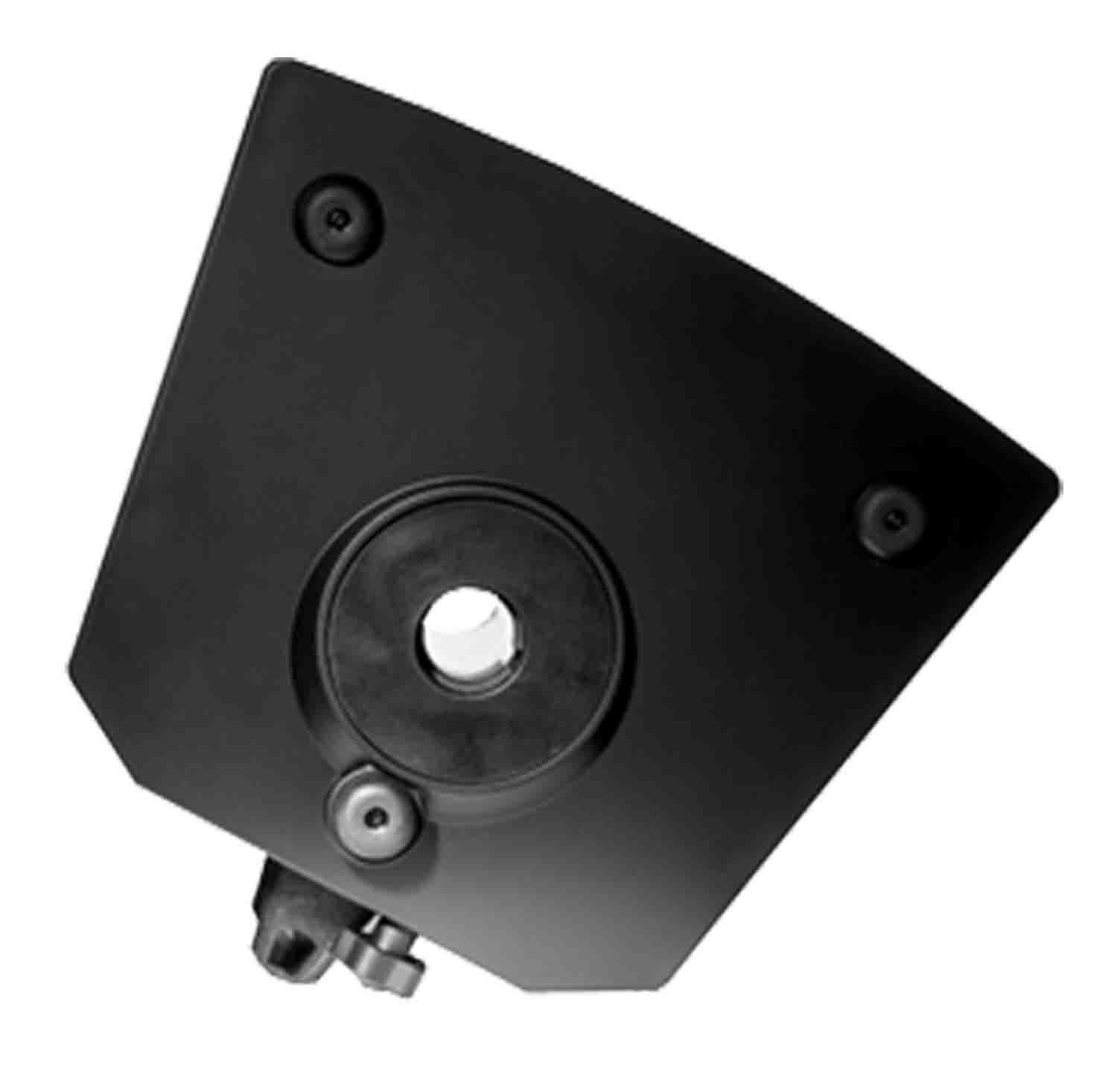

The Yorkvile NX10C is a Legacy Series 10" Coaxial Active Loudspeaker - 300 Watt with its 12-inch profile and innovative through-hole pole mount design, the NX10C is the most versatile and compact professional PA cabinet ever. The innovative speaker stands "through-hole" design allows multiple NX10C cabinets to be mounted on a single standard speaker stand in a vertical array for very high-volume applications. When wider horizontal coverage is required the NX10C cabinets can be rotated about the axis of the pole while still maintaining full phase coherency. 360 degrees of coverage can be easily achieved.

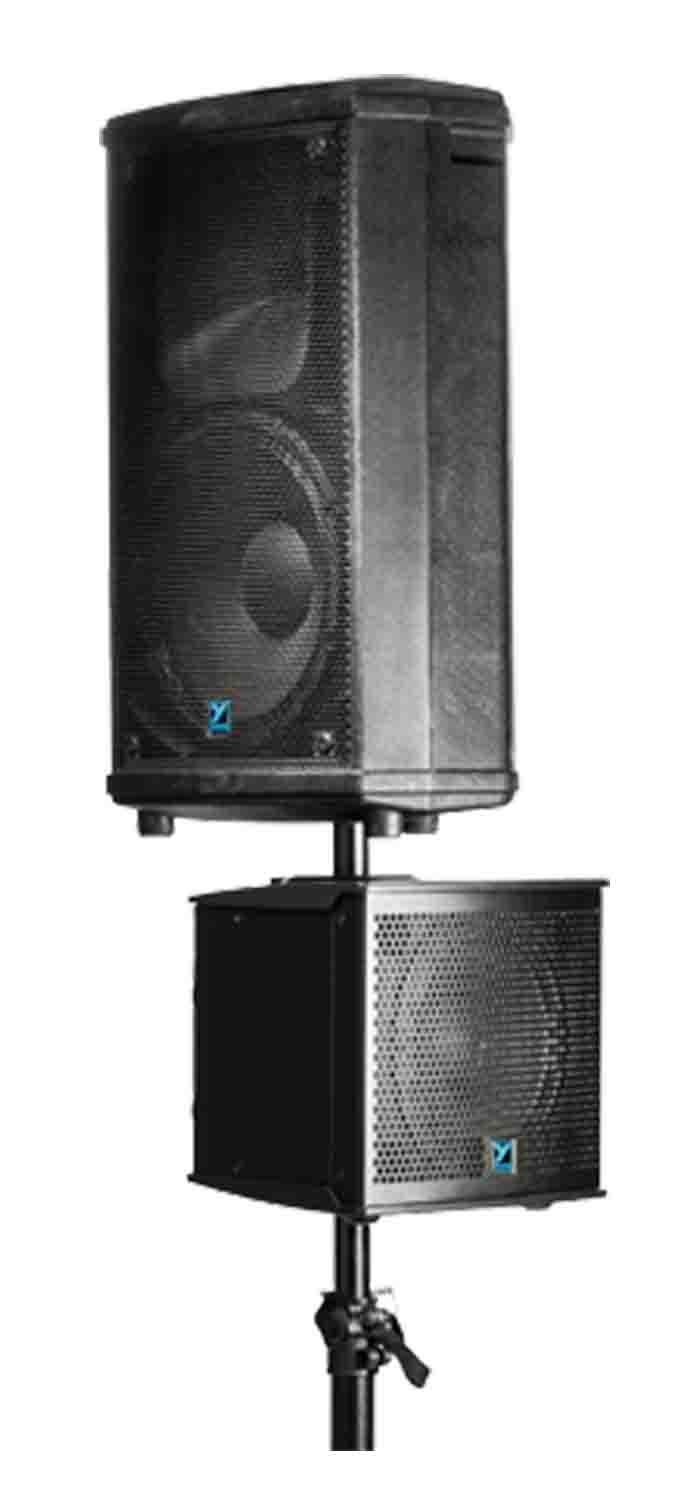

No need to bring separate stands for stage lighting and speakers when NX10C's can be mounted under the light bars, saving valuable stage space. For side-wash monitor applications on tight stages, the NX10C can be mounted under the front of house cabinets to provide a monitor signal that will be fully phase coherent with the front of house signal.

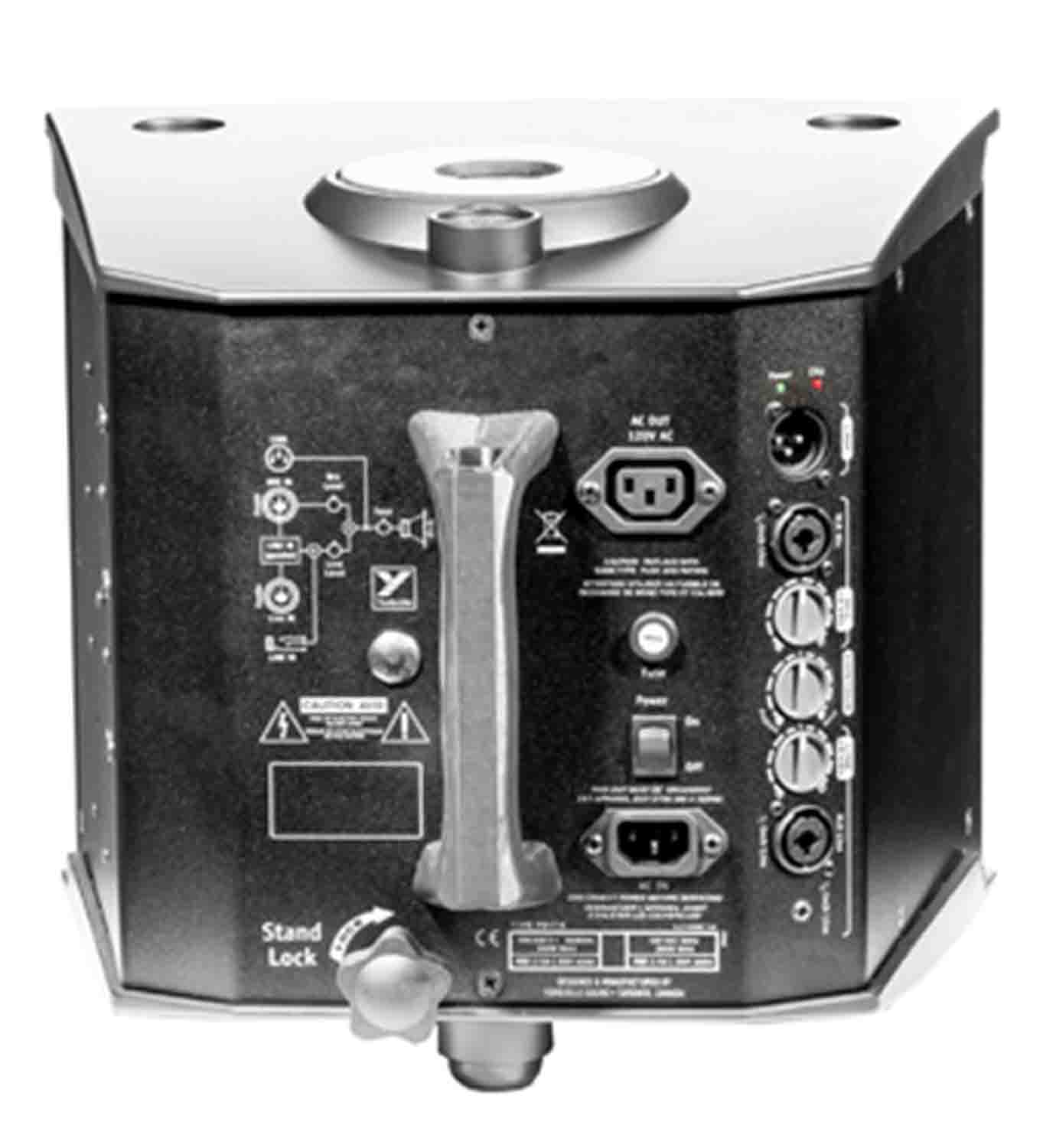

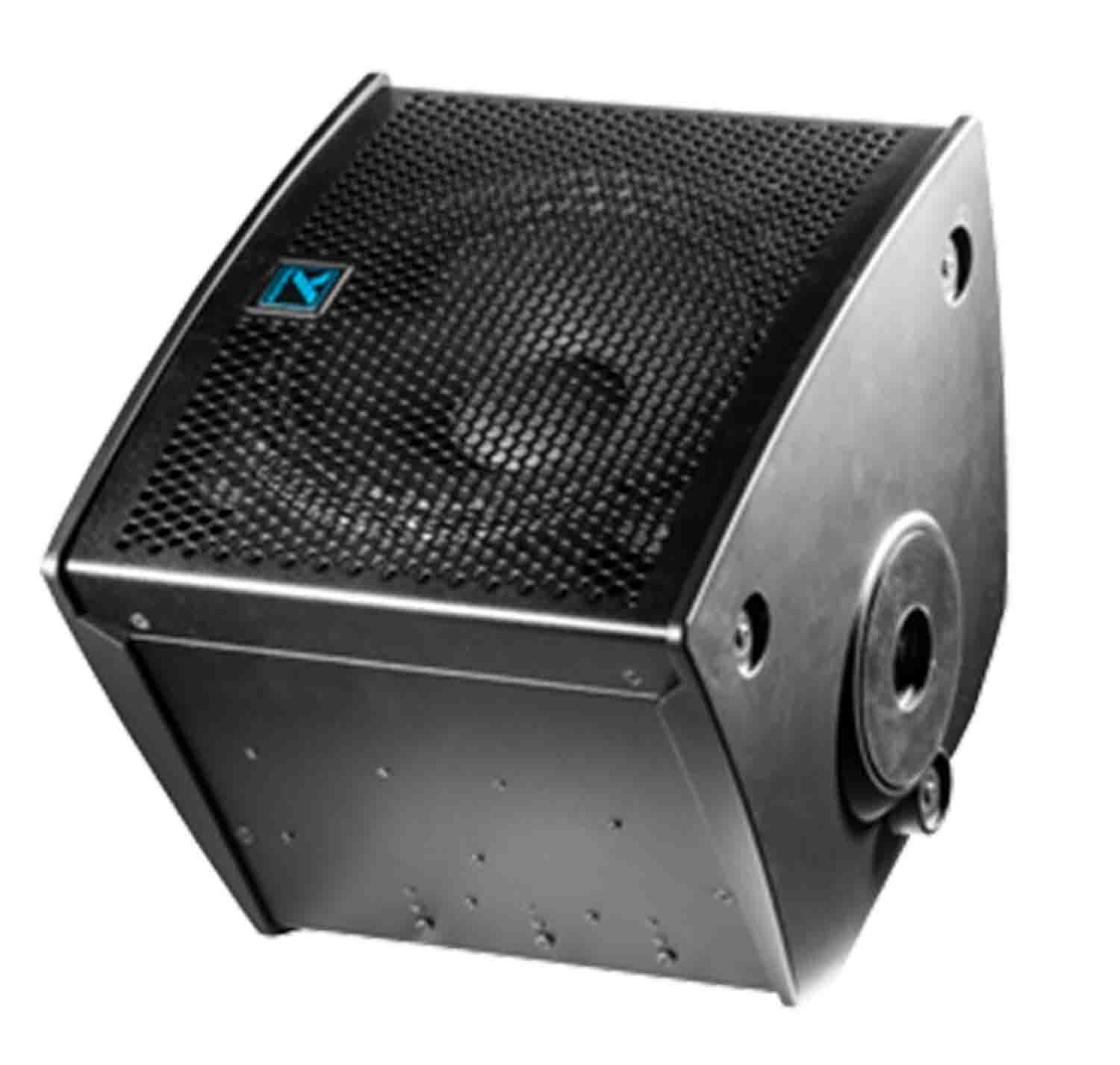

The innovative custom rear mounted handle also functions as a tilt stand allowing the NX10C to be used as a compact wide-coverage floor monitor or center fill cabinet. Versatile inputs for mic or line level sources as well as a 1/8th-inch TRS jack allow the NX10C to direct connect to any audio source.

Product Specifications:

Active or Passive: Active

Power Rating (Watts):   300 Watts (600 Watts Peak)

Biampable: Self Powered

Max SPL (dB): 125dB Peak (122dB Continuous)

Frequency Response (Hz +/- 3dB): 80Hz - 20kHz

Crossover Frequency (Hz): 2500Hz

Driver Configuration: Coaxial 10-inch/1-inch

Power Cable: Yes

Power Switch: Yes

Level Controls: Line/Mic

Limiter: Yes

LED Indicators:  Power, Clip

Feet: Yes

Dimensions (DWH xbackW, inches): 13 X 13.5 X 12

Dimensions (DWH xbackW, cm): 33 x 34.3 x 30.5

Weight (lbs/kg): 25 / 11.3
