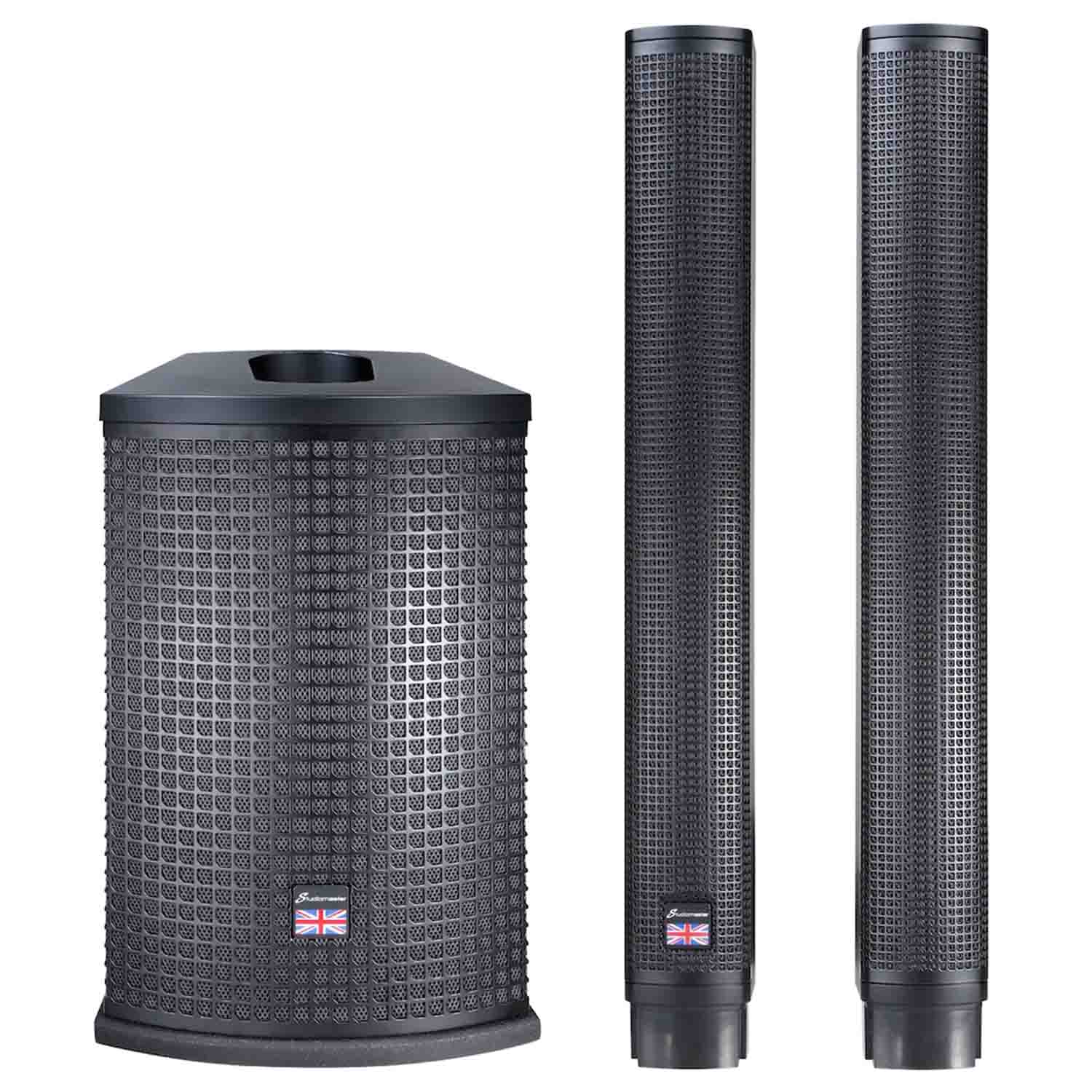

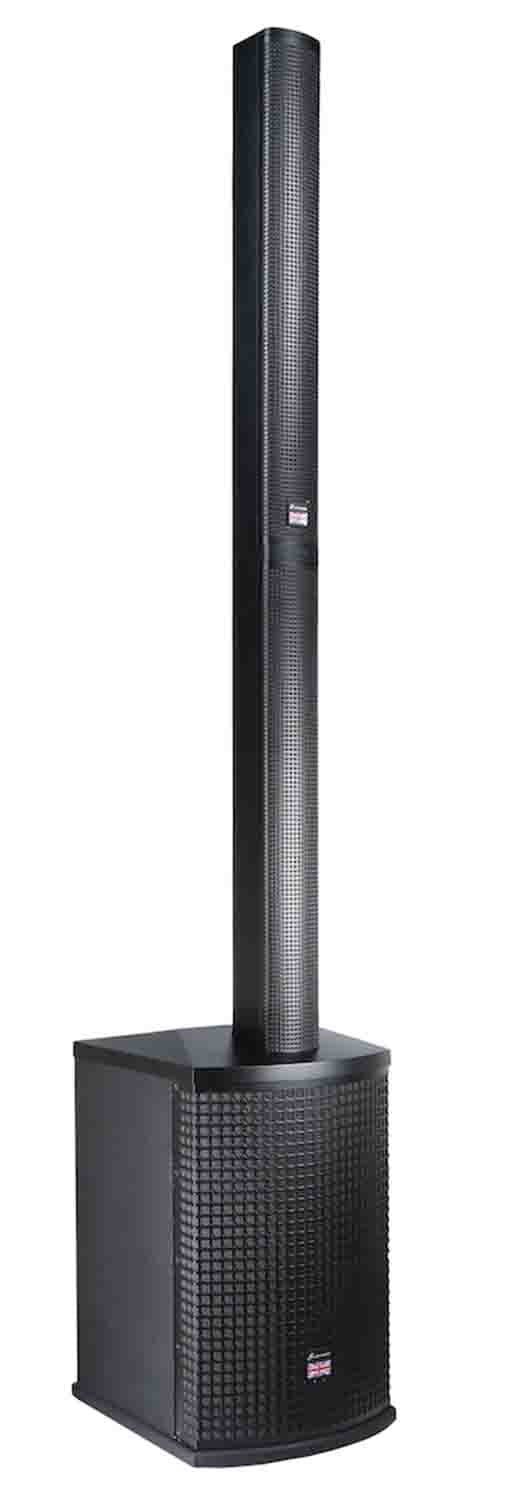

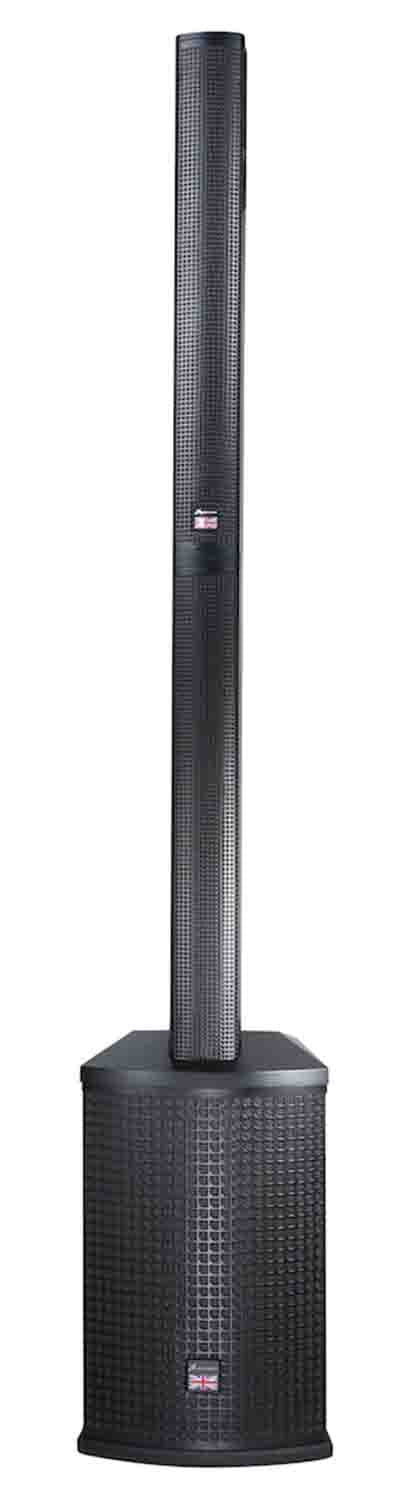

Studiomaster Direct 121 Compact Vertical Array PA System

The Studiomaster Direct 121 is a Compact Vertical Array PA System for versatile use. DIRECT includes 6 x 3″ mid frequency transducers for perfect clarity of instruments and voice. The 1″ high precision driver delivers dynamic and clear highs. The subwoofer is featured by one professional 10″ or 12″ transducer for well-defined lows. The on-board 4-channel mixer enables for a wide range of applications. Connecting microphones, instruments, players or even wireless bluetooth streaming sources: DIRECT is ready for it. The built-in DSP with it´s graphic display upgrades your sound to high definition audio quality.

Product Specifications:

Direct Vertical Array:

MF - 6 x 3" mid-range speaker
HF - 1 x 1" compression driver
Coverage (HxV) - 120° x 30°
Rated Power - 180 W (RMS)
Rated Impedance - 6 Ohms
Dimensions(WxHxD) - 108 x 835 x 98 mm
Net Weight (kg) - 3.9kg

Direct 12AX Mixer:

Mixer - analogue
Inputs - 4 Channels (2x Mic/Line, 1x Hi-Z, 1x RCA & Bluetooth)
Input connectors - 2x XLR jack combo, 1x UNBAL TRS Jack, 1x RCA stereo
Input impedance - 10 k Ohms Balanced, 470 k Ohms Unbalanced
Output connector - 2x Line link XLR, 1x Main out XLR (pre DSP)

Amplifier:

Rated power - 2 x 300 W RMS
Frequency range - 20 Hz - 20 kHz
DSP connection - 24 bit (1 in-2 out)

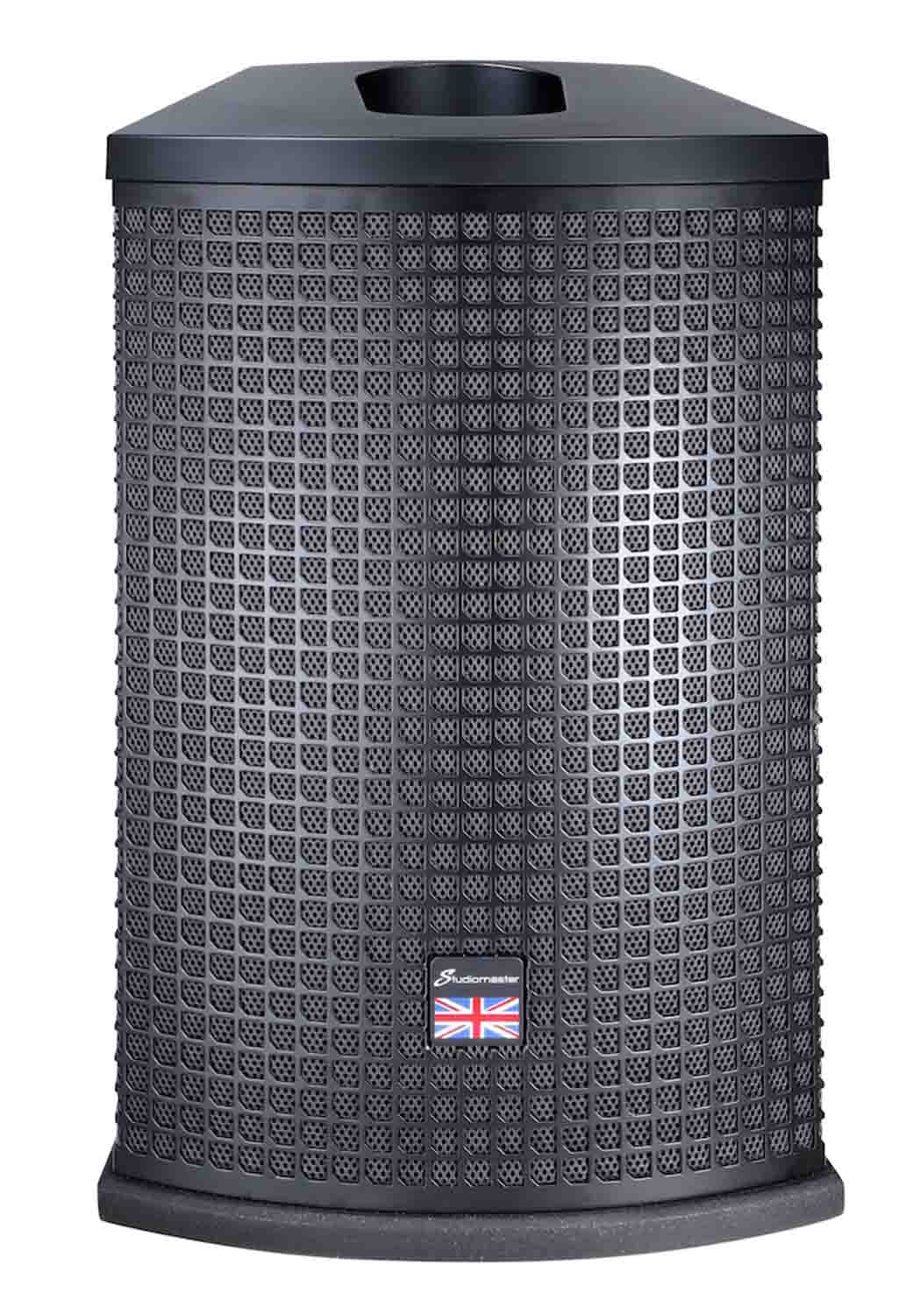

Subwoofer:

Speaker type - 1 x 12" transducer
Rated Power - 300W (RMS)
Rated Impedance - 4O
Dimensions (WxHxD) - 358*616*447mm
Net Weight (kg) - 23kg
