SKB Cases 3SKB-R916U24, 16-Space ATA Roto-Molded Shock 24-Inch Rack Shipping Case

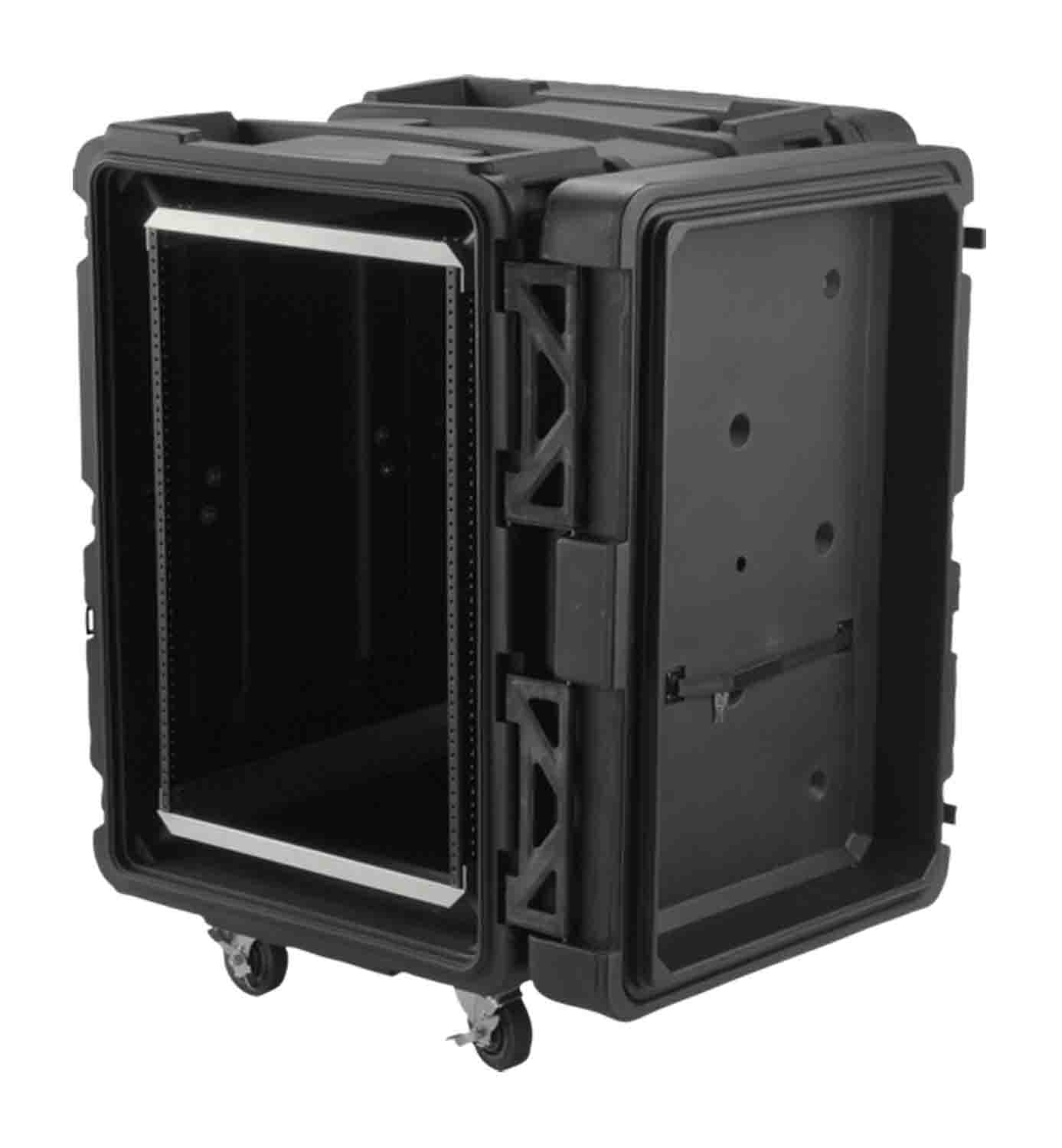

The SKB Cases 3SKB-R916U24, 16-Space ATA Roto-Molded Shock 24-Inch Rack Shipping Case feature a standard depth of 24" from front to rear rail, with lid depths of 4.5" per lid. All 3SKB Series Roto Shock Racks feature a compound hinge system that allows the lid to swing out and completely around to lie flat against the main body of the case. This also enables effortless removal/reinstallation of the lid with a simple lift motion.

Both front and rear lids are designed to protrude into the base of the case approximately 1" with a unique double wall structure that makes them incredibly rigid where this intersection occurs, providing MIL-SPEC sealing characteristics with significantly fewer latches than most competitive cases. This revolutionary design allows for rapid deployment in an up-right configuration, even when stacked -- 3SKB Roto Shock Racks are the only shock racks in the marketplace today that will open front and back while stacked.

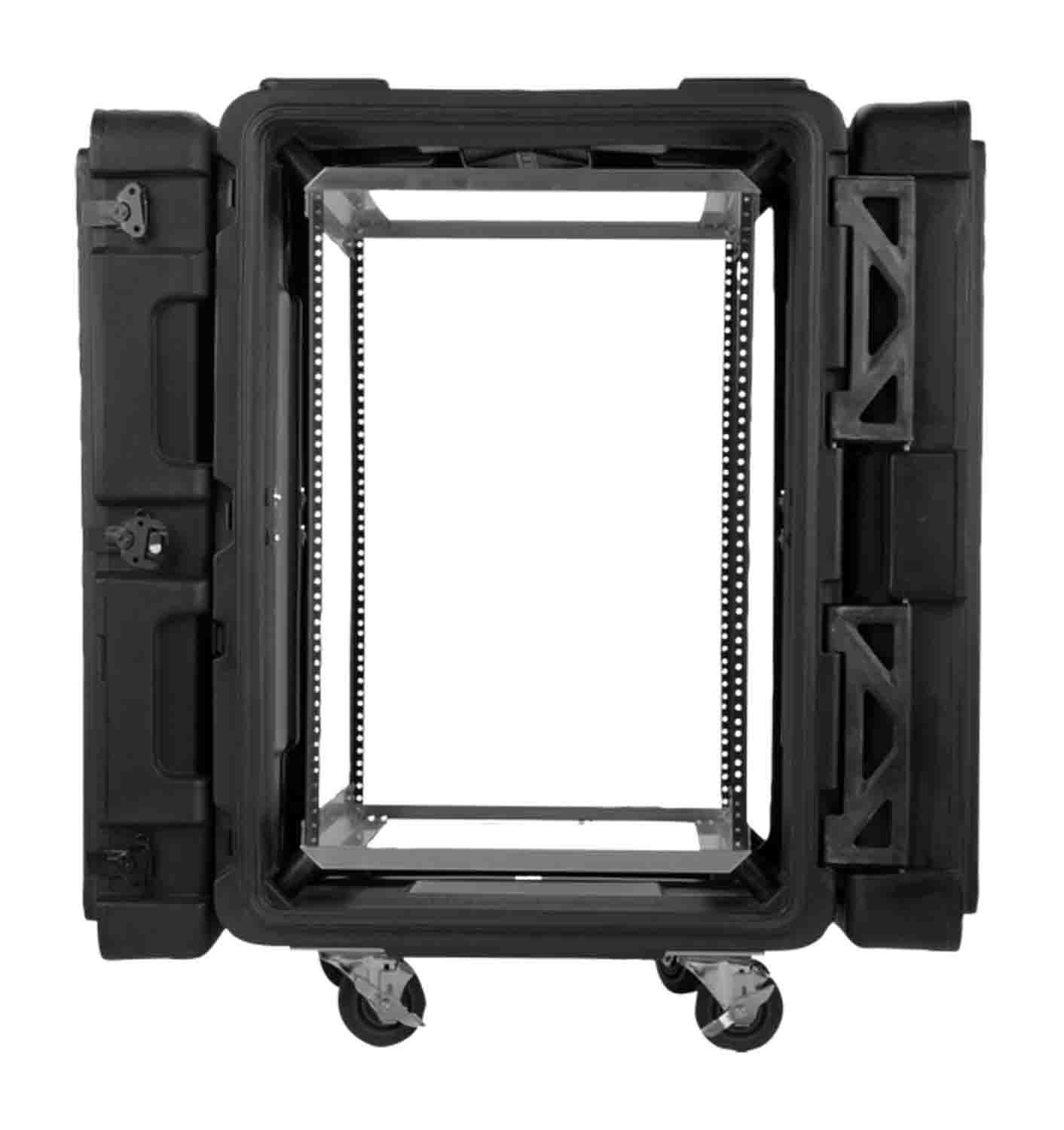

The inner rack chassis is built of high strength / lightweight aluminum alloy and 11 gauge hot rolled carbon steel rack rails to DIA-310 standards, creating an H-shaped frame that provides maximum strength. Shock and vibration mitigation is accomplished with eight (8) elastomeric isolators rated for a payload range of 40 - 150 pounds in a standard configuration, and up to 300 pounds in a special order extended payload configuration allowing adequate sway space for ambient air circulation and heat dissipation. The rack rails come pre-threaded for standard 10-32 hardware and mounting screws are included. Other standard features include an automatic ambient pressure relief valve and removable 4" casters.

Product Specifications:

Exterior: Hard

Built in Shocks: Yes

Rack Units: 16

Front Rail to Back Lid: 28.25 in

Rail to Rail: 23.75 in

Rear Rail to Front Lid: 28.25 in

Product Weight: 117.54 lb

Exterior Length: 35.75 in

Exterior Width: 37.5 in

Exterior Height: 26.5 in

Package Weight: 125.24 lb

Box Dimensions (LxWxH): 39 x 36 x 27"
