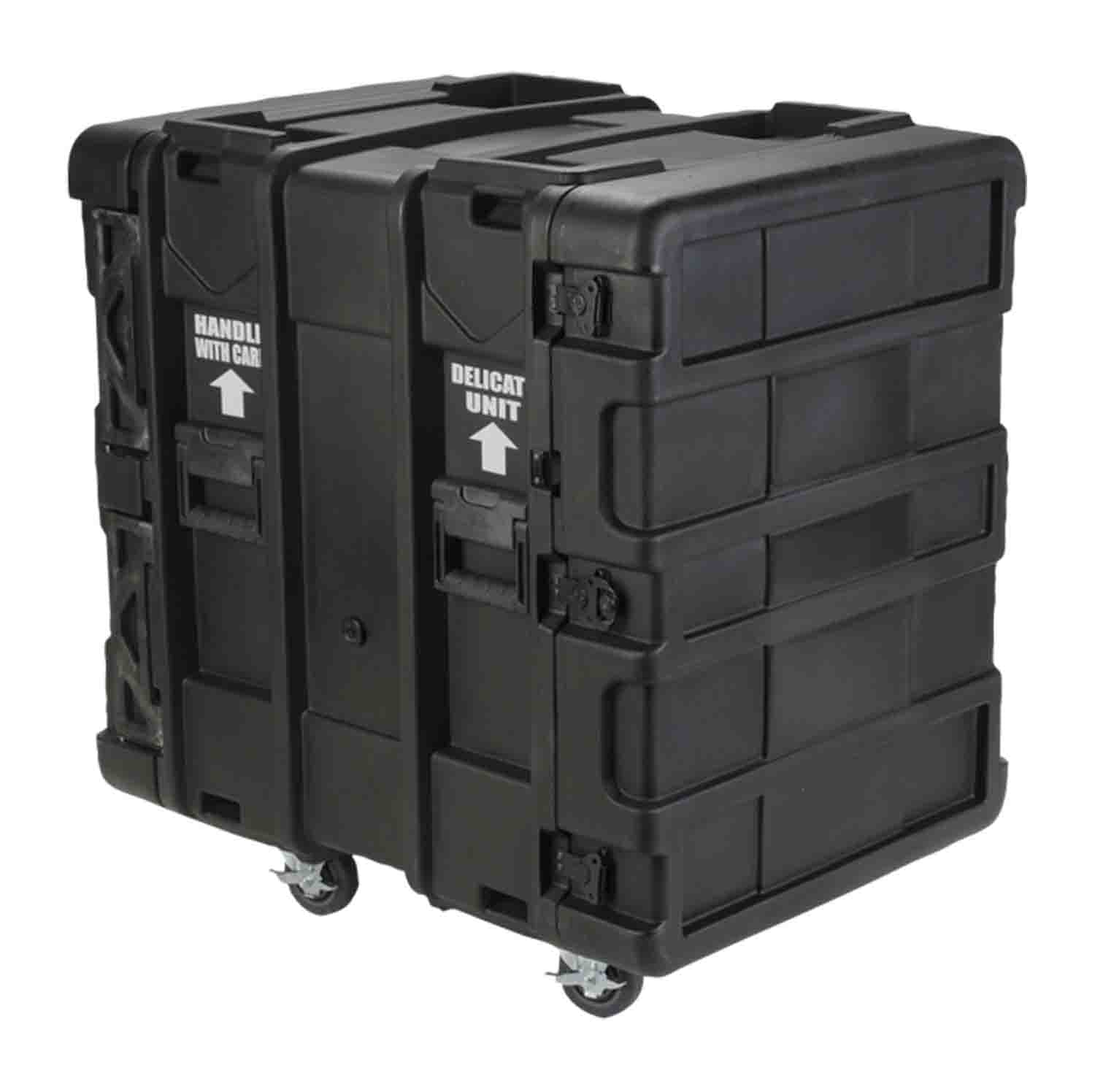

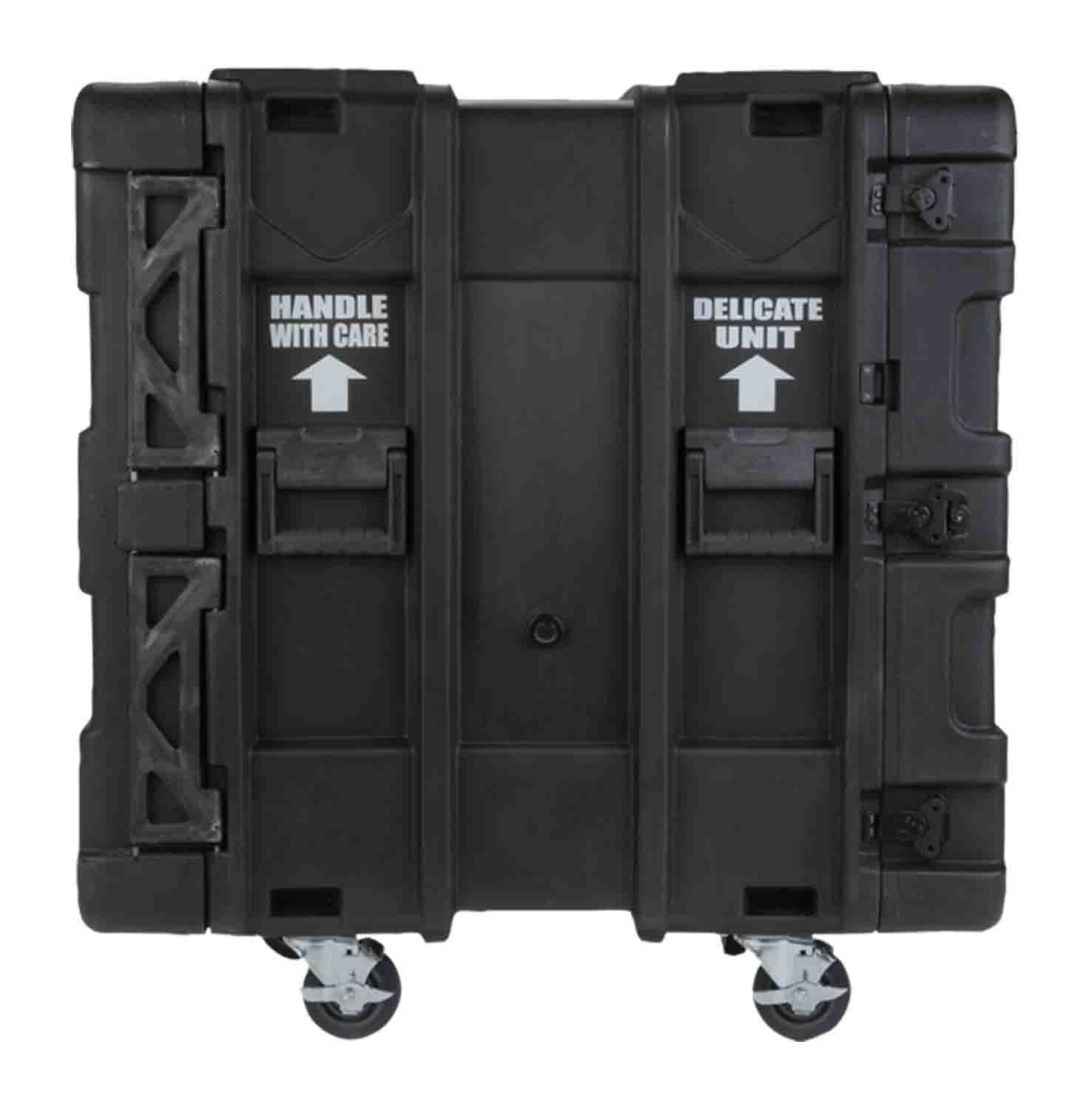

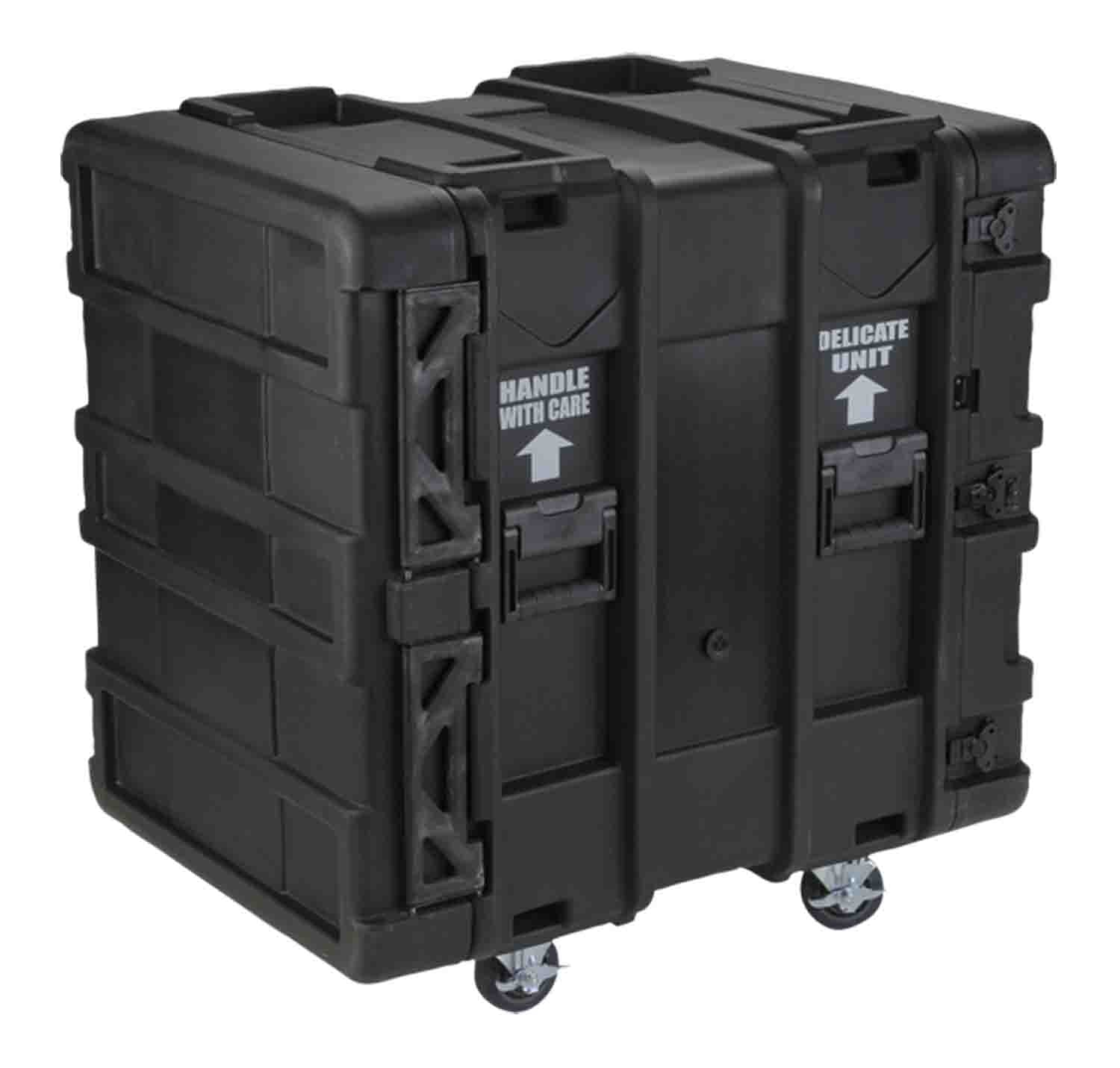

SKB Cases 3SKB-R914U24 14U 24-inch Deep rSeries Shock Rack Case

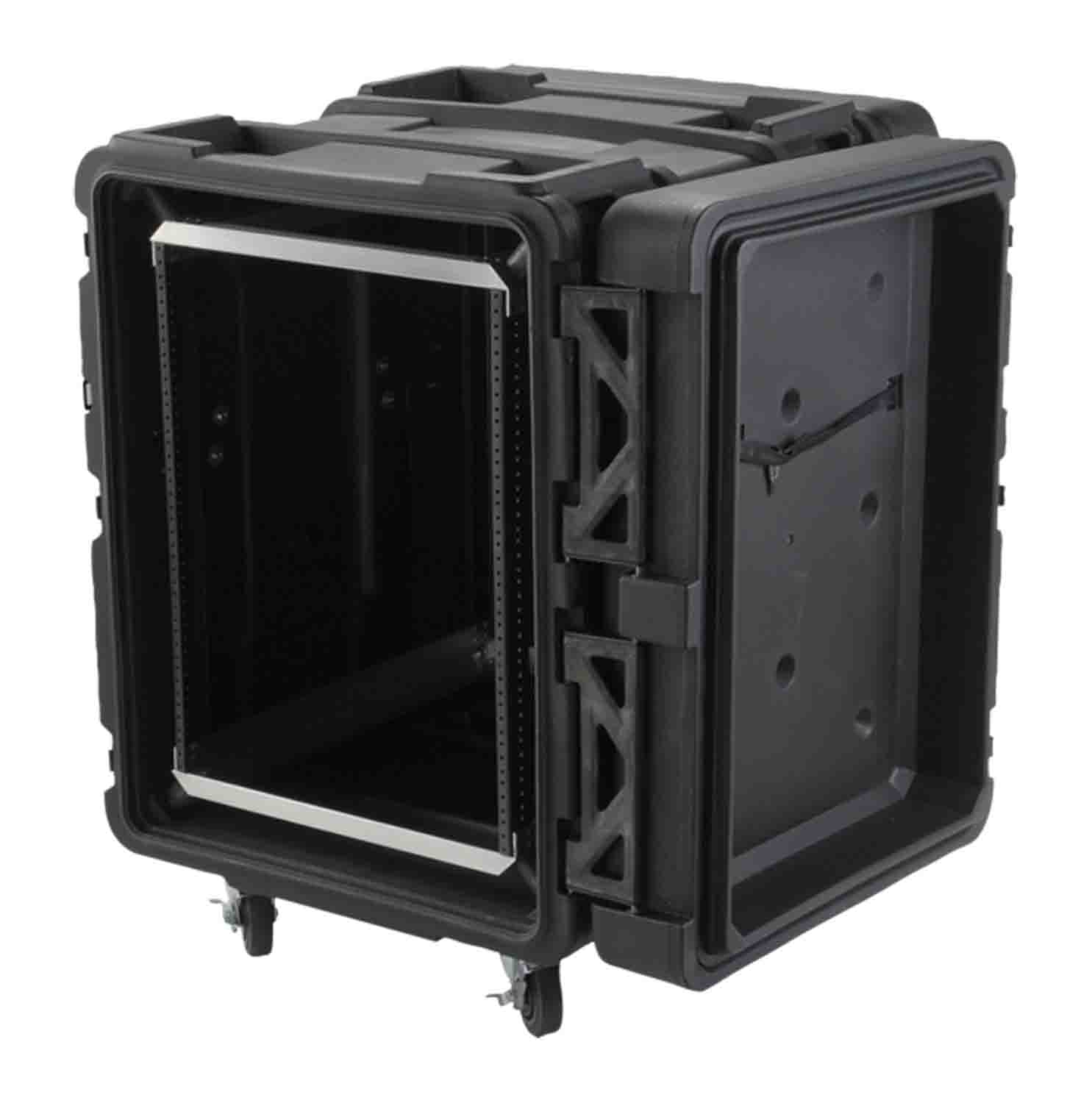

The SKB Cases 3SKB-R914U24 14U 24-inch Deep rSeries Shock Rack Case feature’s a standard depth of 24" from front to rear rail, with lid depths of 4.5" per lid. All 3SKB Series Roto Shock Racks feature a compound hinge system that allows the lid to swing out and completely around to lie flat against the main body of the case. This also enables effortless removal/reinstallation of the lid with a simple lift motion.

Both front and rear lids are designed to protrude into the base of the case approximately 1" with a unique double wall structure that makes them incredibly rigid where this intersection occurs, providing MIL-SPEC sealing characteristics with significantly fewer latches than most competitive cases. This revolutionary design allows for rapid deployment in an up-right configuration, even when stacked - 3SKB Roto Shock Racks are the only shock racks in the marketplace today that will open front and back while stacked.

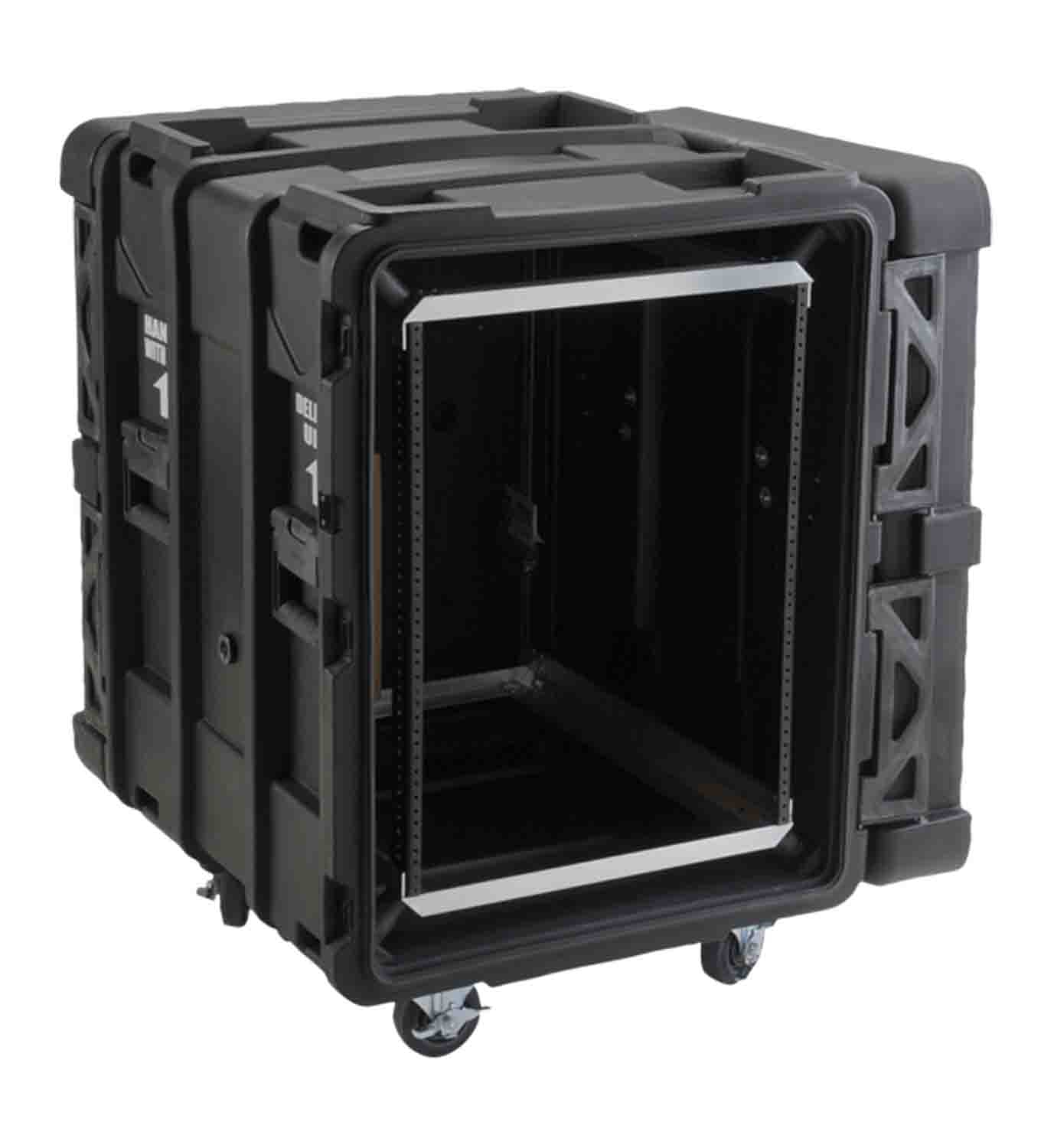

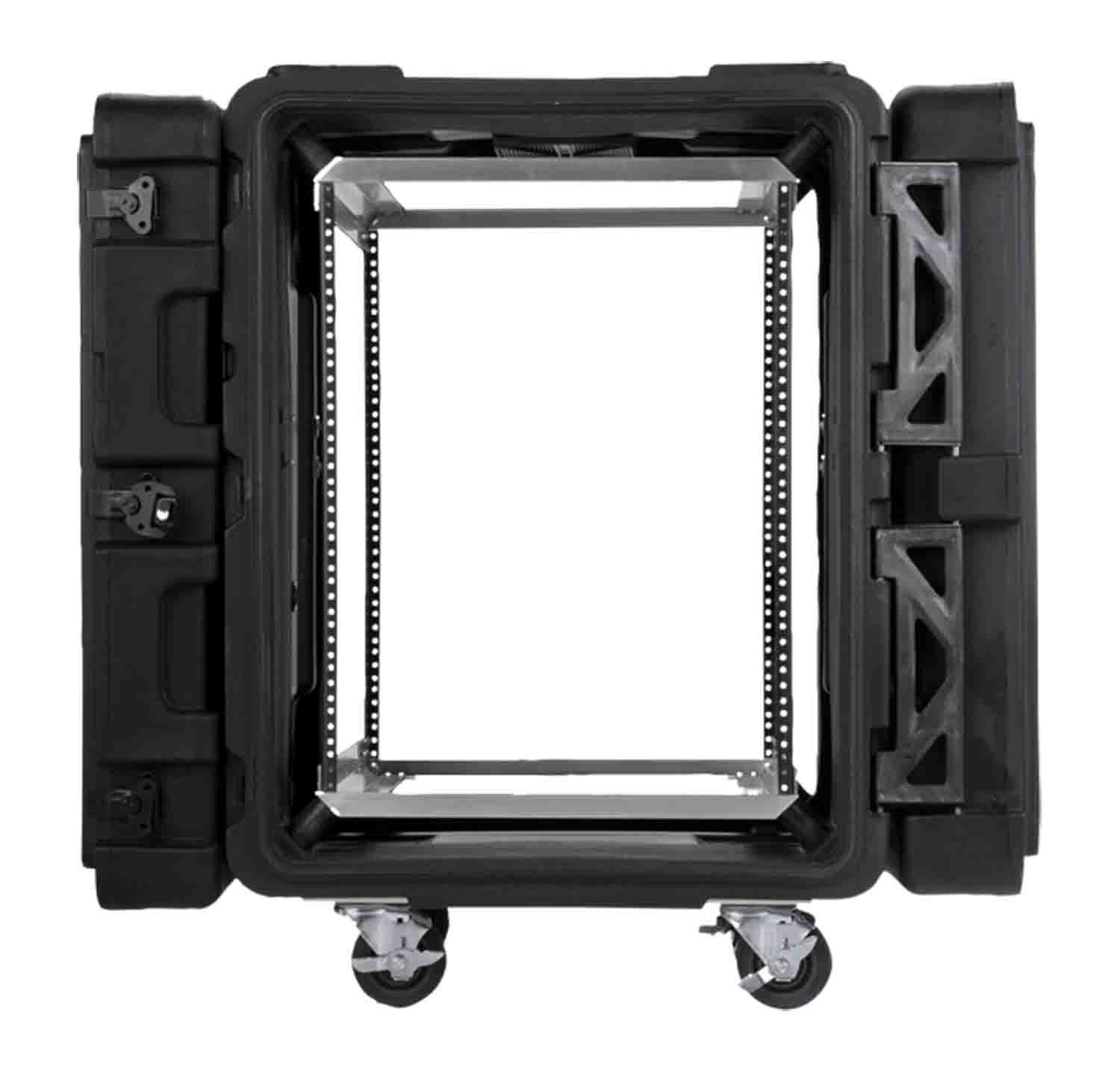

The inner rack chassis is built of high strength / lightweight aluminum alloy and 11 gauge hot rolled carbon steel rack rails to DIA-310 standards, creating an H-shaped frame that provides maximum strength. Shock and vibration mitigation are accomplished with eight (8) elastomeric isolators rated for a payload range of 40 - 150 pounds in a standard configuration, and up to 300 pounds in a special-order extended payload configuration allowing adequate sway space for ambient air circulation and heat dissipation. The rack rails come pre-threaded for standard 10-32 hardware and mounting screws are included. Other standard features include an automatic ambient pressure relief valve and removable 4" casters.

Product Specification:

Case Type: Shock-Mounted Rack Case

Rail Placement: Front, Rear

Carrying/Transport Options: Removable Wheels, Spring-Loaded Handle

Type of Closure Lockable: Latch

Number of Wheels: 4 x Swivel (4 Locking)

Shock Protection: Yes

ATA-Compliant: Yes

Material of Construction: Polyethylene

Interior Depth: 24" / 60.96 cm

Interior Height: 24.5" / 62.23 cm

Interior Width: 19" / 48.26 cm

Lid Depth: 4.5" / 11.43 cm ()

Caster/Wheel Size: 4" / 10.2 cm

IP Rating: None

Exterior Dimensions (W x H x D): 36 x 34.0 x 26.6" / 91.4 x 86.2 x 67.5 cm

Weight: 105 lb / 47.6 kg

Package Weight: 116.3 lb

Box Dimensions (LxWxH): 37 x 35 x 28"
