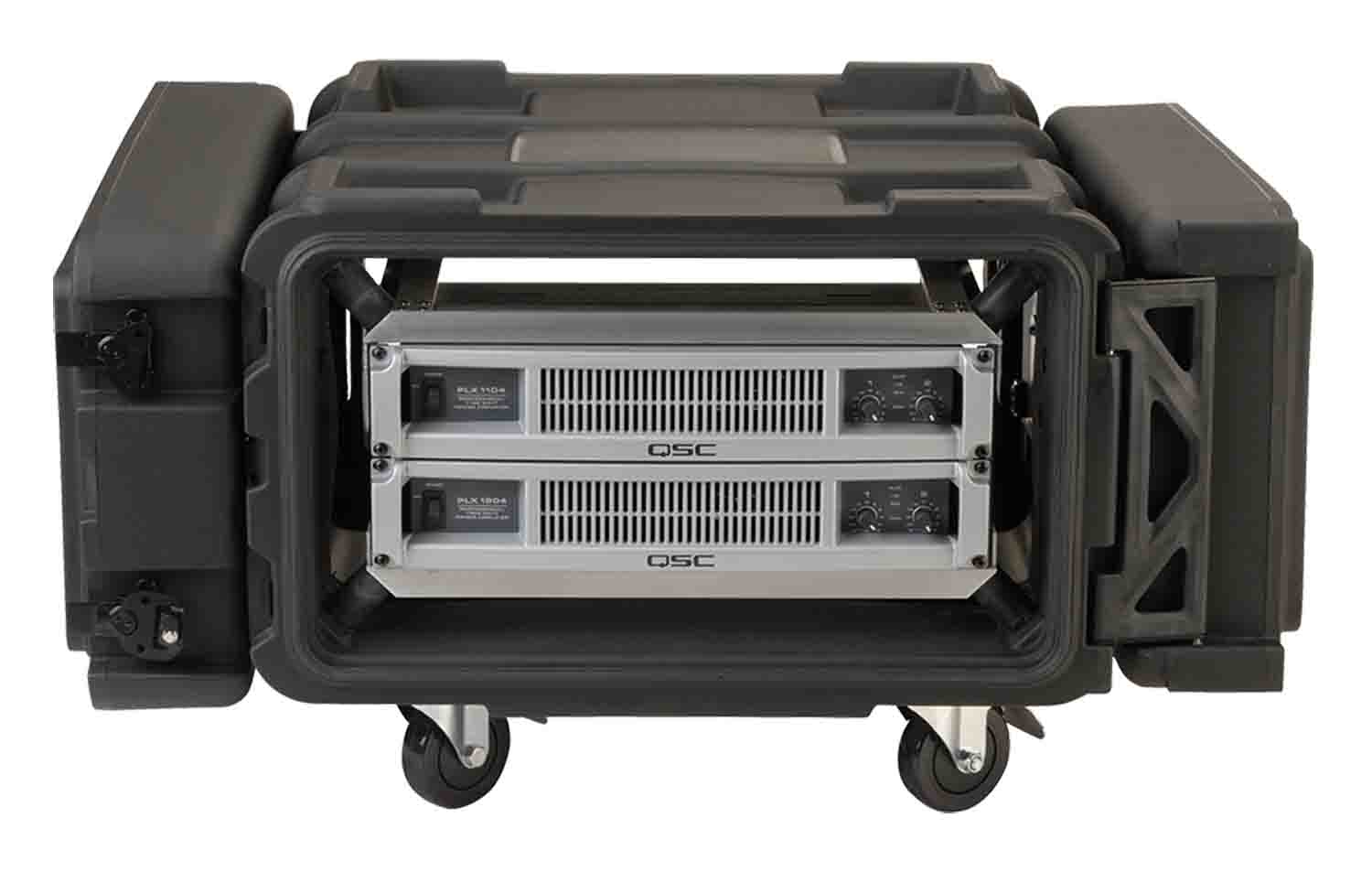

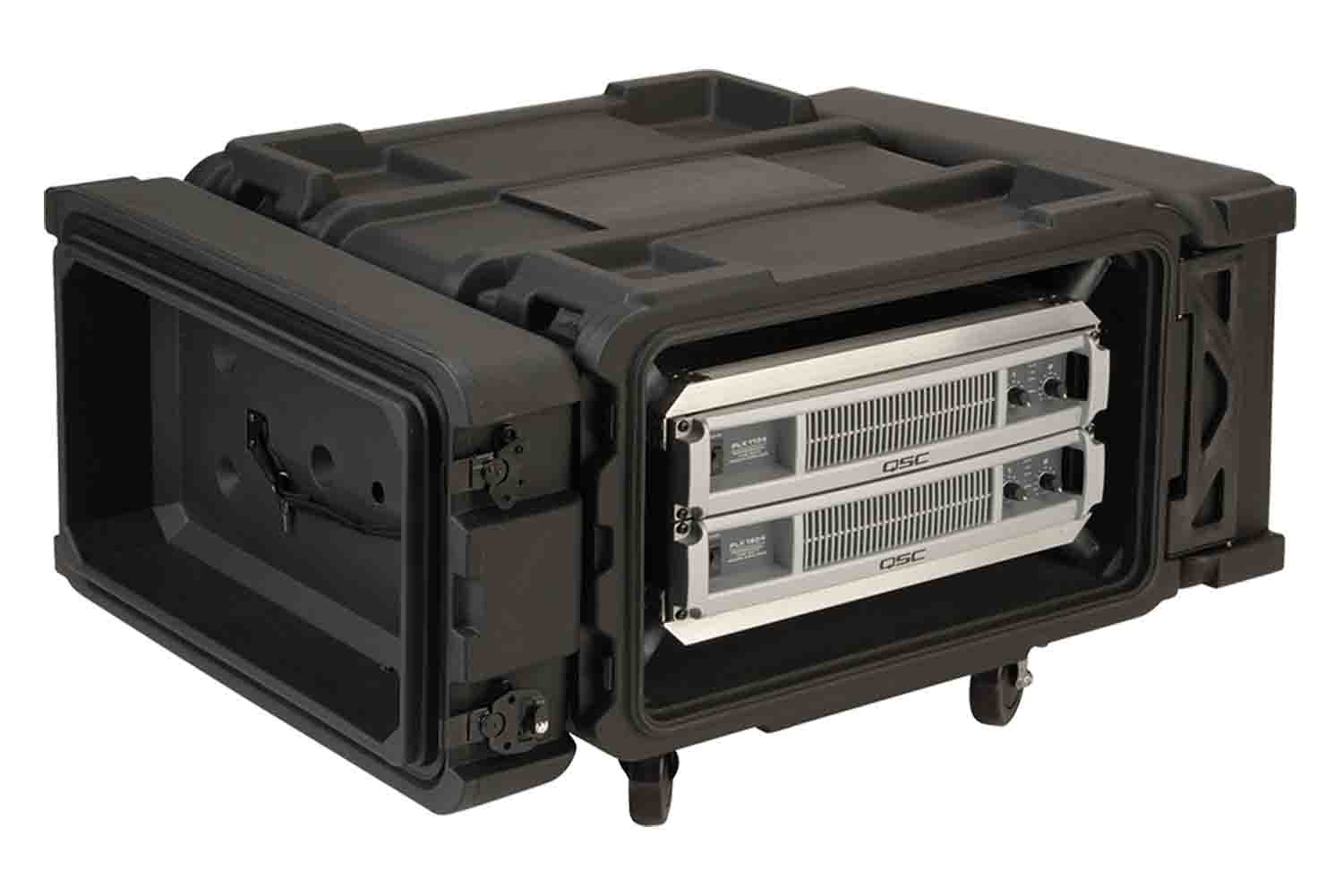

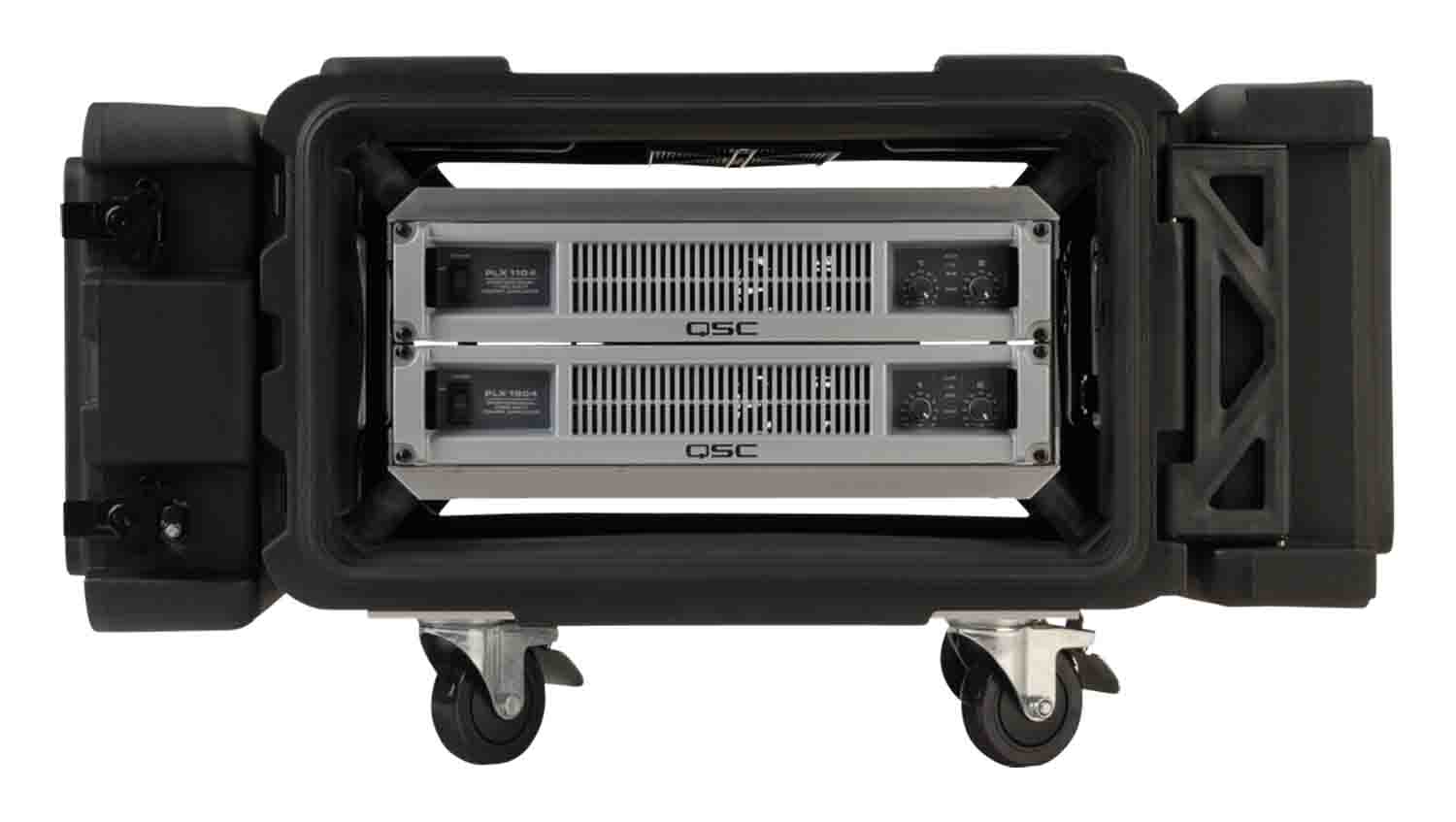

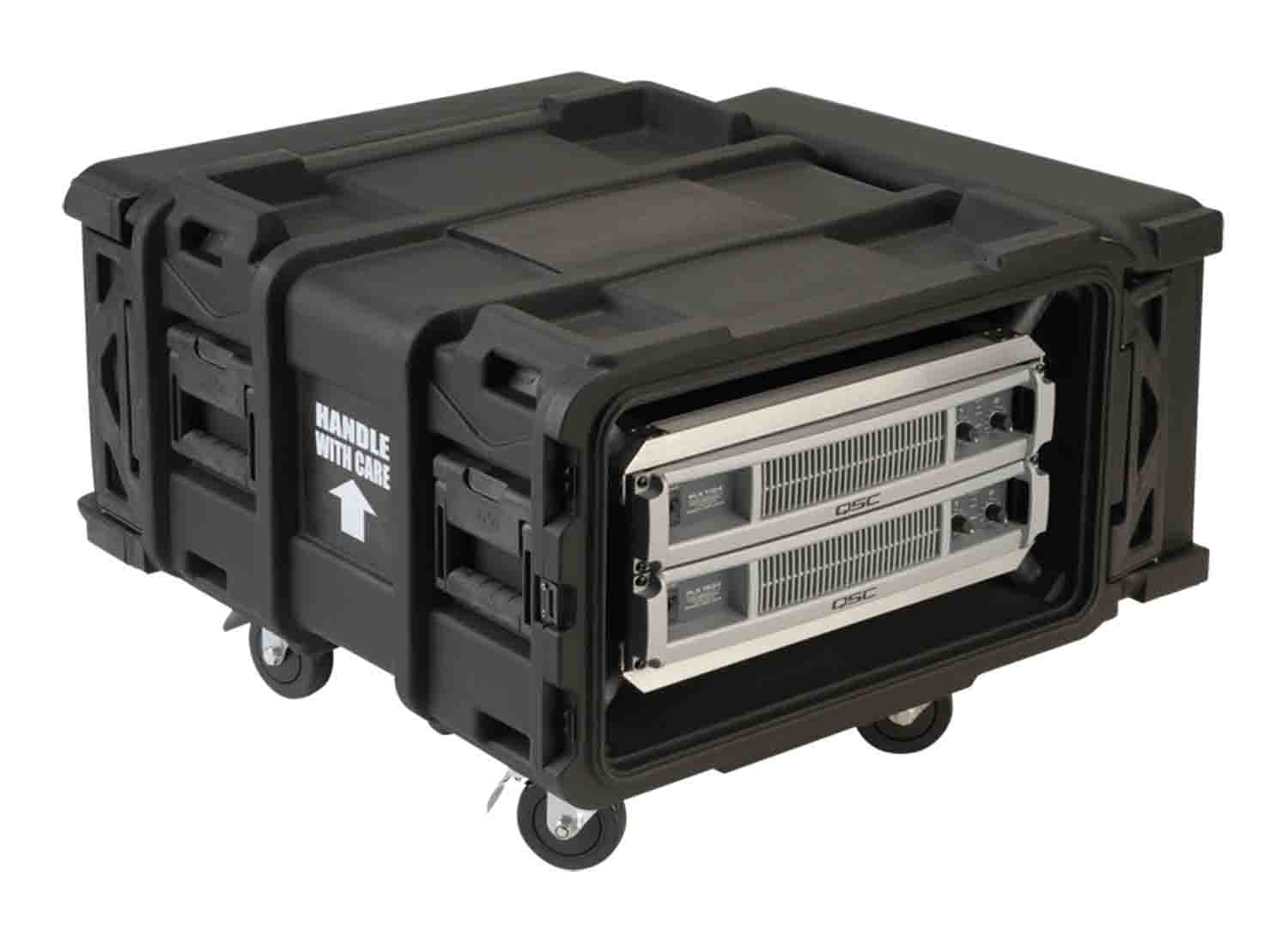

SKB Cases 3SKB-R904U24, 24-Inch 4U Roto Shock Rack

The SKB Cases 3SKB-R904U24, 24-Inch 4U Roto Shock Rack feature a standard depth of 24" from front to rear rail, with lid depths of 4.5" per lid. All 3SKB Series Roto Shock Racks feature a compound hinge system that allows the lid to swing out and completely around to lie flat against the main body of the case. This also enables effortless removal/reinstallation of the lid with a simple lift motion.

Both front and rear lids are designed to protrude into the base of the case approximately 1" with a unique double wall structure that makes them incredibly rigid where this intersection occurs, providing MIL-SPEC sealing characteristics with significantly fewer latches than most competitive cases. This revolutionary design allows for rapid deployment in an up-right configuration, even when stacked -- 3SKB Roto Shock Racks are the only shock racks in the marketplace today that will open front and back while stacked.

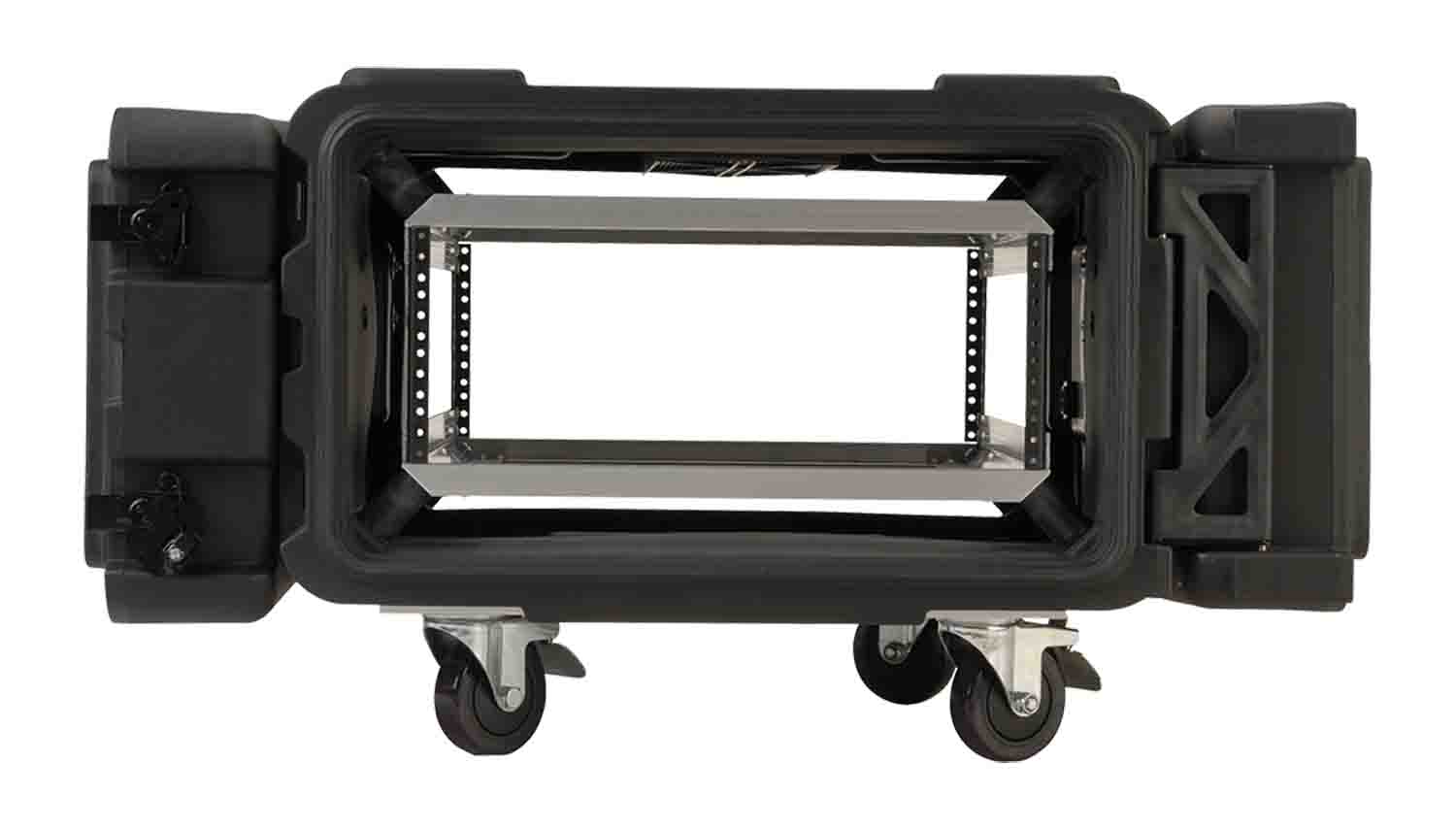

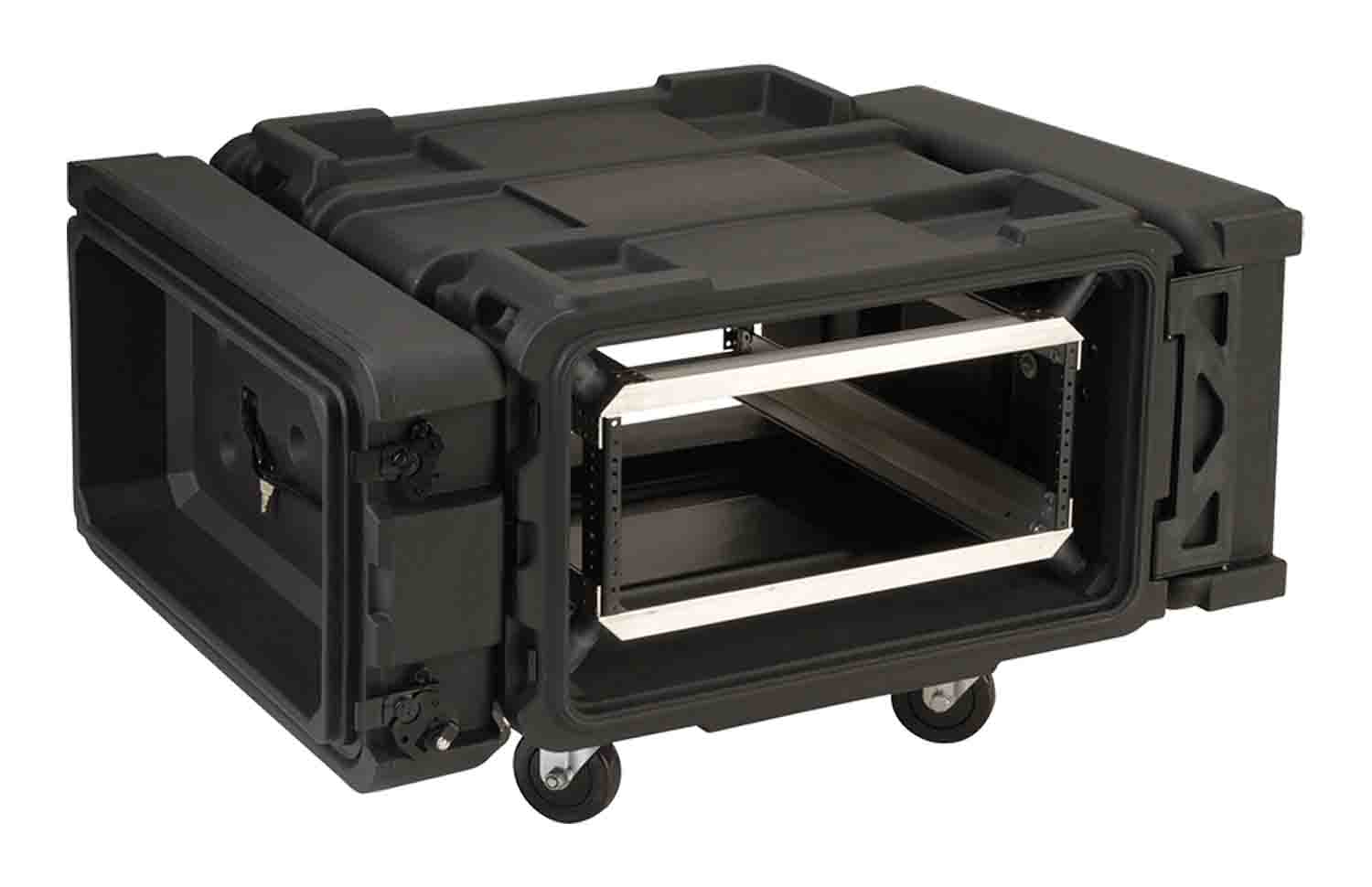

The inner rack chassis is built of high strength / lightweight aluminum alloy and 11 gauge hot rolled carbon steel rack rails to DIA-310 standards, creating an H-shaped frame that provides maximum strength. Shock and vibration mitigation are accomplished with eight (8) elastomeric isolators rated for a payload range of 40 - 150 pounds in a standard configuration, and up to 300 pounds in a special-order extended payload configuration allowing adequate sway space for ambient air circulation and heat dissipation. The rack rails come pre threaded for standard 10-32 hardware and mounting screws are included.

Product Specification:

Case Type: Shock-Mounted Rack Case

Rack Form Factor: 4 RU

ATA-Compliant: Yes

Weight: 58 lb / 26.3 kg

Package Weight: 73 lb

Box Dimensions (LxWxH): 38 x 27 x 17"
