Sennheiser EW 100 G4-CI1-A Wireless Guitar System - 516 to 558 MHz

The Sennheiser EW 100 G4-CI1-A is a Wireless Guitar System 516 to 558 MHz. Engineered for professional live sound Rugged all-in-one wireless system for guitar and bass. The robust bodypack transmitter and Ci1 instrument cable for daily use on stage. Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range.

Reliability and Performance

Eventually, you’ll get to a level in your career as an engineer or musician when the size stage you’re performing on demands more than an entry-level wireless system. You simply need more reach, more power, and more reliability than what a 2.4 GHz system will allow. Enter the evolution wireless G4 100 Series to the next level in your journey as a stage professional.

Feature-Rich and Built to Last

The evolution wireless G4 100 Series is packed with features that make it possible to get you up and running fast and efficiently. Use the Easy Setup function to automatically scan and select the best frequencies around you and take full advantage of the UHF spectrum. With up to 100 meters of range and a battery life of 8 hours, it’s easy to see how the durably constructed ewG4 transmitters and receivers will perform when you need them to.

The CI1 Instrument Set

For guitarists, bassists and instrumentalists alike, the EW 100 G4-Ci1 is the set you need to take your wireless performance to the next level. Featuring the same receiver and bodypack transmitter as the other ewG4 sets, the Ci1 replaces a microphone with a 1/4" (6.3mm) instrument cable that includes a 3.5mm locking connection. A metal housing strikes the perfect balance between lightweight and rugged, built to handle the lifestyle of a working musician.

What's in the Box

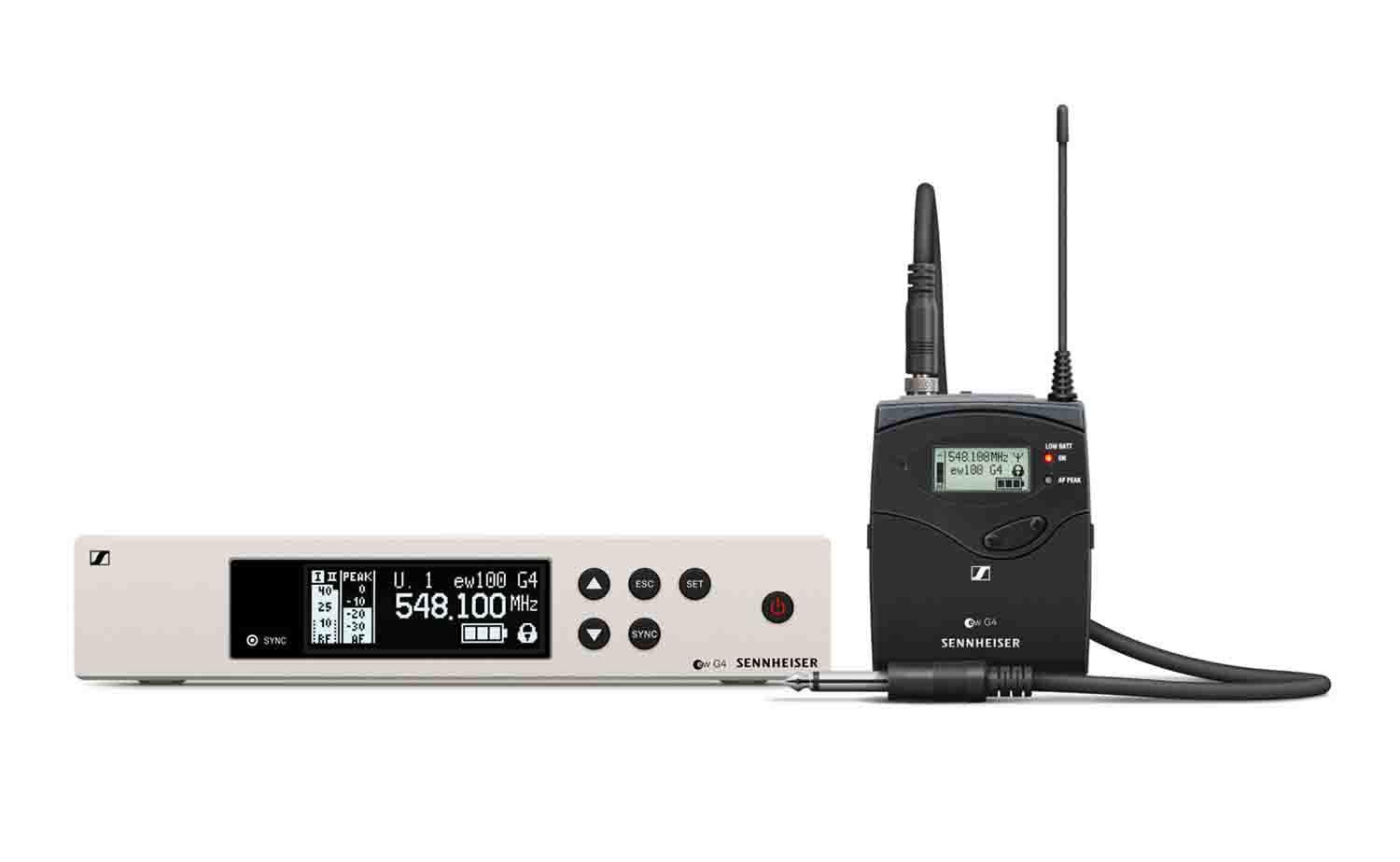

EM 100 G4 true diversity receiver

SK 100 G4 bodypack transmitter

Ci 1 instrument cable

rackmount set

Power supply

2 AA batteries

2-rod antennas

RJ 10 cable

Quick guide

Safety guide

Manufacturer declaration sheet

Frequency supplement sheet

Product Specifications:

Configuration: Wireless Instrument System

System Simultaneous Channels: Up to 12

System Analog/Digital: Analog

System Frequency Range: 516 - 558 MHz (A band)

System Operating Range: 330 ft. Line-of-sight

System Channel Selection: Auto/Manual

System: Frequency Response: 25Hz-18kHz

Instrument Cable Connector 1: 1/4"

Instrument Cable Connector 2: 1/8"

Transmitter Form Factor: Bodypack

Transmitter Mute Feature: Yes

Transmitter Battery Type: 2 x AA, 1.5 V or BA 2015 accupack

Transmitter Battery Life: 8 hours

Transmitter Connector: 1/8"

Transmitter Dimensions: 3.32" x 2.57" x 1.22"

Transmitter Weight: 0.35 lbs.

Receiver Antenna Type: Detachable

Receiver Signal/Noise Ratio: ≥110dB (A-weighted)

Receiver Front Panel Display: Yes

Receiver Displays: LCD

Receiver Type: Rackmount

Receiver Rackmountable: Yes (kit included)

Receiver Rack Spaces: Half-rack

Receiver Outputs: 1 x XLR, 1 x 1/4"

Receiver Data I/O: 2 x RJ10

Receiver Dimensions: 8.35" x 1.7" x 6.61"

Receiver Weight: 2.16 lbs.
