Sennheiser Digital Wireless Instrument System

The Sennheiser is a Digital Wireless Instrument System. Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allow for seamless product pairing and management via the EW-D Smart Assist App. With a metal housing, the robust bodypack transmitter and included CI 1 instrument cable suit perfectly for daily use on stage.

Raising the Bar

Evolution Wireless Digital breaks the boundaries by providing more dynamic range than any wireless system currently on the market. Automatically securing the most reliable signal in a matter of seconds and scalable up 90 channels thanks to 56 MHz of tuning bandwidth, it’s easy to see why this wireless system is in a class of its own.

Equidistant Spacing Simpler than it Sounds

Evolution Wireless Digital features an equidistant tuning grid previously only found in our flagship Digital 6000 and Digital 9000 wireless systems. Quality components with exceptional linearity eliminate intermodulation between EW-D transmitters, allowing frequencies to be equally spaced every 600 kHz alongside each other. This simplifies frequency coordination for wireless beginners and seasoned professionals and contributes to the system’s scalability and impressively high channel count.

An Engineer in Your Pocket

The power of Bluetooth Low Energy puts full control right in the palm of your hand with the Sennheiser Smart Assist app. Take advantage of a remarkably fast automated setup, mobile access to every system setting, and the added benefit of remote monitoring, all from the convenience of your Android or iOS device. Save time, save energy and perform with confidence.

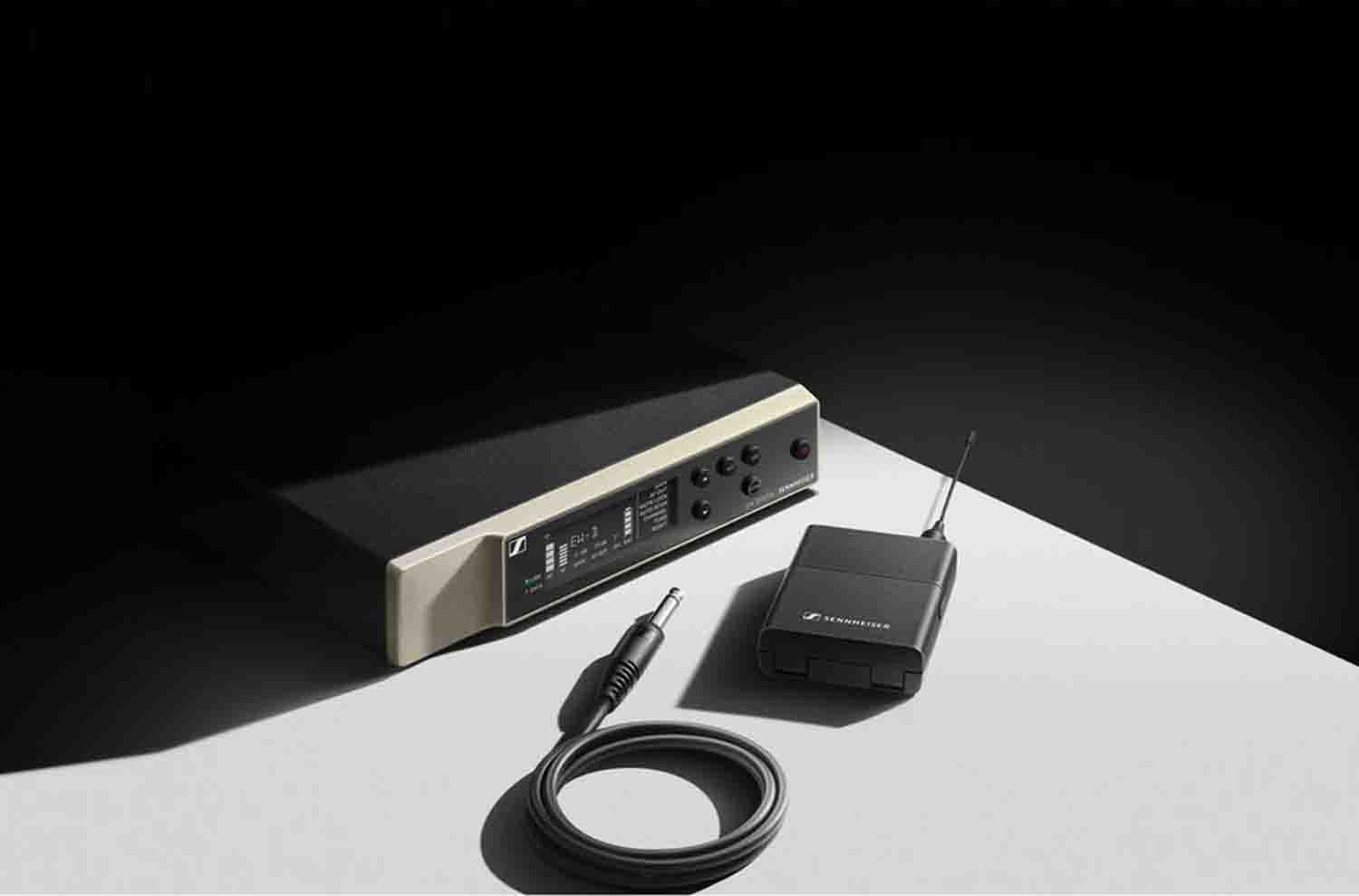

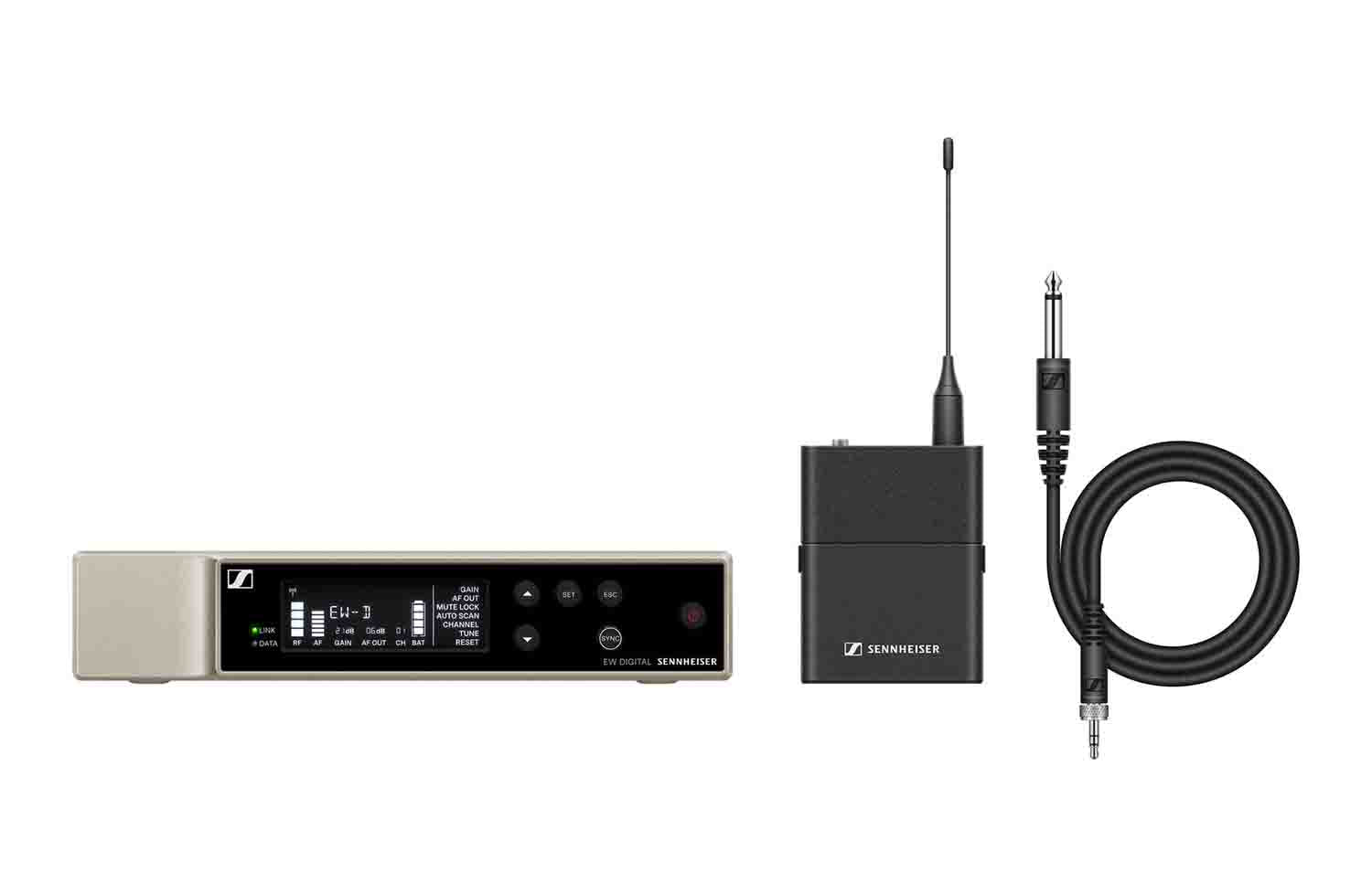

What's in the Box

EW-D EM rack receiver

EW-D SK bodypack transmitter

CI 1 instrument cable

2-rod antennas

Power supply with country adapters

Rackmount set

4 rubber feet

Quick guide

Safety guide

Manufacturer declaration sheet

Product Specifications:

Configuration: Complete System

System Analog/Digital: Digital

System Operating Range: 328 ft. Line-of-sight

System Frequency Response: 20Hz-20kHz

Instrument Cable Connector 1: 1/4"

Instrument Cable Connector 2: 1/8"

Transmitter Form Factor: Bodypack

Transmitter Dynamic Range: 134dB

Transmitter Mute Feature: Yes

Transmitter Battery Type: 2 x AA (included) or Rechargeable Lithium-ion battery (not included)

Transmitter Battery Life: 8 hours (AA), 12 hours (rechargeable)

Transmitter Connector: 1/8"

Transmitter Dimensions: 2.4" x 3.1" x 0.78"

Transmitter Weight: 0.26 lbs.

Receiver Antenna Type: Detachable

Receiver Front Panel Display: Yes

Receiver Displays: OLED

Receiver Type: Table Top, Rackmount

Receiver Rackmountable: Yes

Receiver Rack Spaces: Half-rack

Receiver Outputs: 1 x XLR, 1 x 1/4"

Receiver Power Source: 12V DC power supply

Receiver Dimensions: 8.3" x 1.7" x 7.4"

Receiver Weight: 2.2 lbs.
