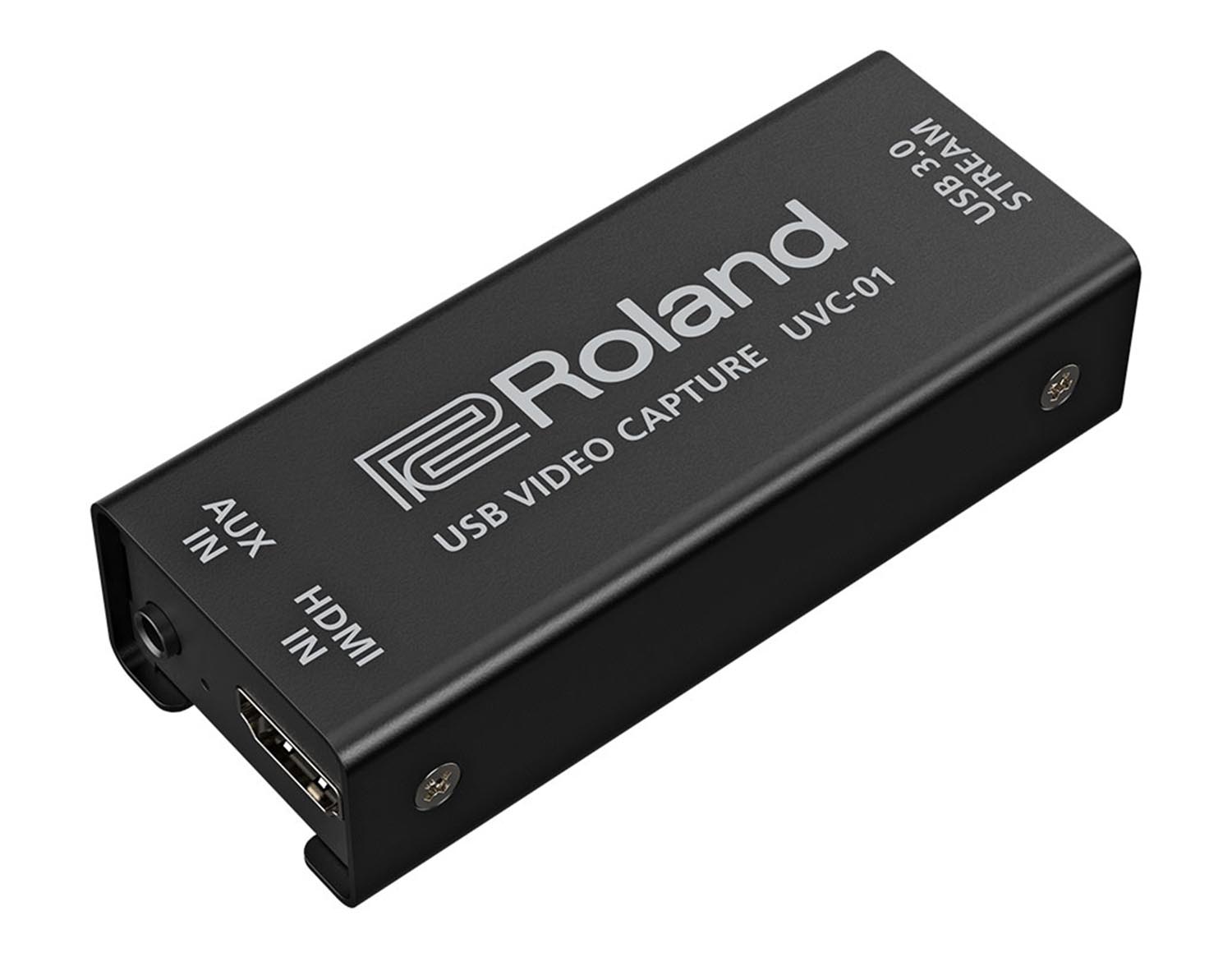

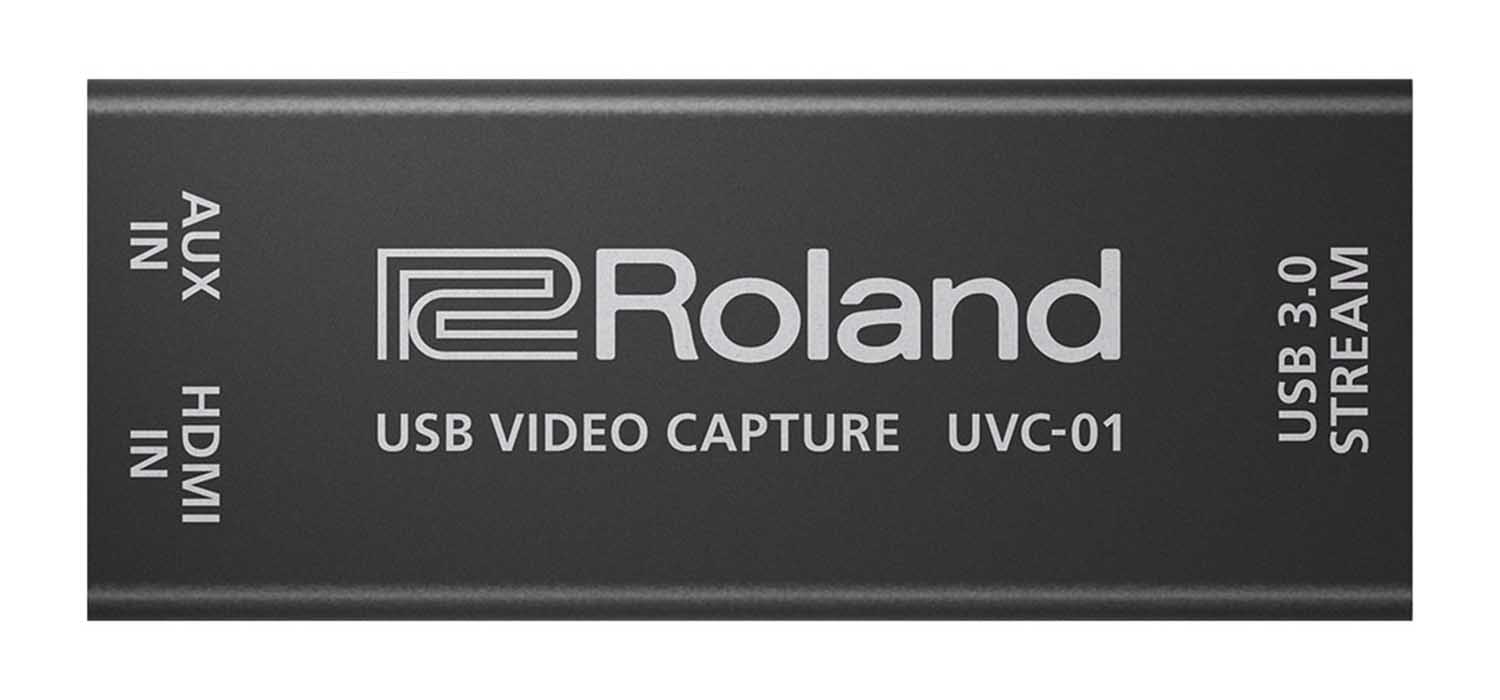

ROLAND UVC-01 USB Video Capture

The ROLAND UVC-01 USB Video Capture allows you to connect an HDMI source to your computer to integrate the signal into your live streams. Simply connect your HDMI-equipped camera, switcher, game system, or other device to the HDMI input, and then plug the UVC-01 to your computer's USB port using an included USB cable. The UVC-01 supports up to uncompressed 1080p60 resolution and works plug-and-play with Mac and Windows computers.

Quality You Can Count On:

Backed by more than two decades of professional A/V product development, Roland’s UVC-01 drives your livestream with uncompressed 1080p HD image quality, ultra-smooth 60 FPS motion, and low-latency encoding. And thanks to its hardware-based design, it just works every time you need it—efficiently, consistently, and reliably.

A Sound Solution:

With the UVC-01, stereo audio is embedded in the HDMI feed along with video. And thanks to the dedicated audio input, it’s possible to blend a secondary sound source as well. For example, you can play bumper music from your smartphone, or use Roland’s GO-MIXER Pro to combine a mic and instruments for impactful musical performances.

Capture and Distribute:

In some situations, you may want to record a presentation ahead of time and distribute it online after the fact. With the free Roland Live Recorder (Windows) and Video Capture for VR (Mac) applications, you can capture high-quality video and audio through the UVC-01 in real time, ready for upload to video sharing sites.

Plug in and Stream:

Once connected, the UVC-01 automatically shows up as a source in your streaming software, with no drivers or fussy setup required. Like a dedicated webcam, it encodes HDMI to USB video class and USB audio class formats, letting you instantly stream at superspeed USB 3.0 with any service, platform, or application that accepts a webcam as its A/V source.

Reach More People:

By delivering your message to in-person and online audiences at the same time, you can achieve a wider reach with minimal extra effort. Using a Roland professional video switcher in tandem with a UVC-01, it’s simple to create these hybrid productions. Just connect the UVC-01 to the second output of your switcher and simultaneously broadcast live action to your preferred streaming platform.

Product Specification:

Type: Video Capture Device

Video Formats: 1080p/60fps

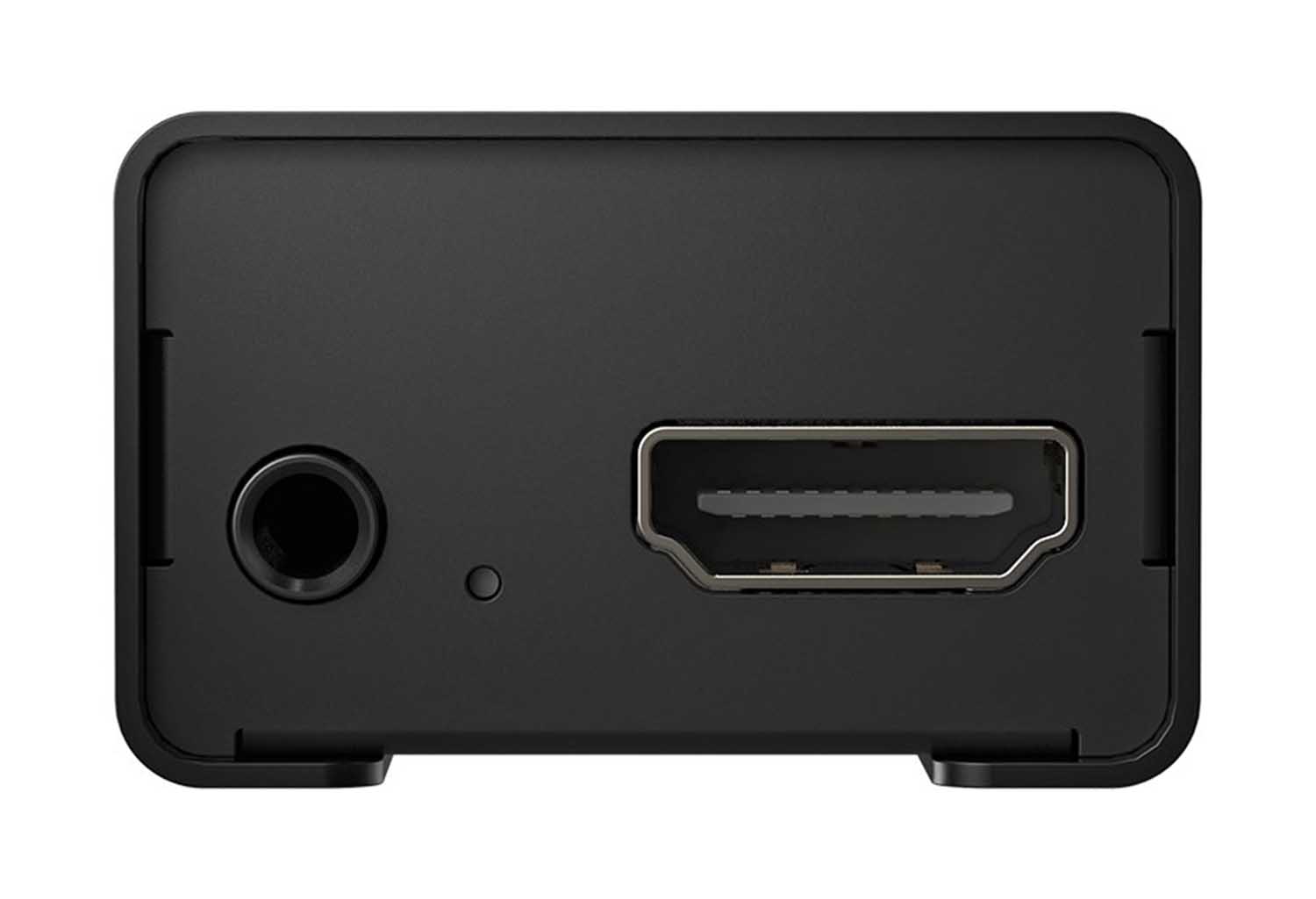

Video Inputs: 1 x HDMI Type A

Audio Inputs: 1 x 1/8" (stereo aux)

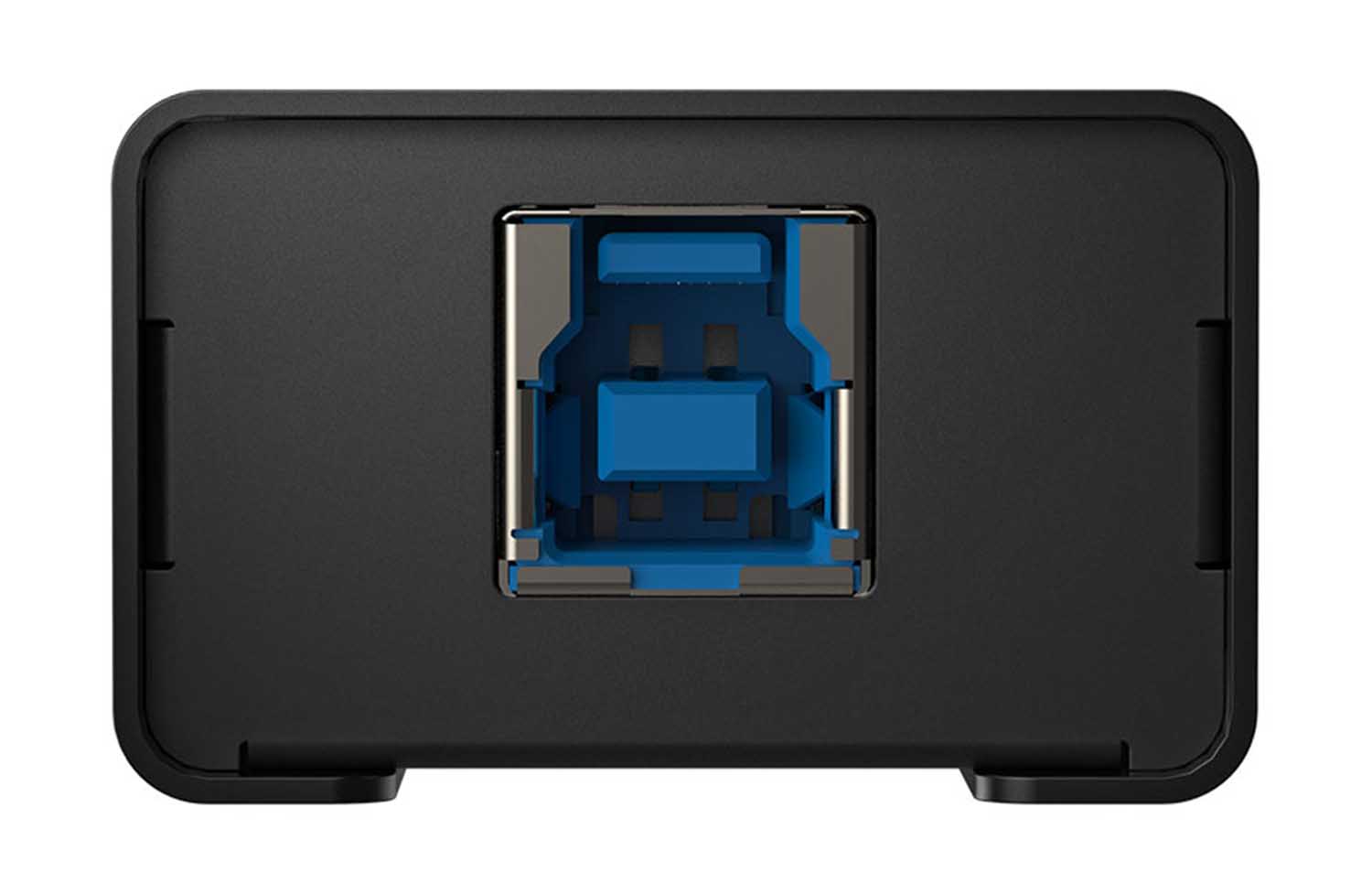

USB: 1 x Type B 3.0

Form Factor: Portable

Power Source: USB bus powered

Height: 0.93"

Width: 3.56"

Depth: 1.5"

Weight: 0.25 lbs.
