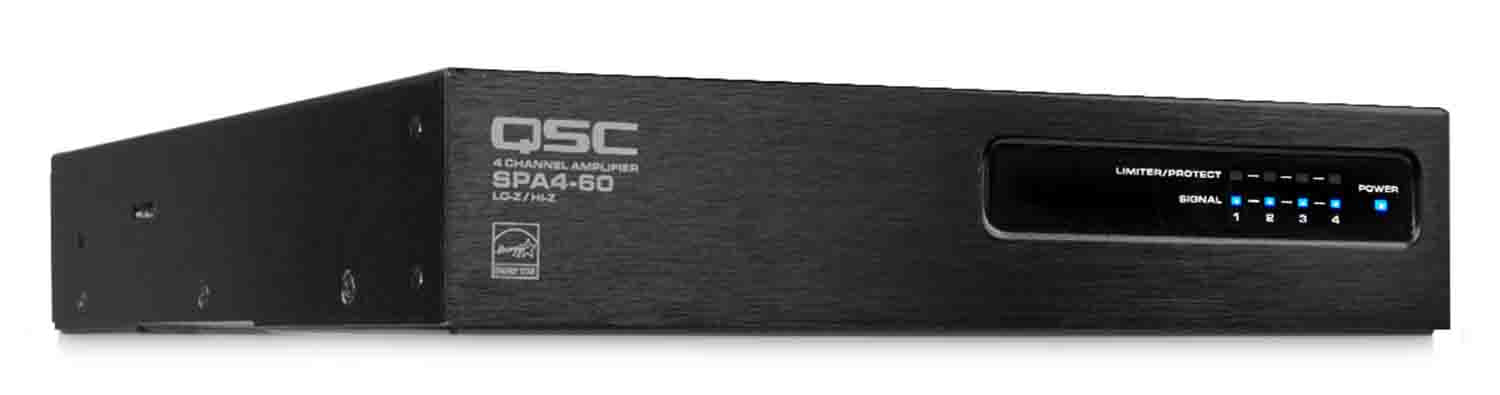

QSC SPA4-60 4-Channel Power Amplifier

The QSC SPA4-60 4-Channel Power Amplifier is an advanced Class-D amplifier with Energy Star rated efficiency well suited for smaller installations including meeting rooms or BGM zones. The convection cooled amplifier is designed to conserve energy. An auto-ramp circuit ensures quiet and fast power up from standby when a signal is present and seamless power-down following 25 minutes of inactivity, dramatically reducing power consumption.

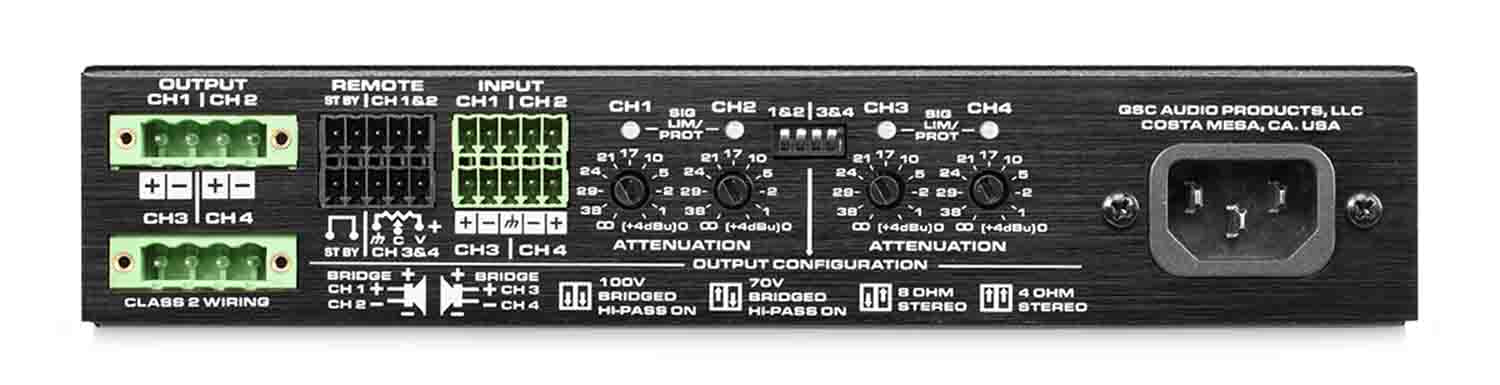

The rear panel utilizes Euro block connectors for inputs and outputs as well as remote inputs. Each channel of the SPA4 provides 60W of power, while the bridge mode provides 100W continuous into 4 or 8 ohms and 125W into 70/100V.

Product Specifications:

Number of Channels: 4

Power Rating: 60 W per Channel, 100 W RMS Bridged

Amplifier Class: Class-D

Load Impedance / Voltage: 4 / 8 Ohms, 70 / 100 V

Package Weight: 7.25 lb

Box Dimensions (LxWxH): 15.4 x 11.5 x 3.4"
