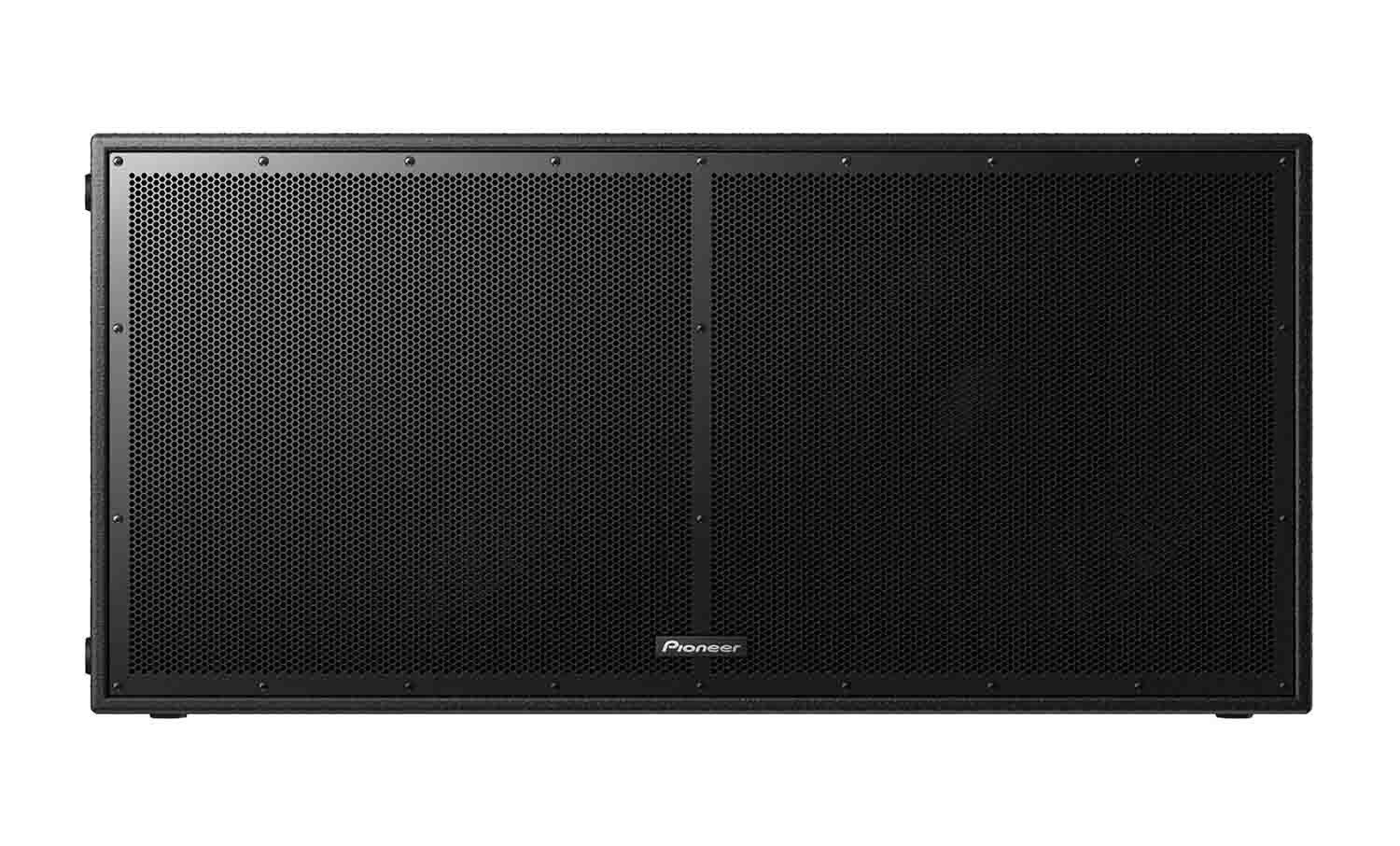

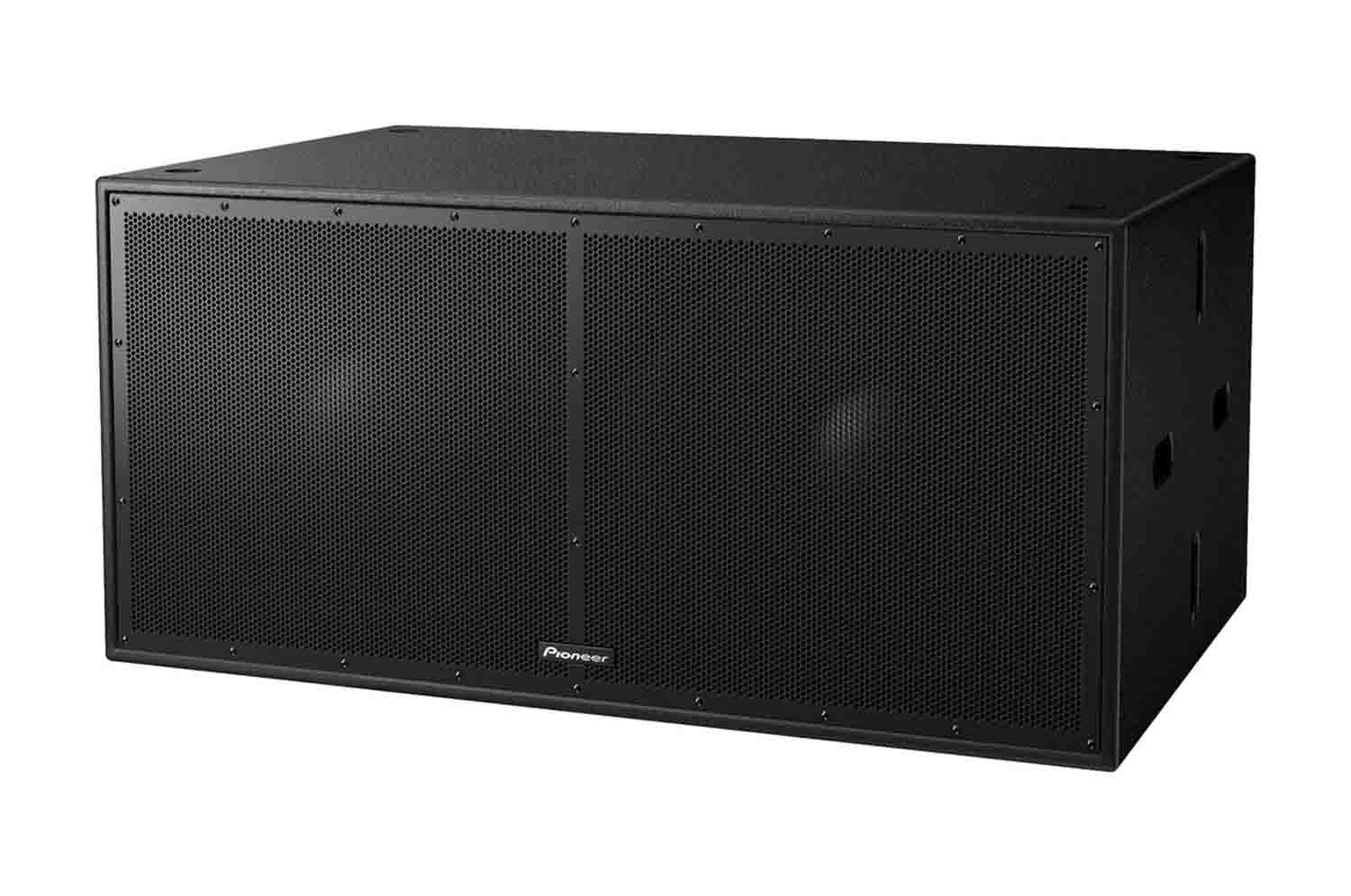

Pioneer XY-218S-B, Dual 18” Driver Quasi-Bandpass Subwoofer - Black

The Pioneer XY-218S-B is a Dual 18” Bass Reflex Subwoofer Black. High-power subwoofer with two 18-inch, low-frequency drivers. Capable of reproducing deep bass as low as 32 Hz without distortion. Strong pillars installed in the cabinet ensure rigidity against the most powerful bass. Requires an active crossover to set the necessary frequency range (presets can be provided from Pioneer for combinations using the Pioneer XY-152 and XY-122). NL4 INPUT and LINK OUT connections as standard. Robust enclosure made from premium multi-laminate birch plywood.

Product Specifications:

Hardware

Enclosure Type: Dual driver, reflex-loaded subwoofer

Rigging and Hardware:

8 × flush handles (4 left/4 right),

8 × rubber feet (bottom and left) and 4 ×mating recesses (top),

16 × M8 holes with pre-inserted bolts for 4 × castors on rear

Grille: Hex-punched steel

Enclosure: 18 mm (0.7 inch) birch plywood

Finish: Impact-resistant, Black semi-matt textured

Loudspeaker data

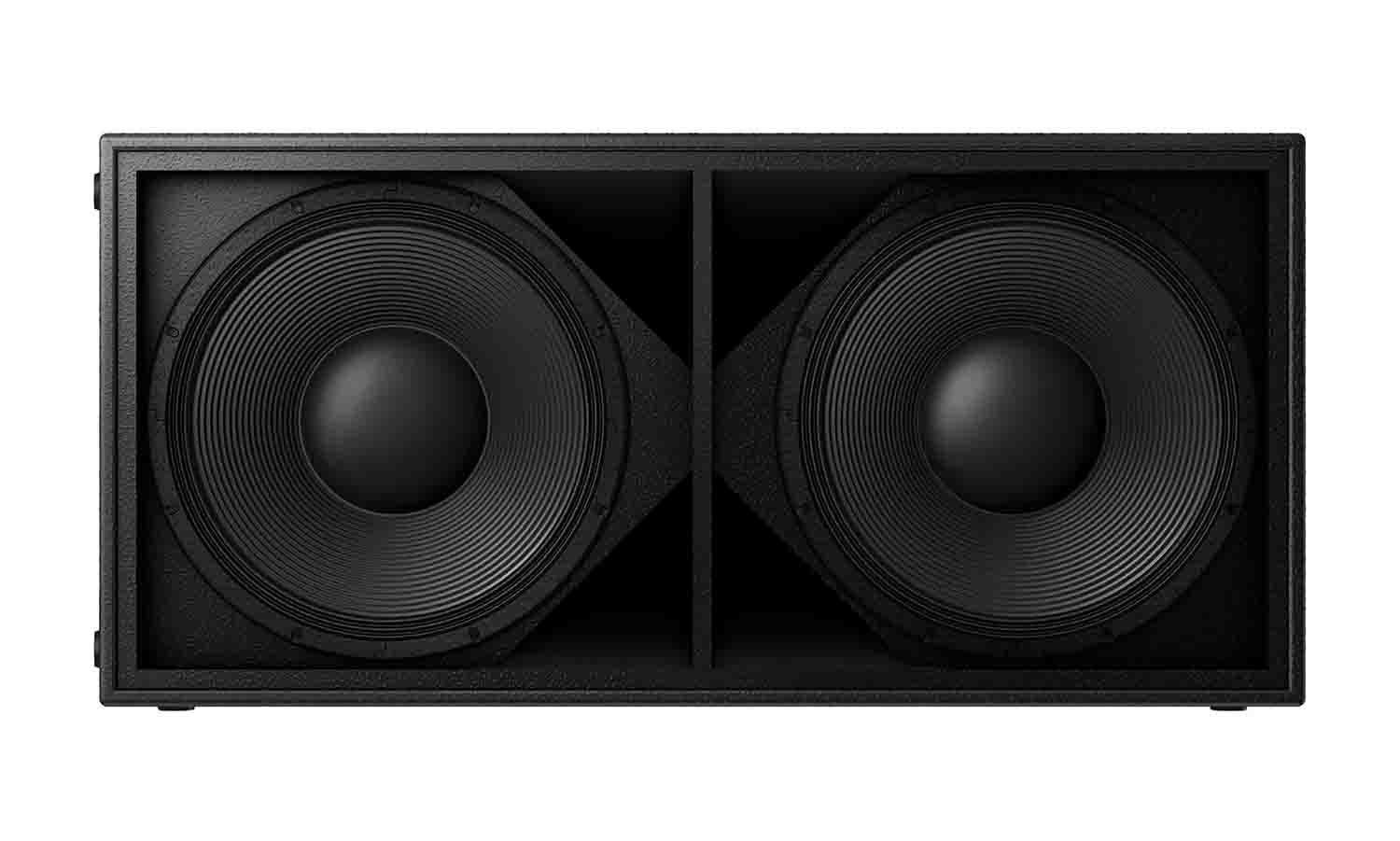

Transformer taps: 2 × 18 inches (460 mm) LF cone drivers

Power Handling: 1600 W RMS, 3200 W Program

Power Handling AES: 134 dB cont., 140 dB peak (half space)

Dispersion: 2 × Neutrik SpeakON NL4

System data

Frequency response: 32 Hz to 150 Hz

Sensitivity (1W/1m): 102 dB (half space)

Nominal Impedance: 4 Ω

Dimensions (W x H x D): 45.8 × 22 × 29.3 inches

Weight: 93 kg (205 lbs)
