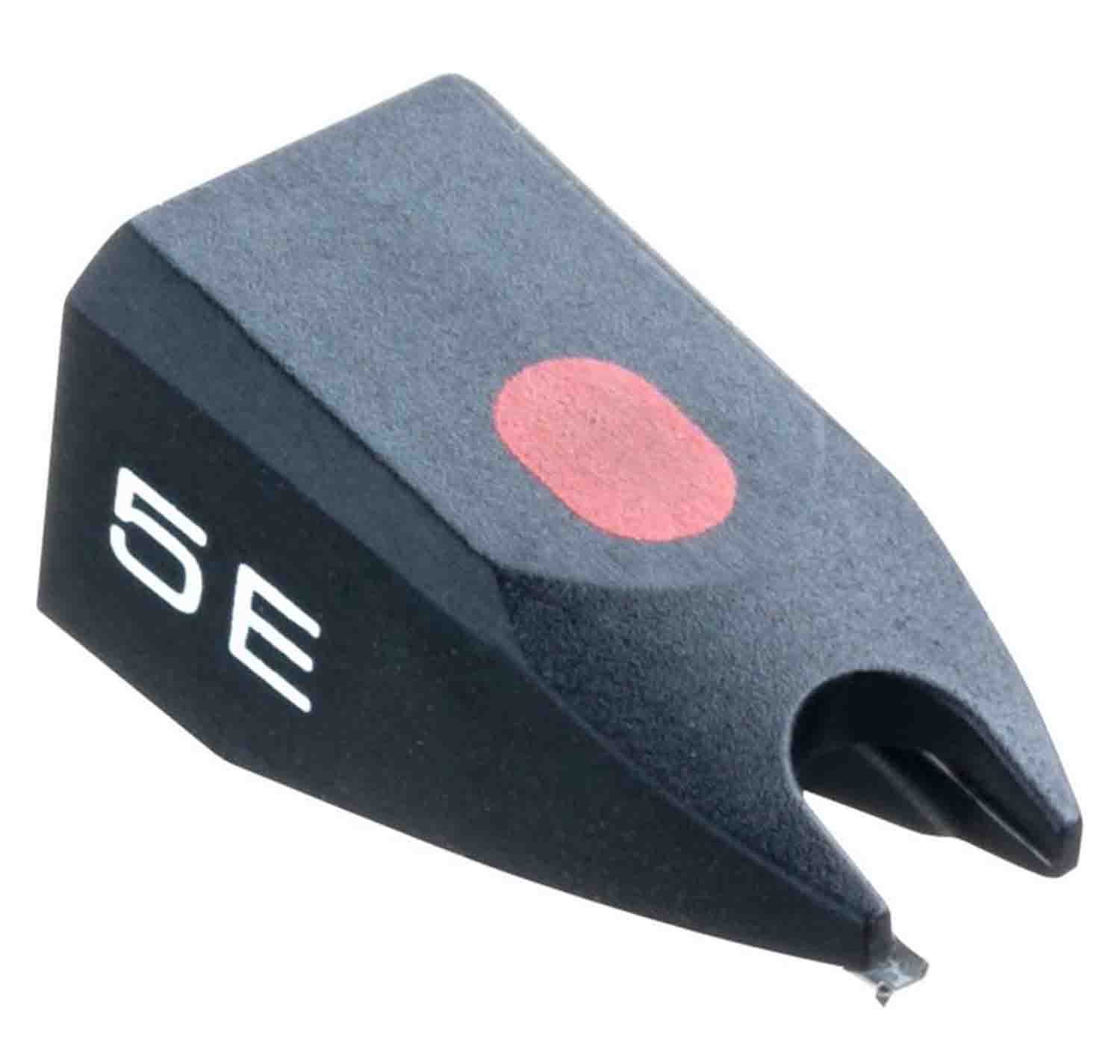

Ortofon Stylus 5e, Elliptical Stylus (Black)

The Ortofon Stylus 5e is an Elliptical Stylus (Black). The Ortofon 5E Stylus provides a balanced sound with distortion-free playback. The Stylus is compatible with the OM 5E, Super OM 5, OMP 5E, OMB 5E, and OMT 5E cartridges as well as the 3E, 10, 20, 30, 40, 78, and D 25 M.

Product Specifications:

Frequency Range: 20 Hz to 25 kHz

Frequency Response: 20 Hz to 25 kHz

Tracking Ability: Recommended Tracking Force: 65 μm at 315 Hz

Compliance: 20 μm/mN, Dynamic, Lateral

Stylus:

Type: Elliptical

Tip Radius: r/R 8/18 μm

Equivalent Stylus Tip Mass: 0.5 mg

Tracking Force: 1.5 to 2 g / 15 to 20 mN

Recommended: 1.75 g / 17.5 mN

Angle: Tracking: 20°
