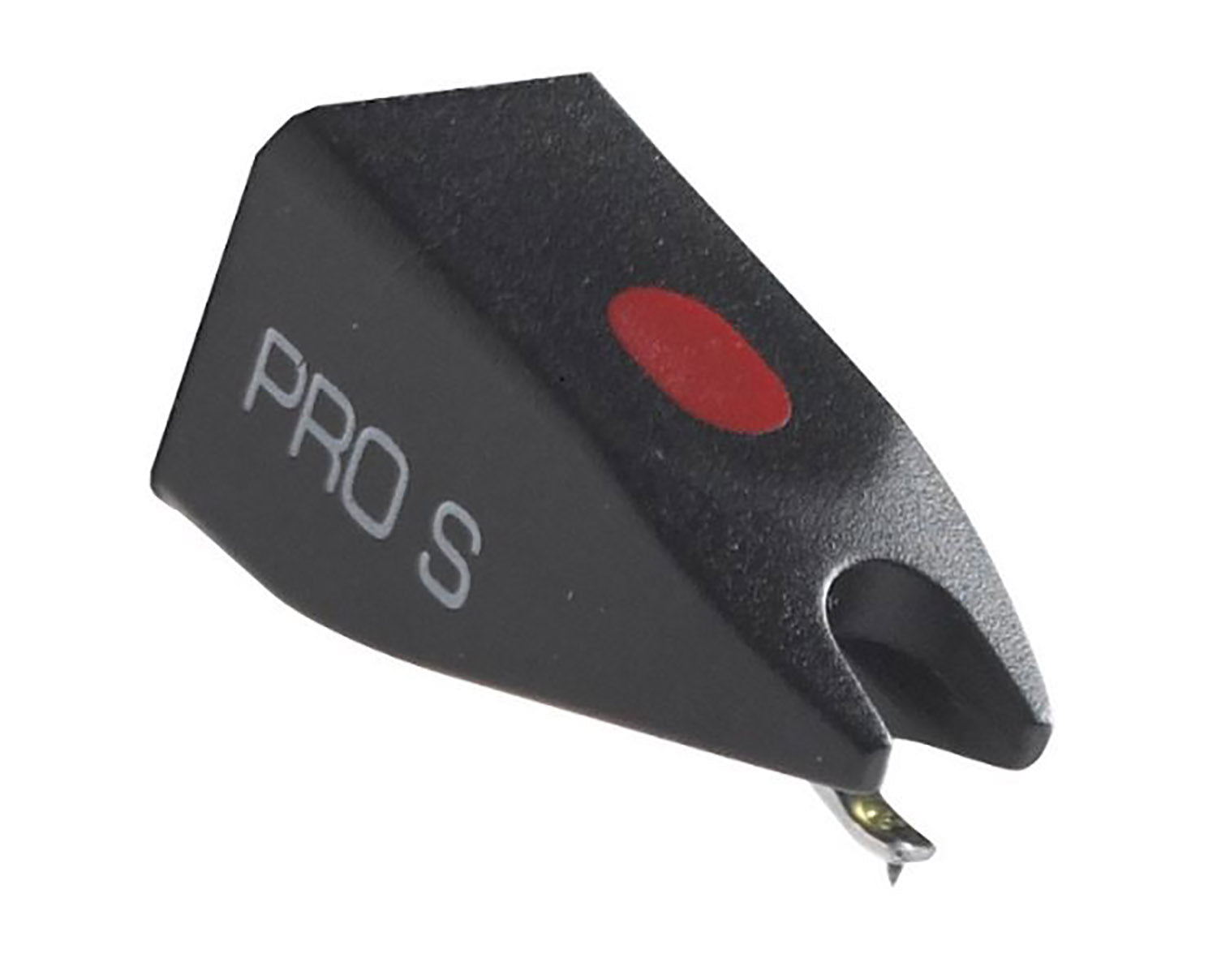

Ortofon PROS Replacement stylus

The Pro S entry-level cartridge is perfect for newcomers on the DJ scene who want to start off with decent, but not too expensive equipment. The Pro S has a spherical diamond stylus which minimizes scratching and a solid cantilever which can survive hectic activity at the turntable.

No matter what the application, the Pro S provides remarkable versatility for virtually any setting. The sound quality is absolutely not to worry about. The Pro S is a consistent performer and a fine all-arounder!

Product Specification:

Output voltage at 1000Hz, 5cm/sec: 5 mV

Channel balance at 1kHz: 2 dB

Channel separation at 1kHz: 20 dB

Channel separation at 15 kHz: 15 dB

Frequency response: 20-18.000 Hz +/-2 dB

Tracking ability at 315 Hz at recommended tracking force: 70 μm

Compliance, dynamic lateral: 7 μm/m N

Stylus type: Spherical

Stylus tip radius: R 18 μm

Tracking force range: 3.0-5.0 g (30-50 mN)

Tracking force recommended: 4.0 g (40 mN)

Tracking angle: 20°

Internal impedance, DC resistance: 750 Ohm

Internal inductance: 450 mH

Recommended load resistance: 47 kOhm

Recommended load capacitance: 200-600 pF

Concorde / OM cartridge weight: 18.5 g / 5.0 g

Compatible with cartridges: Concorde Pro S and OM Pro S
