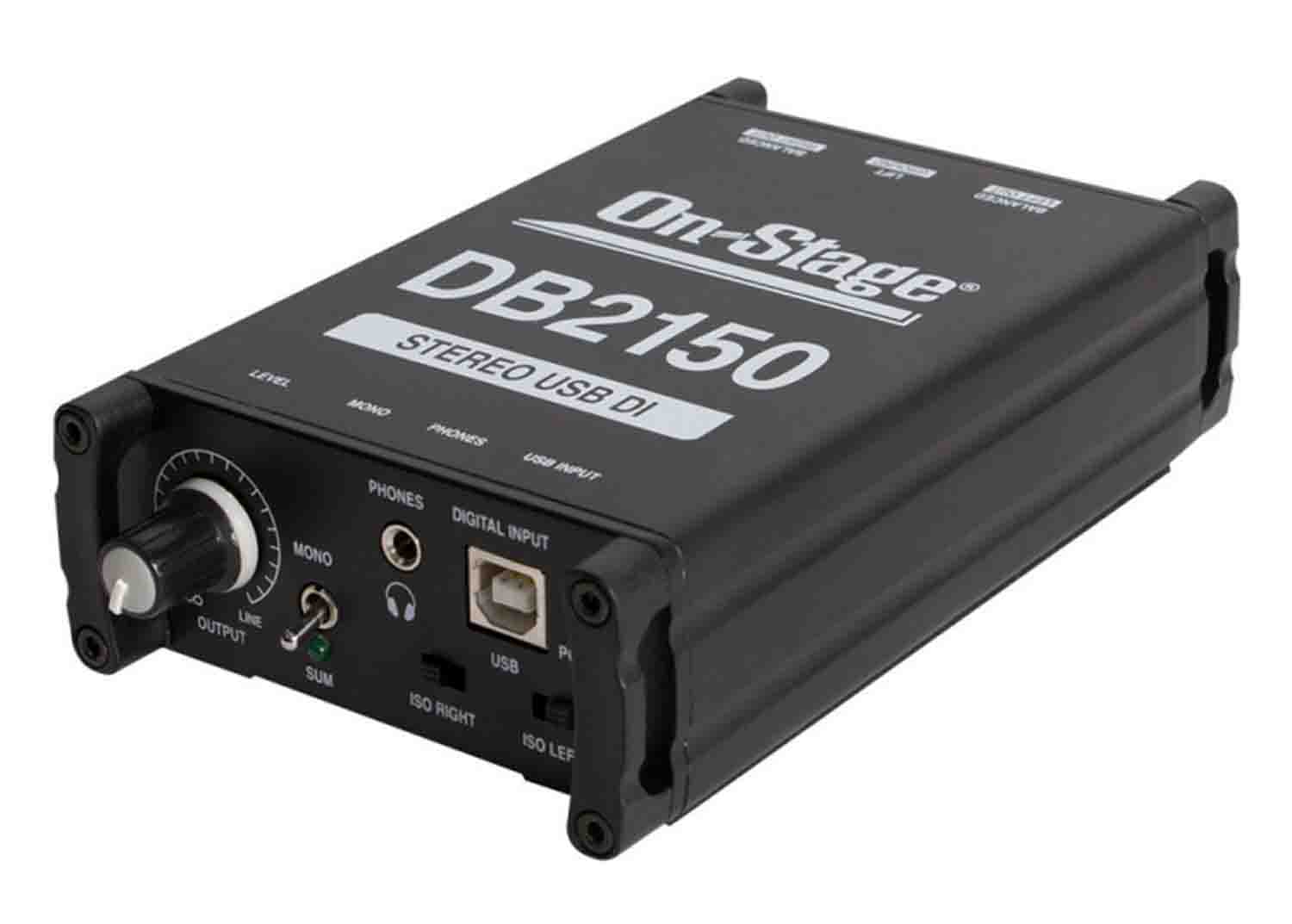

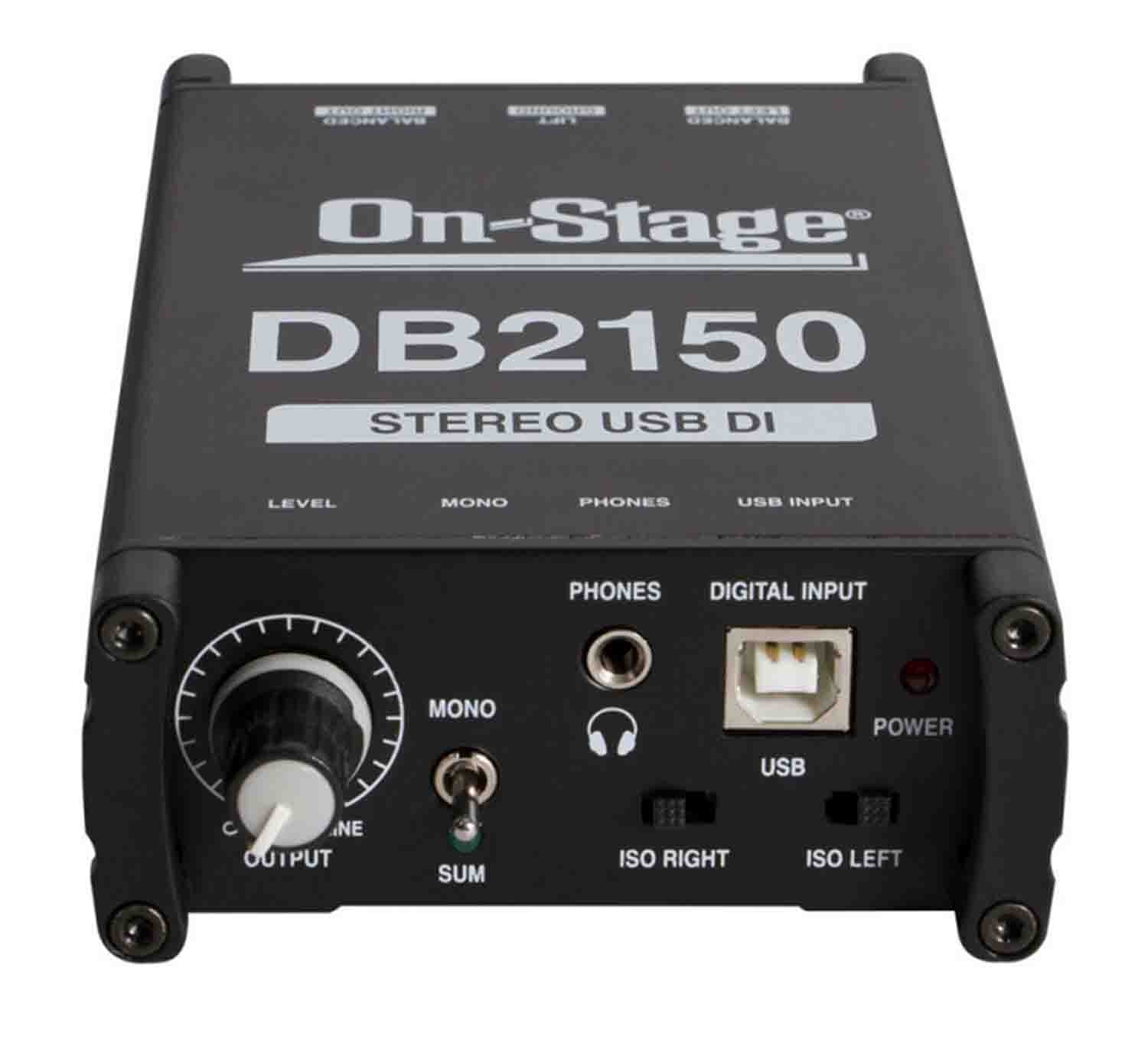

Onstage DB2150 Passive USB DI Box - Black

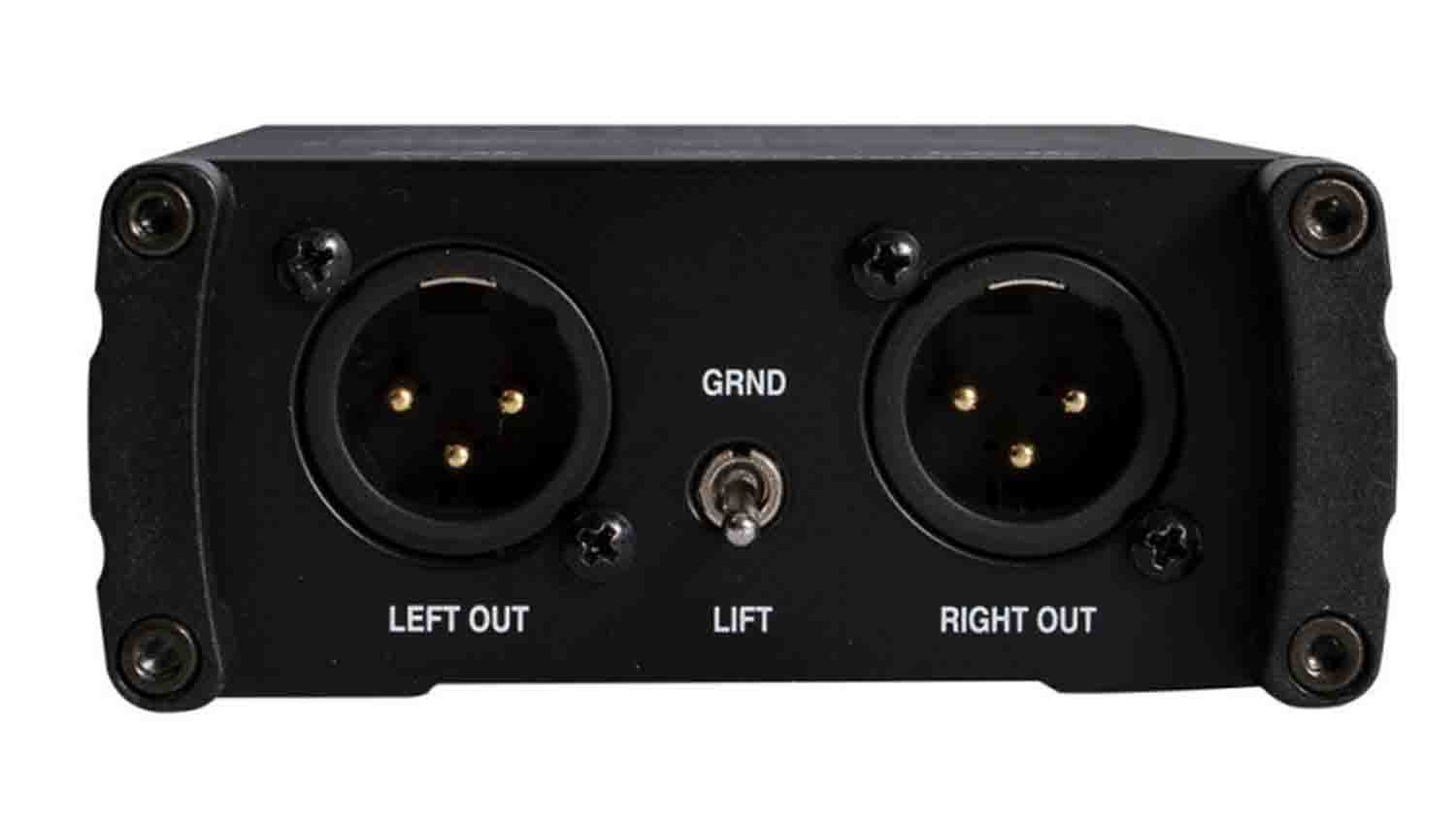

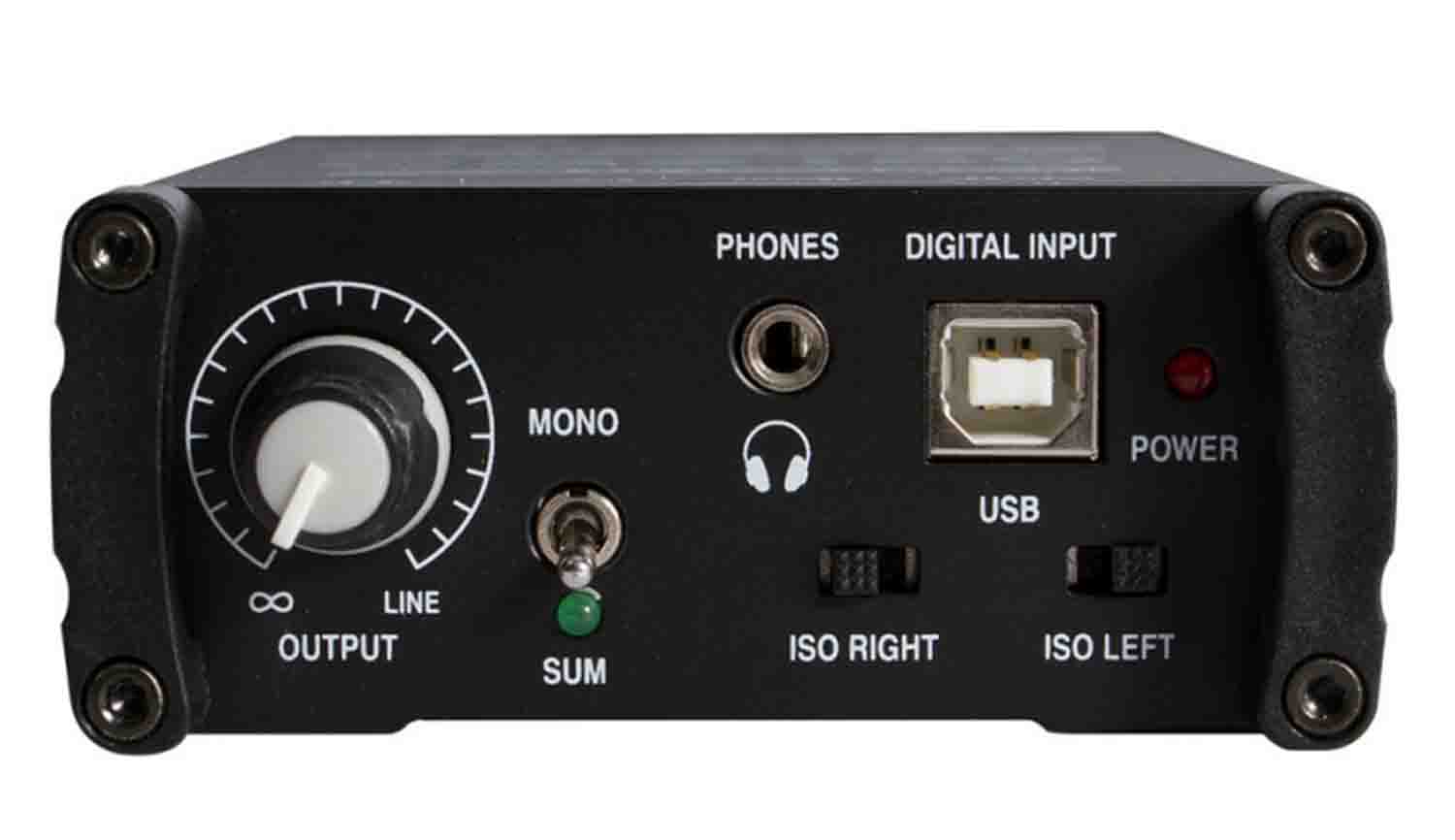

The Onstage DB2150 Passive USB DI Box - Black converts digital audio to discrete stereo analog XLR signals ready to send via long cable runs to a mixer or PA system. For convenient plug-and-play use with laptops, when connected via USB, Windows and Mac computer operating systems automatically recognize this box as an available soundcard. Features include low-distortion passive circuitry, monitoring via a 3.5 mm headphone output, a ground-lift switch to eliminate ground-loop hum, transformer isolation switches for defeating channel-specific ground-loop hum, and a mono-sum switch to convert a stereo source to a mono output. Its heavy-duty metal enclosure protects the internal components and ensures reliable performance.

Product Specifications:

USB: USB 2.0 full speed

Frequency Response: 10 Hz to 20 kHz

Dynamic Range: 90 dB

Output Impedance: 200 Ohms

Sample Rate: 96 kHz

Enclosure: All-metal

Dimensions: 5.8 x 3.5 x 1.5" / 146.1 x 88.9 x 38.1 mm

Weight: 1.0 lb / 0.4 kg

Package Weight: 1.3 lb

Box Dimensions (LxWxH): 7 x 6 x 3"
