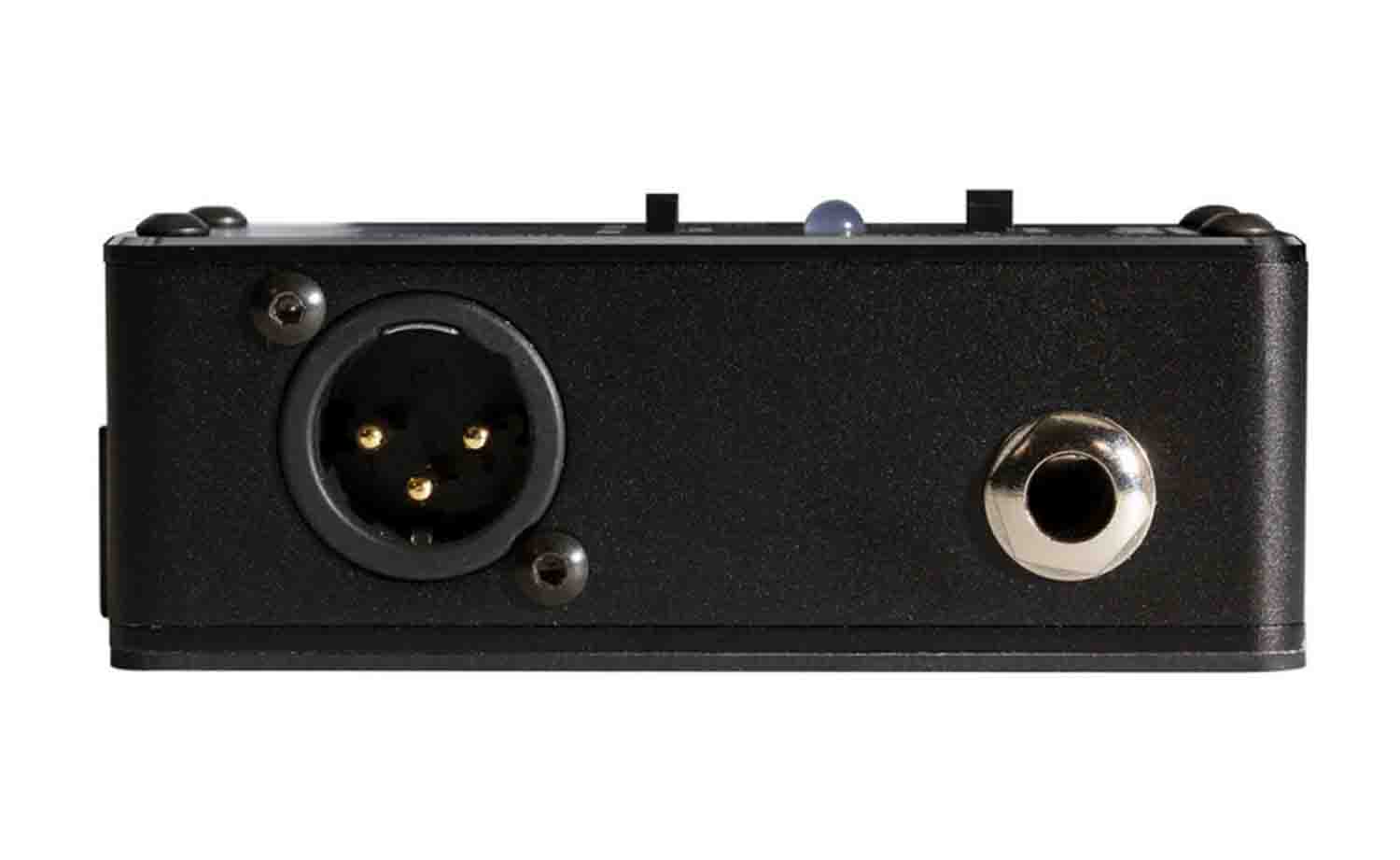

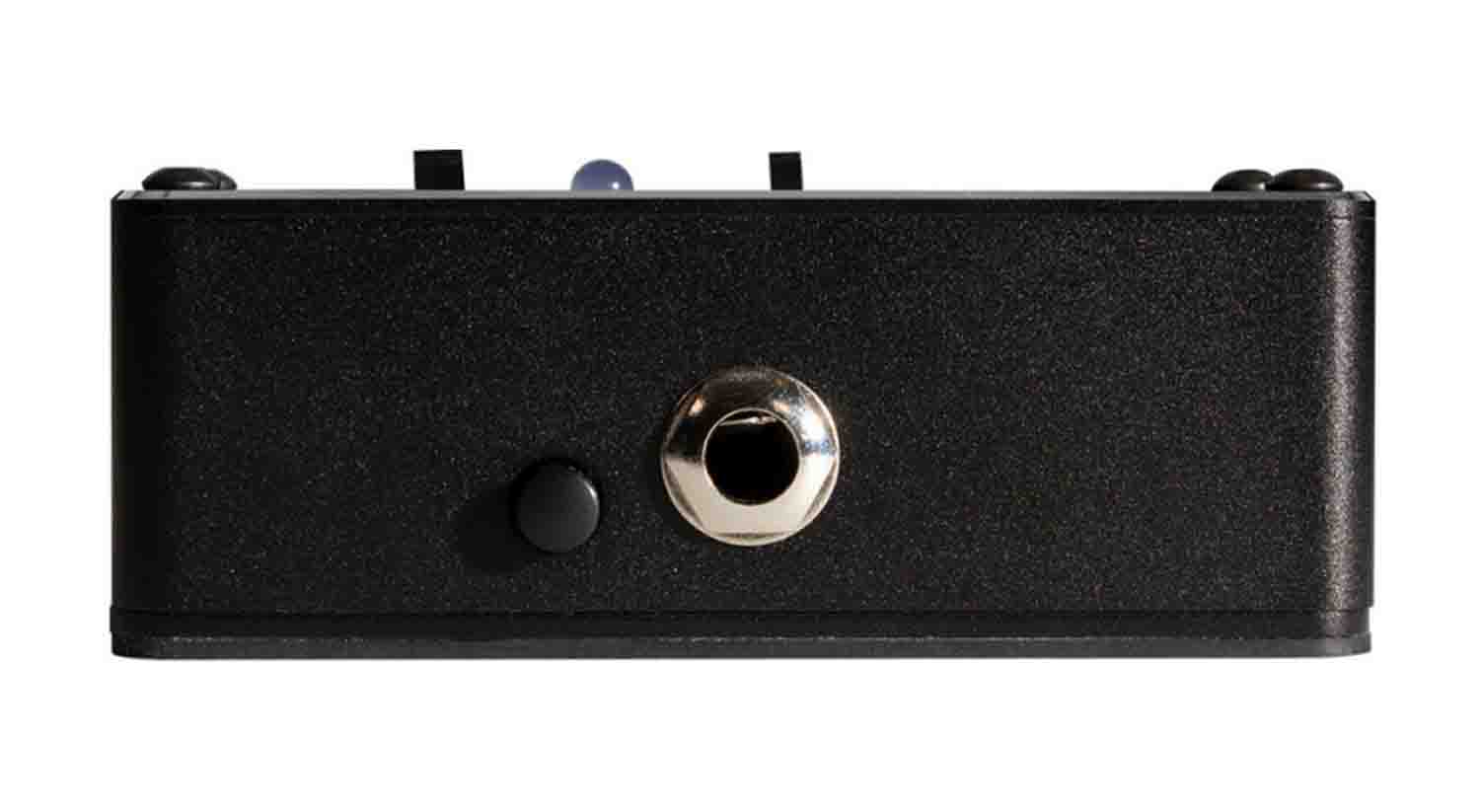

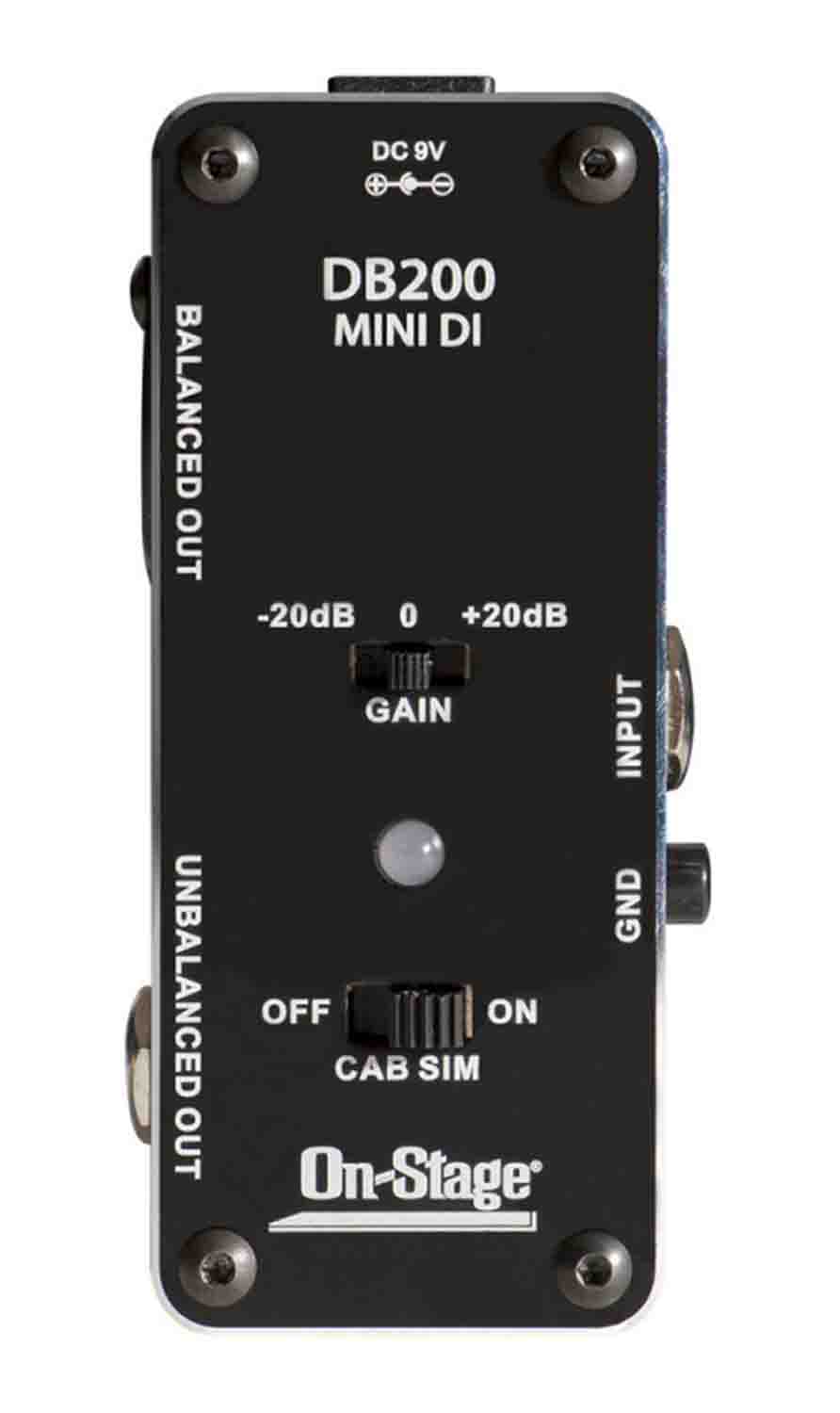

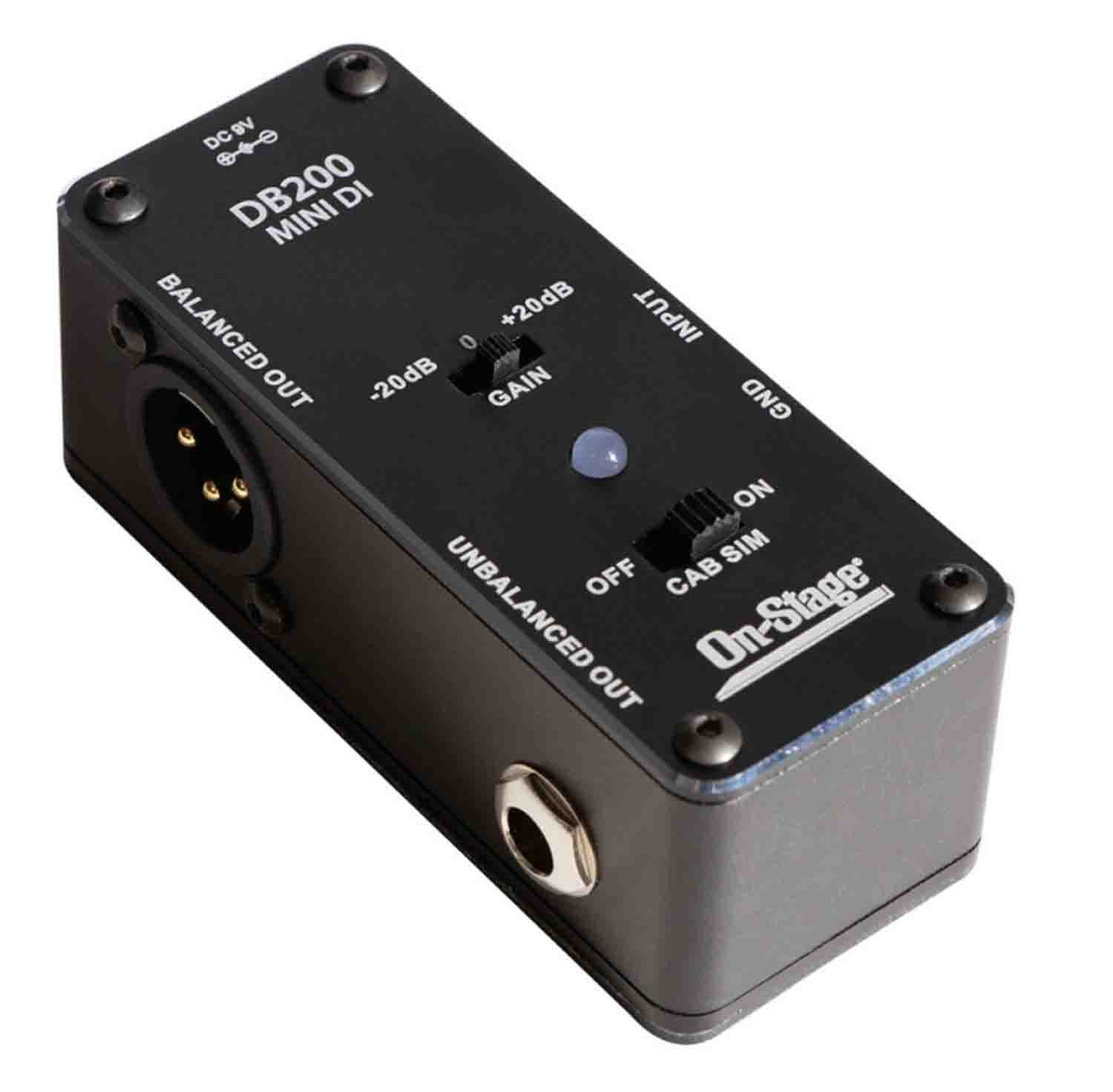

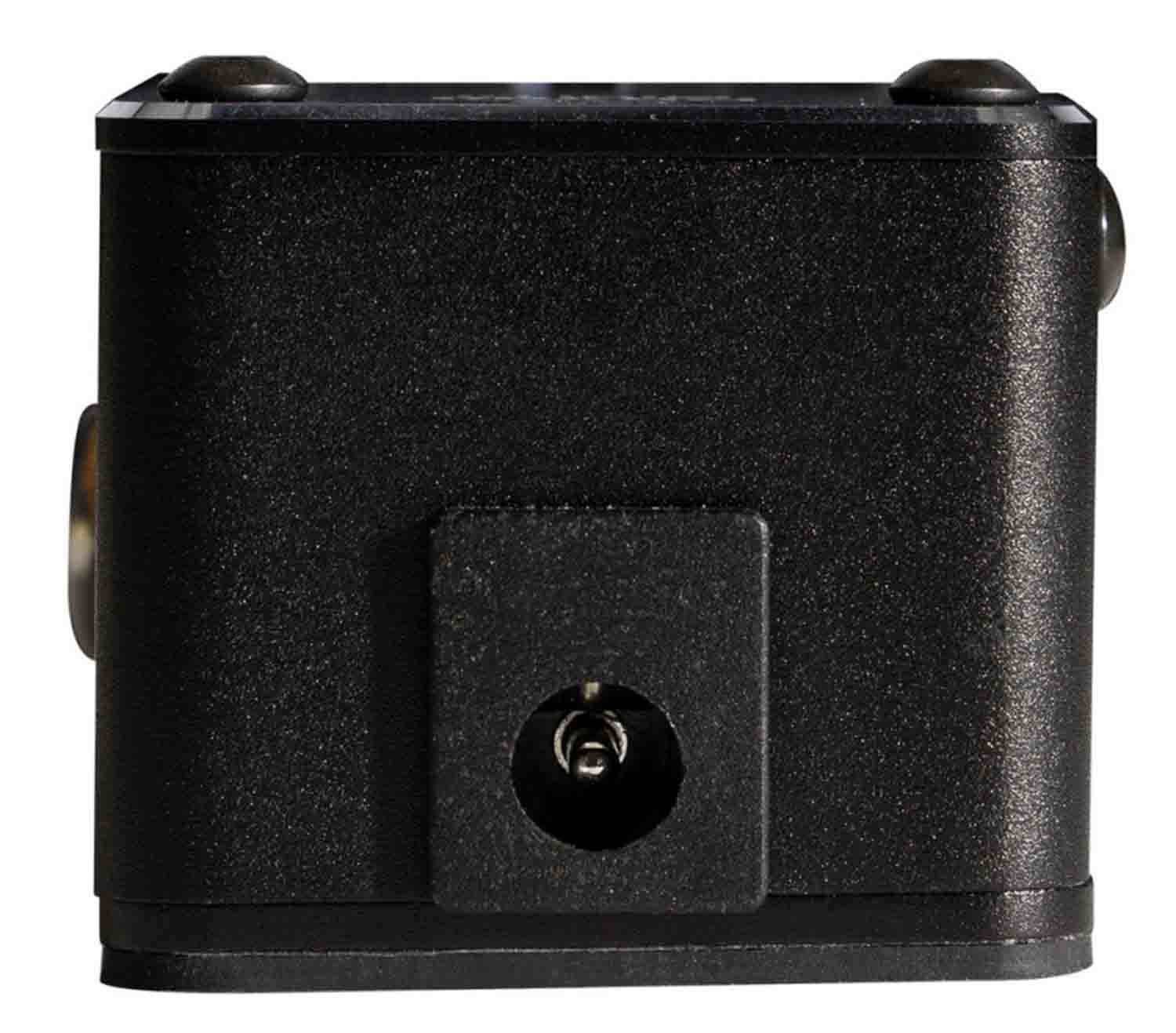

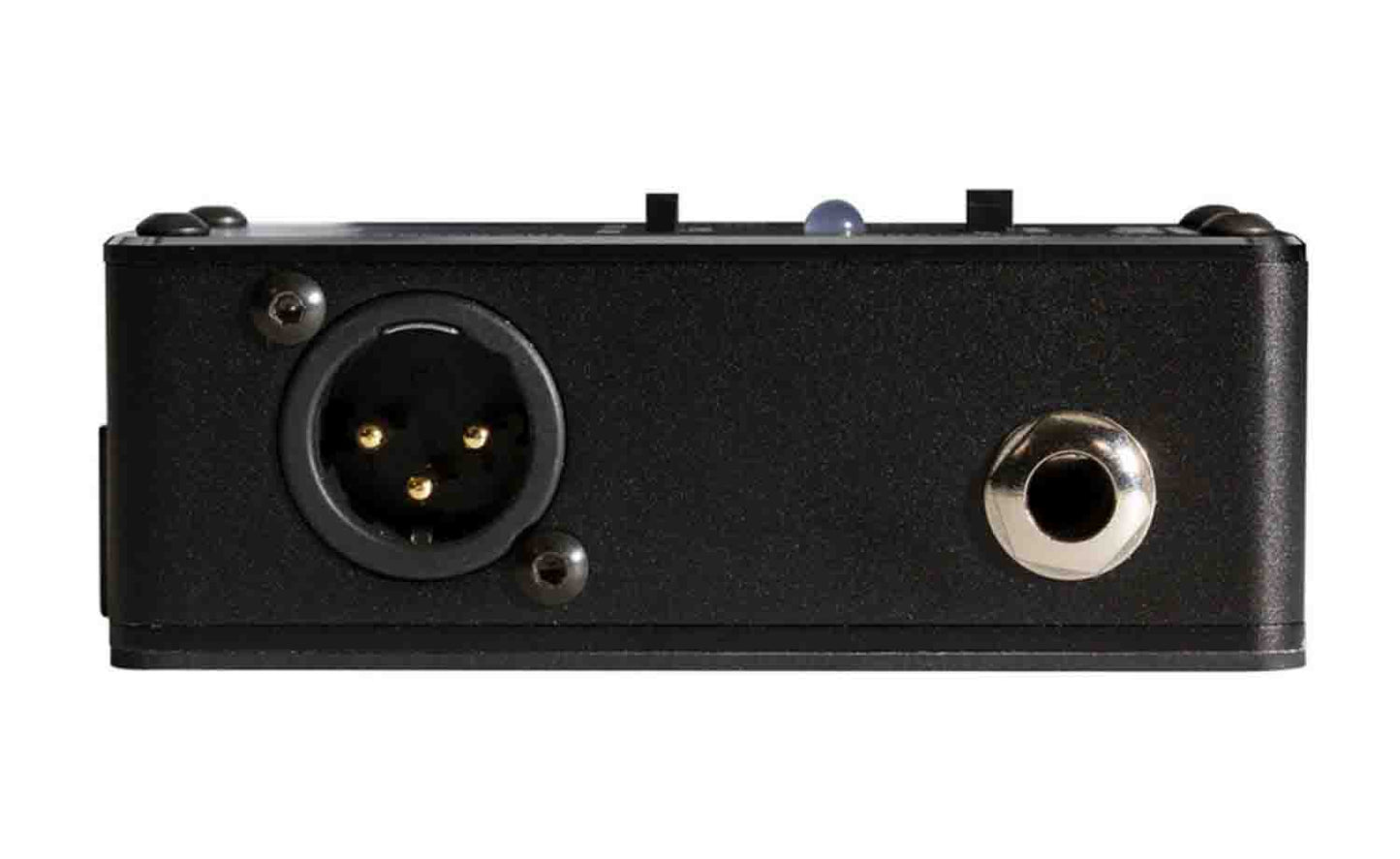

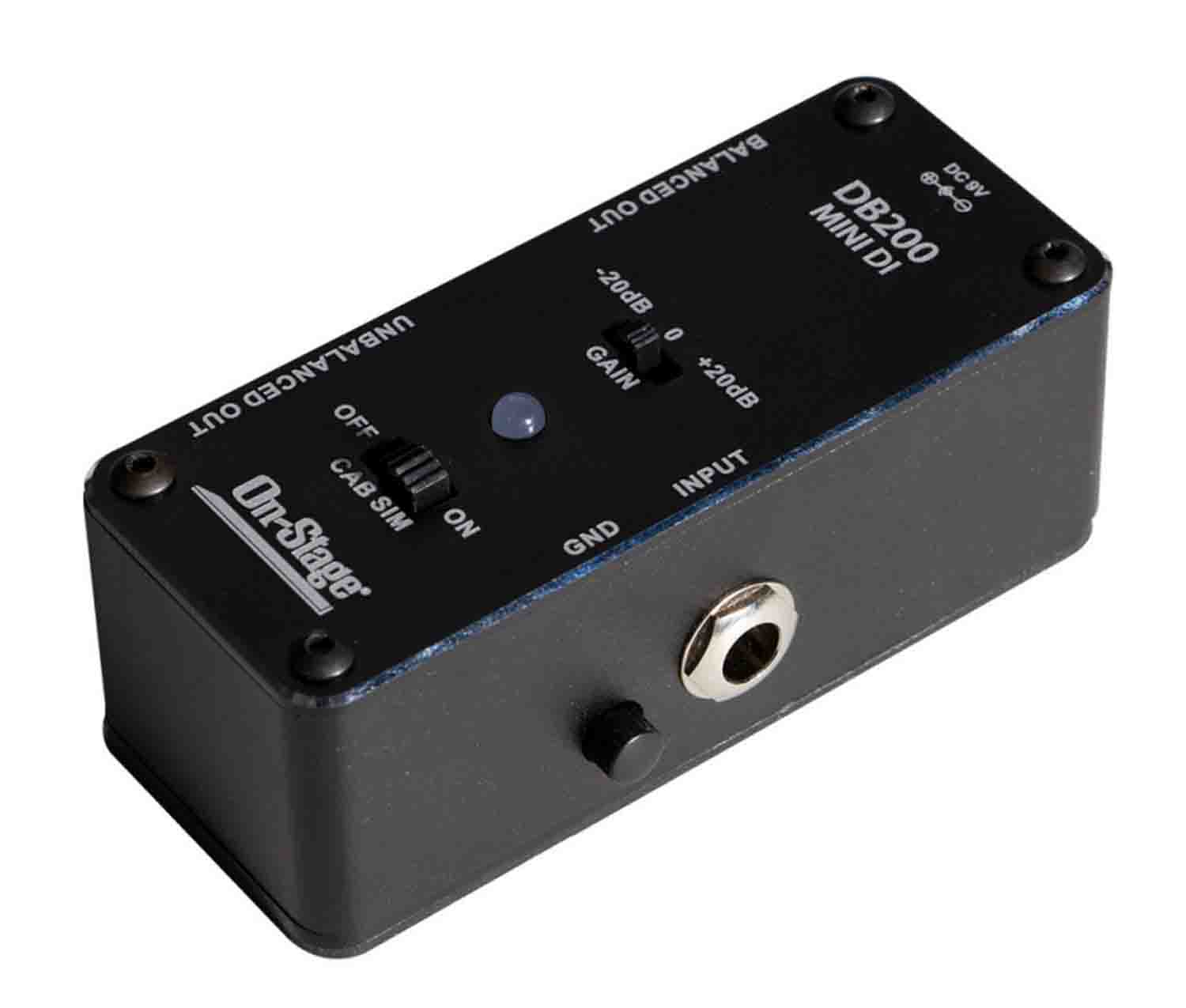

Onstage DB200 Mini DI Box - Black

The Onstage DB200 Mini DI Box - Black converts any high-impedance 1/4" source to a low-impedance XLR signal ready to send via a long cable run to a mixer or PA system. A cab simulator switch enables sending the input signal through an emulated amp directly to a mixer without using a physical amp. There's a switch for either +20 dB of gain to boost weak signals or a -20 dB pad to prevent clipping from louder sources. A ground-lift switch defeats ground-loop hum. When not using the DI, the true-bypass switch eliminates the circuitry of the pedal from the signal path. Balanced and unbalanced outputs provide the option to send the signal to an amp, a mixer, or both. This pedal includes hook-and-loop strips for convenient pedalboard mounting. Its heavy-duty metal enclosure protects the internal components and ensures reliable performance.

Product Specifications:

Input Impedance: 1M Ohms

Output Impedance: 1k Ohms

Current Draw: 12mA

Power Supply: 9V DC, center negative (not included)

Color: Black

Package Weight: 14 lb

Box Dimensions (LxWxH): 4.85,2.21,2.21"
