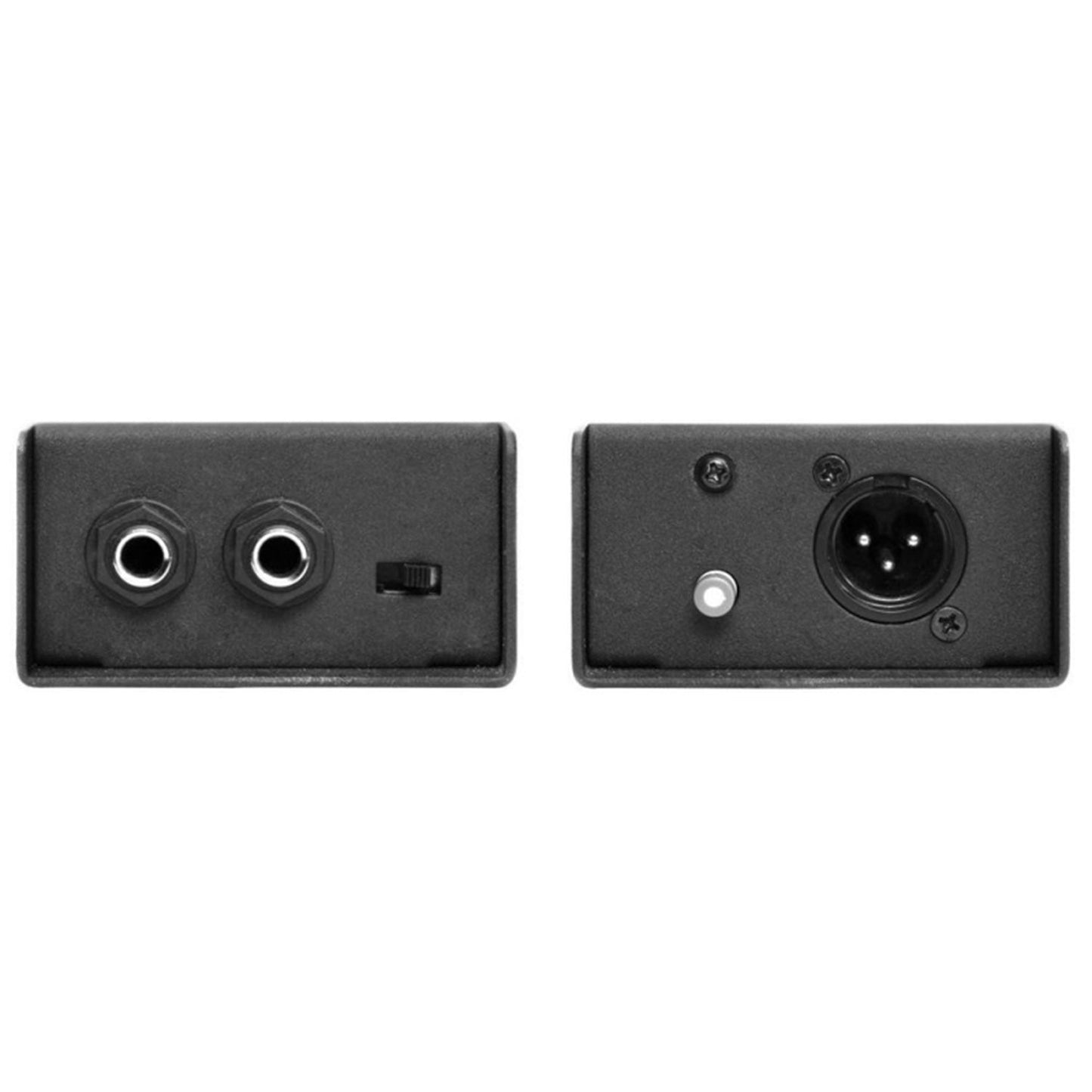

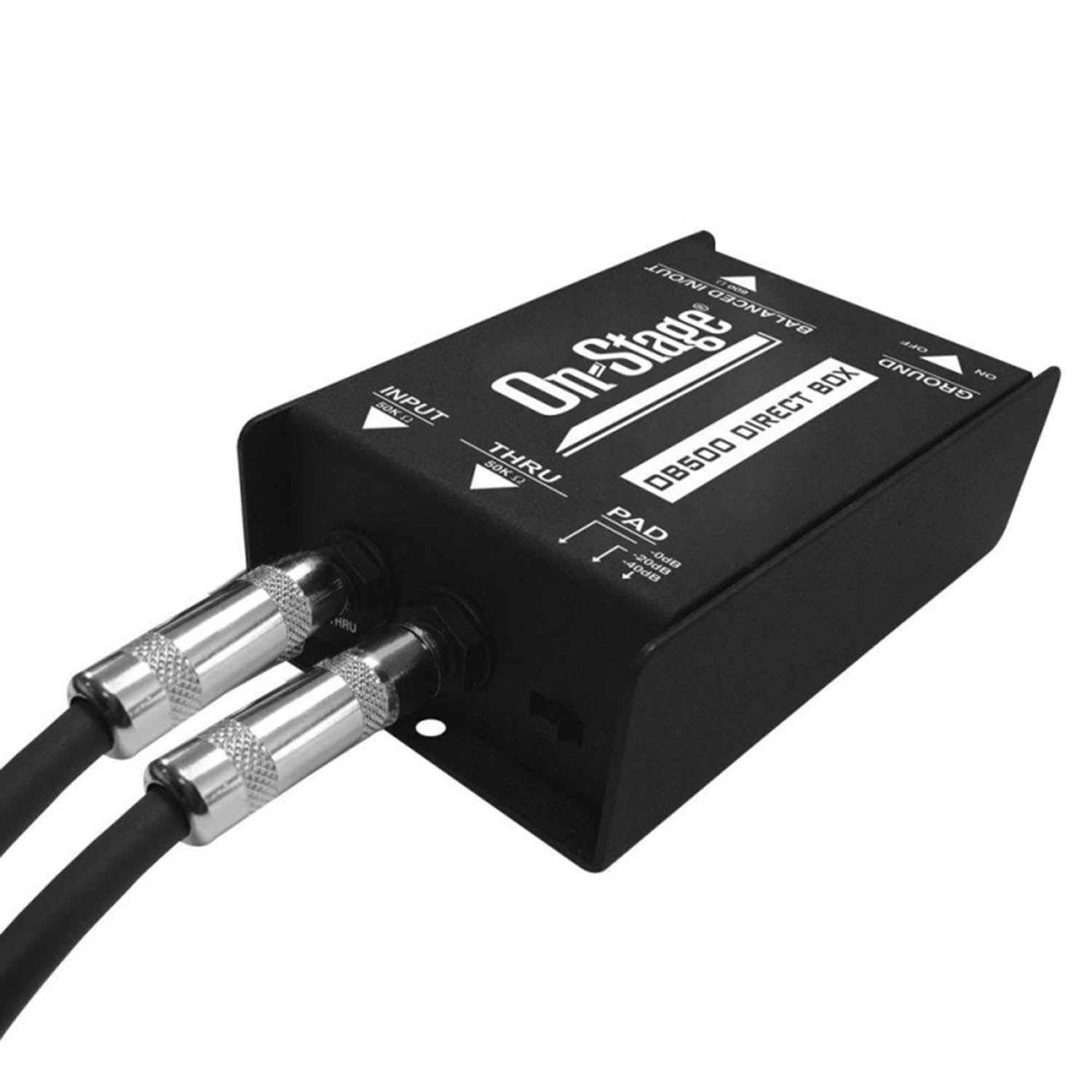

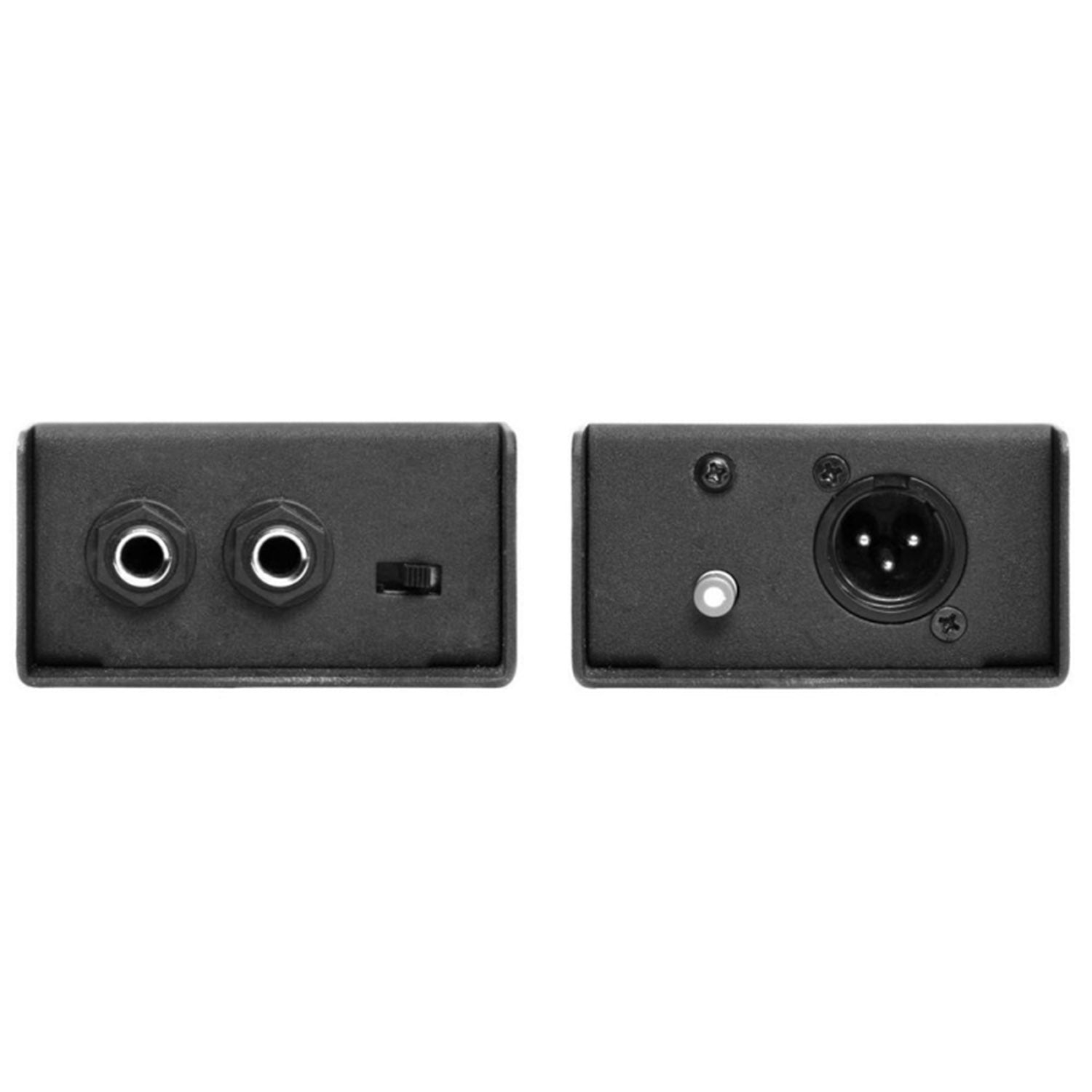

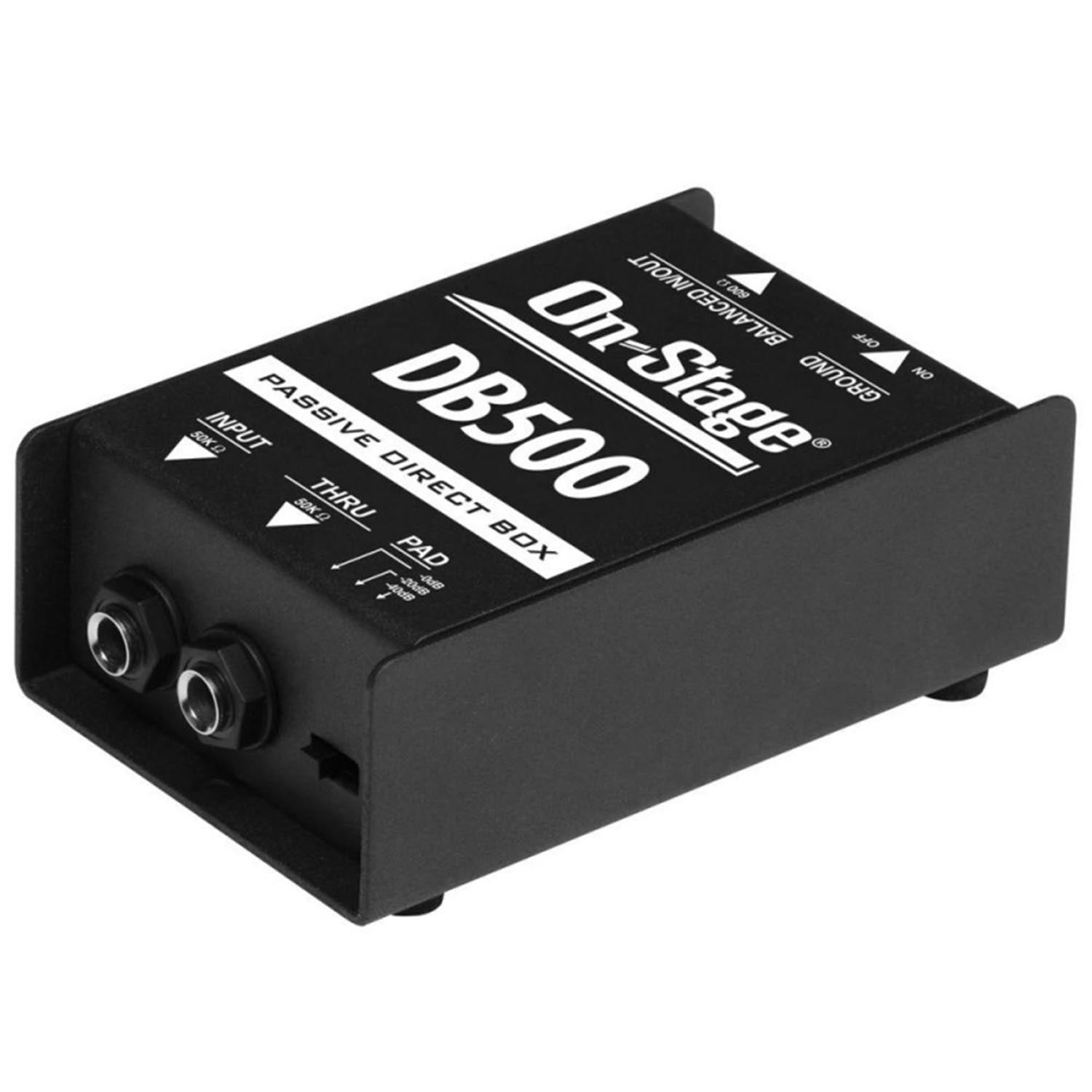

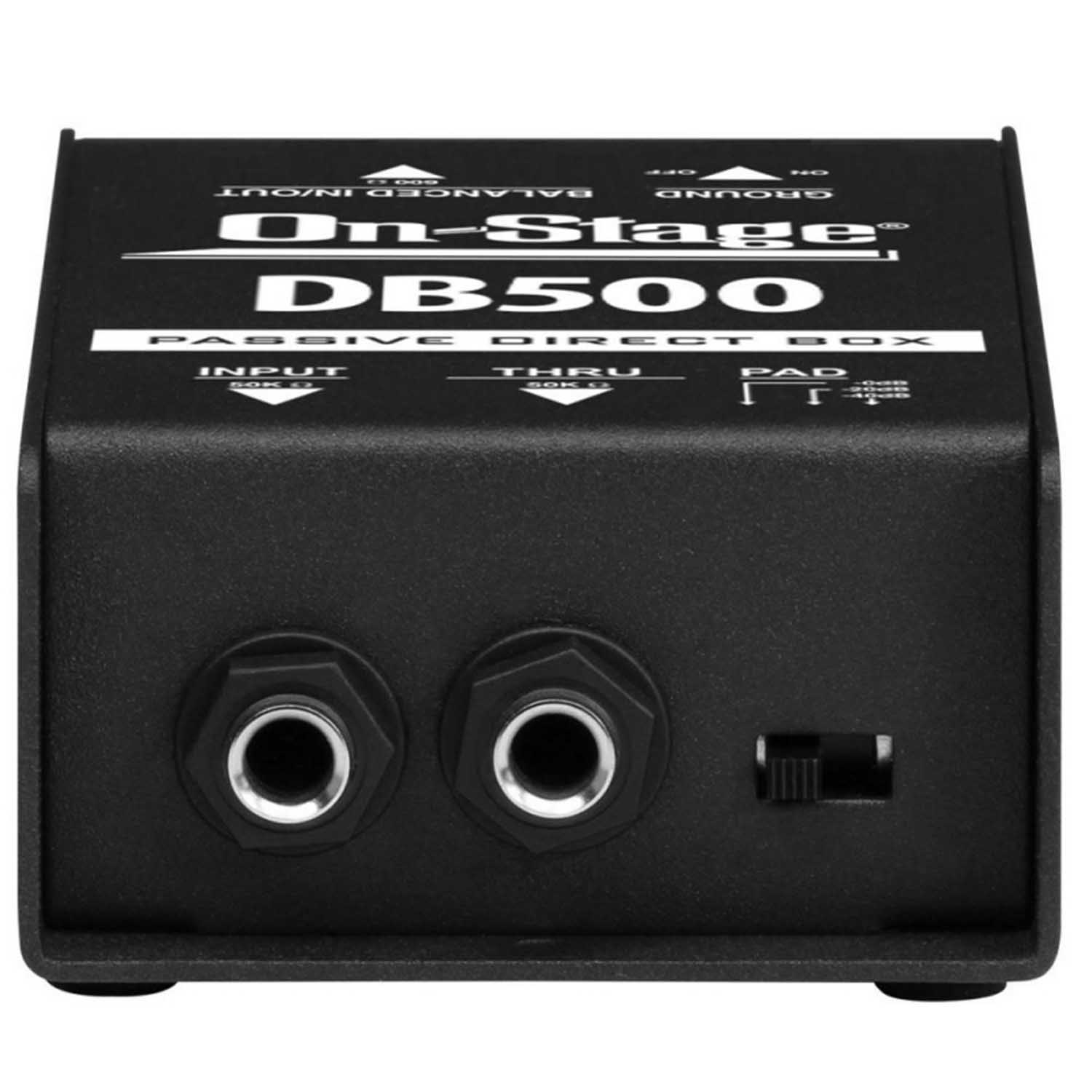

On-Stage Audio DB500 Passive DI Box

Our On-Stage Audio DB500 Passive Di Box converts any high-impedance 1/4" source to a low-impedance XLR signal ready to send via a long cable run to a mixer or PA system. Features include low-distortion passive circuitry that doesn't require power, a -20 dB or -40 dB pad switch to prevent clipping, a ground-lift switch to defeat ground-loop hum, and a throughput connector to pass unaltered signal to a stage amp. Its heavy-duty metal enclosure protects the internal components and ensures reliable performance.

Product Specification:

Application: Acoustic guitars, bass guitars, keyboards, and more

Inputs: 1/4"

Output: XLR

Power: Passive/not required

Pad: 20dB, 40dB, Ground Lift: Yes

Input Impedance: 350K Ohms

Output Impedance: 80 Ohms

Construction: Metal

Dimensions: (W)4.75" x (H)1.375" x (D)2.875"

Weight: 0.5 lbs.
