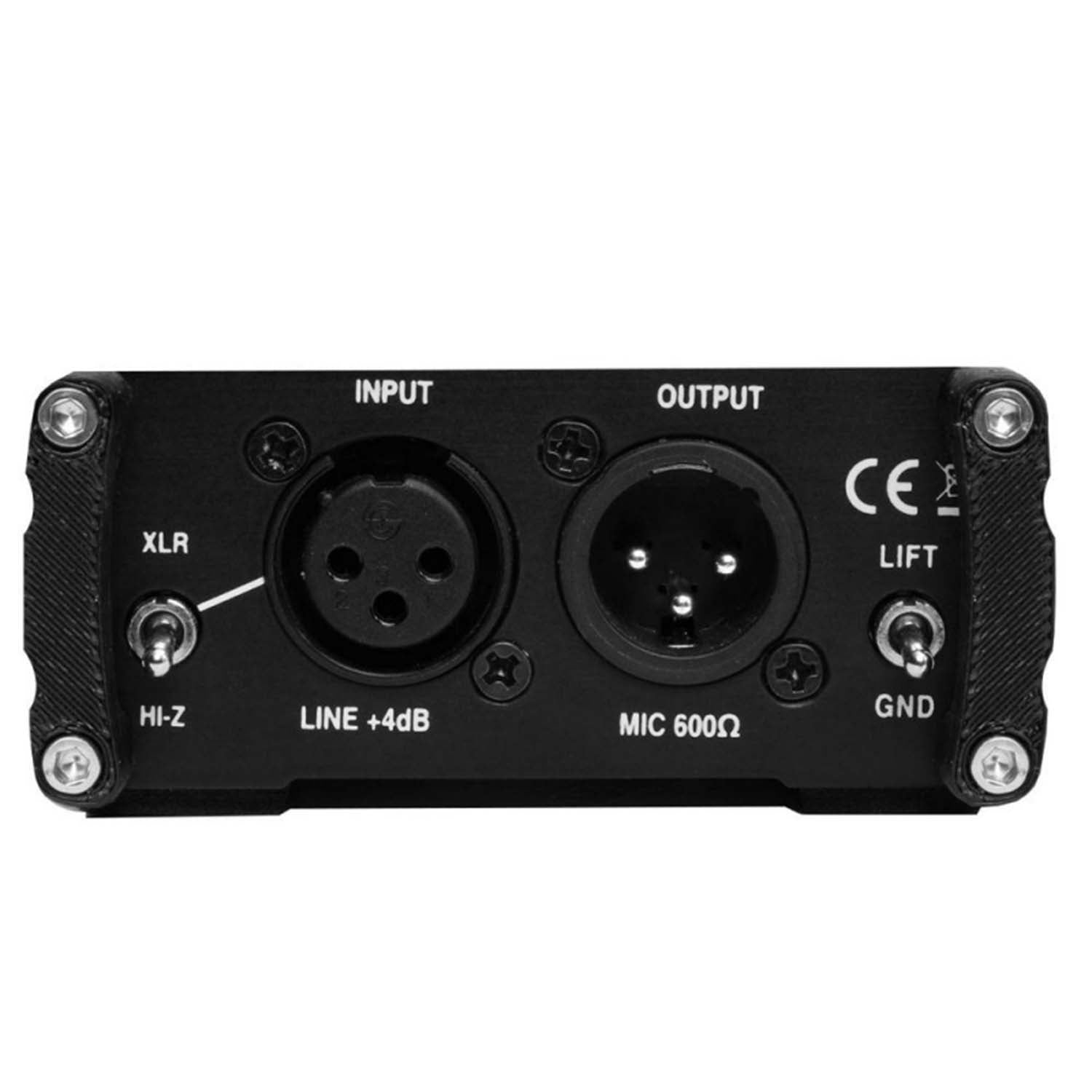

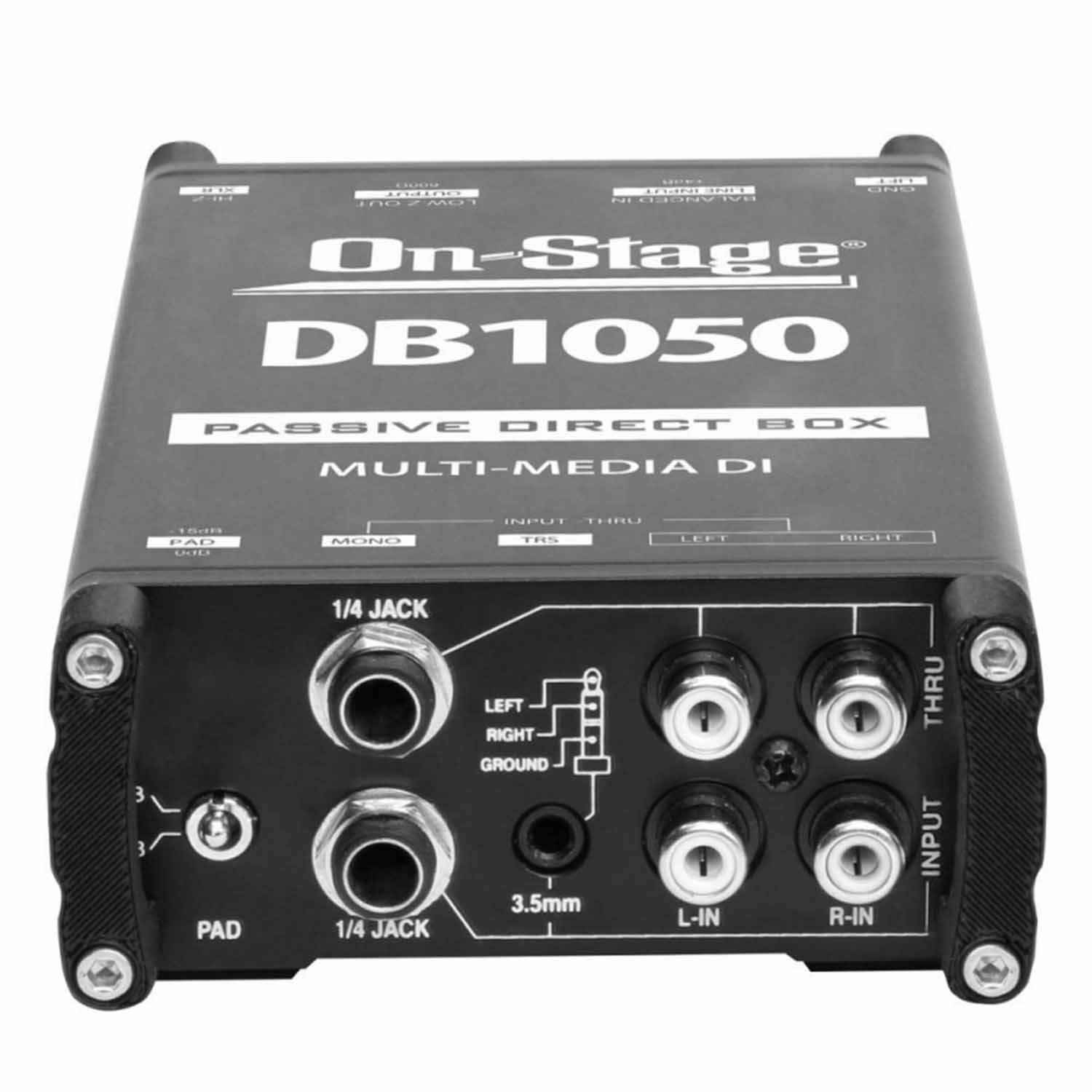

On-Stage Audio DB1050 Passive Multimedia DI Box

Our On-Stage Audio DB1050 Passive Multimedia DI Box converts any line-level stereo source to a low-impedance XLR mono signal ready to send via a long cable run to a mixer or PA system. Features include low-distortion passive circuitry that doesn't require power, a -15 dB pad switch to prevent clipping, a ground-lift switch to defeat ground-loop hum, throughput connectors to pass unaltered signal to a stage amp, a Hi-Z/XLR input selector, and a variety of input connectors to enable convenient use with various sources. Its heavy-duty metal enclosure protects the internal components and ensures reliable performance.

Product Specification:

Application: Computers, mp3 players, keyboards, projectors, and DJ equipment

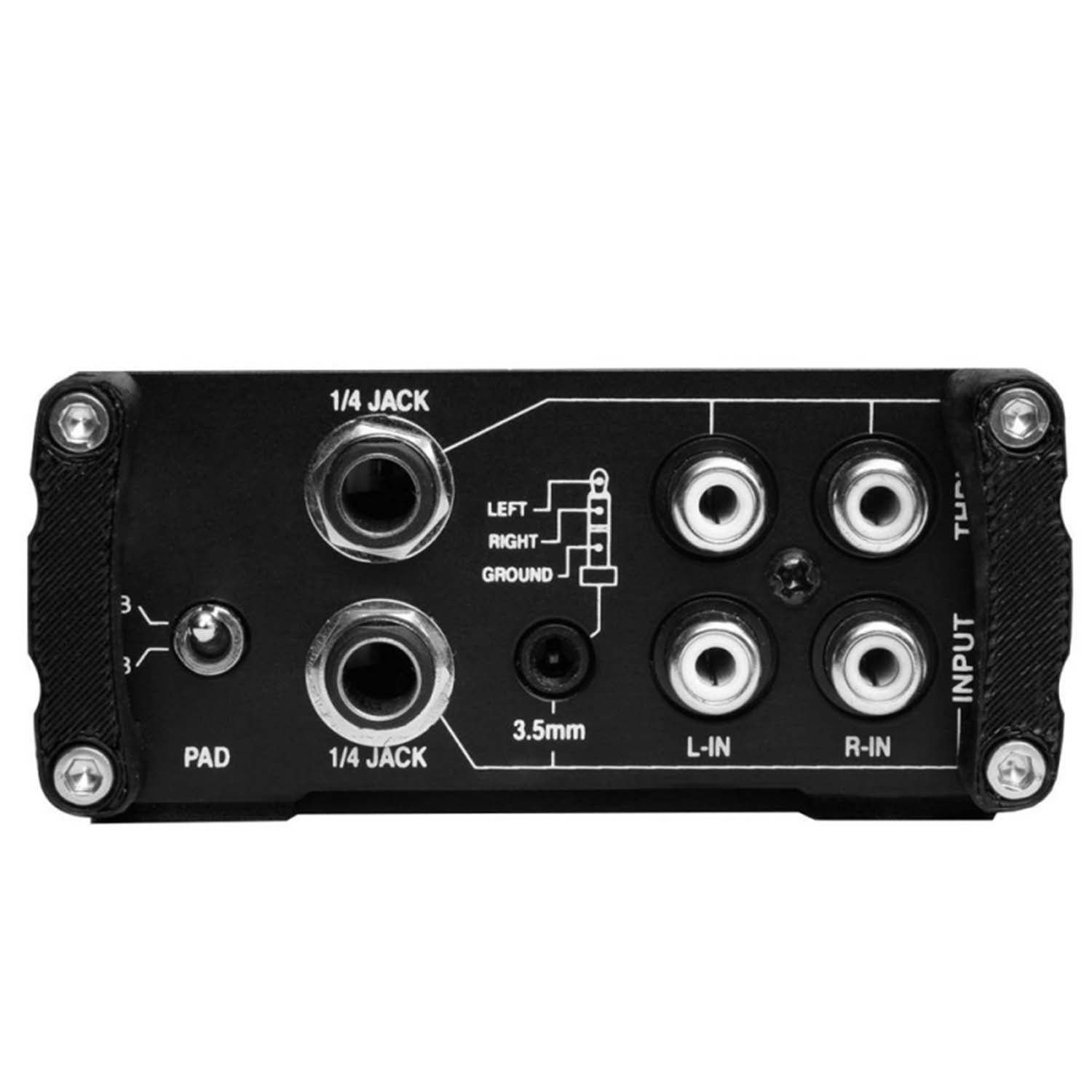

Inputs: Stereo 1/4", 3.5mm, stereo RCA, and XLR

Output: Mono XLR Low-Z out

Power: Passive/not required

Pad: 15dB

Ground lift: Yes

Input Resistance: 220K Ohms

Frequency Response: 10Hz - 40kHz

Construction: Metal w/ nylon bumpers

Dimensions: 6" x 3.5" x 1.5"

Weight: 0.70 lbs.
