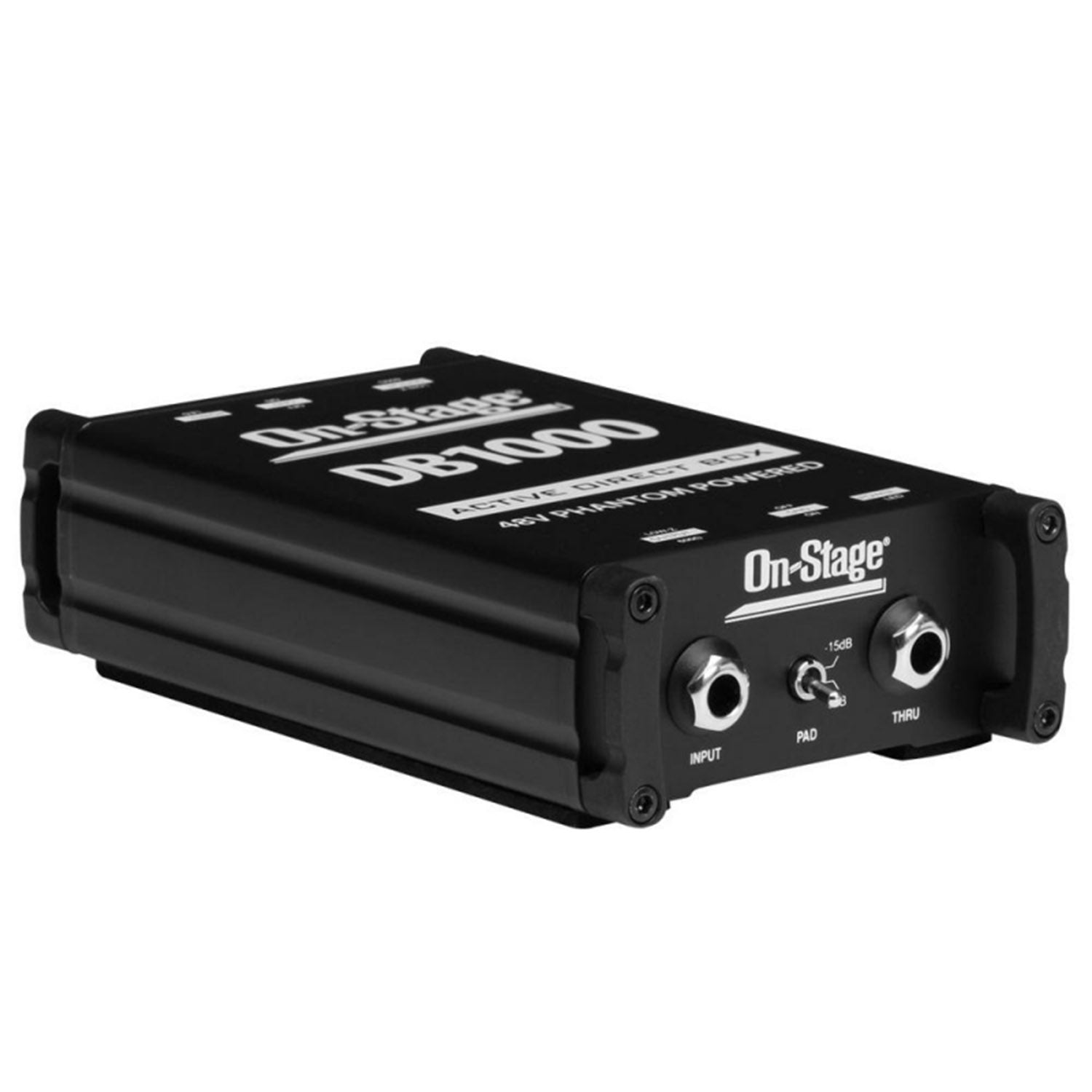

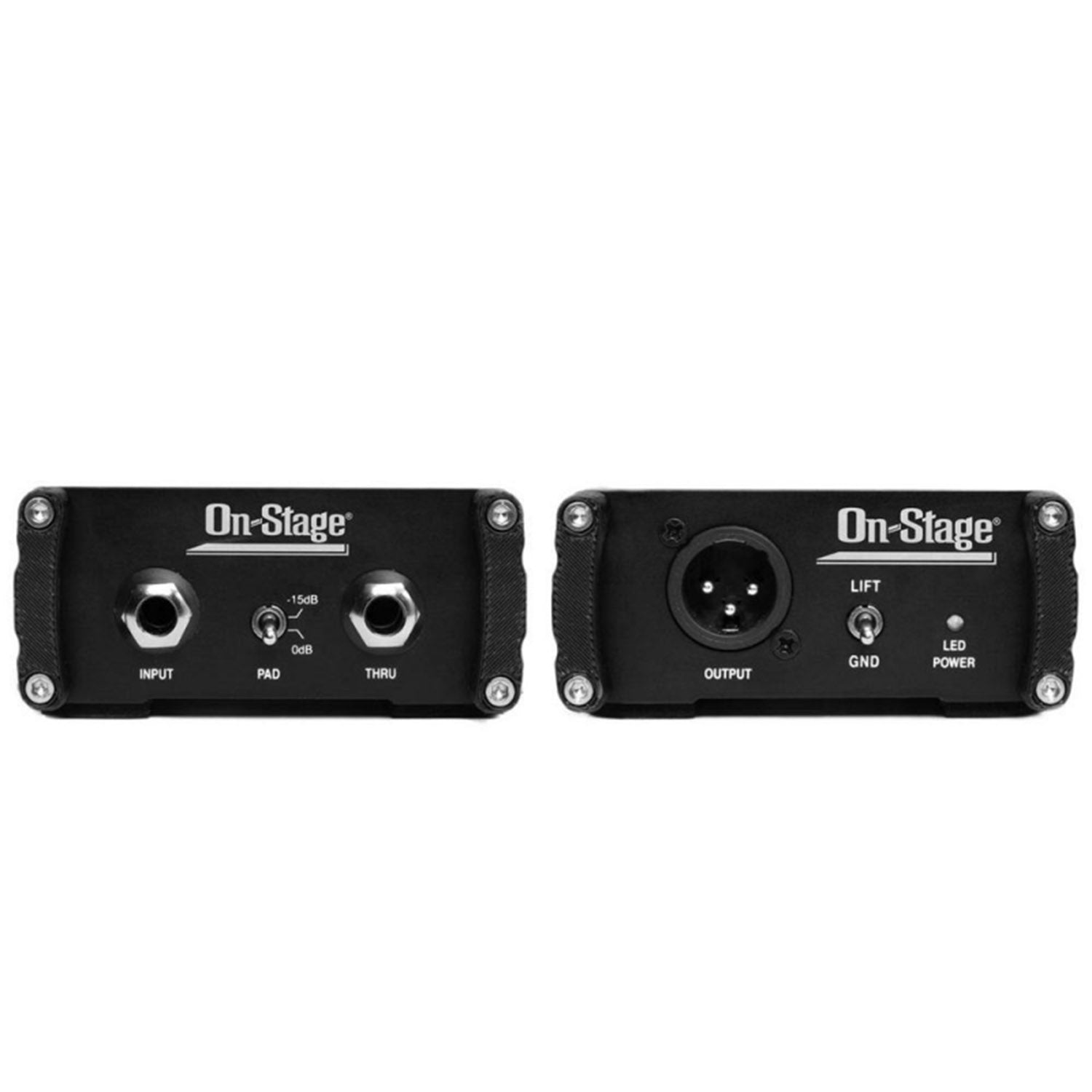

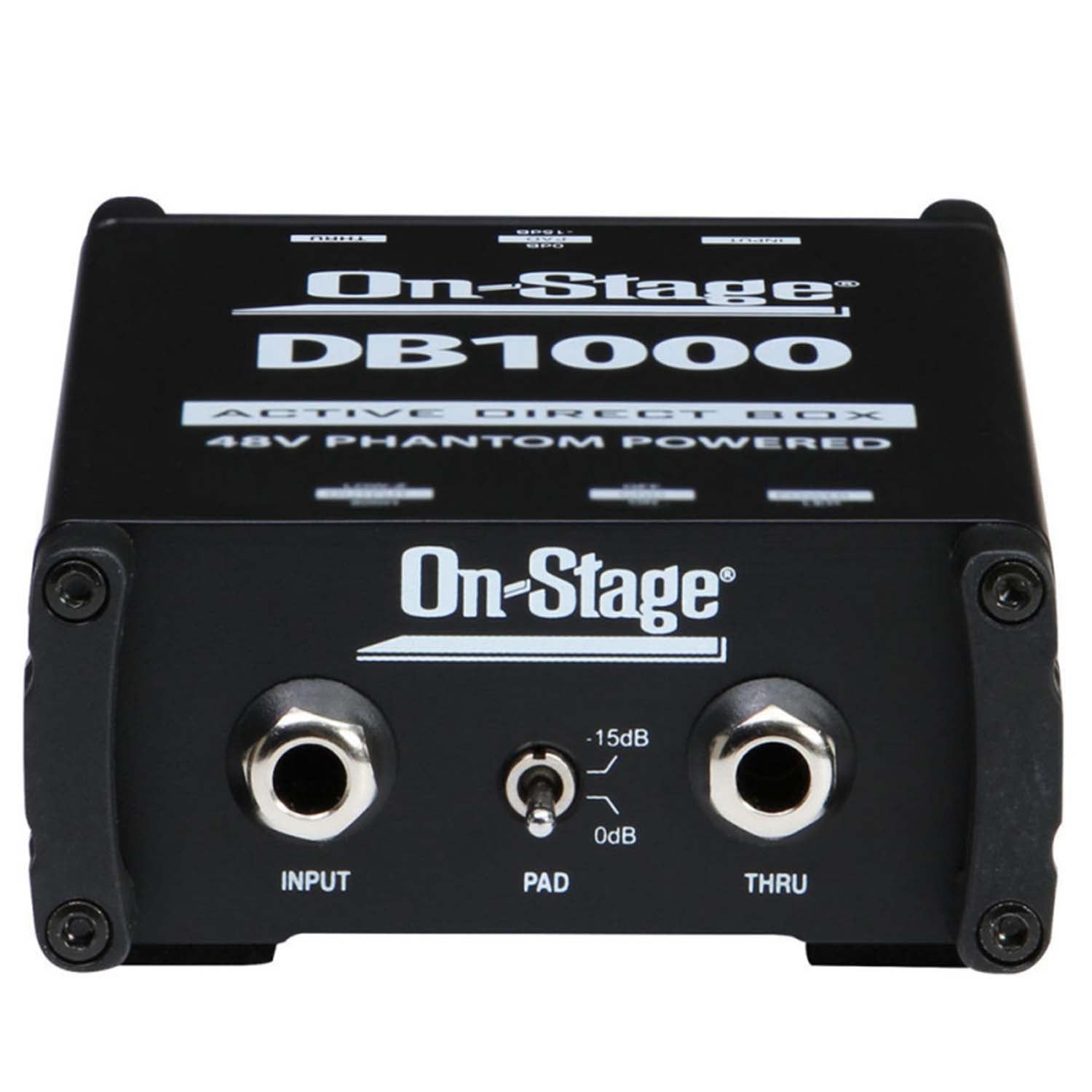

On-Stage Audio DB1000 Active DI Box

The On-Stage Audio DB1000 is an Active DI Box converts any high-impedance 1/4" source to a low-impedance XLR signal ready to send via a long cable run to a mixer or PA system. Features include a -15 dB pad switch to prevent clipping, a throughput connector to pass unaltered signal to a stage amp, and a ground-lift switch to defeat ground-loop hum. Its heavy-duty metal enclosure protects the internal components and ensures reliable performance.

Product Specification:

Application: Acoustic guitars, bass guitars, keyboards, and more

Inputs: 1/4"

Output: XLR

Power: Phantom

Pad: 15dB

Ground Lift: Yes

Input Resistance: 220K Ohms

Frequency Response: 10Hz - 40kHz

Construction: Metal w/ nylon bumpers

Dimensions: 6" x 3.5" x 1.5"

Weight: 0.70 lbs.
