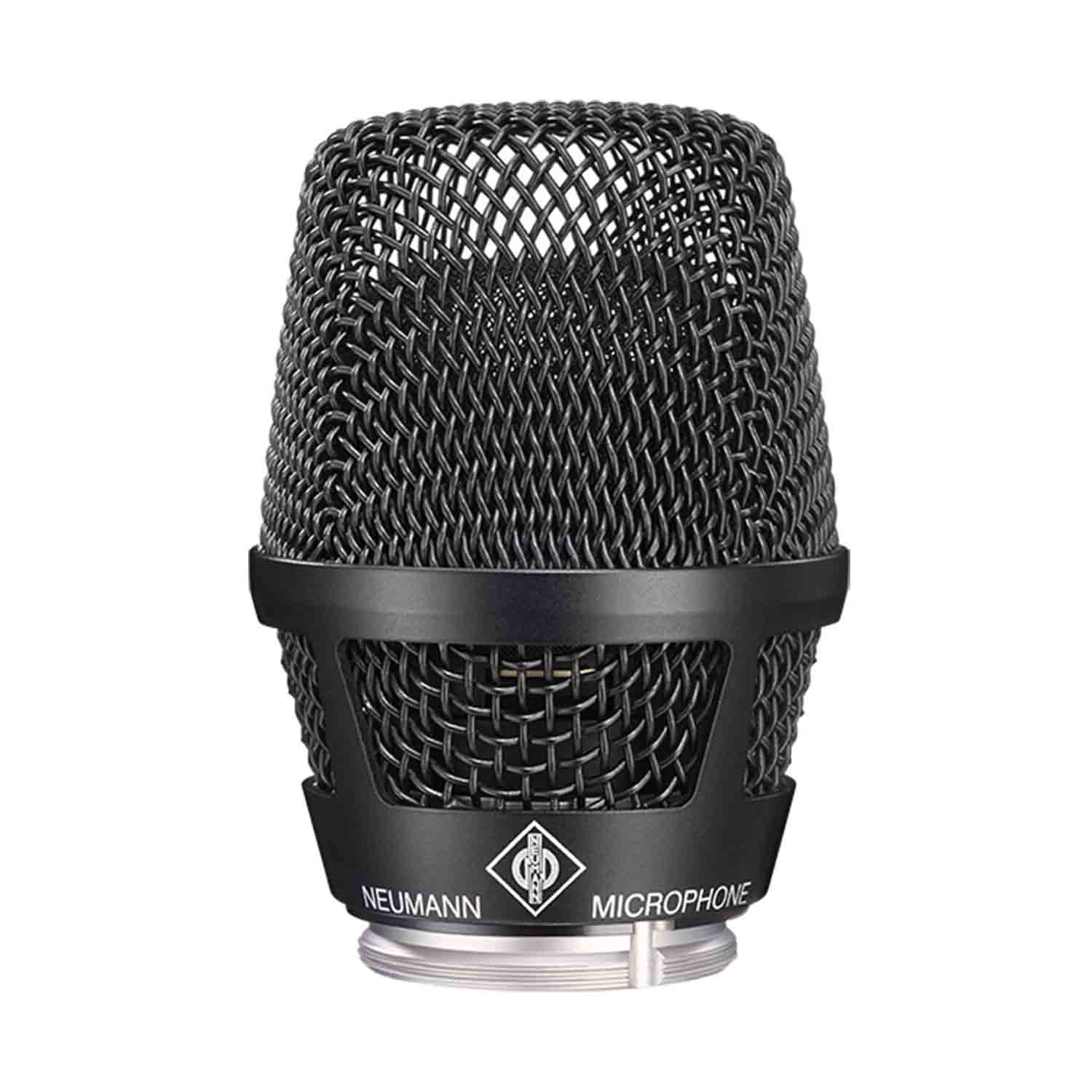

Neumann KK 105 S BK Supercardioid condenser capsule head for Sennheiser wireless systems

The Neumann KK 105 S BK Supercardioid condenser capsule head for Sennheiser wireless systems is a premium quality capsule head for Sennheiser SKM 5000/5200 handheld transmitters. Its precision manufactured condenser capsule offers true Neumann sound, combined with the freedom of wireless operation and all the virtues of a rugged stage microphone: excellent pop protection, enormous SPL capability, and high feedback resistance.

STUDIO QUALITY FOR WIRELESS SYSTEMS

The KK 105 S capsule head brings studio sound quality to the stage for the most demanding live applications. The KK 105 S combines Neumann’s famous sense of perfection with Sennheiser’s long standing expertise in live performance engineering.

The KK 105 S capsule head is based on Neumann’s highly successful, award-winning KMS series of wired stage microphones. While most stage microphones use dynamic capsules, the KK 105 S is equipped with a true condenser capsule offering the superior clarity that made Neumann studio microphones famous all over the world. At the same time, the KK 105 S possesses the ruggedness required for stage use, thus refuting the myth that condenser microphones must be “fragile”. The KK 105 S can stand enormous sound pressure levels of up to 150 dB without clipping, and its tight, frequency-independent supercardioid pattern ensures high gain before feedback. The KK 105 S has a much smoother frequency response than dynamic microphones and an airy top-end. Compared to dynamic microphones, the Neumann KK 105 S has a vastly superior transient response resulting in a more immediate, more emotional vocal sound. In practical terms: effortless intelligibility, without the usual EQ boosts – which further improves feedback resistance.

The KK 105 S is optimized for close miking; a fixed low cut filter compensates for the proximity effect and ensures clear bass, even if the singer’s lips touch the microphone. The headgrille is made of hardened steel and features a highly effective internal pop screen made of multi-layer wire gauze. The “heavy duty” variant KK 105 HD instead uses an integrated foam screen for even greater pop protection. Thanks to careful Neumann engineering, these acoustic filters do not cause any sibilance problems.

Product Specification:

Directional Pattern: Supercardioid

Frequency Range: 80 Hz ... 20 kHz

Sensitivity at 1 kHz into 1 kohm : 1.3 mV/Pa ± 1 dB equ. -58 dBV

Equivalent noise level, CCIR 1: 44 dB

Equivalent noise level, A-weighted 2: 33 dB-A

Maximum SPL for THD 0.5% 3: 150 dB

Maximum SPL for THD < 3 % 4: 155 dB

Signal-to-noise ratio, CCIR (re. 94 dB SPL) 5: 50 dB

Signal-to-noise ratio, A-weighted (re. 94 dB SPL) 6: 61 dB-A

Weight: approx. 325 g (incl. Tranmitter + power supply unit)

Diameter: 48 mm

Length: 257 mm (incl. Tranmitter)

Maximum SPL for THD 3% 7: 155 dB

Frequency range (transmitter): 450 - 960 MHz

Switching bandwidth: 24 MHz

Transmitter frequencies: 16

RF-output: 50 mW (-3 dB)

Noise suppression system: Sennheiser "HiDyn plusTM
