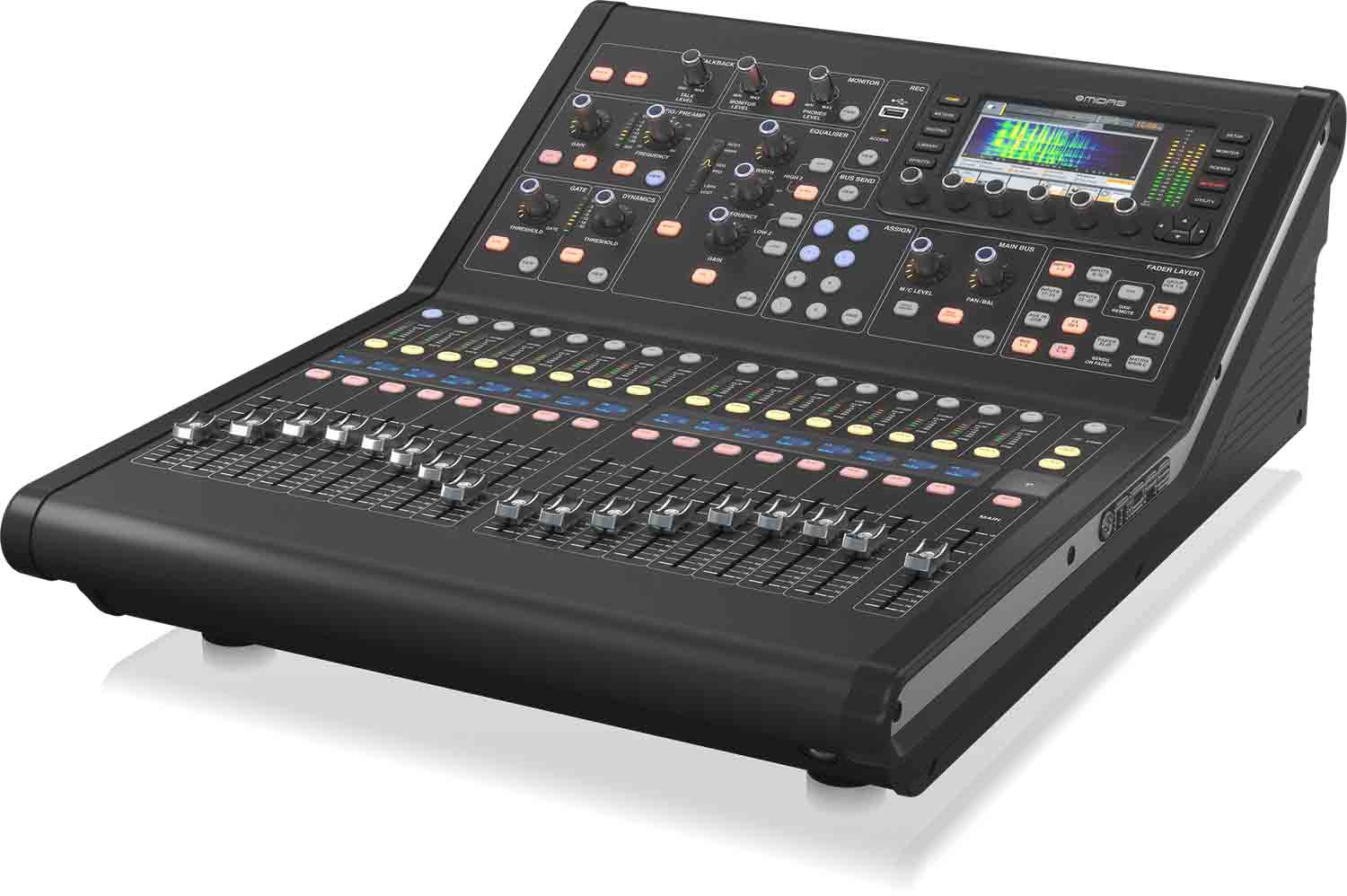

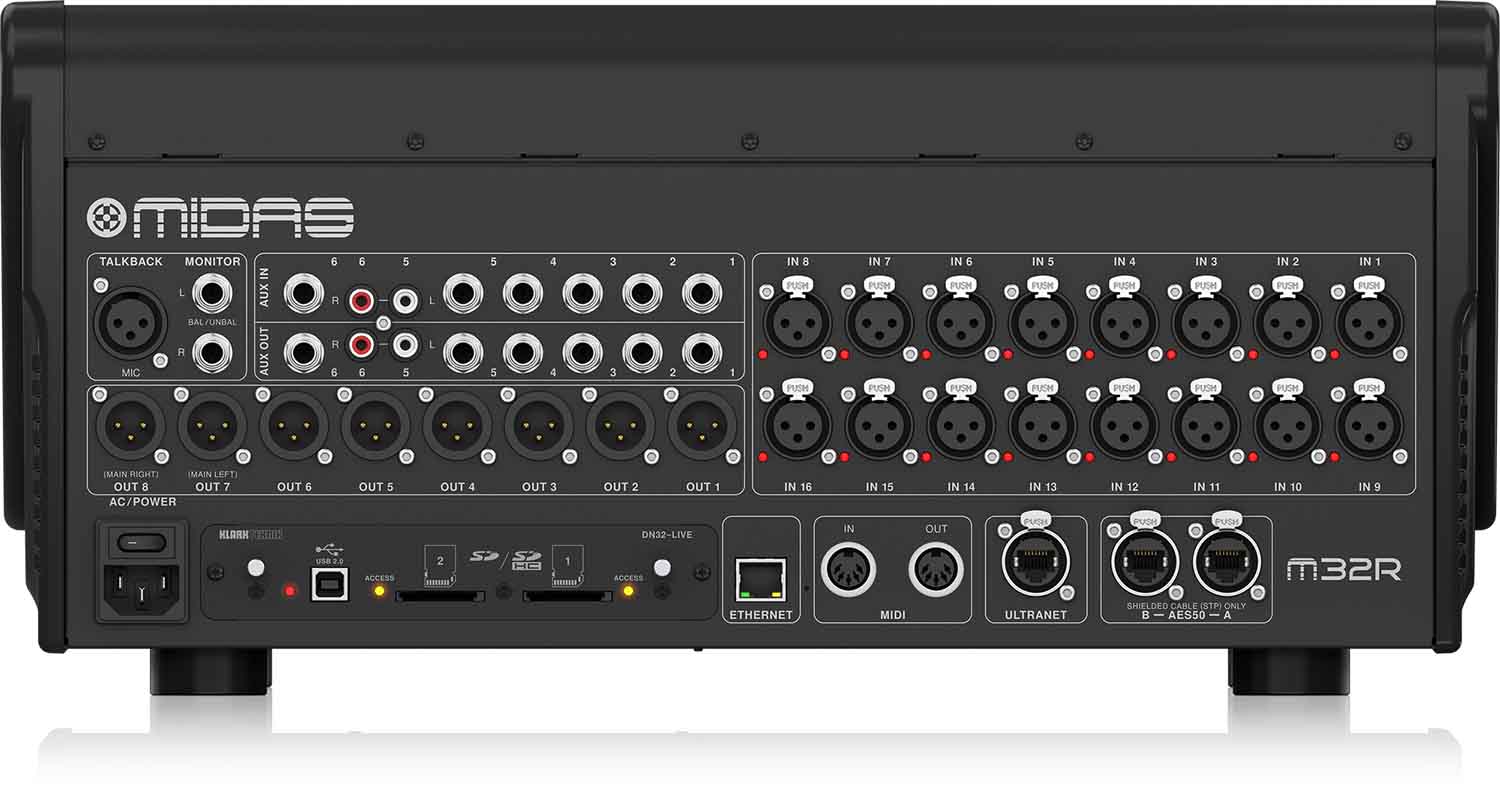

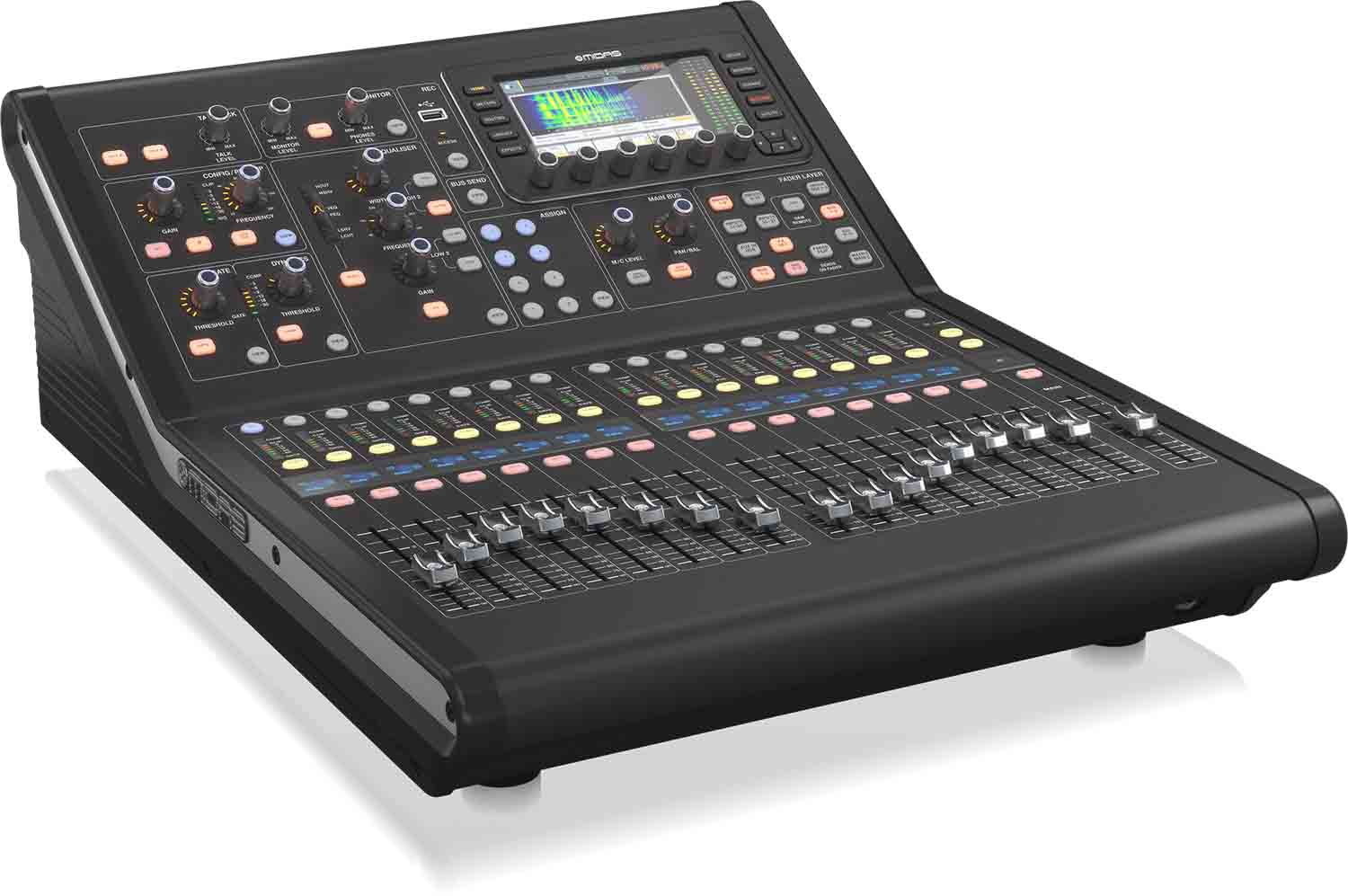

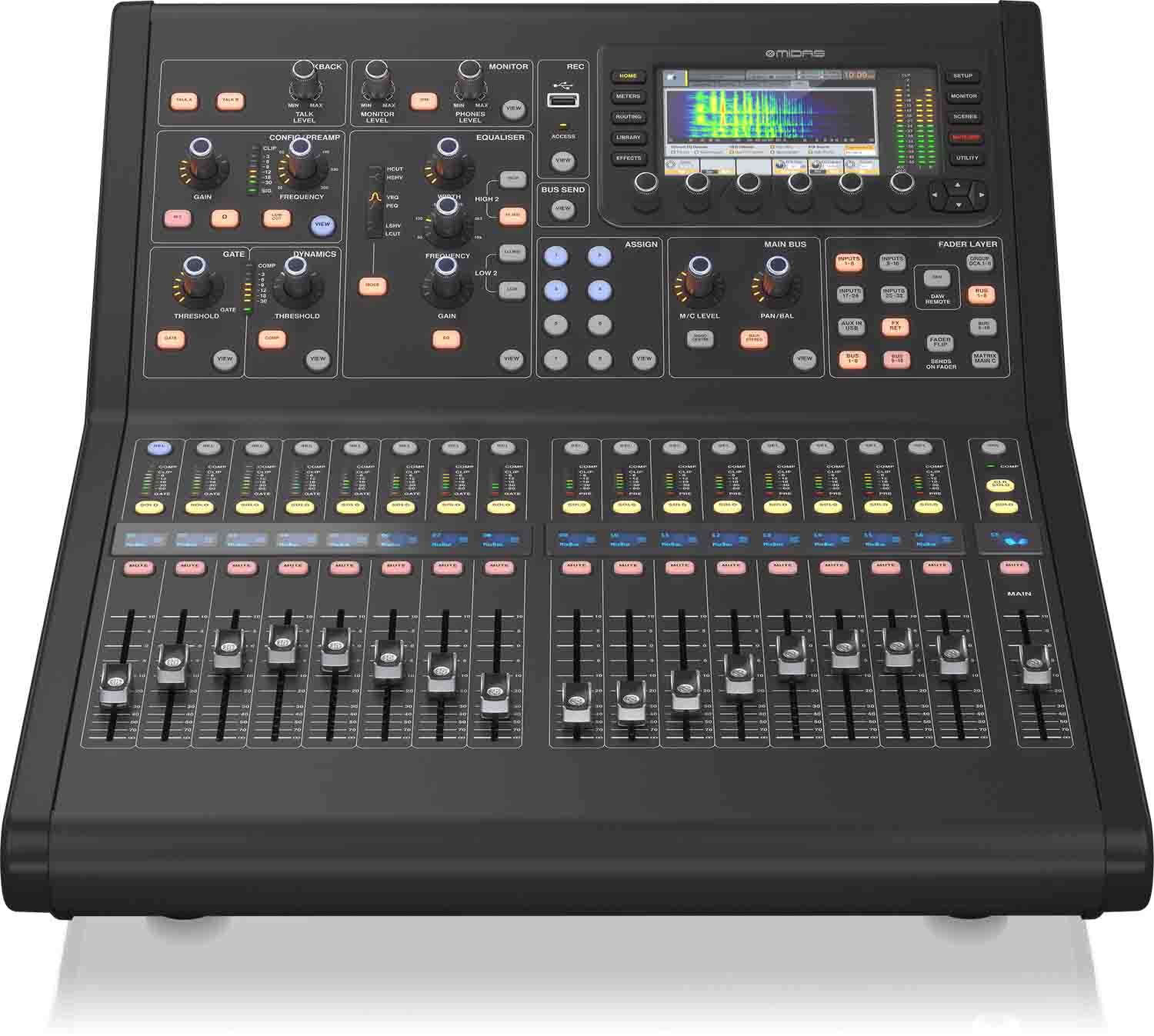

Midas M32R LIVE 40 Channel Digital Mixer

The Midas M32R LIVE construction is equally impressive and is designed to offer you years of reliable performance while withstanding the demanding environment of live performance venues. M32R LIVE employs a predominantly space-frame construction, with parts of the sub-frame consisting of high-performance aluminum. Multiple alloys have been employed throughout to guarantee maximum component efficiency and an improved performance-to-weight ratio.

Highly Portable Recording, Playback, and Mixing

The Midas M32R LIVE digital mixing console takes the stellar sound quality and amazing processing power of the M32 and packs it into a portable, rackmountable form factor. You get 16 channel faders and one master fader, the same custom design that gives the M32 its ultra-smooth and precise feel. And with eight DCAs and six mute groups, it's easy to manage larger shows from the compact M32R LIVE.

Midas Preamps Give You World-Class Sound

Ask any live sound engineer and they'll tell you Midas preamps are some of the best-sounding preamps. The sound is rich, vibrant, and open, with ultra-low noise and exceptional common-mode rejection. They're very resistant to overloading yet become harmonically rich when driven hard.

Elegant, Intuitive Design Inspired by Bentley

Midas worked with Bentley Motors' industrial designer Rajesh Kutty to create an entirely new form factor for the M32 and M32R LIVE. The result is an impressive combination of style and functionality. The M32R LIVE's layout gives you fast access to the most-used mixing controls, with intuitive paths to deeper functions and parameters.

32 Channels of Live Recording and Playback

The Midas M32R LIVE offers 32 channels of recording and playback, thanks to a pre-installed Klark Teknik DN32-LIVE. This expansion module gives you over three hours of 32-channel, 32-bit/48kHz recording on dual SD cards. Beyond that, a sample-accurate spanning feature can extend a session across both SD cards for more than 12 hours of 8-track recording.

Product Specification:

Type: Digital Mixing Console

Channels: 40

Inputs - Mic Preamps: 16 x XLR

Phantom Power: 48V, Switchable per Input

Headphones: 2 x 1/4" TRS (stereo)

USB: 1 x Type B, 1 x Type A

Computer Connectivity: USB, Ethernet

Faders: 16 x Input Faders, 1 x Main Fader

A/D Resolution: Up to 32-bit/48kHz

EQ Bands: 4-band EQ

Effects: Yes

Signal Processing: Gate, Compressor

Features: 100-band RTA, 100 scenes, 100 Snippets

DAW Control: Yes

Screen: 5" TFT Display

Storage: 2 x SD card slots

Power Source:  Standard IEC AC cable

Height: 8.2"

Depth:  24.3"

Width:  18.8"

Weight: 31.5 lbs.
