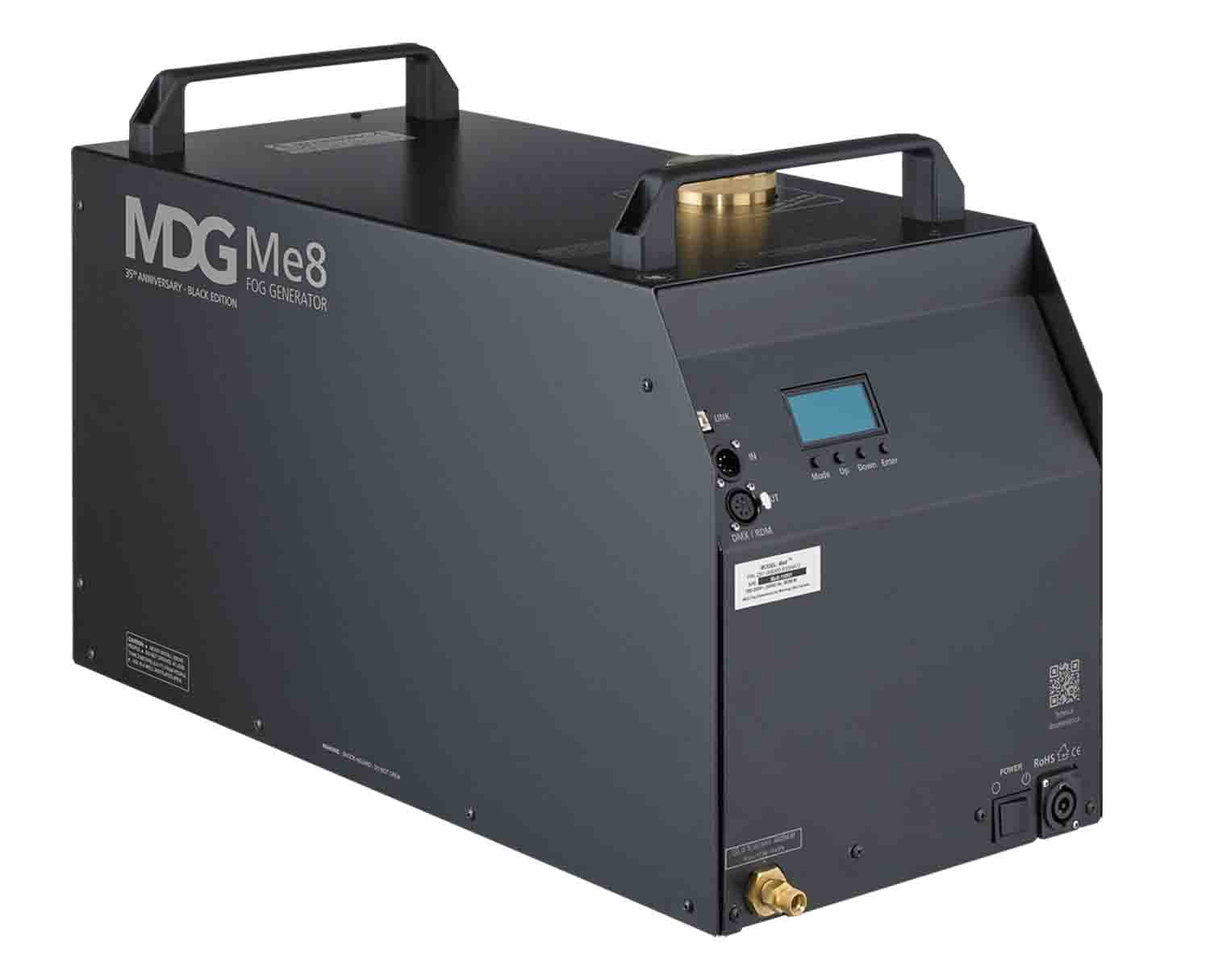

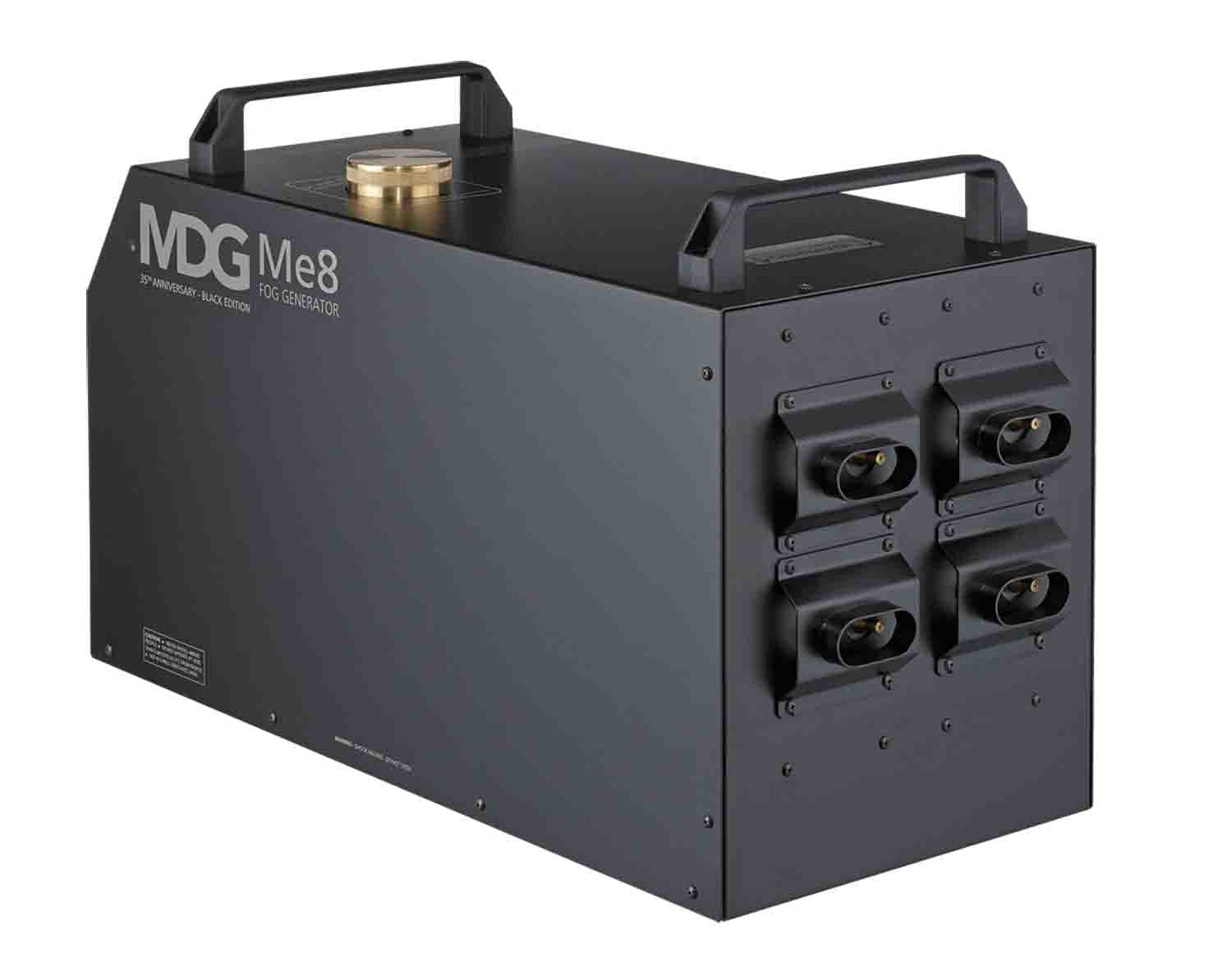

MDG Me8 Octo High Output Fog Generator

The MDG Me8 is an Octo High Output Fog Generator. The biggest of the family with a massive eight-nozzle fog output, Me8 delivers exceptional results on a vast scale.

Variable Fog Output

0-100% fog output control from your DMX/RDM device, or direct local control.

Fluid Consumption

At maximum output (2.76 bar / 40 psi) Me8 uses only 8 L (2.11 US gallon) of fluid per hour.

100% Duty Cycle

At all output levels Me8 produces a high-quality, consistent fog as long as there is fluid and gas.

Numerous Control Options

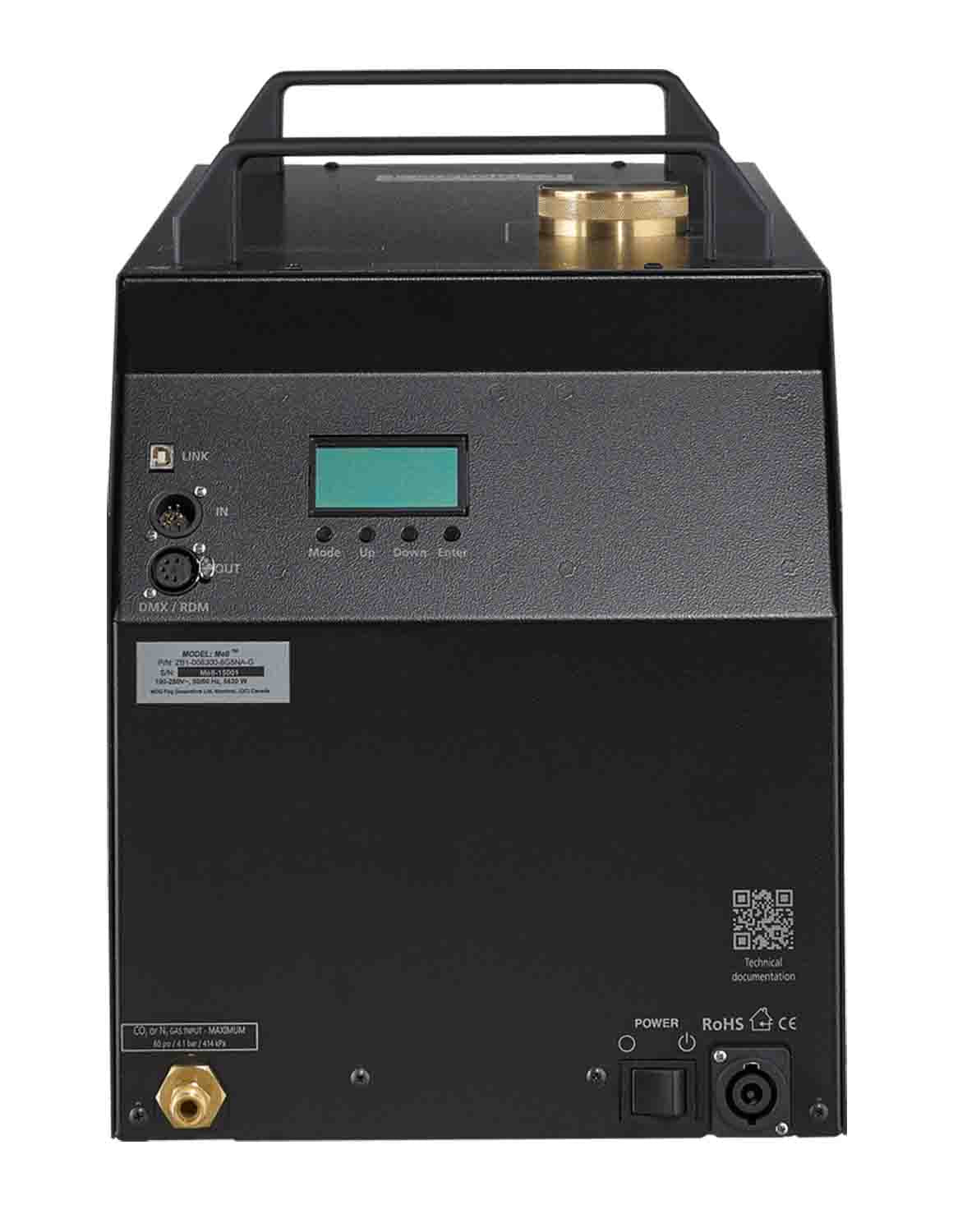

4-button LCD user interface, 3 standard USITT DMX512 channels, XLR-5 connectors, RDM compliant.

Aps (Automatic Purging System)

This system purges the heating modules after the first heating cycle and after every emission of fog preventing residual build up and clogging.

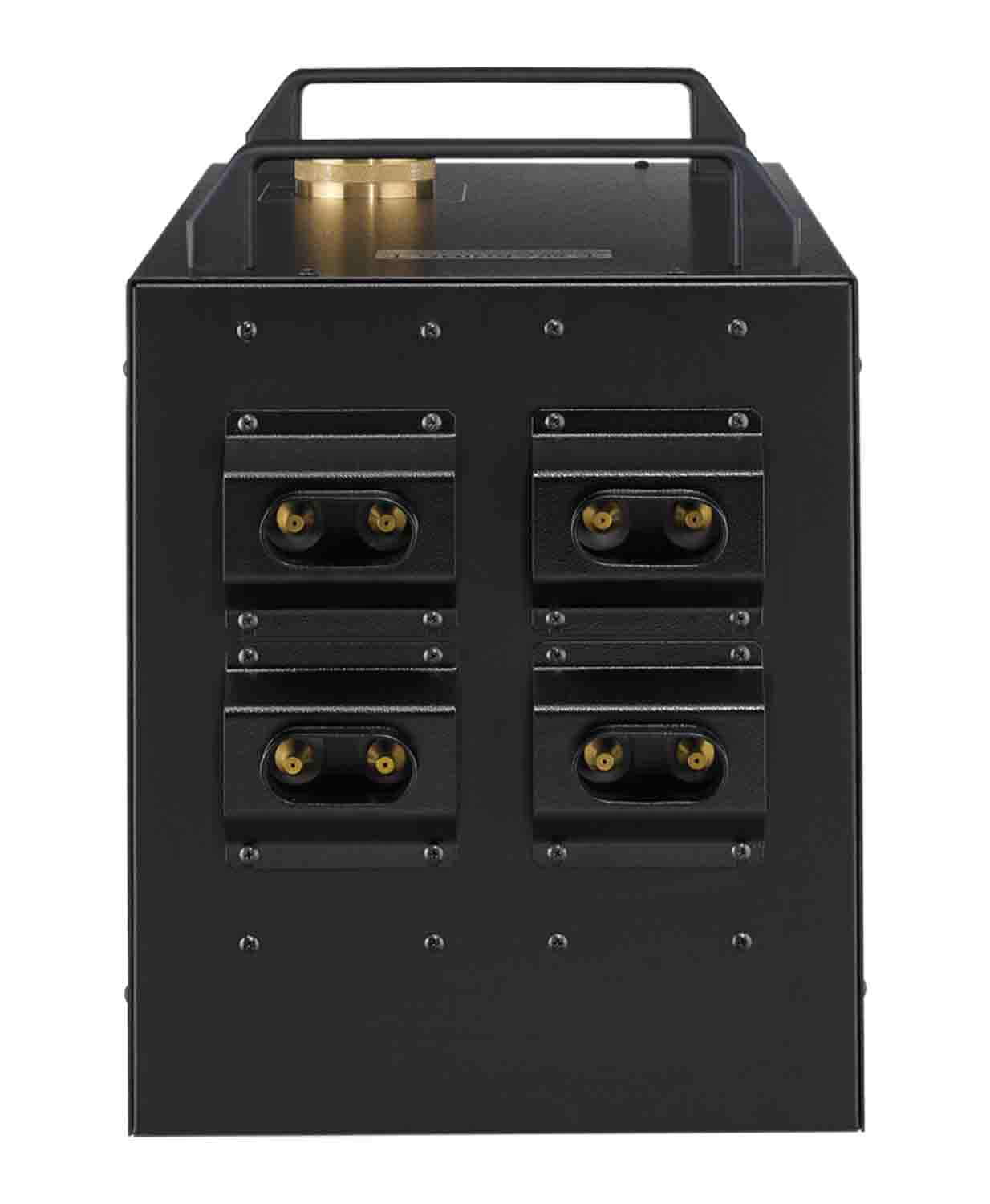

Octo Fog Output

With its eight nozzles, the maximum fog output is 800 m³ (28,252 ft³) per minute.

Product Specifications:

Maximum Fog Output: 800 m³ (28,251 ft³) per minute

Fluid Consumption: 8 L (2.11 US gallons) per hour at 2.76 bar / 40 psi

Gas Type: N₂

Gas Consumption: 8 kg (17.6 lb) per hour at 2.76 bar / 40 psi

Fog colour: Pure white

Particle size: 0.5 - 0.7 microns

Warm-up time: 8 minutes (maximum)

Fluid type: MDG Neutral

Operating voltage: 190 - 250 VAC, 50/60 Hz single phase

Power consumption: 5 630 W

Length: 73 cm (28.7”)

Width: 30.4 cm (12”)

Height: 41.5 cm (16.3”)

Weight: 45 kg (100 lb)

Shipping Weight: 60 kg (132 lb) with flight case
