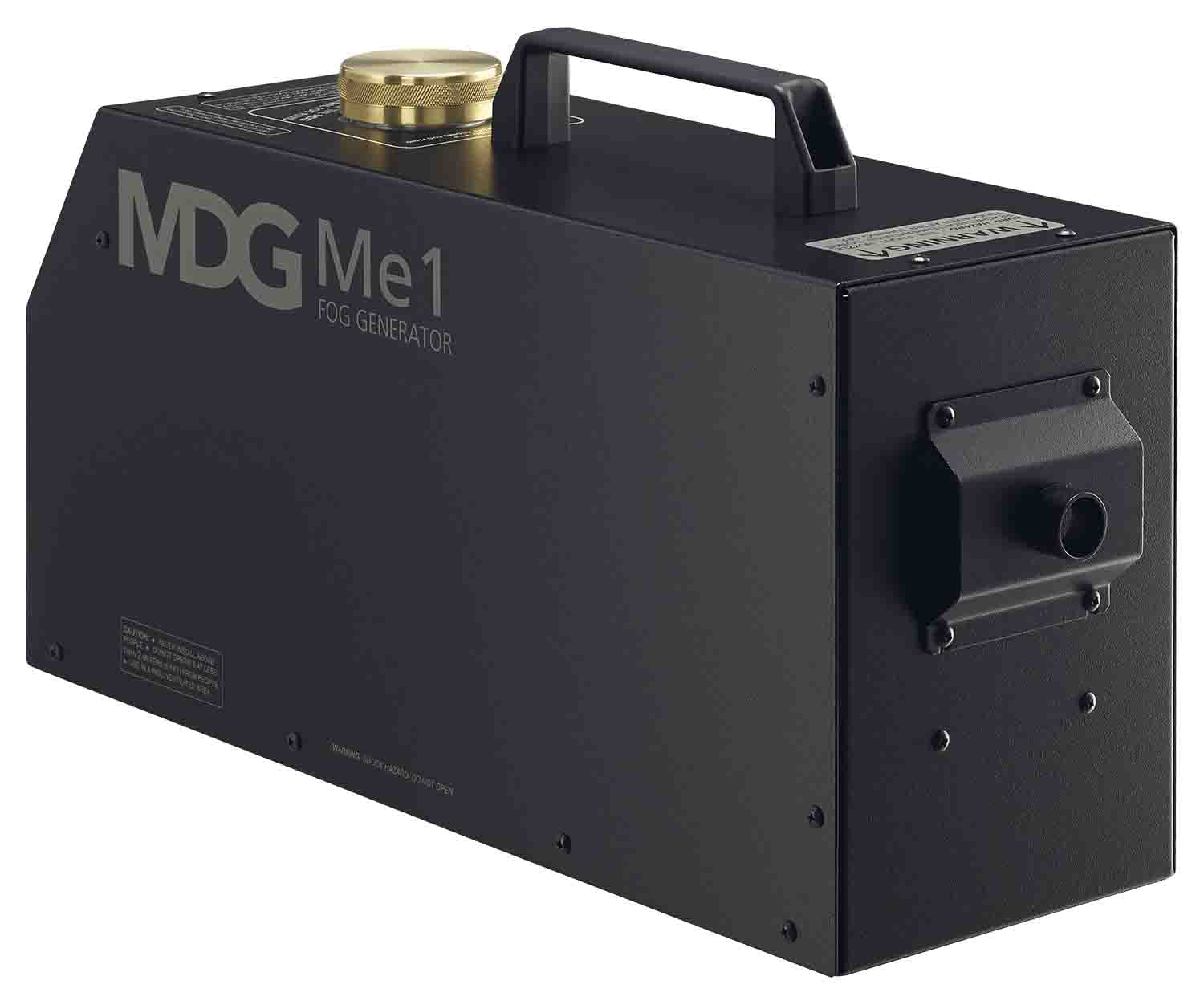

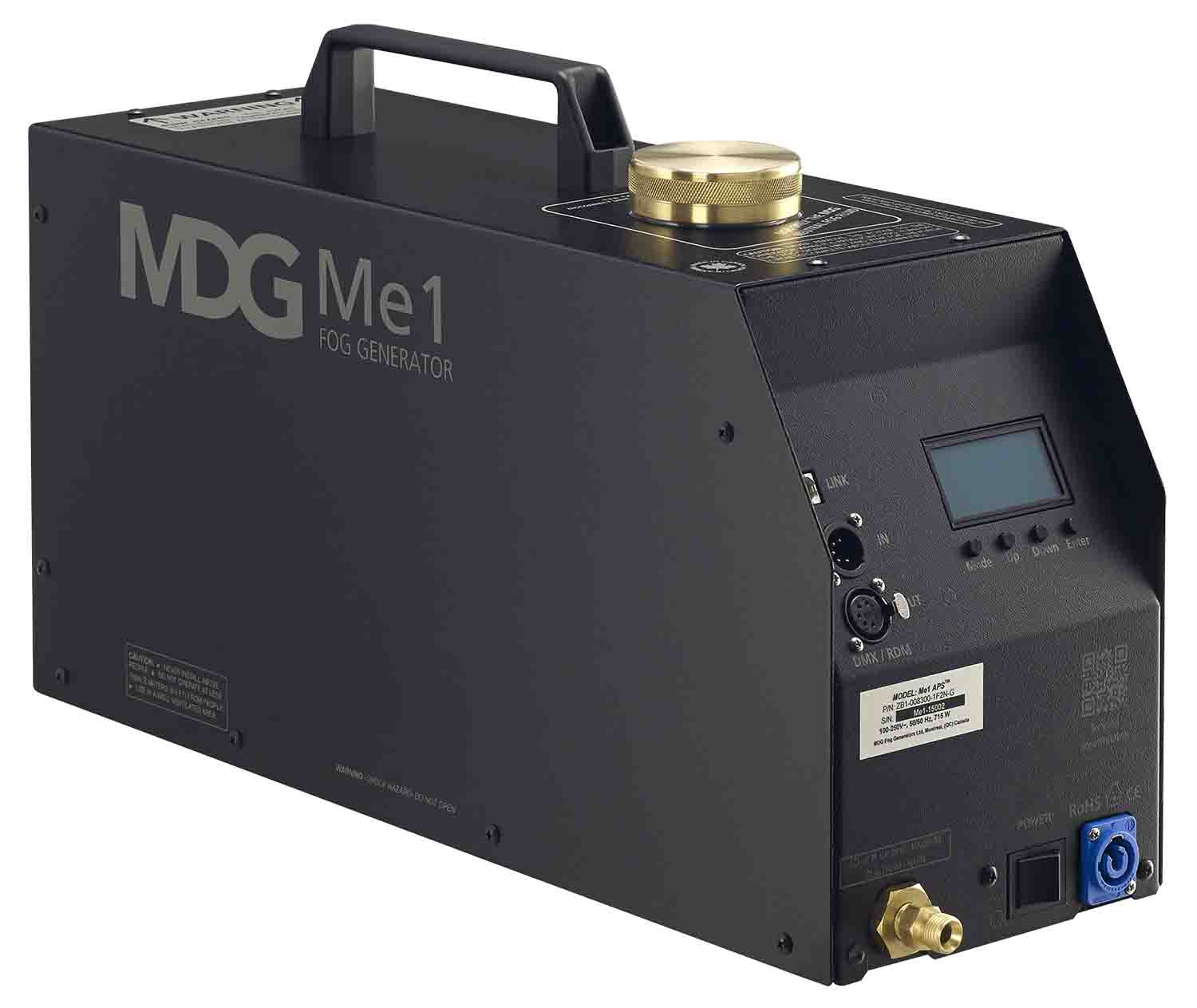

MDG Me1 Single Output Fog Generator

The MDG Me1 Single Output Fog Generator is the first and smallest in our powerful Me family of fog generators, Variable Fog Output 0-100% fog output control from your DMX/RDM device, or direct local control.

Second Personality

MAX 3000APS configuration setting.

Fluid Consumption

At maximum output (2.76 bar / 40 psi) Me1 uses only 1 L (0.26 US gallon) of fluid per hour.

Numerous Control Options

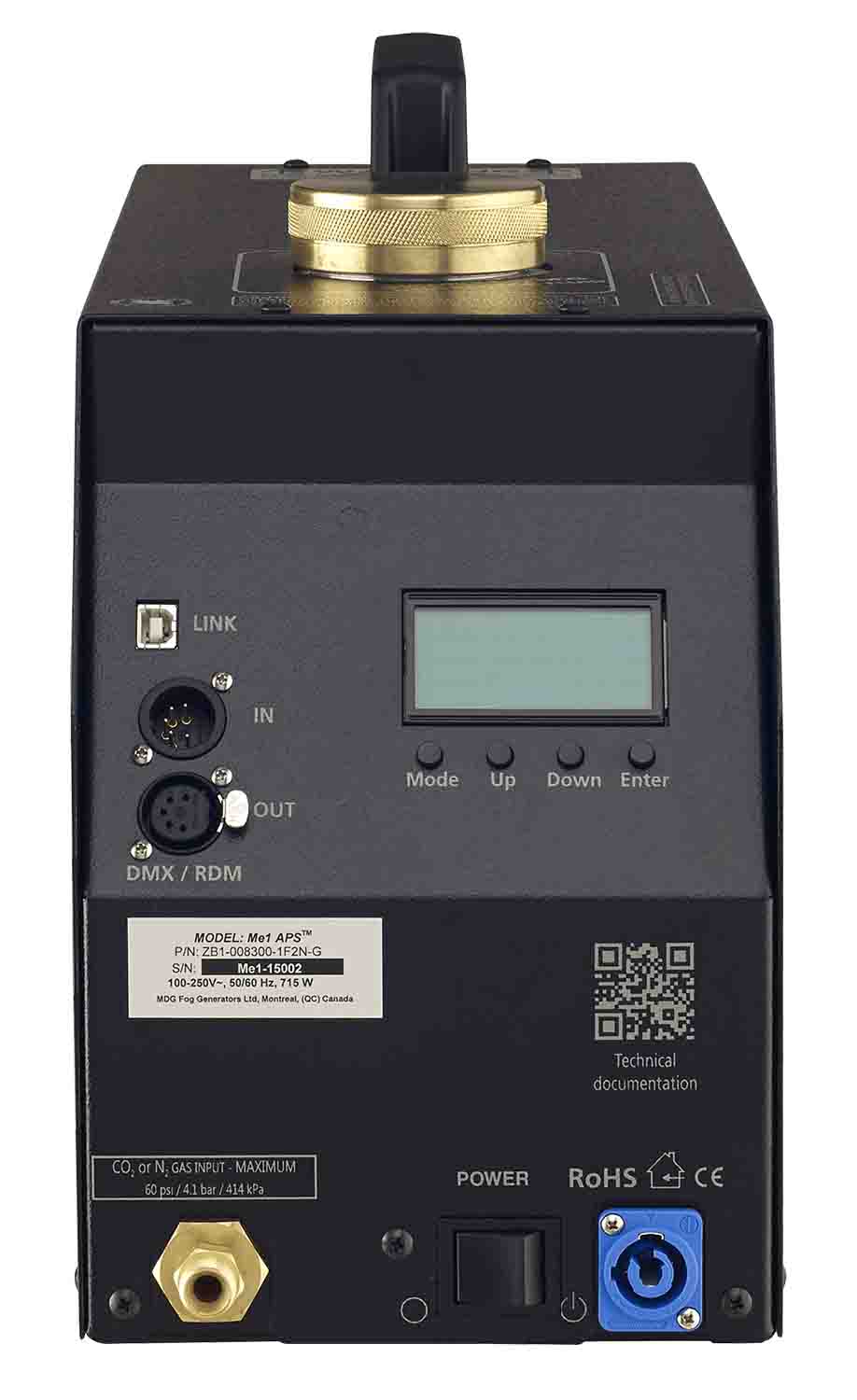

4-button LCD user interface, 3 standard USITT DMX512 channels, XLR-5 connectors, RDM compliant.

100% Duty Cycle

At all output levels Me1 produces a high-quality, consistent fog as long as there is fluid and gas.

Aps (Automatic Purging System)

This system purges the heating module after the first heating cycle and after every emission of fog preventing residual build up and clogging.

Product Specifications:

Maximum Fog Output: 100 m³ (3,531 ft³) per minute

Fluid Consumption: 1 L (30 oz / 0.26 US gallon) per hour at 2.76 bar / 40 psi

Gas Type: CO₂ or N₂

Gas Consumption: 1 kg (2.2 lb) per hour at 2.76 bar / 40 psi

Reservoir Capacity: 2.5 L (0.66 US gallon)

Fog Colour: Pure white

Particle Size: 0.5 - 0.7 microns

Warm-Up Time: 8 minutes (maximum)

Fluid Type: MDG Neutral

Length: 61 cm (24”)

Width: 18 cm (7”)

Height: 30 cm (12”)

Weight: 15.62 kg (35 lb)

Shipping Weight: 29.12 kg (64 lb) with flight case
