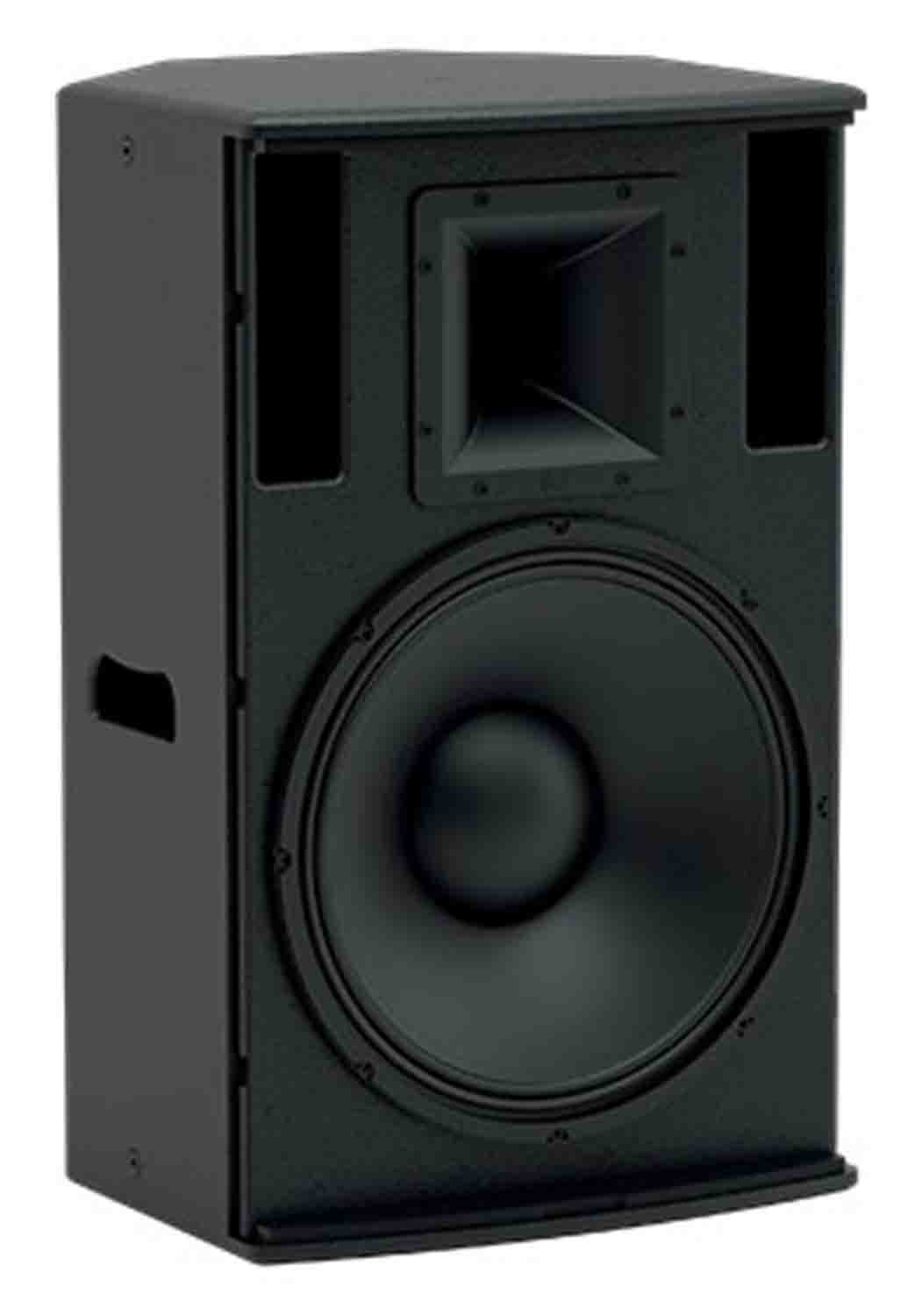

Martin Audio XP15, 15 Inch Powered Two-Way Portable Loudspeaker

The Martin Audio XP15, 15 Inch Powered Two-Way Portable Loudspeaker is a self-powered two-way system designed by leading acoustic engineers for indoor portable applications and installations that require powerful performance from a single portable loudspeaker. It features a 15” (380mm)/3” (75mm) voice coil LF drive unit, and a 1” (25mm) exit HF compression driver with a 1.75” (44mm) polyimide diaphragm. With an accurately-defined 80° x 50° coverage pattern, it combines very high output capability with exceptional sonic performance and low frequency impact.

Its Class D amplifier module delivers 1000W LF + 300W HF peak output to the drivers, which are independently protected by RMS and peak limiters. On-board DSP functions are controlled by a rotary encoder interface and multi-function, easy-to-use color display on the rear panel. DSP features include crossover function, a three-channel mixer with three band EQ on each input channel and a choice of three voicing resets and operating modes for flexible operation without external processing.

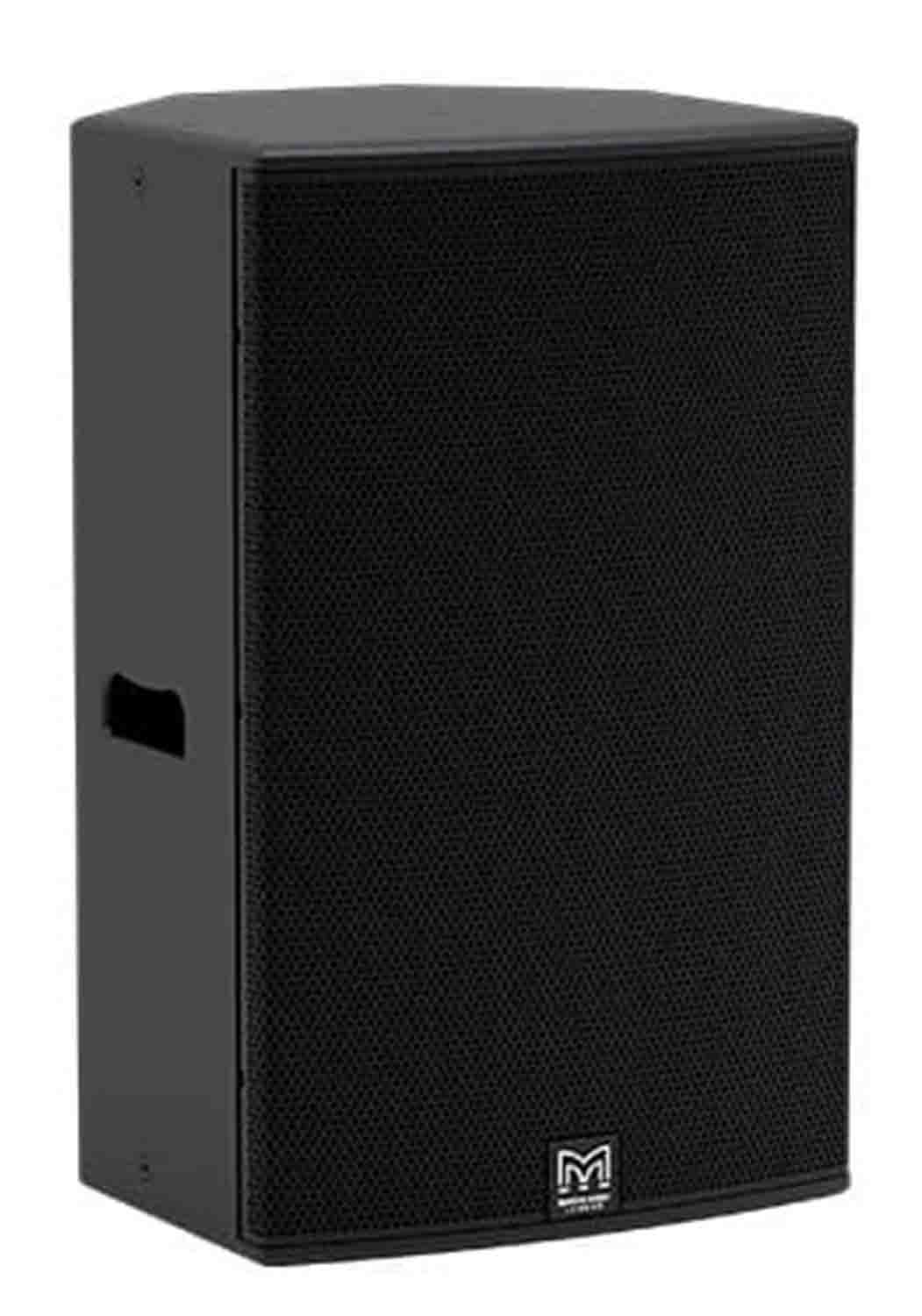

The symmetrical, multi-angle enclosure is manufactured from birch and poplar plywood and finished in textured black paint. It is fitted with M8 inserts for eyebolt suspension plus a pole-mount socket with a removable cap. Its cloth-backed protective steel grille is a spring-fit into the sides of the enclosure for easy access to rotate the HF horn.

Product Specification:

Type: High output, self-powered two-way system

Maximum SPL: 125dB continuous / 131dB peak

Dispersion: 80° H x 50° V (user-rotatable)

Crossover: 2kHz active, 24dB/octave

Mix output connector: 1 x male XLR

Mix output impedance: 600Ω balanced

Input channel EQ: 3-band on each channel plus HPF (Ch1/2)

Speaker EQ: 3 speaker mode/voicing presets

Protection: LF and HF Peak and RMS limiting, amplifier thermal protection

Average efficiency: 89%

Cooling: External convection cooled

Maximum ambient temperature: 35°C (95°F) for full output

TYPE: Switch-mode, fixed frequency with PFC

AC input operating range: 100-240V ~ AC, 50 - 60Hz

Power factor: > 0.98

Nominal power consumption: 550W Max

Mains connector: 3-pin IEC

Enclosure: Multi-angle birch/poplar ply

Finish: Black textured paint

Protective grille: Black perforated steel with scrim cloth backing

Fittings: 13 x M8 inserts, pole-mount socket, 2 x pocket handles

Dimensions: (W) 16.8in x (H) 27.2 x (D) 16.0in

Weight: 57lbs
