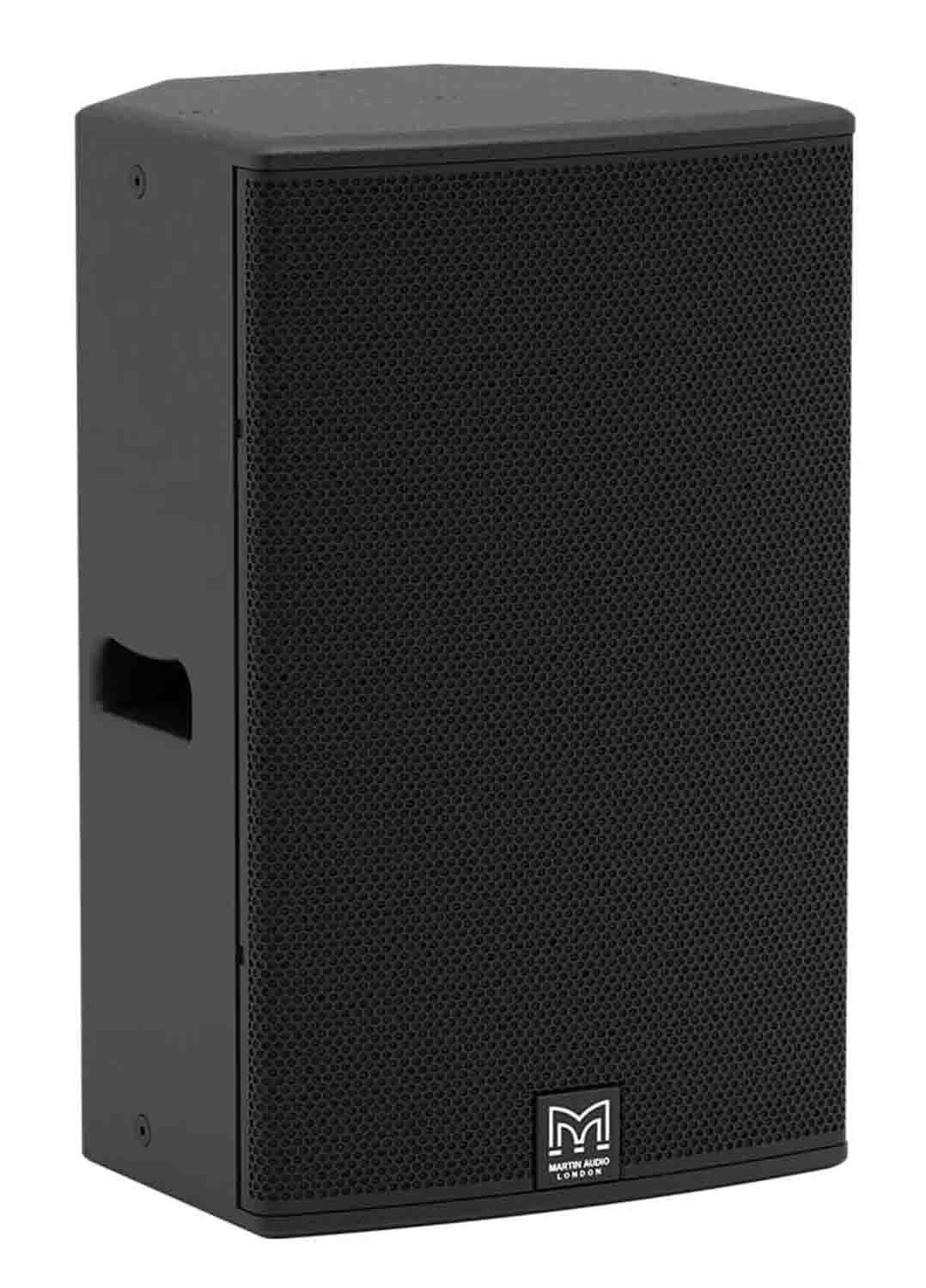

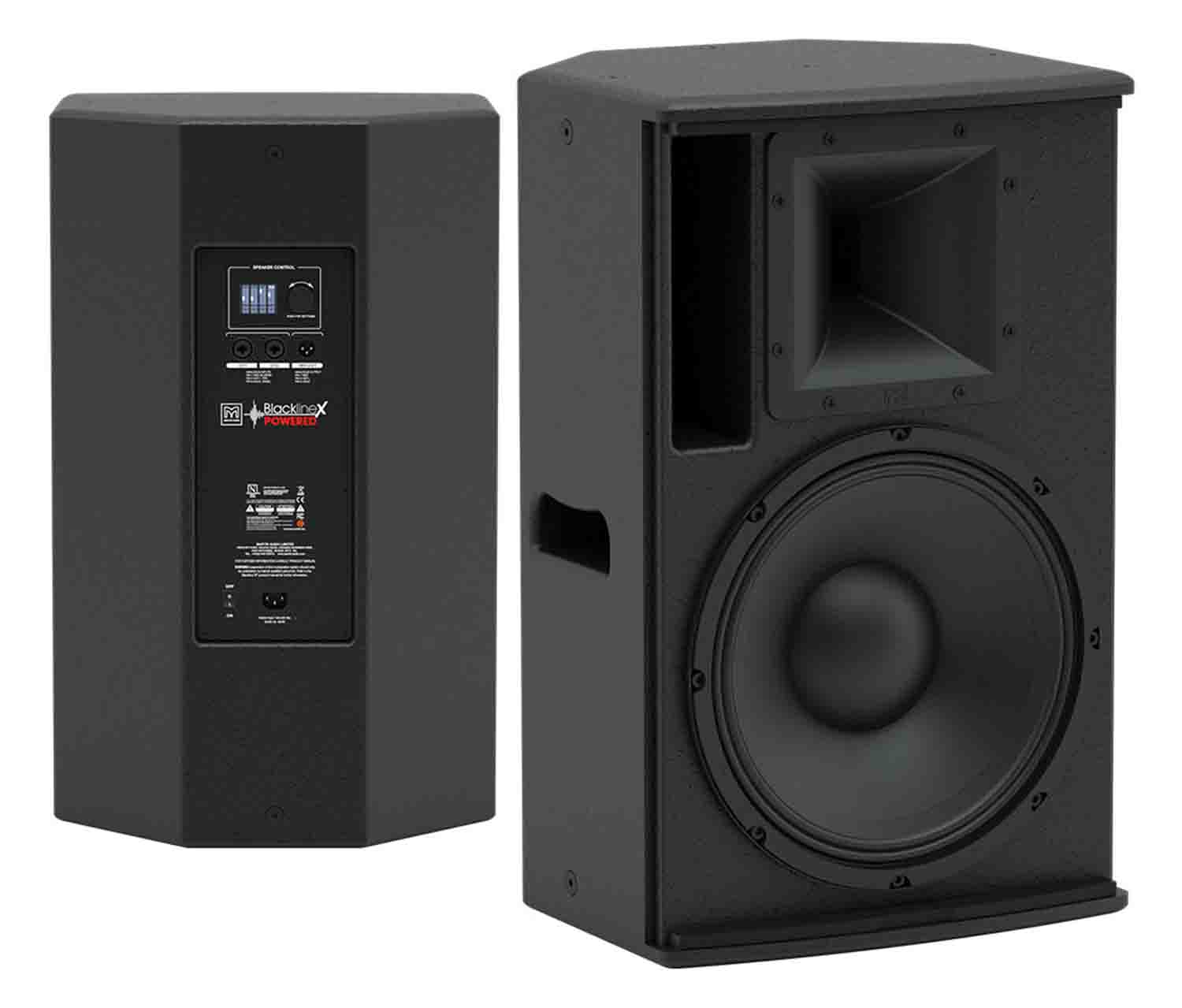

Martin Audio XP12, 12 Inch Powered Two-way Portable Loudspeaker

The Martin Audio XP12, 12 Inch Powered Two-way Portable Loudspeaker is a compact, powered 2-way loudspeaker that can function as a stand-alone system, a stage monitors or, combined with the XP118 powered subwoofer, as part of a 3-way system.

Ideal for small to mid-size indoor venues, the XP12 is loaded with a 12-inch LF driver and 1-inch exit HF compression driver mounted to an 80° x 50° rotatable horn. The HF driver is equipped with a 1.75-inch polyimide diaphragm for extended high frequency response, while the LF driver features a 2.5-inch voice coil and powerful magnet system for ultra-tight bass response.

A built-in Class D amplifier produces 1000W LF plus 300W HF peak power to the drivers to deliver clean, undistorted sound. The amplifier’s onboard DSP functions are controlled by a rotary interface and easy to use color rear panel display and include a 3-channel mixer with 3-band EQ on each input, a crossover function, and a selection of 3 voicing presets and operating modes for use without external processing. Peak and RMS limiters are included for protection of both drivers.

The road-ready XP12 has a durable plywood enclosure fitted with a cloth-backed steel grille that protects the drivers from dust and damage while allowing sound to pass unimpeded. The enclosure also has a pole-mount socket with a removeable cap and integral M8 inserts for eyebolt suspension.

Product Specification:

TYPE: Compact self-powered two-way system

Maximum Spl: 122dB continuous, 128dB peak

Dispersion: 80° H x 50° V (user-rotatable)

Crossover: 2.3kHz active, 24dB/octave

Mix output connector: 1 x male XLR

Mix output impedance: 600 Ω Balanced

Input channel EQ: 3-band on each channel plus HPF (Ch1/2)

Speaker EQ: 3 speaker mode/voicing presets

Protection: LF and HF Peak and RMS limiting, amplifier thermal protection

Type: 2 channel switch-mode, class D

Average efficiency: 89%

Cooling: External convection cooled

Maximum ambient temperature: 35°C (95°F) for full output

Type: Switch-mode, fixed frequency with PFC

Ac input operating range: 100-240V ~ AC, 50 - 60Hz

Power factor: > 0.98

Nominal power consumption: 550W Max

Mains connector: 3-pin IEC

Enclosure: Multi-angle birch/poplar ply

Finish: Black textured paint

Protective grille: Black perforated steel with scrim cloth backing

Fittings: 17 x M8 inserts, pole-mount socket, 2 x pocket handles

Dimensions: (W) 14.1in x (H) 22.6in x (D) 12.5in

Weight: 40lbs
