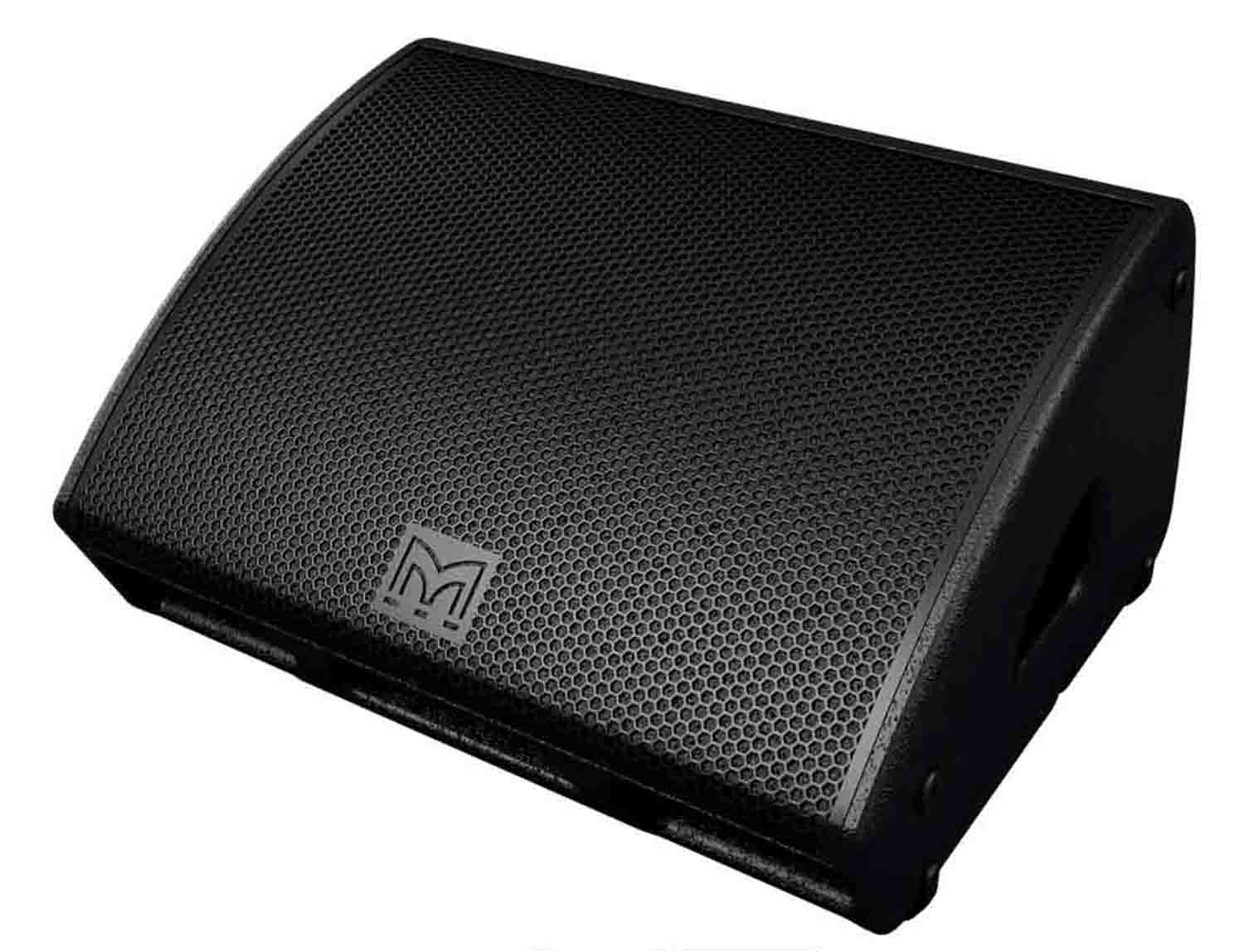

Martin Audio XE300, 12 Inch Bi-amp/Passive Coaxial Differential Dispersion Stage Monitor

The Martin Audio XE300, 12 Inch Bi-amp/Passive Coaxial Differential Dispersion Stage Monitor is the definitive, high-performance compact monitor. It features a high-specification 12” (300mm) LF /1.4” exit HF Coaxial Differential Dispersion driver to deliver perfect sound over the artist’s listening plane. The LF driver section has a 3” (75mm) voice coil and efficient motor with an aluminum demodulating ring to minimize distortion, while the HF driver utilizes a 1.4” (35mm) exit HF compression driver with a 3” (75mm) pure titanium diaphragm.

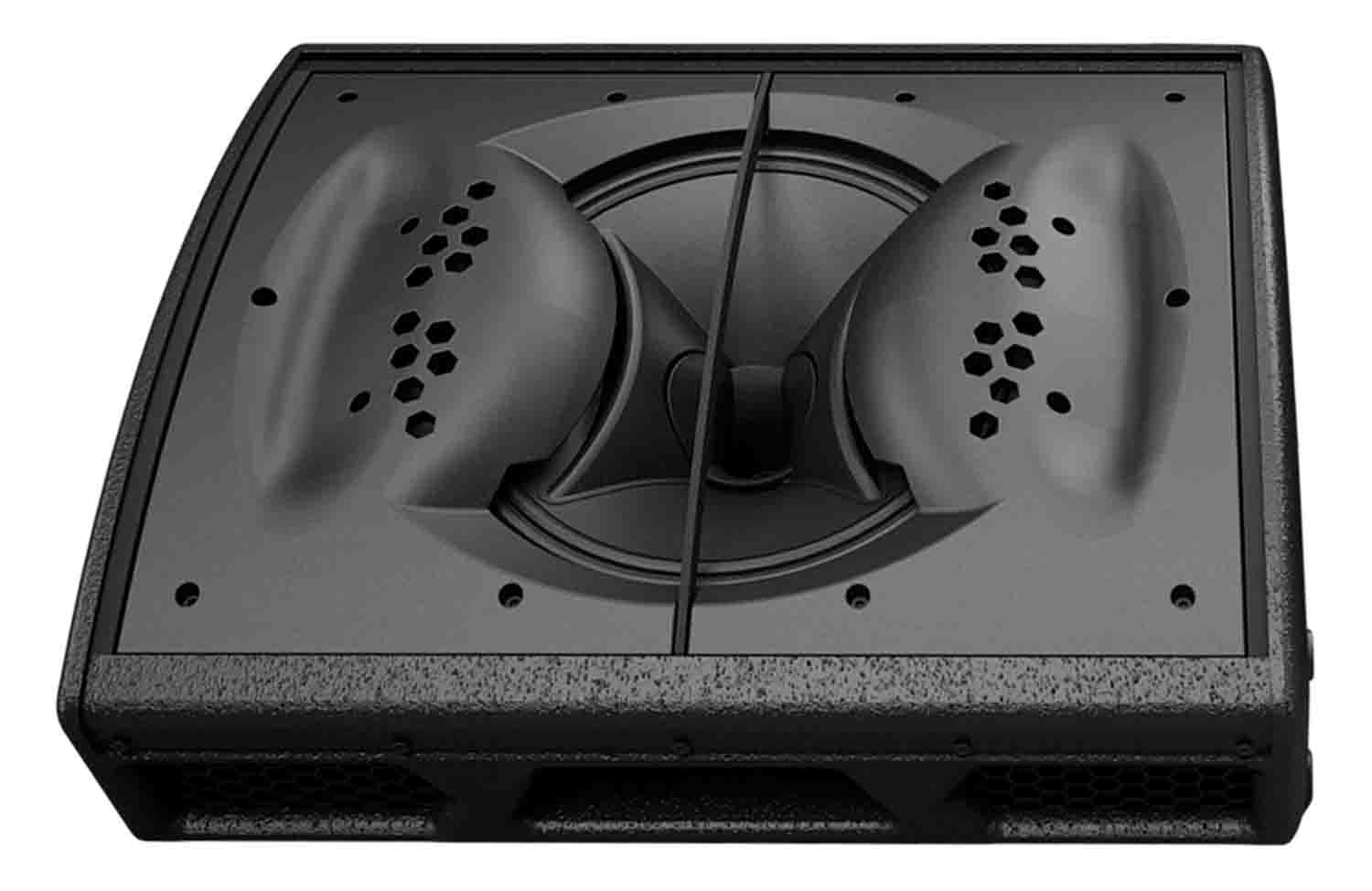

is constructed from multi-laminate birch ply, with integral ergonomic handles and finished with a hard-wearing paint. A strong, perforated steel grille with an acoustically transparent cloth backing provides protection for the Coaxial Differential Dispersion driver, while molded feet on the base prevent movement onstage with additional rubber feet on the side panels providing added protection if the monitor is upended when carrying.

Frontal reflex ports couple with the floor to increase LF output and inbuilt risers can be used to increase the monitoring angle for longer-throw applications.

XE Series monitors are designed as a complete system with the iK42 4-channel Class D Amplifier, offering a unique combination of power and audio performance seamlessly combined with advanced DSP, proprietary VU-NET software control and Dante digital audio networking. State of the art components and a finely optimized design results in generous power reserves that ensures pristine sound quality is maintained even under the most extreme conditions. As well as maximizing the capability of the monitor, this ensures that the monitor engineer and artist can be confident that they will experience this same high level of consistent performance from an XE monitor anywhere in the world.

Product Specification:

Type: Two-way, bi-amp/passive, Coaxial Differential Dispersion Stage Monitor

Maximum Spl: Bi-amp: 140dB peak. Passive: 139dB peak

Dispersion (-6db): 60-30° horizontal, 90° vertical

Crossover: 1.1kHz

Enclosure: Birch/beech ply and hardwood

Finish: Textured black paint

Protective Grille: Black perforated steel with scrim cloth backing

Baffle Angle: 27.5° (40° with risers)

Connectors: 4 x NL4 type

Pin Connections: LF/FR: 1+/-, HF: 2+/-

Dimensions: (W) 21.9ins x (H) 11.5ins x (D) 18.5ins

Weight: 41.9 lbs
