Martin Audio X8, 8 Inch Passive Two-way Portable Loudspeaker

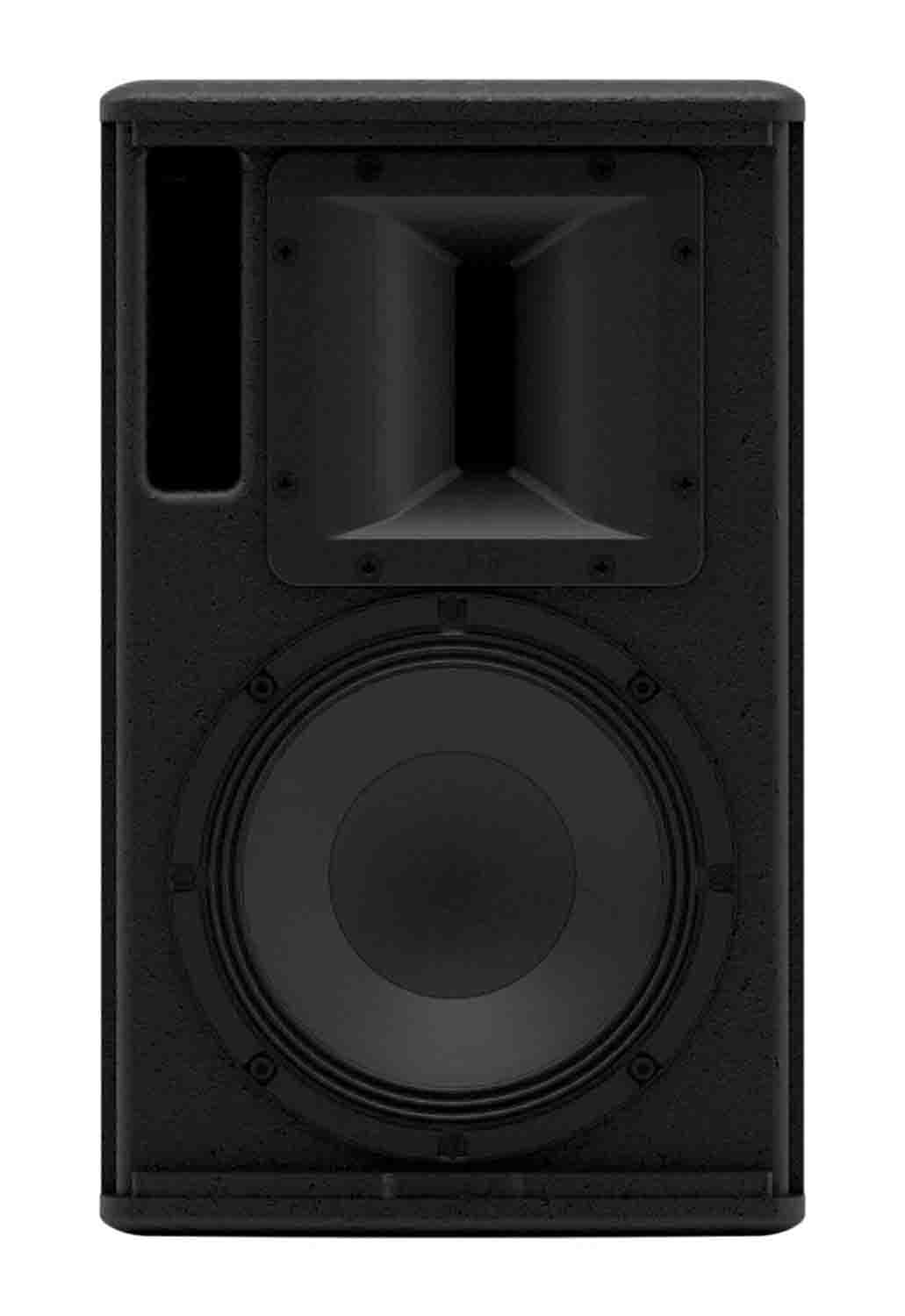

The Martin Audio X8, 8 Inch Passive Two-way Portable Loudspeaker is an ultra-compact passive two-way system with an 8” (200mm)/2” (50mm) voice coil LF driver and a 1” (25mm) HF driver mounted on a 90° x 50° horn which can be easily rotated for horizontal or vertical orientation, depending on venue requirements. Its very small size gives no indication of its high output capability.

As a stand-alone loudspeaker, it has a multitude of professional applications from distributed sound reinforcement, How and AV events to front fill/infill and use as a micro stage monitor. Complemented by a Blackline X subwoofer, it is the ideal, simple-to-use system for portable applications and installations which call for an unobtrusive system that can deliver pristine sound over short and medium throw distances.

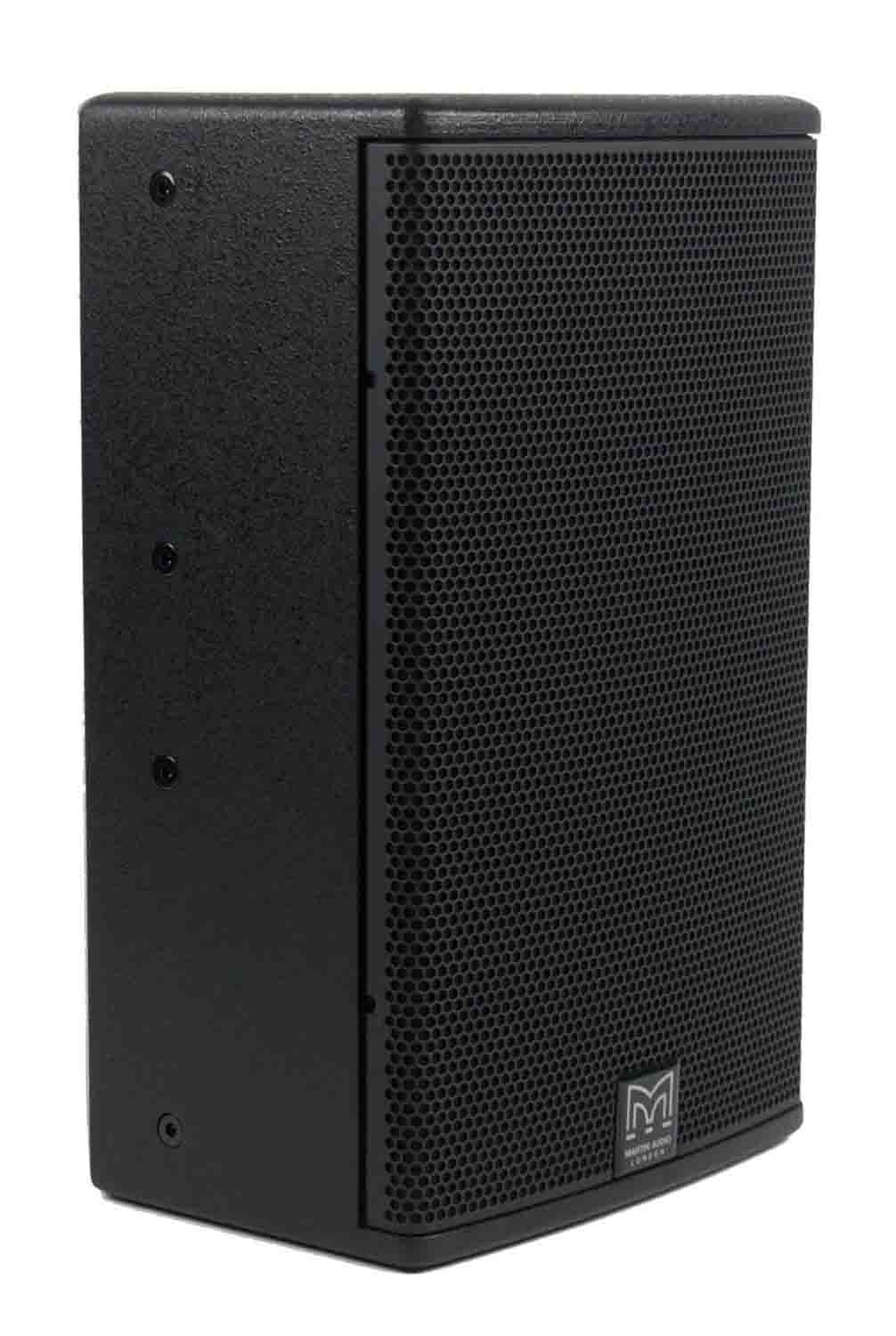

The Blackline X8 is constructed from plywood and fitted with a screw-free steel grille, M8 inserts for wall brackets and eyebolt suspension, plus a pole-mount socket with a removable bung that maintains clean lines in install applications. Finished in black textured paint.

A full-range passive two-way system, the X8 may be used without a controller. However, the EQ and limiter functions of a controller such as the Martin Audio DX0.5 will maximize its capabilities. When used in conjunction with an X115, X118 or X210 subwoofer, crossover and EQ functions can be performed by the DX0.5.

Product Specification:

Type: Ultra-Compact, passive two-way system

Frequency Response: 70Hz-20kHz ± 3dB, -10dB @ 60Hz

Rated Power: 200W AES, 800W peak

Sensitivity: 92dB

Maximum Spl: 115dB continuous, 121dB peak

Nominal Impedance: 8Ω

Dispersion (-6DB): 90° H x 50° V (user-rotatable)

Crossover: 2.9kHz passive

Enclosure: Multi-Angle Birch/Poplar Ply

FINISH: Black textured paint

Protective Grille: Black perforated steel with scrim cloth backing

Connectors: 2 x NL4 type

Pin Connections (Input): 1+/1-

Pin Connections (Link): 1+/- to 1+/-

Fittings: 13 x M8, 6 x M6 inserts, pole-mount socket, 1 x pocket handle

Dimensions: (W) 10.1ins x (H) 16.6ins x (D) 9.6ins

Weight: 17.6 lbs

Accessories: Wall bracket, eyebolts
