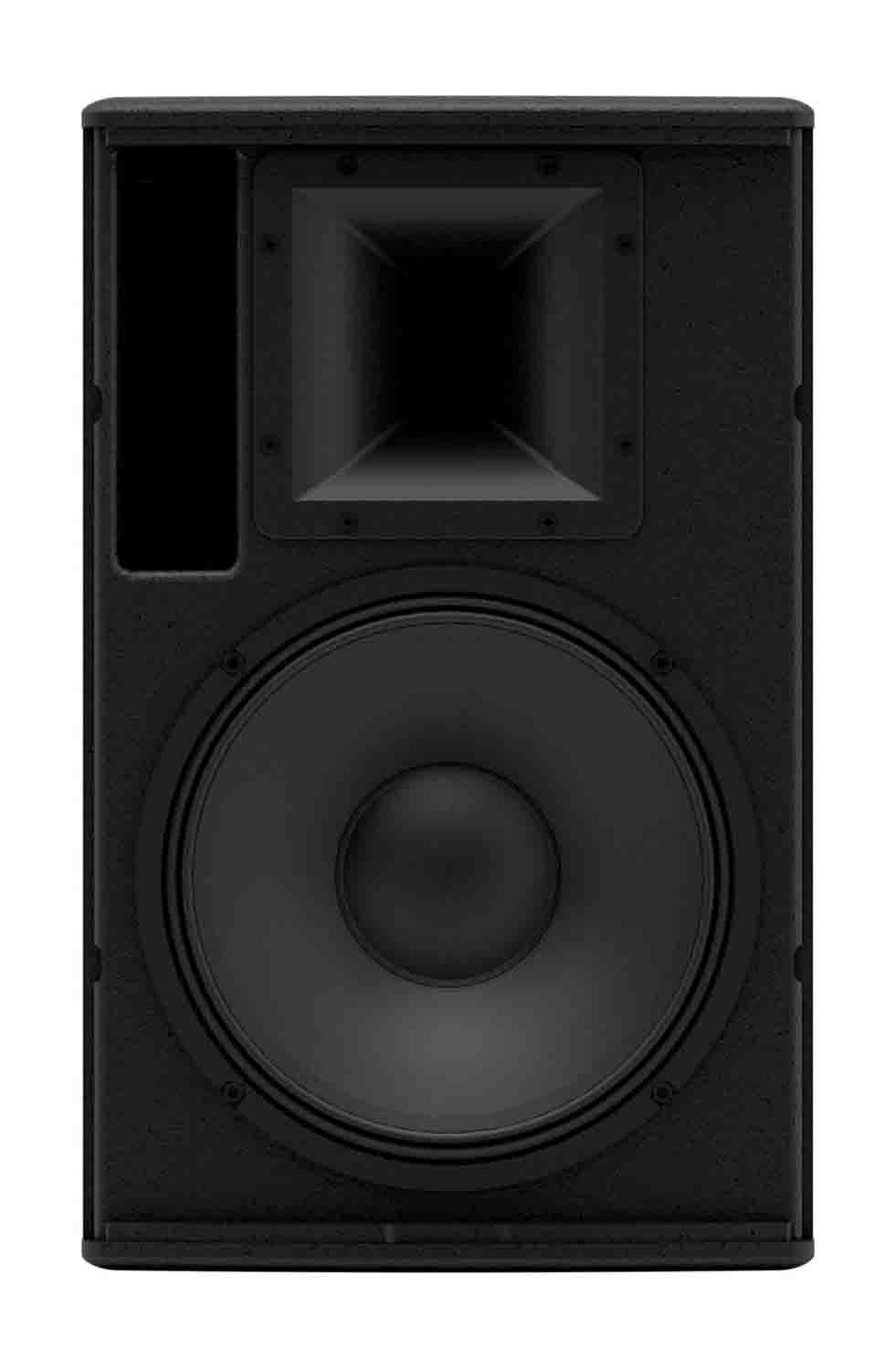

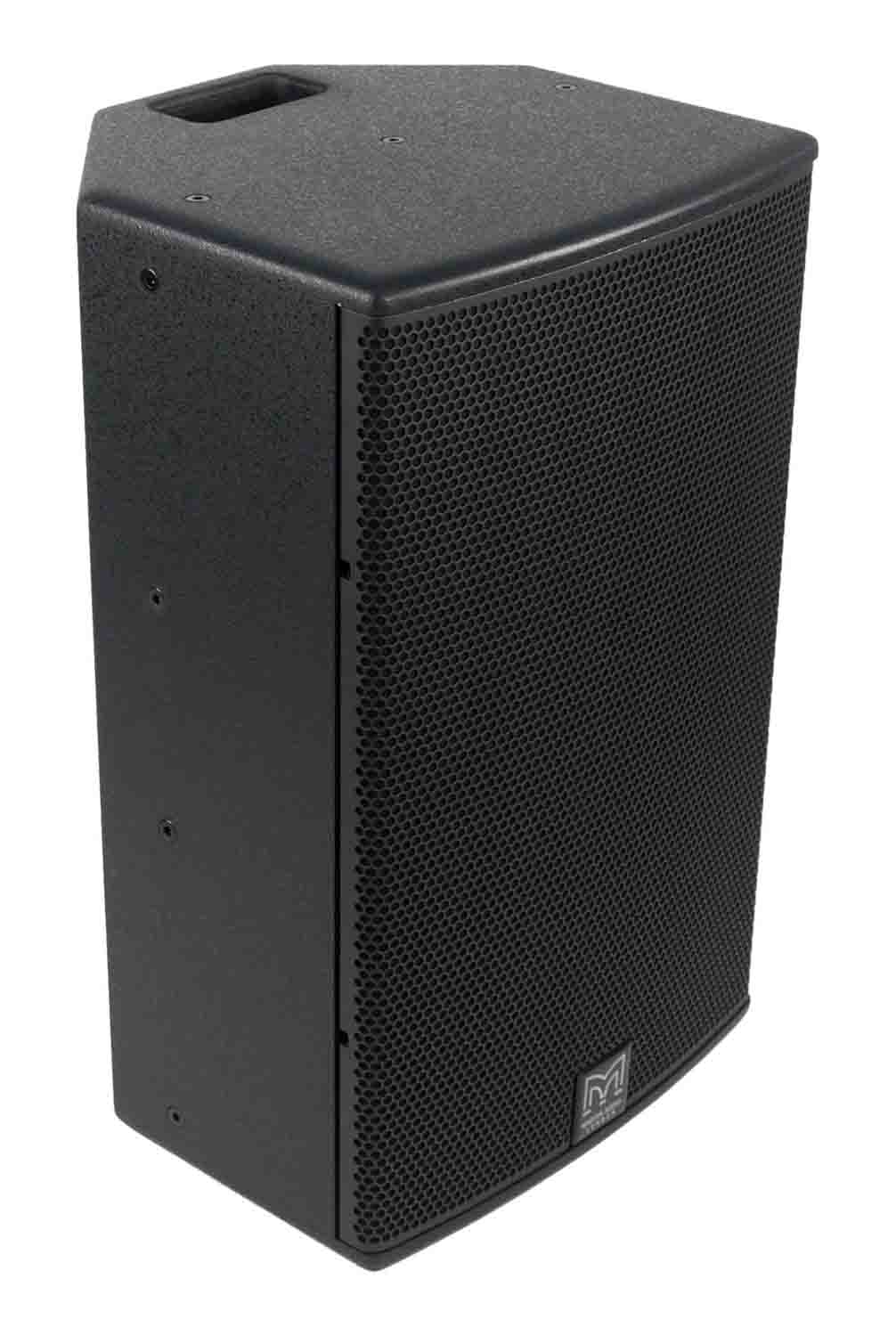

Martin Audio X12, 12 Inch Passive Two-Way Portable Loudspeaker

The Martin Audio X12, 12 Inch Passive Two-Way Portable Loudspeaker fulfils the requirement for a compact system that can deliver high sound levels, either as a stand-alone system or sup-lamented by a Blackline X subwoofer. Featuring a 12” (300mm) LF driver unit and a 1” (25mm) exit compression driver on a user-rotatable horn, its 80° x 50° dispersion pattern is ideal for medium throw applications.

The Blackline X12 LF driver has a 2.5” (63mm) voice coil and a high BL motor, while the HF compression driver utilizes a 1.75” (44mm) poly-imide diaphragm for extended high frequency response. Use with a Blackline X Series subwoofer will enable the X12 to operate as a dancefloor or sound reinforcement system that is remarkably powerful for its size, as well as being extremely portable.

The X12 is constructed from plywood and fitted with a screw-free steel grille, M8 inserts for wall brackets and eyebolt suspension, plus a pole-mount socket with a removable bung that maintains clean lines in install applications. Finished in black textured paint. A full-range passive two-way system, the X12 may be used without a controller. However, the EQ and limiter functions of a controller such as the Martin Audio DX0.5 will maximize its capabilities. When used in conjunction with an X115, X118 or X210 subwoofer, crossover and EQ functions can be performed by the DX0.5.

Product Specification:

Type: Compact, passive two-way system

Frequency Response: 62Hz-20kHz ± 3dB, -10dB @ 50Hz

Driver: LF: 12” (300mm)/2.5” (63.5mm) voice coil, ferrite motor system

HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver

Rated Power: 300W AES, 1200W peak

Recommended Amplifier: MA2.0, MA3.0, MA5.0Q

Sensitivity: 97dB

Maximum SPL: 122dB continuous, 128dB peak

Nominal Impedance: 8 ohms

Dispersion (-6dB): 80° H x 50° V (user-rotatable)

Crossover: 2.3kHz passive

Enclosure: Multi-angle birch/poplar ply

Finish: Black textured paint

Protective Grille: Black perforated steel with scrim cloth backing

Connectors: 2 x NL4 type

Pin Connections (INPUT): 1+/1-

Pin Connections (LINK): 1+/- to 1+/-

Dimensions: (W) 14.1 X (H) 22.6X (D) 13.7

Weight: 37.5lbs
