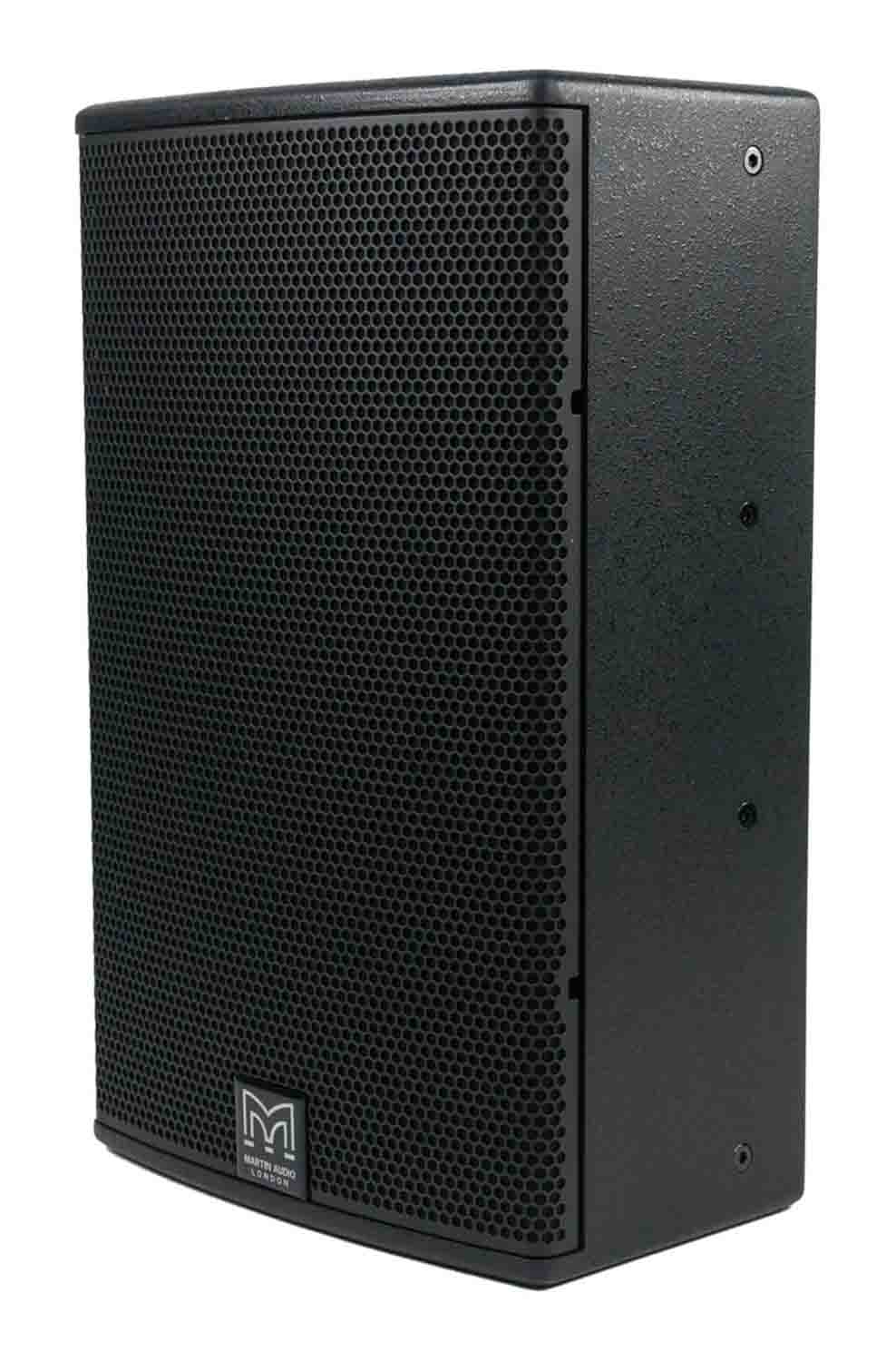

Martin Audio X10, 10 Inch Passive Two-Way Portable Loudspeaker

The Martin Audio X10, 10 Inch Passive Two-Way Portable Loudspeaker is a high performance yet very compact two-way passive loudspeaker system which utilizes a 10” (250mm)/2.5” (63mm) voice coil LF driver and a 1” (25mm) exit HF compression driver with a 1.4” (35mm) polyimide diaphragm. The rotatable 90° x 50° HF horn has equal horizontal and vertical mouth dimensions for directivity control in both planes.

It has a multitude of professional applications from distributed sound reinforcement, How and AV events to front fill/infill and use as an unobtrusive stage monitor. With a maximum SPL of 124dB @ 1m, it is uniquely placed to meet the foreground requirements of music bars and clubs that require upfront sound levels from a very compact enclosure. Use with a Blackline X Series subwoofer will enable the X10 to operate as small dancefloor or sound reinforcement system that is remarkably powerful for its size, as well as being extremely portable.

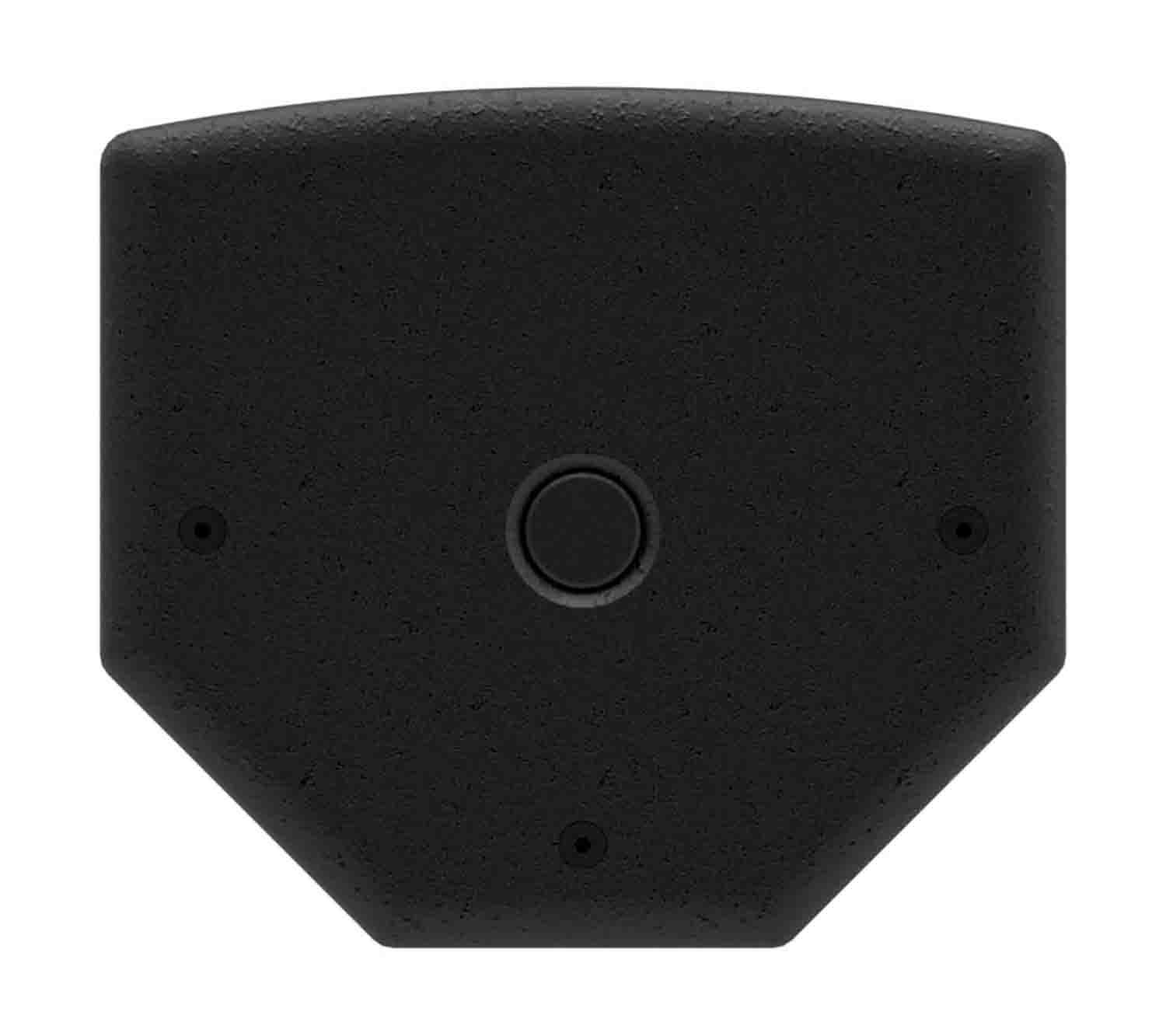

The X10 is constructed from plywood and fitted with a screw-free steel grille, M8 inserts for wall brackets and eyebolt suspension, plus a pole-mount socket with a removable bung that maintains clean lines in install applications. Finished in black textured paint.

A full-range passive two-way system, the X10 may be used without a controller. However, the EQ and limiter functions of a controller such as the Martin Audio DX0.5 will maximize its capabilities. When used in conjunction with an X115, X118 or X210 subwoofer, crossover and EQ functions can be performed by the DX0.5.

Product Specification:

Type: Compact, passive two-way system

Frequency Response: 65Hz-20kHz ± 3dB, -10dB @ 55Hz

Rated Power: 250W AES, 1000W peak

Sensitivity: 94dB

Maximum Spl: 118dB continuous, 124dB peak

Nominal Impedance: 8Ω

Dispersion (-6db): 90° H x 50° V (user-rotatable)

Crossover: 2.4kHz passive

Enclosure: Multi-angle birch/poplar ply

Finish: Black textured paint

Protective Grille: Black perforated steel with scrim cloth backing

Connectors: 2 x NL4 type

Pin Connections (Input): 1+/1-

Pin Connections (Link): 1+/- to 1+/-

Fittings: 19 x M8 inserts, pole-mount socket, 1 x bar handle

Dimensions: (W) 12.8 x (H) 20.6 x (D) 11.4

Weight: 30.9 lbs

Accessories: Wall bracket, eyebolts
