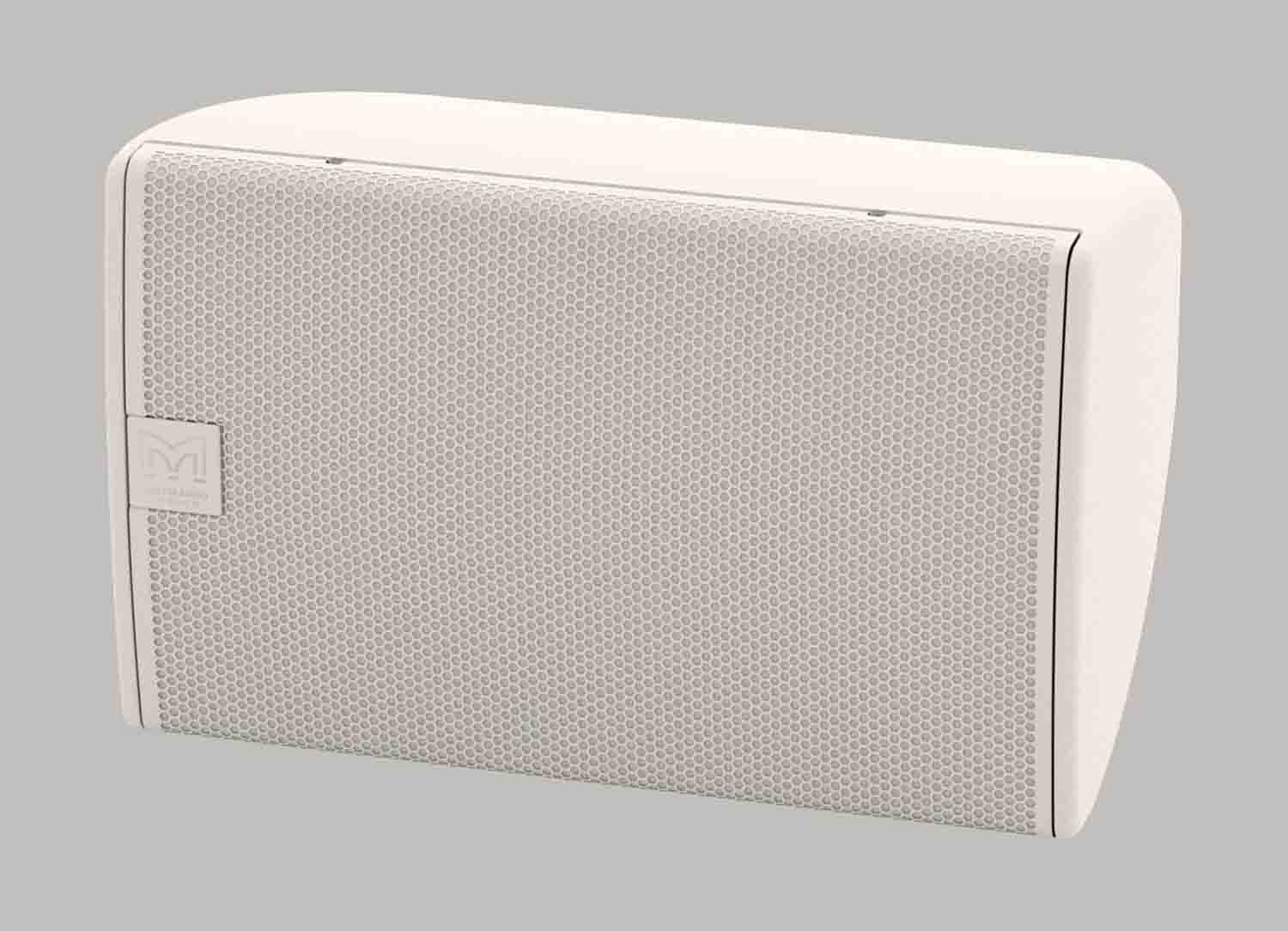

Martin Audio CDD8W 8Inch Passive Coaxial Differential Dispersion On-wall Loudspeaker

The Martin Audio CDD8W 8Inch Passive Coaxial Differential Dispersion On-wall Loudspeaker is an ultra-compact two-way passive loudspeaker system with an integrated 8” (200mm) LF/1” (25mm) exit HF Coaxial Differential Dispersion driver which can be easily rotated for horizontal or vertical orientation depending on venue design requirements. Its small size gives no indication of its high output capability. As a stand-alone loudspeaker, it has a multitude of applications and can also be incorporated as an infill loudspeaker in distributed systems using larger CDD models, such as the CDD12 and CDD15.

Product Specification:

Type: Ultra-compact, Coaxial Differential Dispersion passive two-way system

Frequency Response (5): 70Hz-20kHz ± 3dB, -10dB @ 55Hz

LF: 8" (200mm)/2" (50mm) voice coil, long excursion, shared ferrite motor system with HF

HF: 1" (25mm) exit/1.4" (38mm) voice coil, polyimide dome compression driver

Rated Power (2): 200W AES, 800W peak

Recommended Amplifier: MA2.8Q, MA2.0

Sensitivity (8): 94dB

Maximum SPL (9): 117dB continuous, 123dB peak

Nominal Impedance: 8 ohms

Dispersion (-6dB): 110°-80° horizontal, 60° vertical (user-rotatable)

Crossover: 2.3kHz passive

Enclosure: 14-liter, composite material

Protective Grille: Black or white perforated steel with scrim cloth backing

Connectors: Low profile 13A push-lock

Pin Connections: Left to right: Input+, Input -, Link -, Link +

Fittings: 6 x M6 inserts for wall/ceiling brackets

Dimensions: (W) 10.1ins x (H) 16.1ins x (D) 9.9ins

Weight: 21lbs
