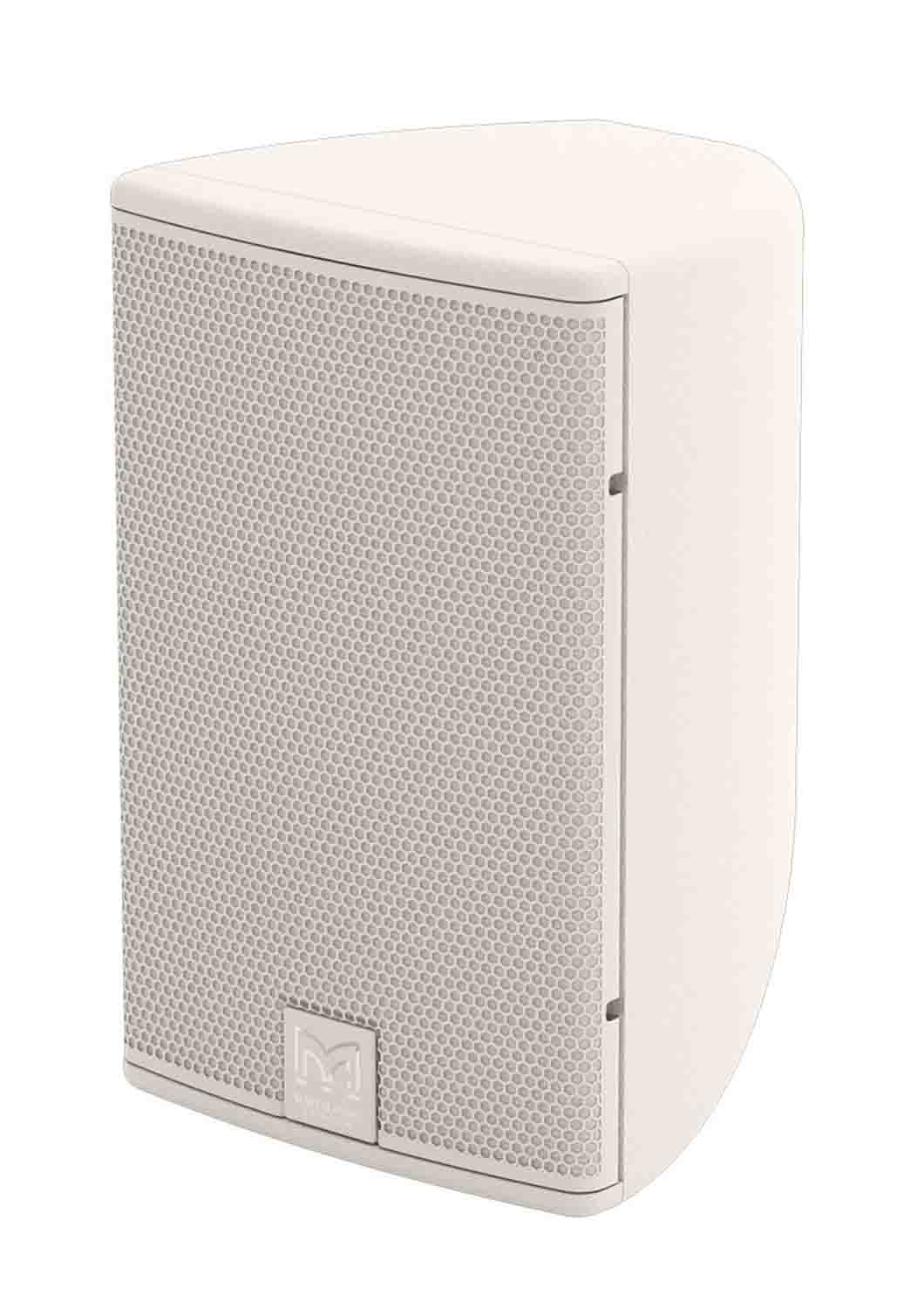

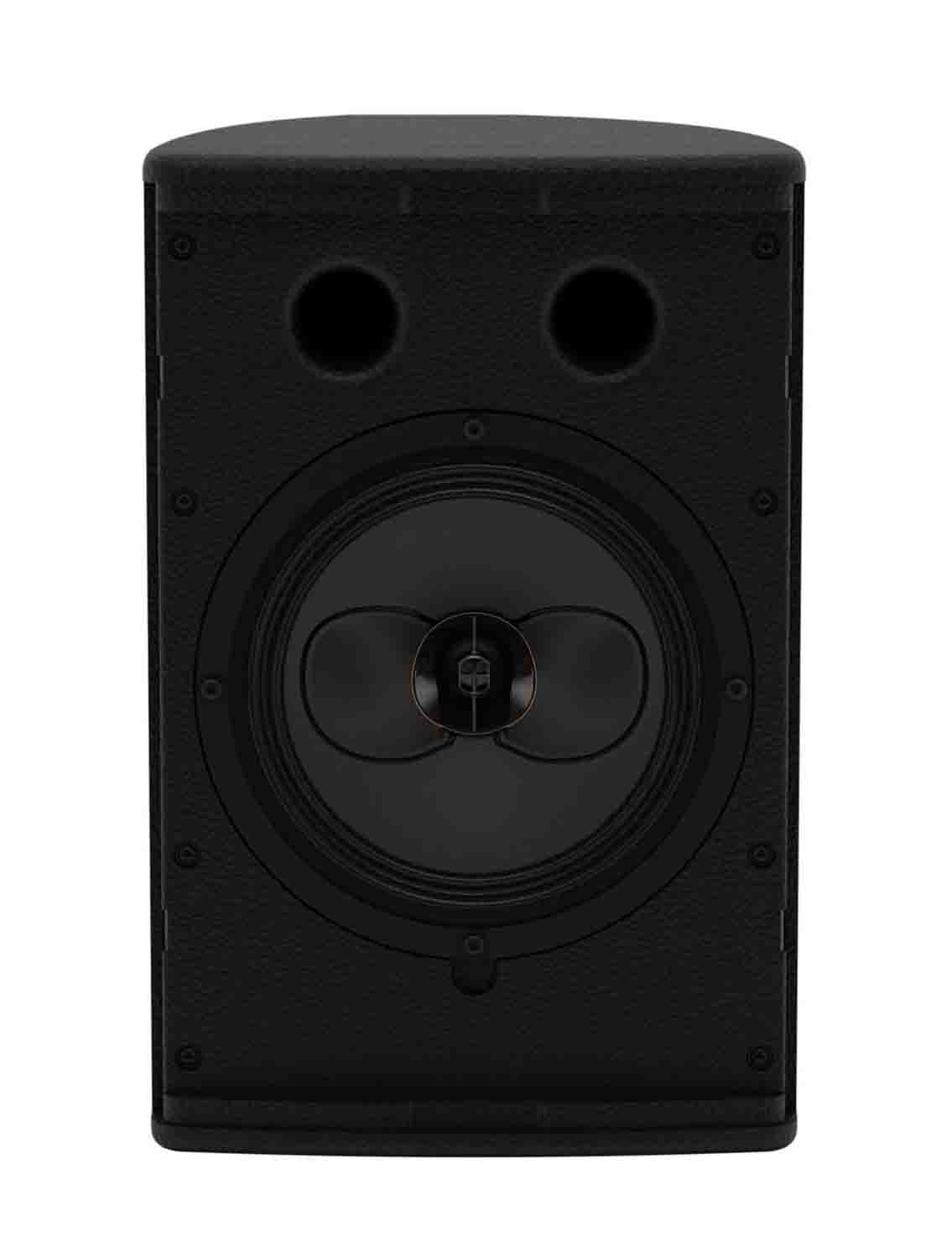

Martin Audio CDD6, 6 Inch Passive Coaxial Differential Dispersion On-wall Loudspeaker

The Martin Audio CDD6, 6 Inch Passive Coaxial Differential Dispersion On-wall Loudspeaker is a two-way passive loudspeaker system designed to fulfil the requirement for full-frequency dynamic performance from a very small enclosure. Featuring a 6.5” (165mm) LF/1” (25mm) HF Coaxial Differential Dispersion driver, it’s extremely small size and sleek lines make it ideal for visibly-unobtrusive applications. It can also be used as a fill system in conjunction with larger CDD Series models and, with the addition of an SX subwoofer, can reproduce surprisingly high levels of music program.

Product Specification:

Frequency Response: 80hz-20khz ± 3db, -10db @ 70hz

Driver Lf: 6.5” (165mm)/1.5” (38mm) Voice Coil, Long Excursion, Ferrite Motor System

Hf: 1” (25mm) Voice Coil, Fabric Dome with Neodymium Motor System

Rated Power: 150w Aes, 600w Peak

Recommended Amplifier: Ma2.8q, Ma2.0

Sensitivity: 91db

Maximum Spl: 113db Continuous, 119db Peak

Nominal Impedance: 8 Ohms

Dispersion (-6db): 110˚-80˚ Horizontal, 80˚ Vertical (User-Rotatable)

Crossover: 2.5khz Passive

Enclosure: 9-Liter, Composite Material

Finish: Black or White Textured Paint

Protective Grille: Black or White Perforated Steel with Scrim Cloth Backing

Connectors: Low Profile 13a Push-Lock

Pin Connections: Left to Right: Input+, Input -, Link -, Link +

Fittings: 4 X M6 Inserts for Wall/Ceiling Brackets

Dimensions: (W) 8.3ins X (H) 12.8ins X (D) 8.3ins

Weight: 11lbs
