Martin Audio CDD5W 5 Inch 2-Way Passive Loudspeaker with Brackets 100W - White

The Martin Audio CDD5W 5 Inch 2-Way Passive Loudspeaker with Brackets 100W - White is a two-way passive micro speaker designed for discreet positioning in architectural installations including bars, museums, foyers, concourses, exhibition centers and How. It features a unique, patent-pending 5” (125mm) LF/0.7” (19mm) HF Coaxial Differential Dispersion driver in a rigid ABS molded enclosure and is supplied with a dedicated omni-directional mounting bracket.

The Coaxial Differential Dispersion technology employed in the CDD5 delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns projecting relatively more output to the rear of the audience to distribute sound evenly front-to-back, while having wide horizontal coverage close-up. Its innovative CDD driver achieves ‘point source’ summation of the LF and HF sections eliminating off-axis variations in frequency response in the crossover region associated with non-coaxial designs.

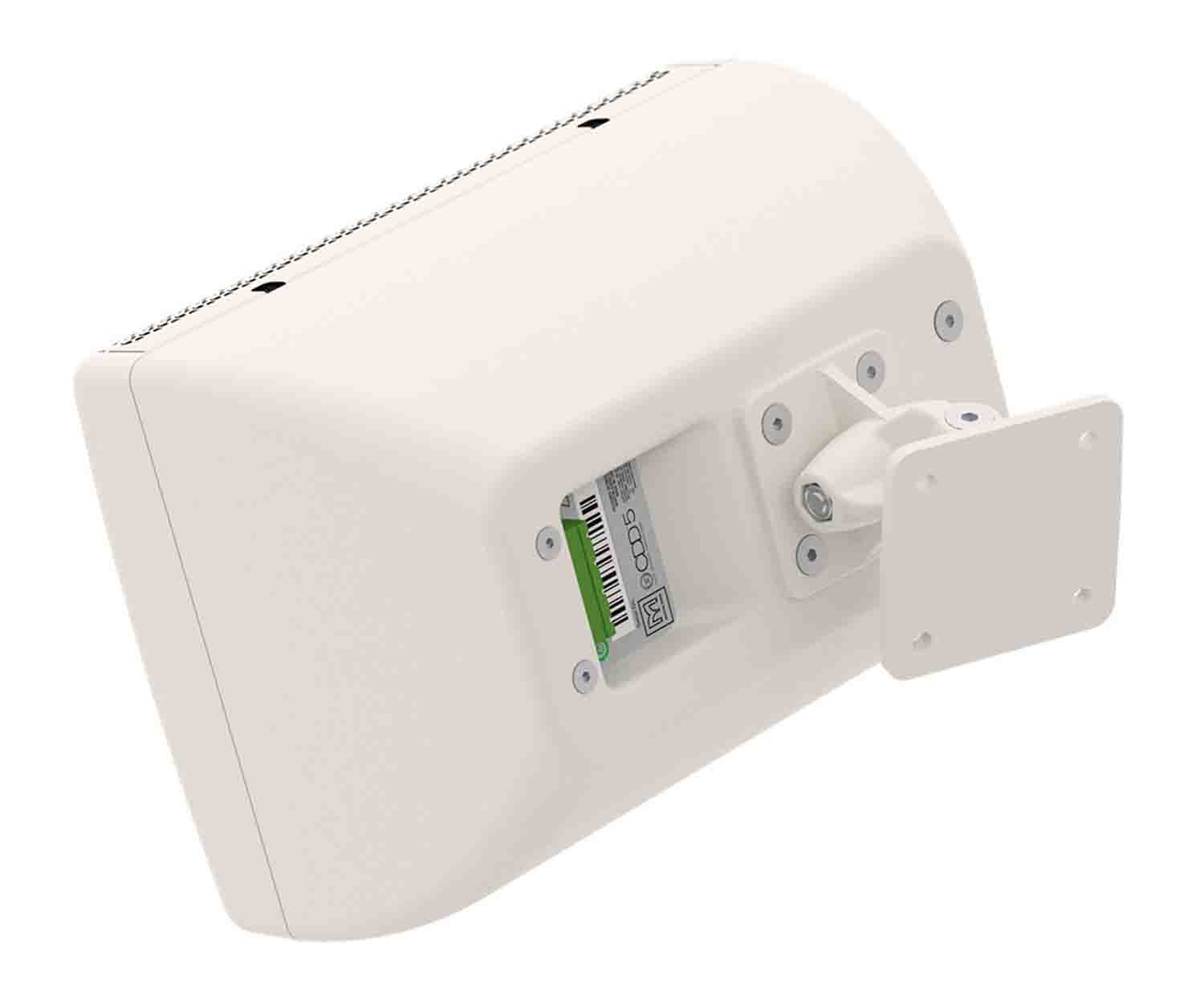

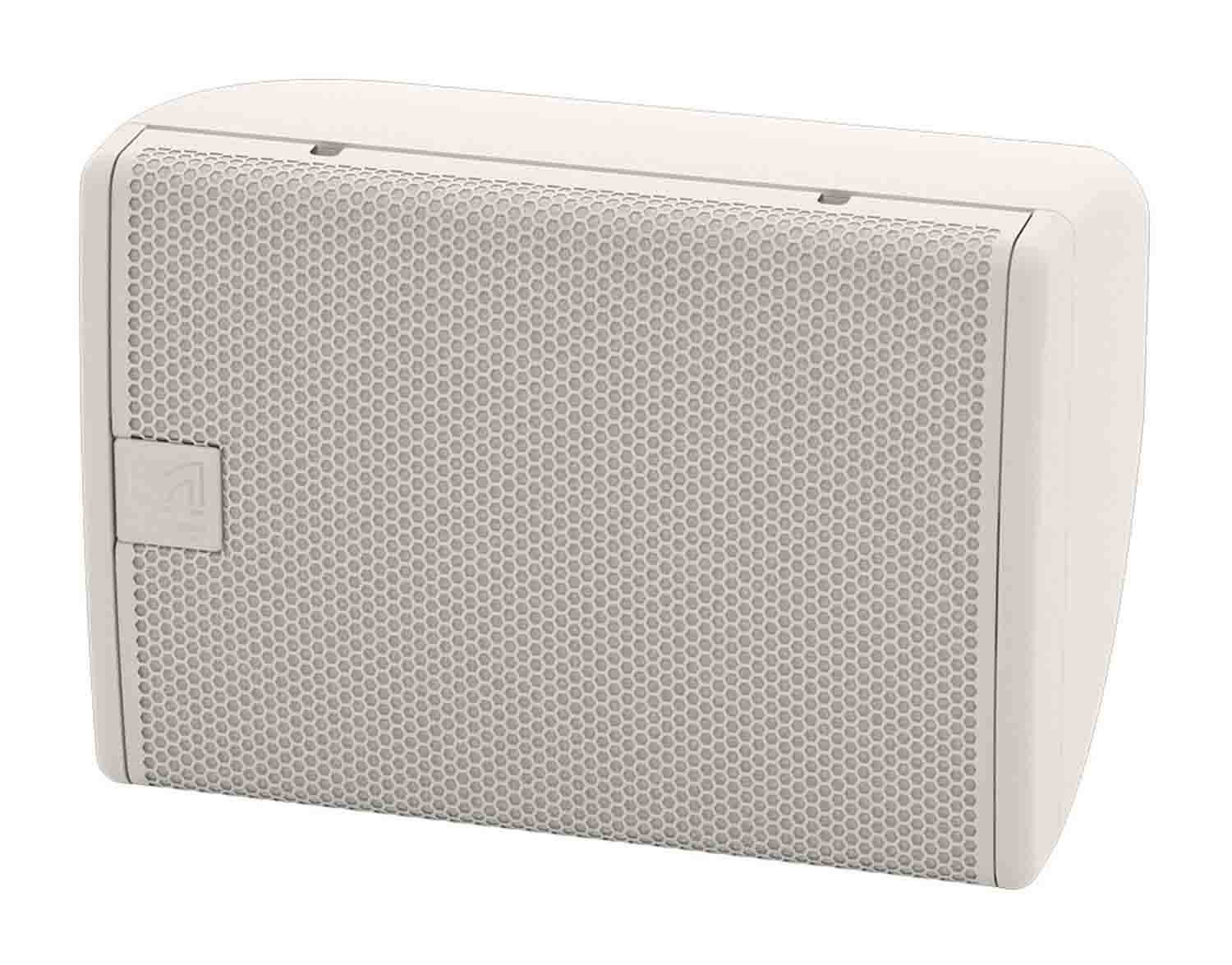

The visually-distinctive enclosure can be used in either horizontal (landscape) or vertical (portrait) orientation, with rotation of the driver easily accomplished by removing the screw-free, protective grille. The curved shape of the enclosure allows it to be surface-mounted close to a wall or ceiling by means of the supplied omni-directional bracket or an optional close-mount ceiling bracket.

A full-range, passive two-way system, the CDD5 may be used without a controller. However, the EQ and limiter functions of a controller such as the Martin Audio DX0.5, DX1.5 or DX2, or an MA Series amplifier with onboard DSP will maximize its capabilities. When used with a CSX subwoofer, crossover and EQ functions can either be performed by the DX0.5, DX1.5 and DX2 system controllers, or by an MA Series amplifier with onboard DSP option.

Product Specification:

Type: Ultra-compact, Coaxial Differential Dispersion passive two-way system

Frequency Response: 100Hz-20kHz ± 3dB, 10dB @ 70Hz

Rated Power: 100W AES, 400W peak

Recommended Amplifier: MA2.8Q, MA2.0

Sensitivity: 90dB

Maximum Spl: 110dB continuous, 116dB peak

Nominal Impedance: 8 ohms

DISPERSION (-6db): 120˚-90˚ horizontal, 80˚ vertical (user-rotatable)

Crossover: 2.5kHz passive

Enclosure: 3 liters, ABS

Finish: Black or white

Protective Grille: Black or white perforated steel with scrim cloth backing

Connectors: Low profile 13A push-lock

Pin Connections: Left to right: Input+, Input -, Link -, Link +

Fittings: 6 x M5 inserts for wall/ceiling brackets

Dimensions: 6.3ins x (H) 9.1 ins x (D) 5.9 ins

Weight: 6 lbs
