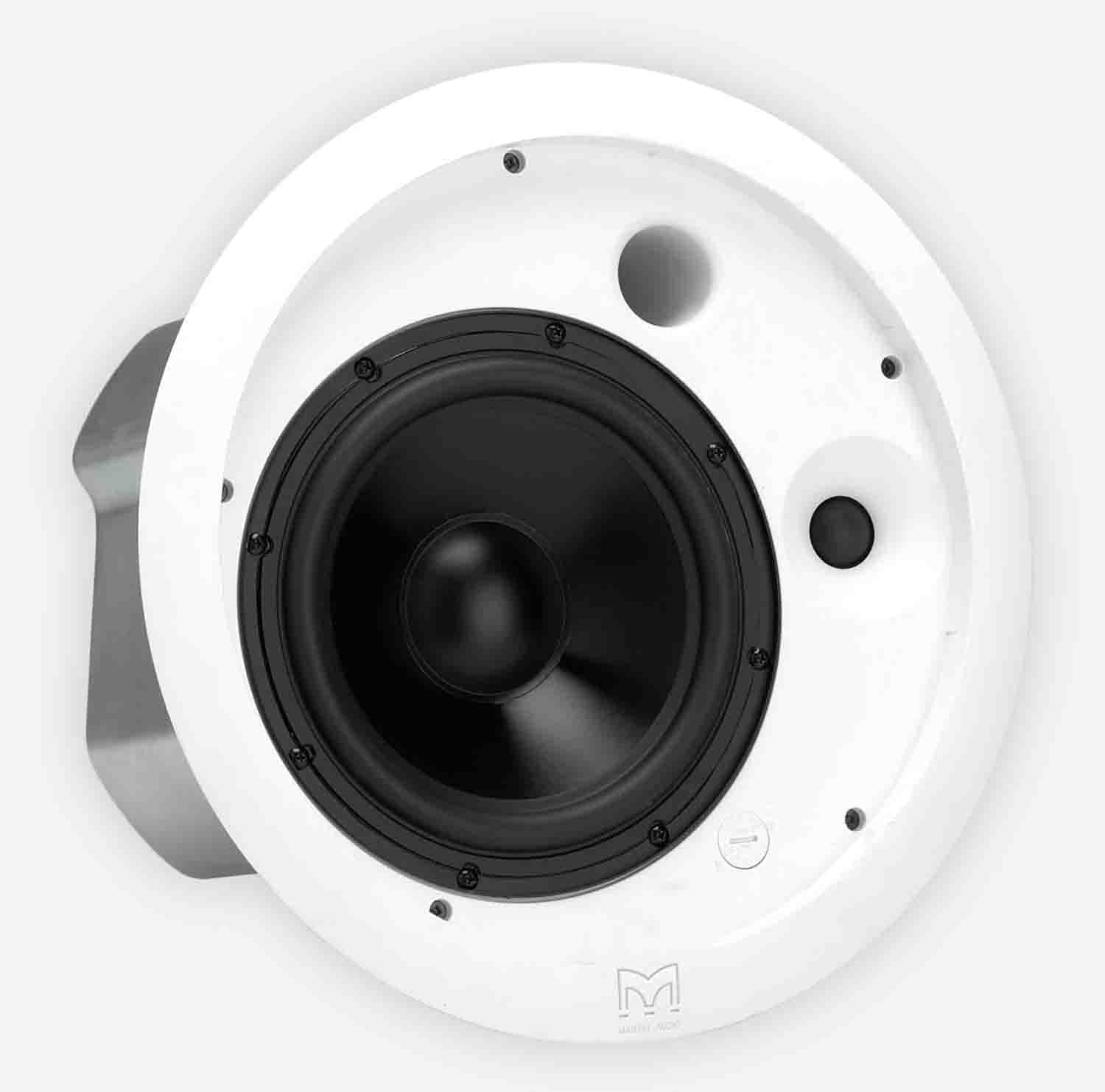

Martin Audio C8.1T 8 Inch Passive Full-range Ceiling Speaker

The Martin Audio C8.1T 8 Inch Passive Full-range Ceiling Speaker has been specifically designed for higher ceilings where its high SPL capability and controlled 90° dispersion enable it to provide excellent intelligibility in more reverberant rooms. It features an 8" (200mm) unit with a carbon fiber loaded, polypropylene cone and a 1" (25mm) horn-loaded dome tweeter mounted side-by-side for optimum dispersion and smooth response off-axis.

Product Specification:

Type: Ceiling mounted, two-way vented enclosure

Frequency Response: 80Hz-18kHz ± 3dB, -10dB @ 50Hz

Driver: 8" (200mm) UL94V-0 PP bass driver, 1" (25mm) dome tweeter

Rated Power: 125W AES, 500W peak

Sensitivity: 91dB

Maximum SPL: 110dB continuous, 116dB peak

Nominal Impedance: 16Ω

Dispersion: 90° conical up to 7kHz

Crossover: 3kHz passive

Enclosure: Steel back can

Finish: Bezel & grille – white UV resistant (Over paintable), Back can – zinc plated

Protective Grille: Perforated steel

Connectors: Rising clamp plug and socket

Voltage Taps: 100V – 60W, 30W, 15W / 70V – 60W, 30W, 15W, 7.5W

Dimensions: (OD) 13.9ins x (D) 10.2ins

WEIGHT: 14.8 lbs
