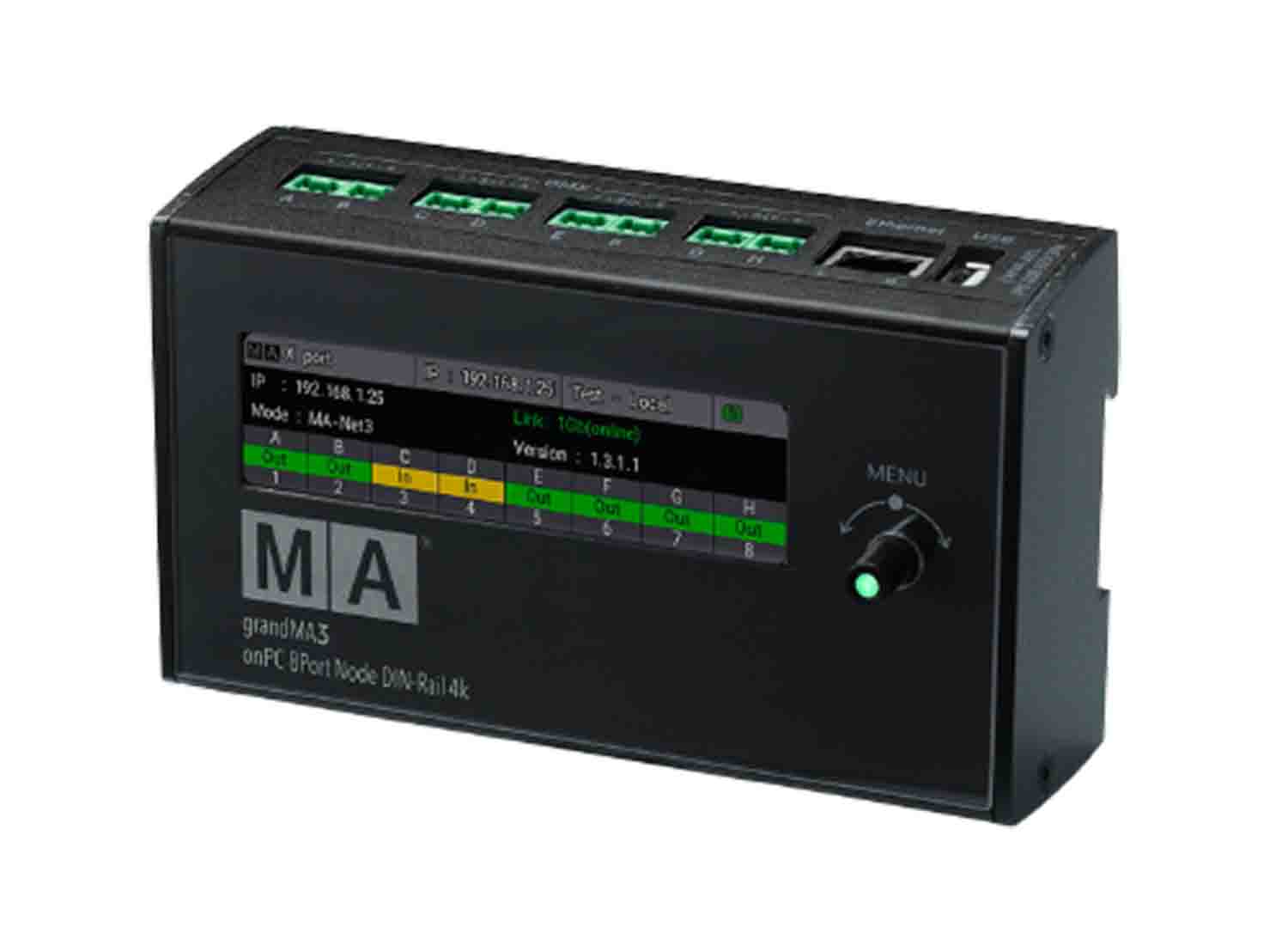

MA Lighting MA4023581 Grandma3 OnPC 8Port Node DIN-Rail 4k

The MA Lighting MA4023581 Grandma3 OnPC 8Port Node DIN-Rail 4k is the perfect solution for you! The nodes fulfill two different tasks: They convert Ethernet data to DMX and they can add parameters to your grandMA3 onPC system.

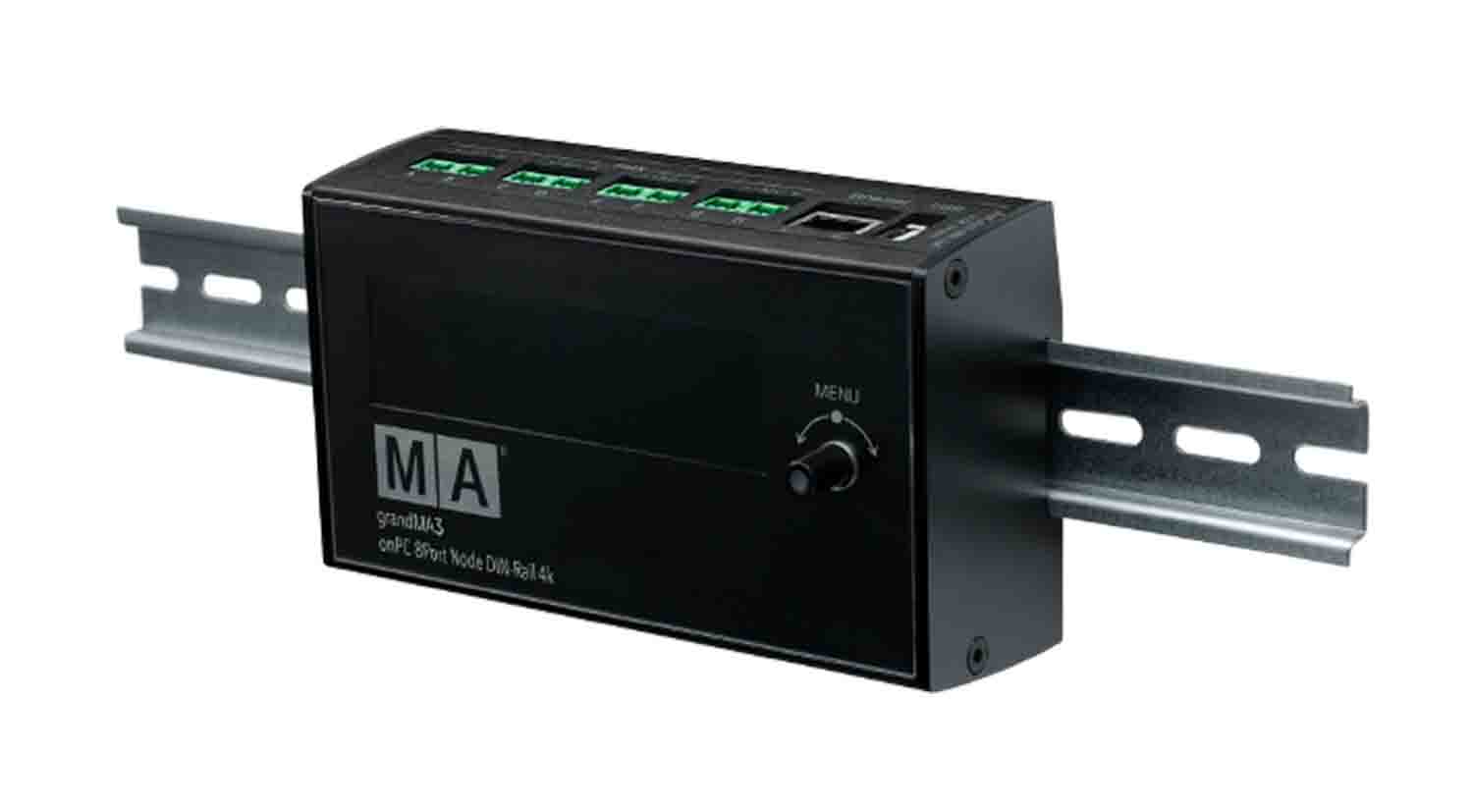

The optimized DIN-Rail housing allows you an easy and timesaving mounting in your installation rack. A big advantage: you can power the node completely via PoE (Power over Ethernet). So, you do not need any additional power cabling!

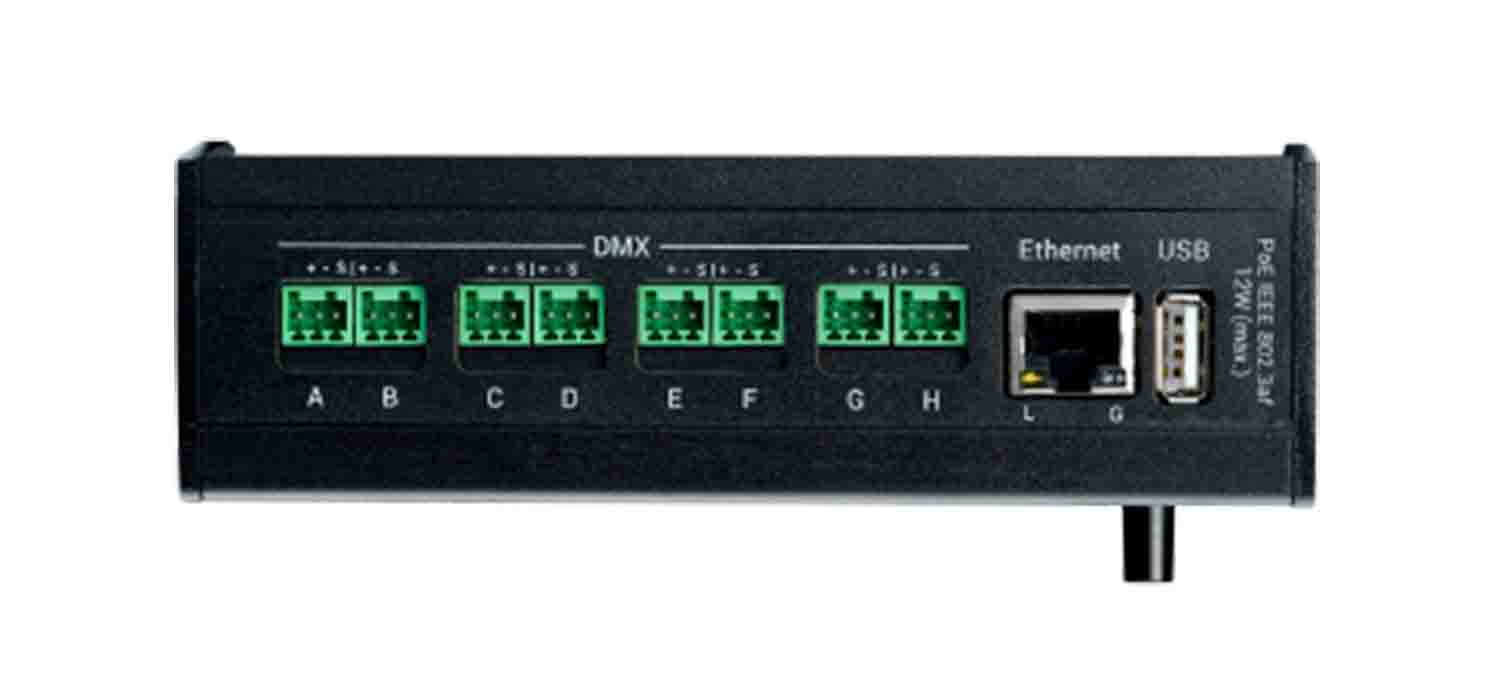

The grandMA3 onPC 8Port Node DIN-Rail 4k offers you eight DMX outputs as 3pin PCB connectors, and it enables 4 096 parameters directly - the maximum for your grandMA3 onPC system!

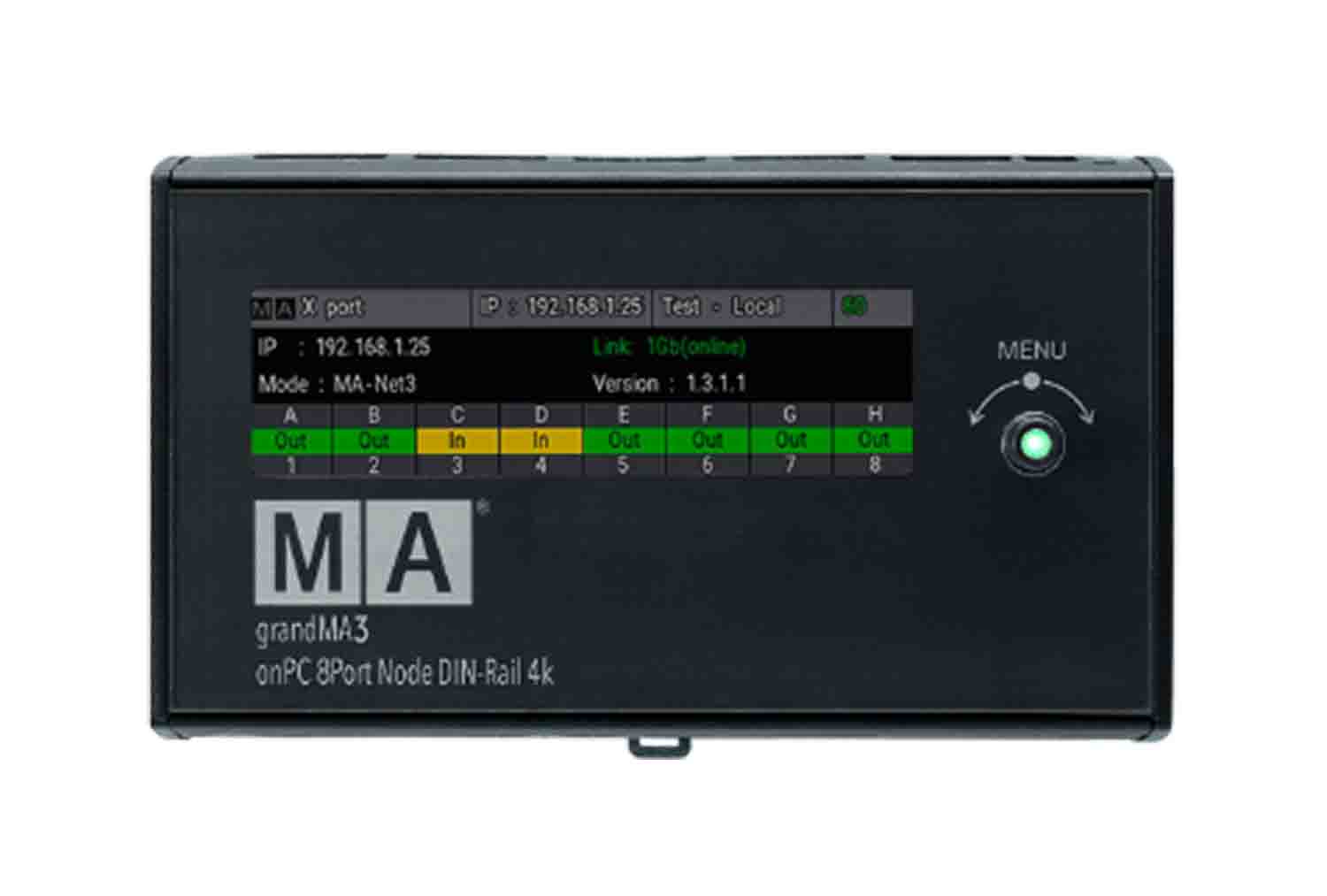

A few more facts? All grandMA3 onPC xPort Nodes can handle MA-Net3, MA-Net2, sACN and Art-Net data. They are fully RDM compliant and have a 3.9" color display on the front for easy configuration and status overview.

The configuration of your nodes can be easily done via the grandMA3 onPC software. And do not forget - the grandMA3 onPC software offers the same features as the larger consoles. So, you get a small, compact and affordable control system without compromising on features for your show!

Product Specification:

Parameters: 4 096 (HTP/LTP)

Parameters Mode2: 2 048 (HTP/LTP)

Power: max. 15VA

Operating Temperature: -10 °C up to 50 °C / 14 °F up to 122 °F

Dimensions: 6 x 2 x 4 in

Net weight: 3 lbs
