MA Lighting MA4023579 Grandma3 OnPC 2Port Node DIN-Rail 2k

The MA Lighting MA4023579 Grandma3 OnPC 2Port Node DIN-Rail 2k is the perfect solution for you! The nodes fulfill two different tasks: They convert Ethernet data to DMX and they can add parameters to your grandMA3 onPC system.

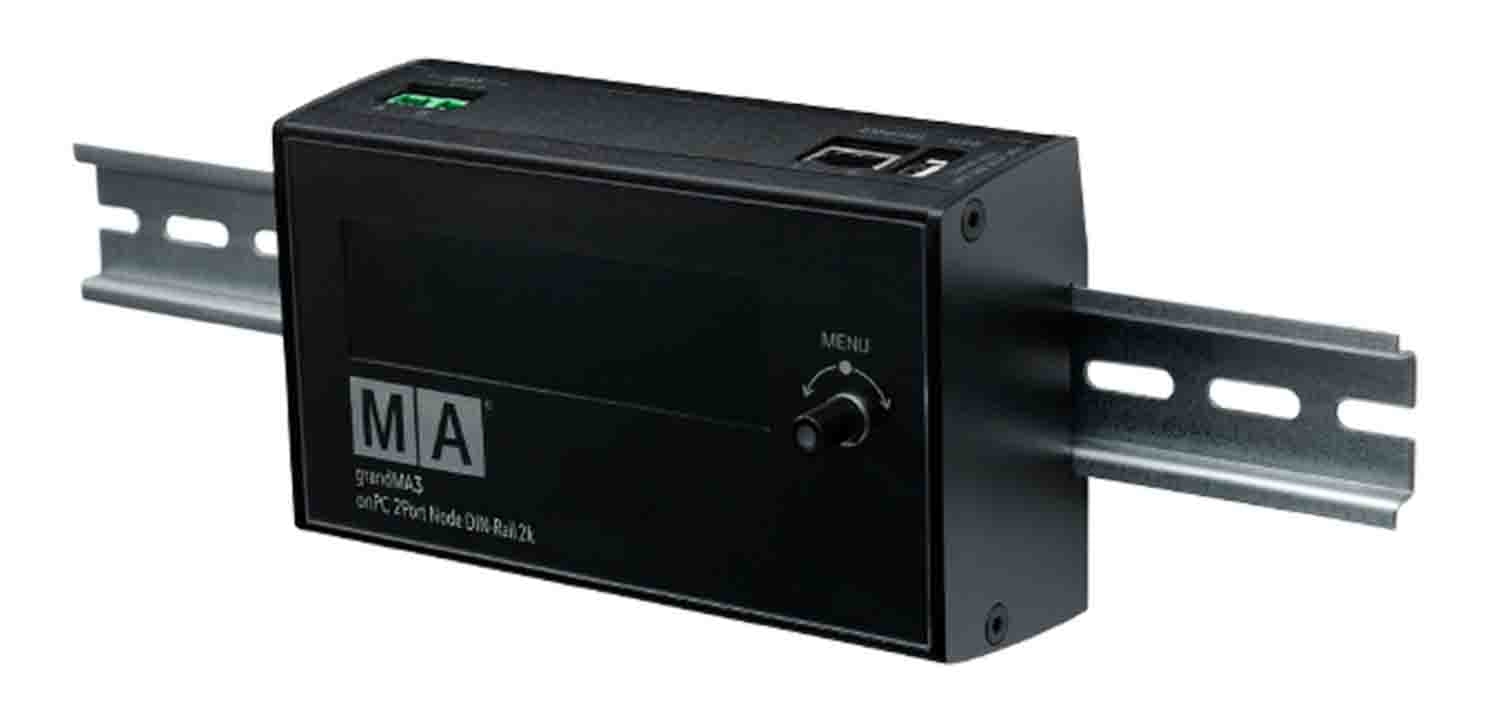

The optimized DIN-Rail housing allows you an easy and timesaving mounting in your installation rack. A big advantage: you can power the node completely via PoE (Power over Ethernet). So, you do not need any additional power cabling!

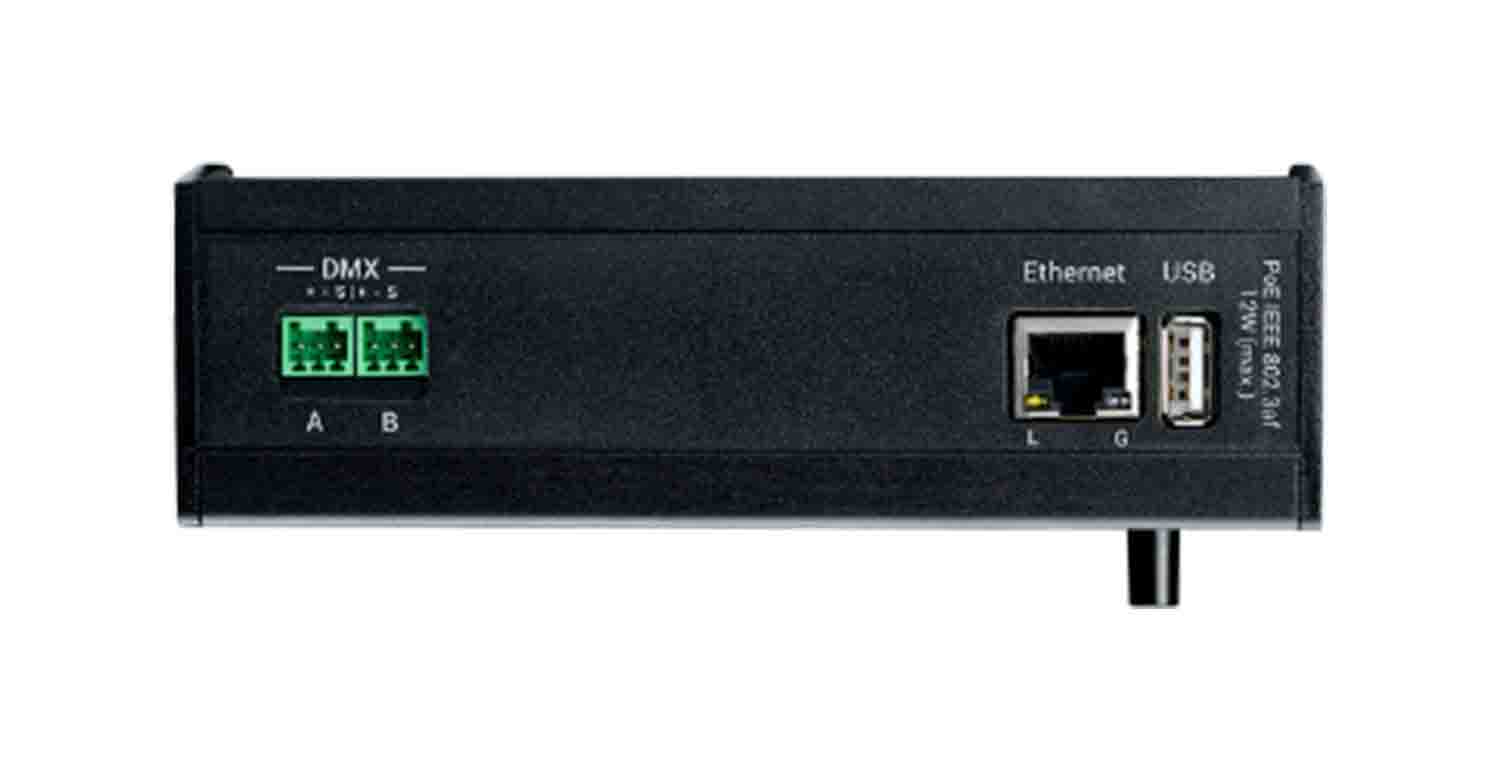

The grandMA3 onPC 2Port Node DIN-Rail 2k offers you two DMX outputs as 3pin PCB connectors, and it enables 4 096 parameters - the maximum for your grandMA3 onPC system!

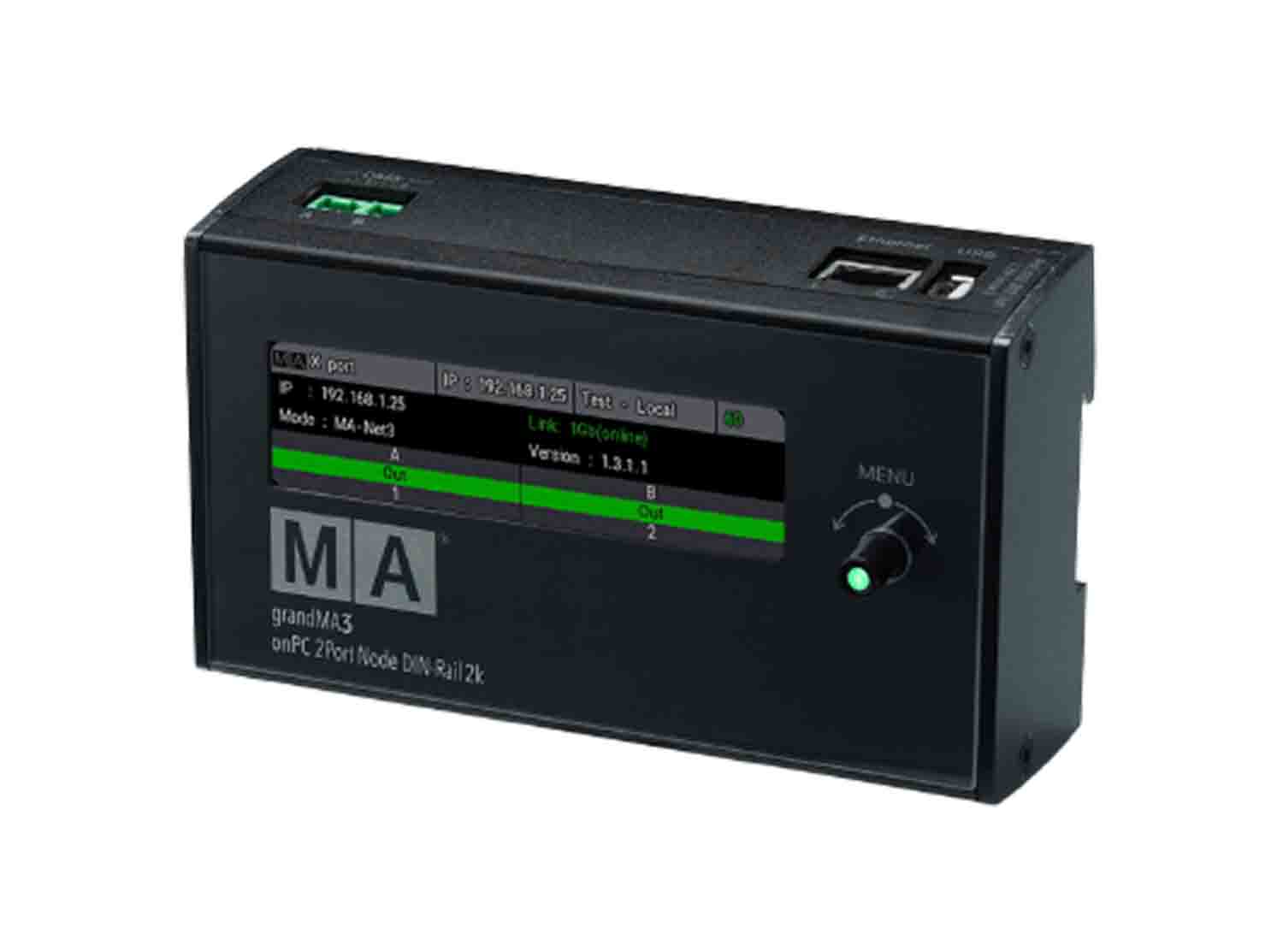

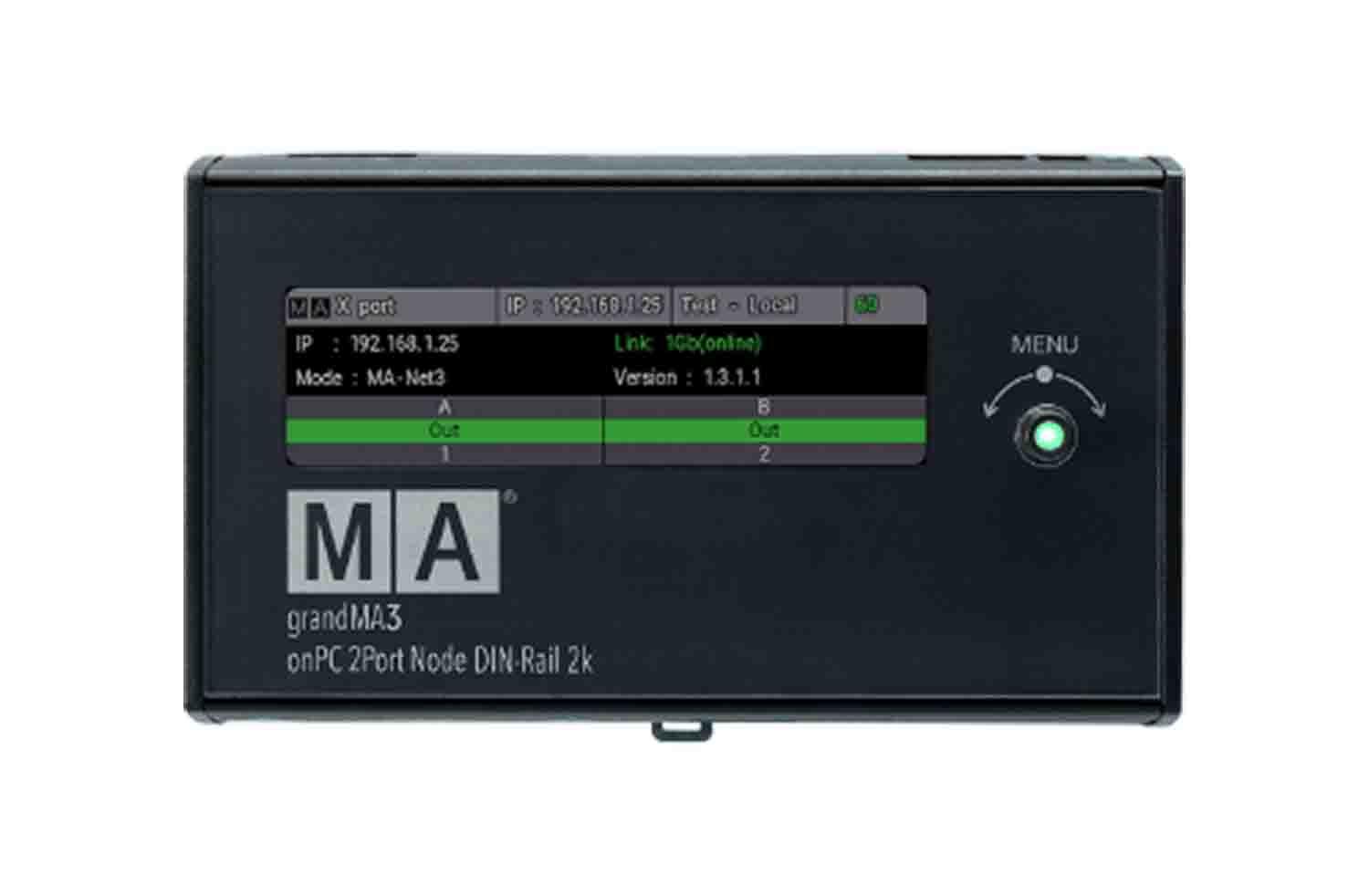

A few more facts? All grandMA3 onPC xPort Nodes can handle MA-Net3, MA-Net2, sACN and Art-Net data. They are fully RDM compliant and have a 3.9" color display on the front for easy configuration and status overview.

The configuration of your nodes can be easily done via the grandMA3 onPC software. And do not forget - the grandMA3 onPC software offers the same features as the larger consoles. So, you get a small, compact and affordable control system without compromising on features for your show!

Product Specification:

Parameters: none

Parameters Mode2: none

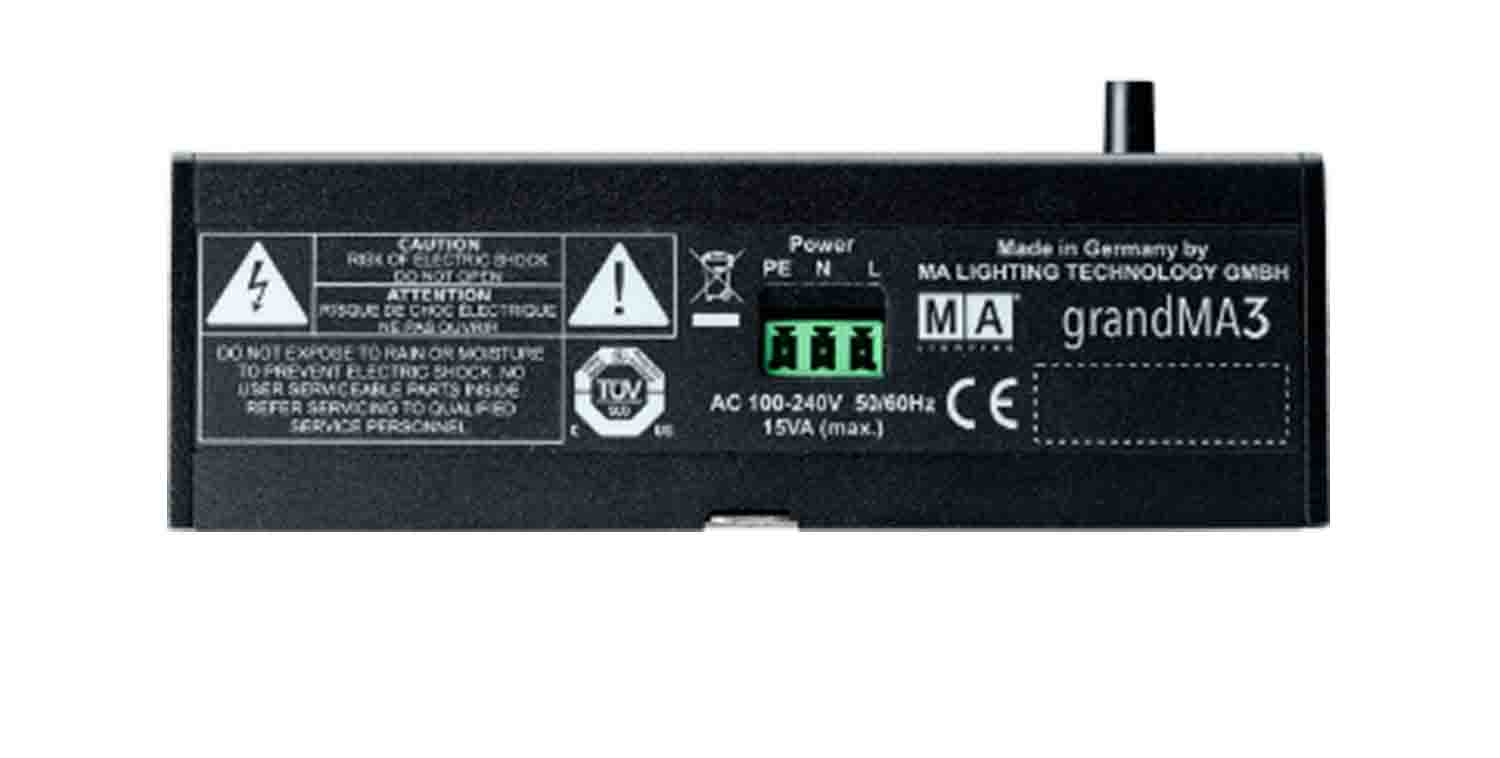

Operating voltage/ Supply voltage: AC 100 - 240 V; 50/60 Hz

Operating Temperature: -10 °C up to 50 °C / 14 °F up to 122 °F

Dimensions: 6 x 2 x 4 in

Weight: 3 lbs
