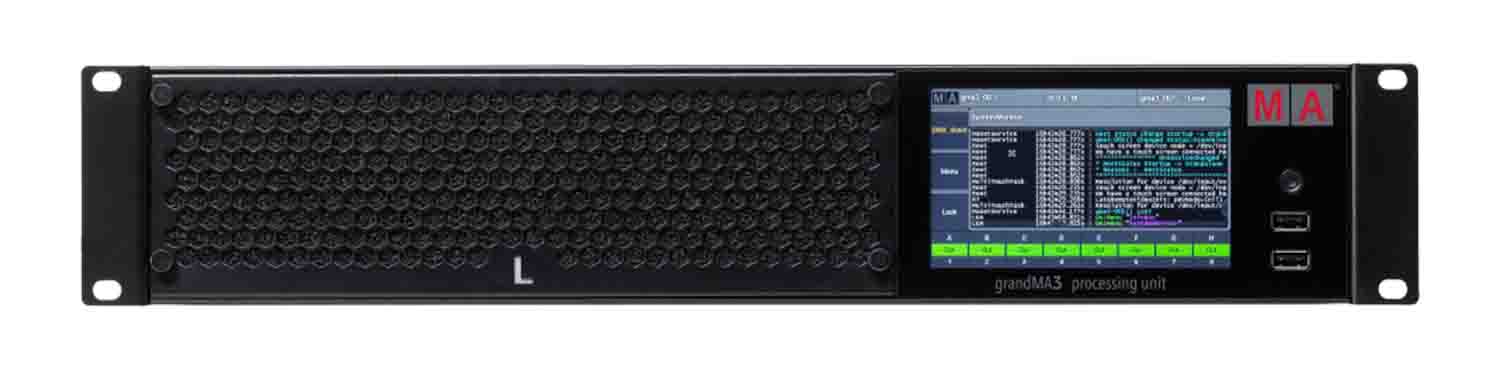

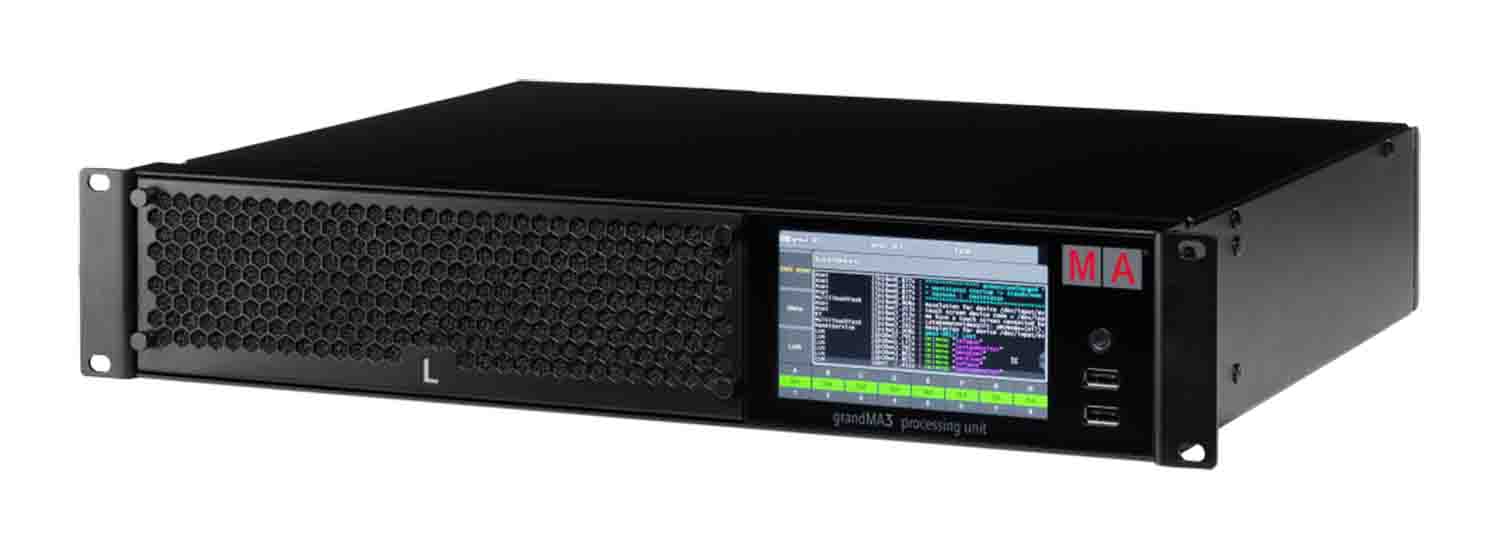

MA Lighting MA4010509 GrandMA3 Processing Unit L - 8,192 Parameter Processor

The MA Lighting MA4010509 GrandMA3 Processing Unit L - 8,192 Parameter Processor expands the system by 8 192 parameters and offers frame-synchronous calculation of the parameters within the MA-Net3 environment. Designed for larger systems, the L model offers a more cost effective and compact solution for parameter expansion. Additionally, the grandMA3 processing unit L offers a Mode2 to expand existing grandMA2 systems by 4 096 parameters.

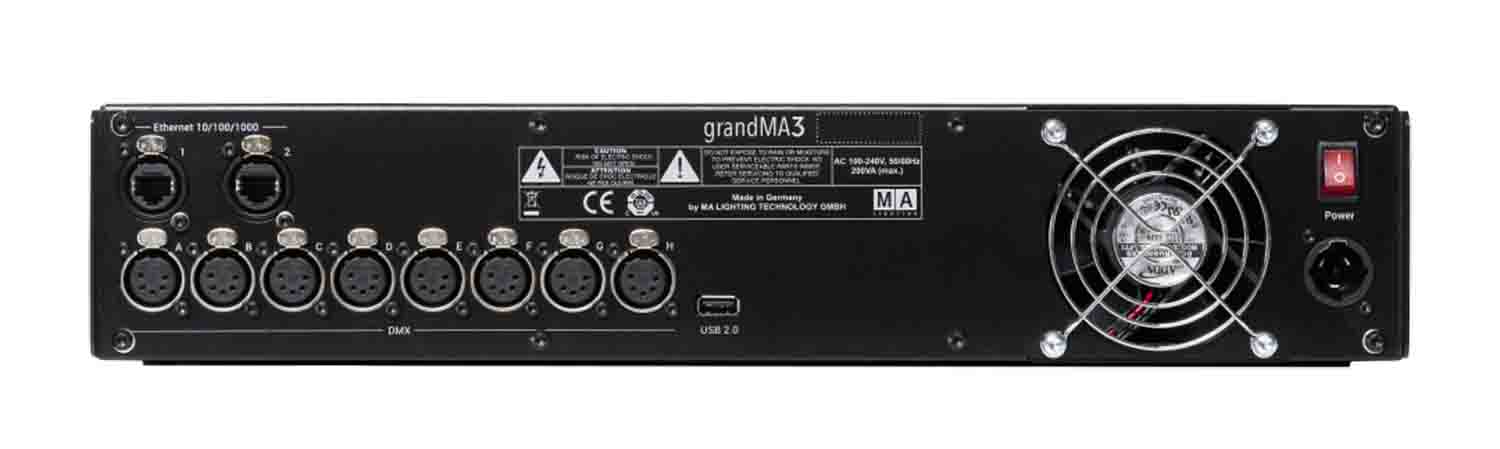

The grandMA3 processing units are designed for rack mounting and all models are only 2RU, allowing for efficient touring solutions. Each model is equipped with 8 DMX outputs for frame-synchronous DMX output throughout the network. Additional frame-synchronous DMX outputs are available with the addition of grandMA3 xPort Nodes.

grandMA3 processing units offer a perfect system overview on the integrated touchscreen. This easy access to important functions allows for best maintenance if installed in a dedicated rack whilst every function can be monitored from the grandMA3 session. For larger systems it is suggested to keep the grandMA3 processing units in a centralized position for parameter expansion and to use grandMA3 xPort Nodes to distribute and output the frame-synchronous DMX data.

Product Specification:

Parameters: 8 192 (HTP/LTP)

Parameters Mode2: 4 096 (HTP/LTP)

Operating voltage/ Supply voltage: AC 100 - 240 V; 50/60 Hz

Power: max. 200 VA

Operating Temperature: 0 °C up to 40 °C / 32 °F up to 104 °F

Dimensions: 19 x 15 x 4 in

Net weight: 12 lbs
