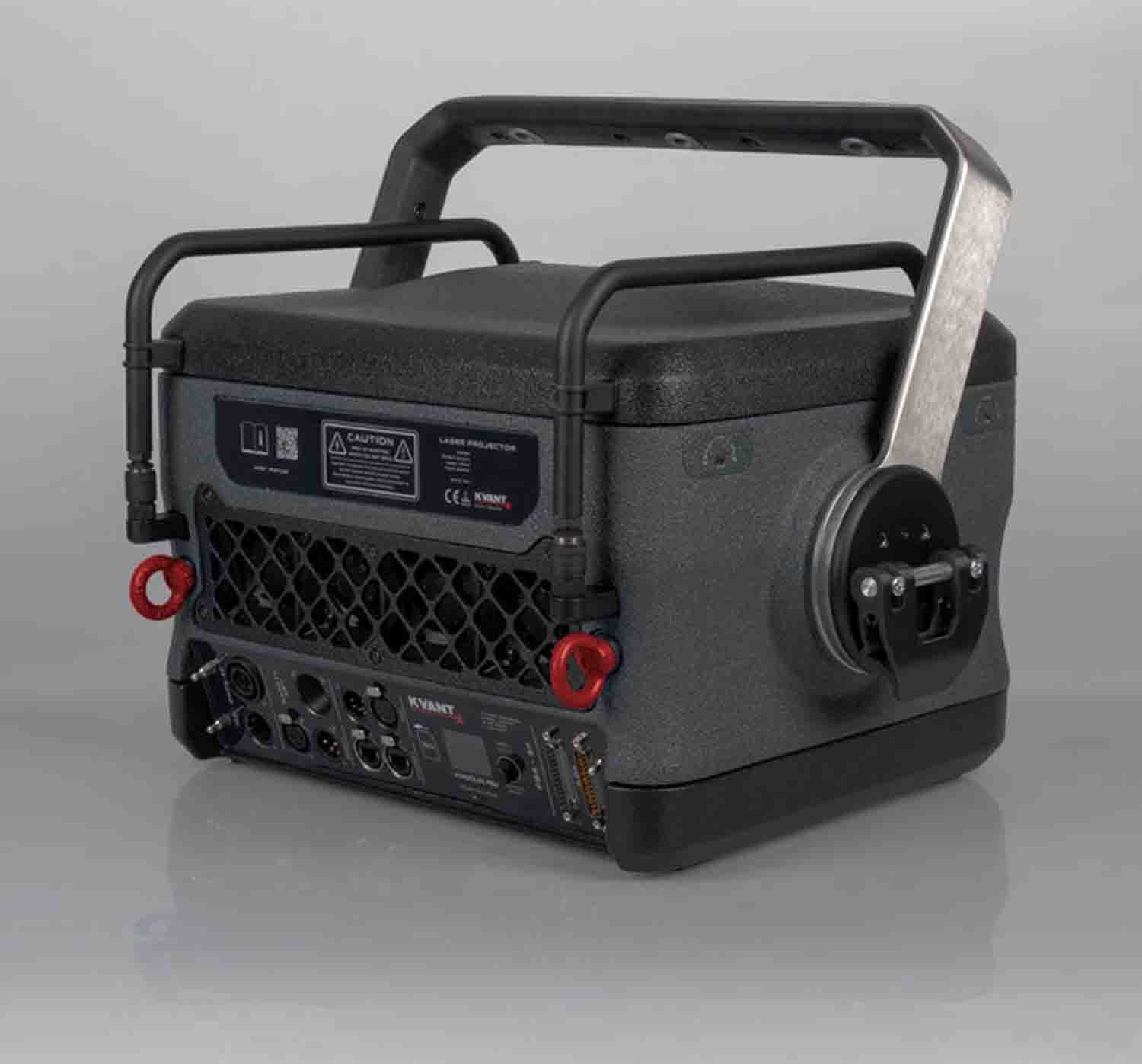

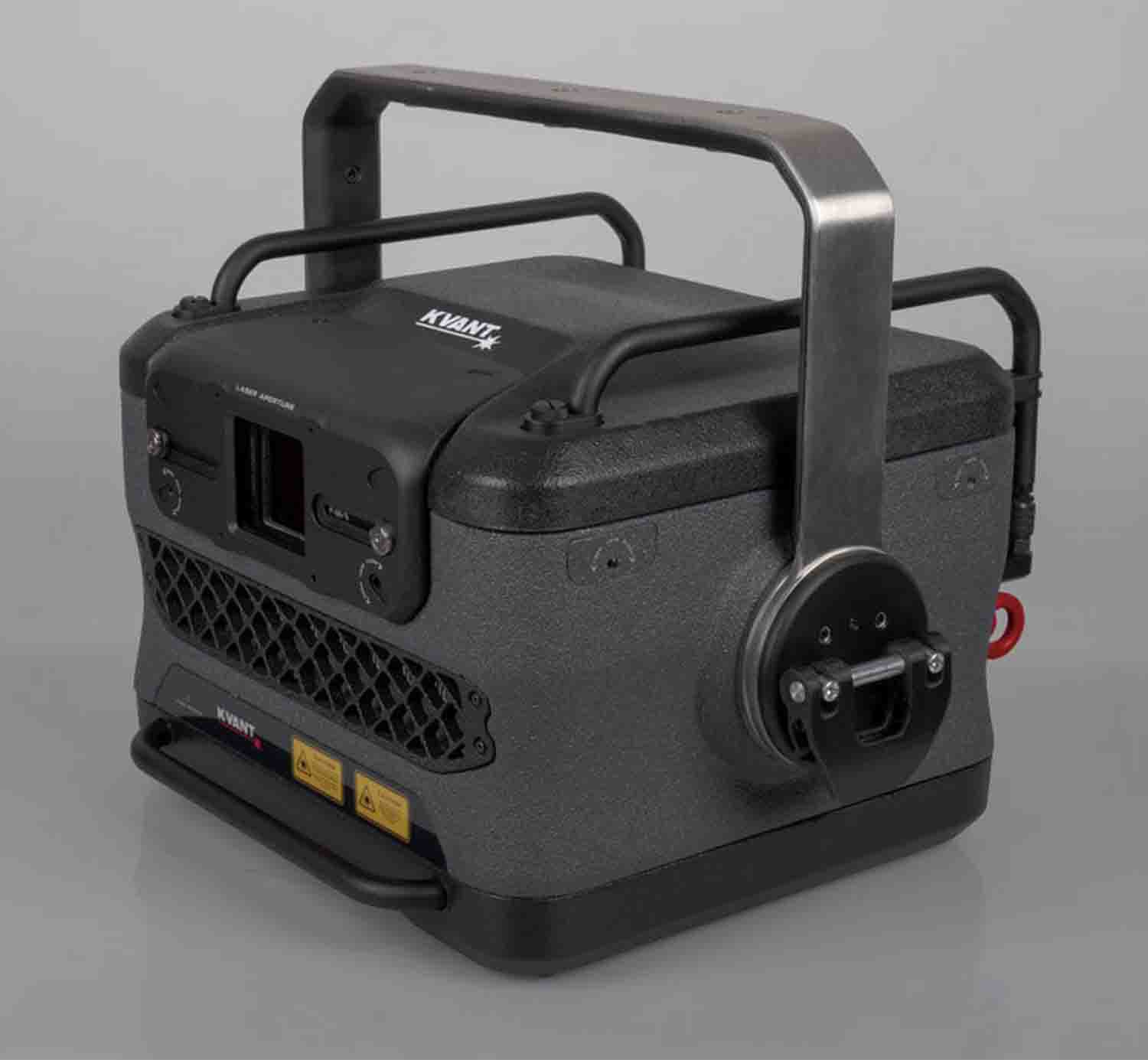

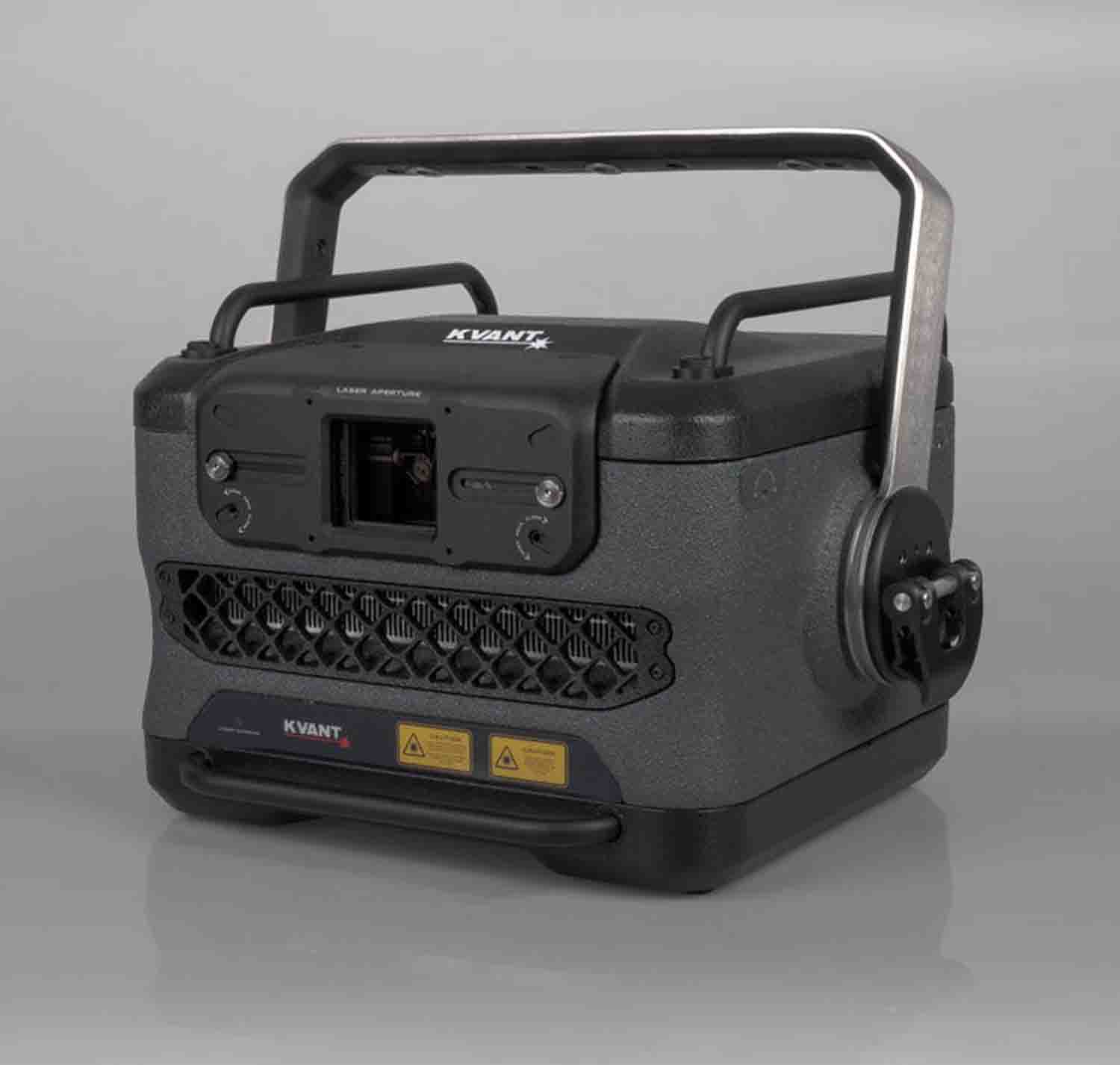

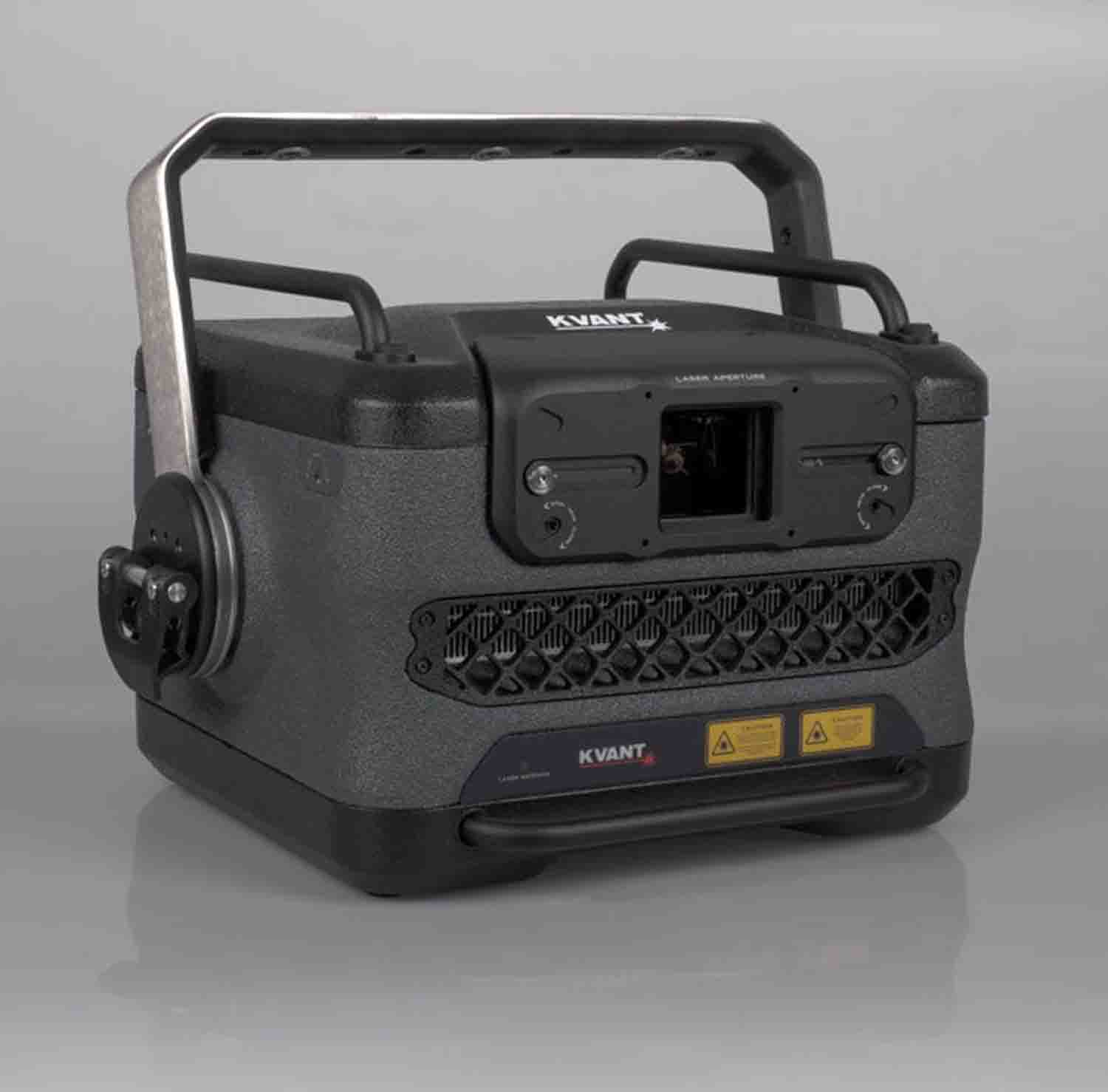

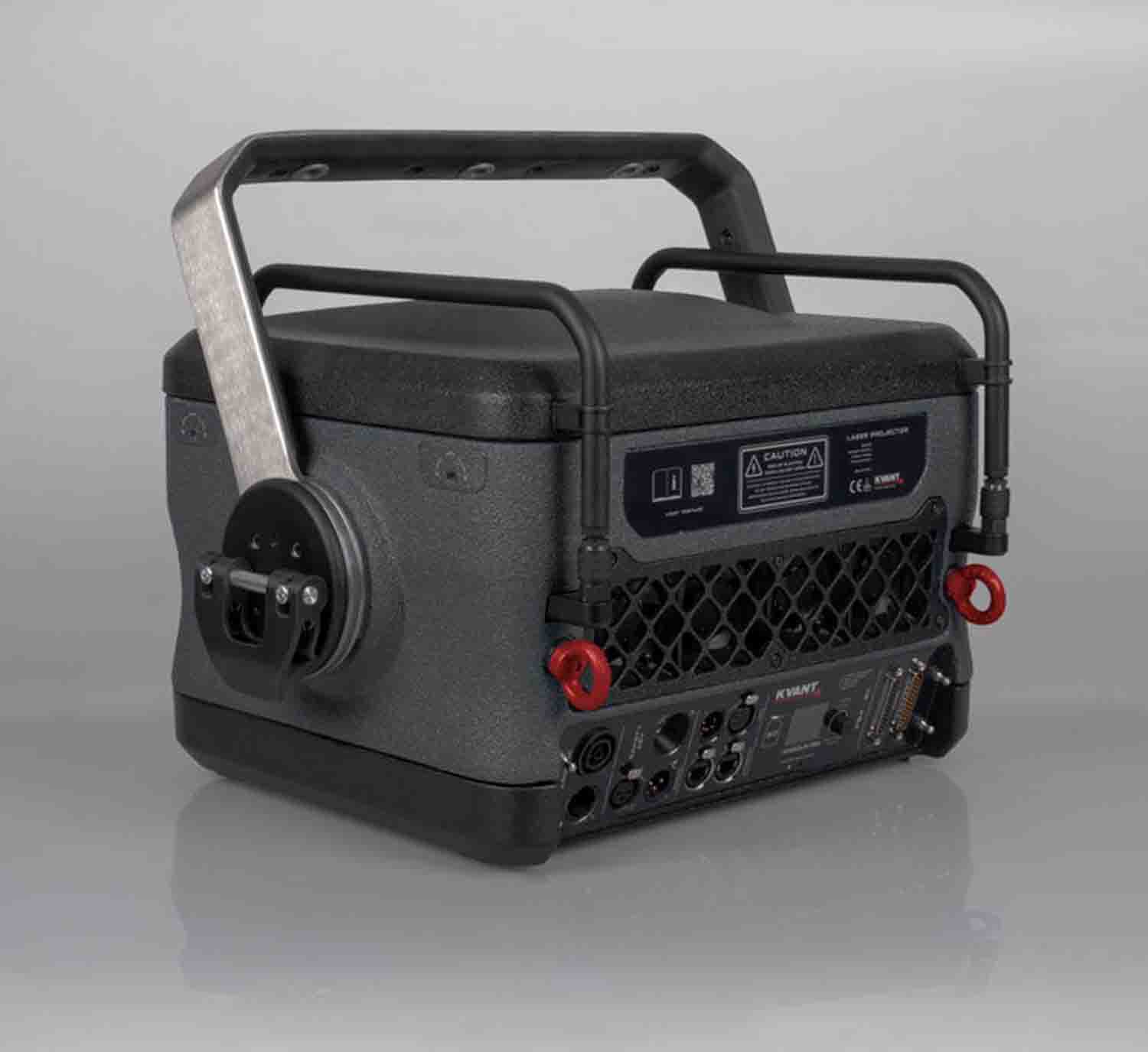

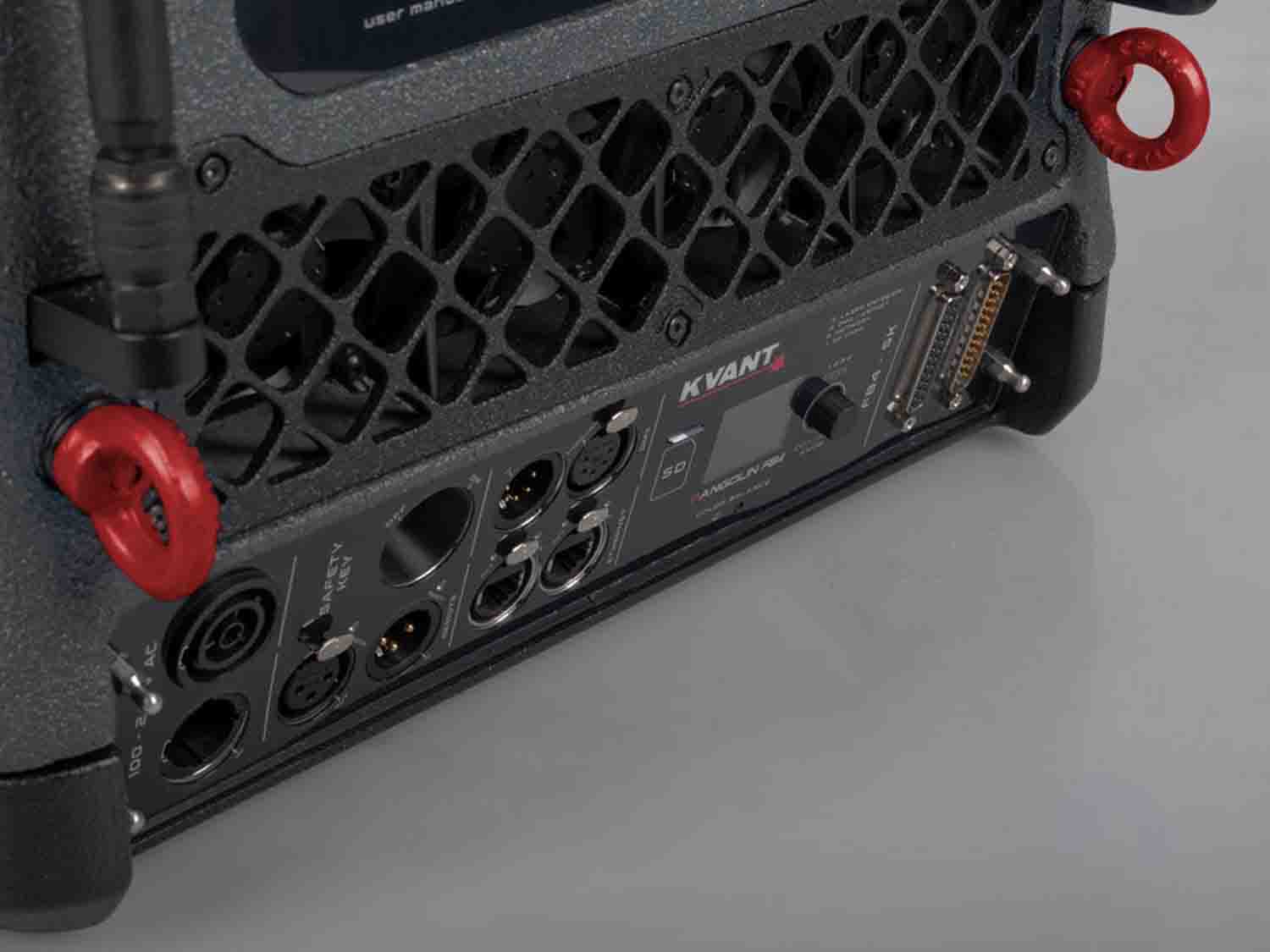

Kvant Lasers Spectrum 30 ROGB High Powered Laser Show Projector

The Kvant Lasers Spectrum 30 ROGB High Powered Laser Show Projector is the ultimate result of our know-how merged with the latest laser technology and the wishes of laser display professionals worldwide. Beautifully and practically designed Spectrum projectors offer world-class performance, superb beam quality, a wide range of colors, inspiring features to help you succeed, and comprehensive control options for easy integration into existing systems. The new Spectrum is offered in three versions - 30-Watt ROGB, 33 Watt RYGB, and 45 Watt RYGB fitted with either Orange or Yellow OPSL.

Due to our latest breakthroughs in beam-shaping techniques, all these models produce an enormous amount of luminosity, meaning they are seriously bright! In addition, the rigid foam aluminum chassis with cushioned heatsink, advanced thermal management and ergonomics make working with Spectrums stress less, exciting and fun.

Foam Aluminum Chassis

The 2022 Spectrum chassis is 30% lighter, significantly smaller and more robust than its predecessor and most conventional projectors in its class.

Extra Orange Opsl Module

Utilized by default, the 590nm Orange OPSL module provide a wide range of colors and high luminosity and brightness of the system over long projection distances.

Superb Quality Output

The beam profile of each color is near round, and all beams perfectly match each other in shape, size and divergence, ensuring all the mixed colors are crisp clean without any halos around them.

What is in the Package

Heavy-duty flight case

Laser projector

Mains cable

Ethernet cable

E-STOP with XLR cable

Interlock [US only]

Safety keys

USB drive with Manual

QC Certificate

Product Specifications:

Source | Type: Semiconductor laser diode + OPSL | Full-color ROGB laser projector

Suitability: Outdoor laser displays [atmospheric, abstract, text, animations]

System control: FB4-SK [Ethernet, Art Net, DMX, ILDA | PC, Lighting Console or auto play]

Compliant with: EN 60825-1

Ingress Protection rating: IP20, or IP54 with the optional Rain Cover installed [certification in progress]

Guaranteed opt. output: 30 Watts

Red | Orange | Green | Blue [W]: 6 | 3 | 10 | 11 [note]

Wavelengths [nm, ±5nm]: 637 | 590 OPSL | 525 | 462+445

Beam size [mm]: 7 x 7

Beam divergence [mrad]: 0.6 mrad [full angle, note]

Modulation [kHz] | type: 100 | analogue

X-Y scanners: Juno 5 | 40 Kpps @ 8°, max. scanning angle 60° on both axes

Power requirements [V] | Input: 100-240/50-60Hz | Neutrik powerCON TRUE1

Max. power consumption [VA]: 1200

Operation temperature [°C]: 10-35, or -20 to 40 when installed in the Monsoon outdoor enclosure

Dimensions (L X W X H): 19.33 X 12.20 X 15.59"

Weight: 68.34 Lb
