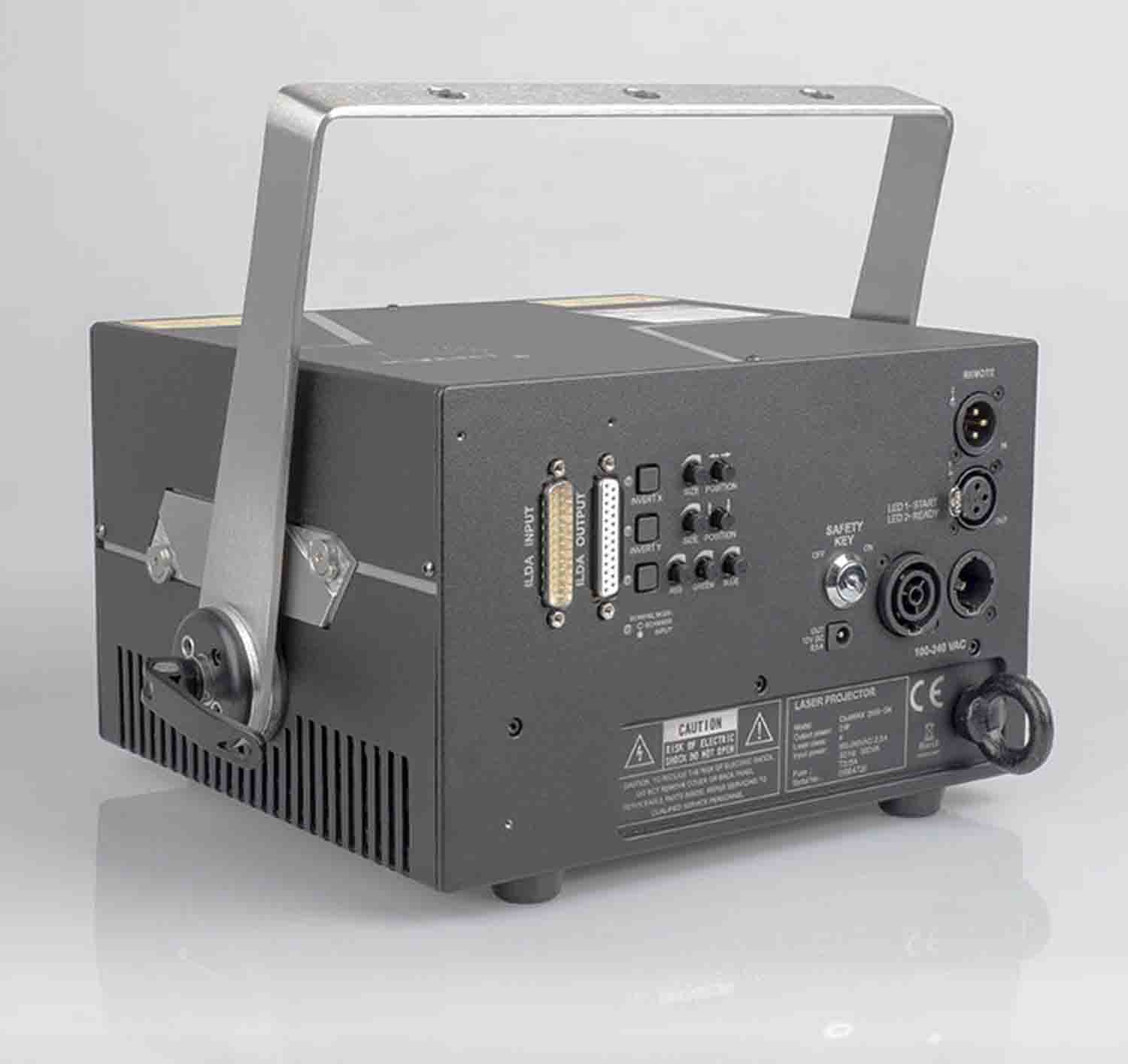

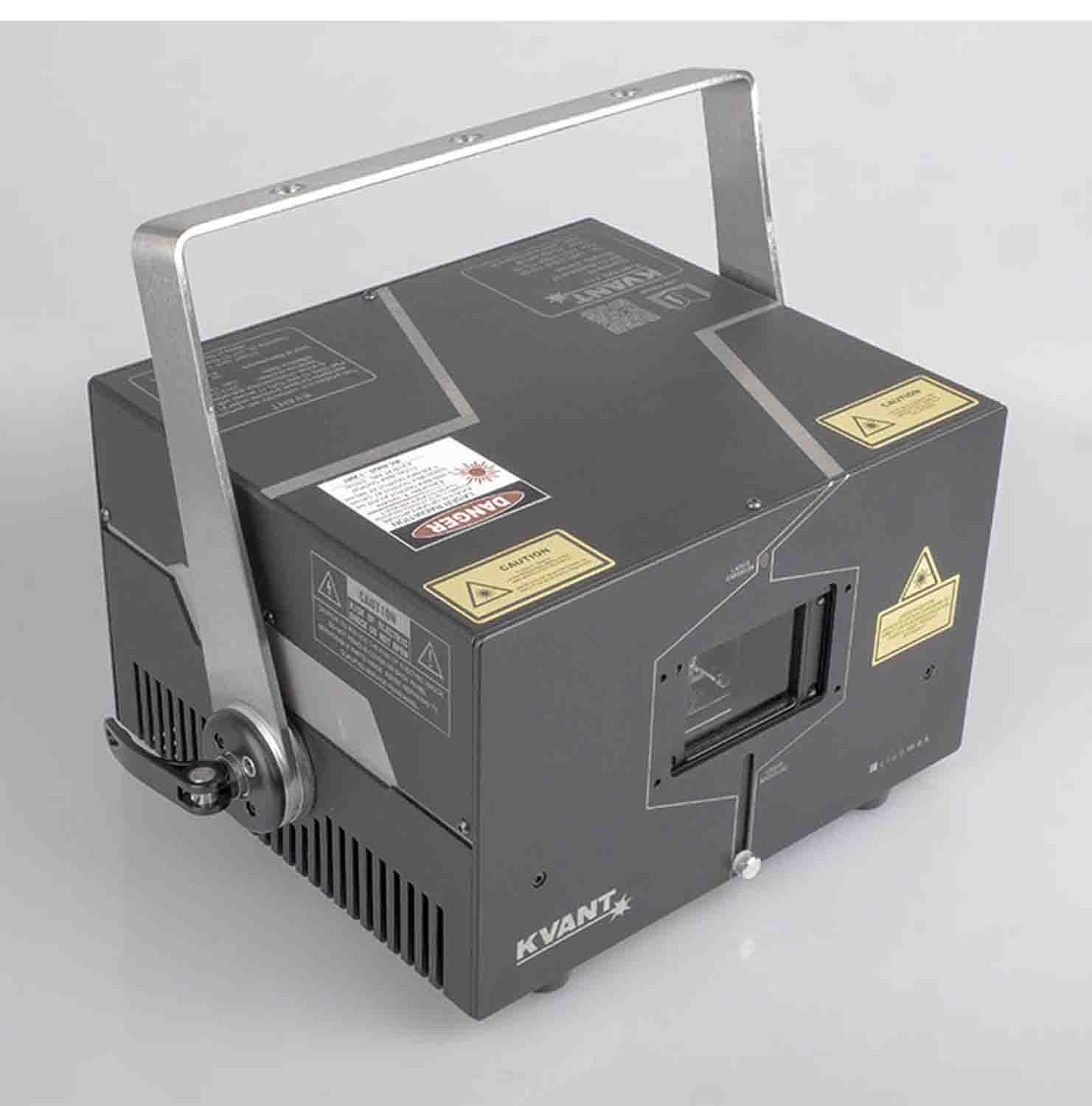

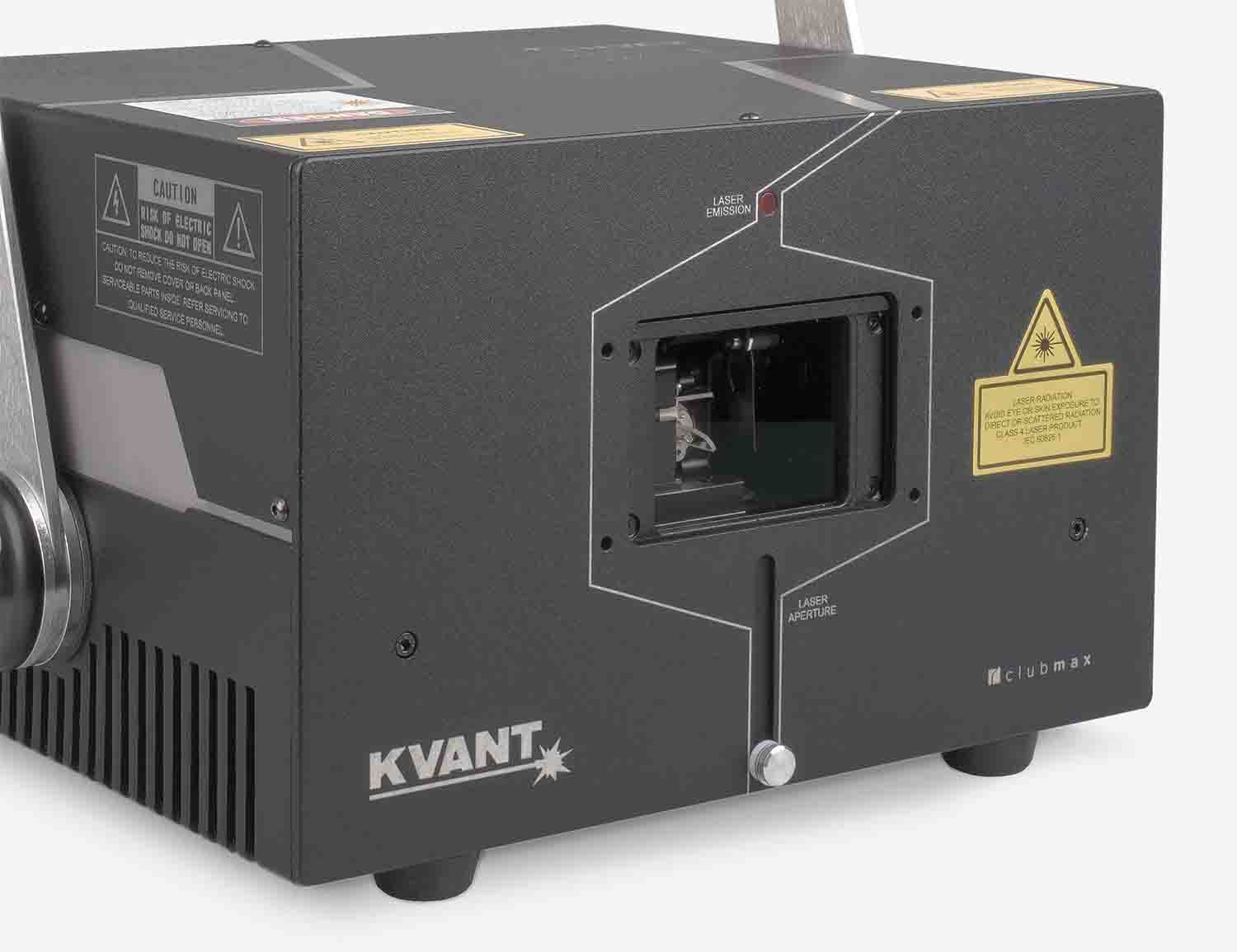

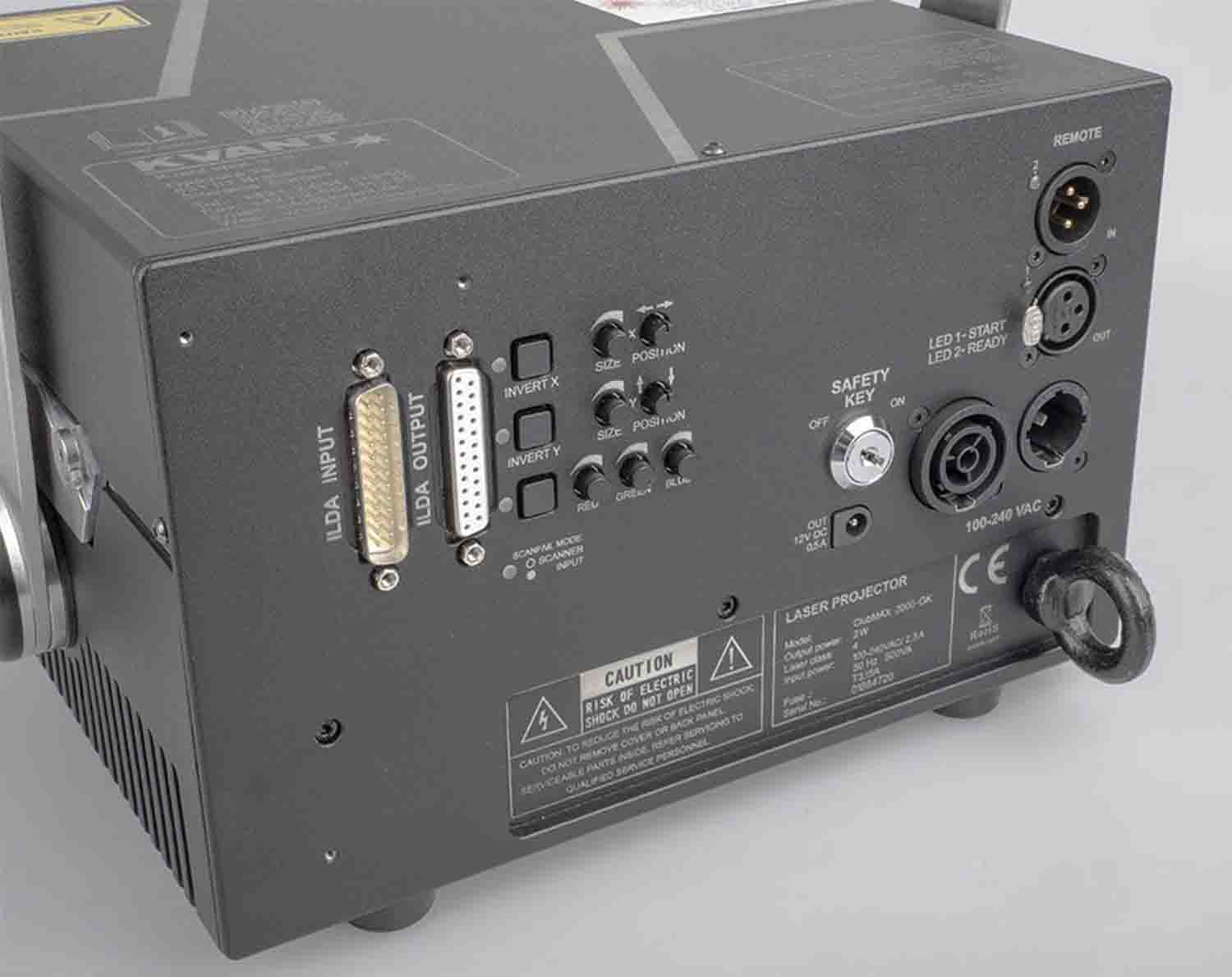

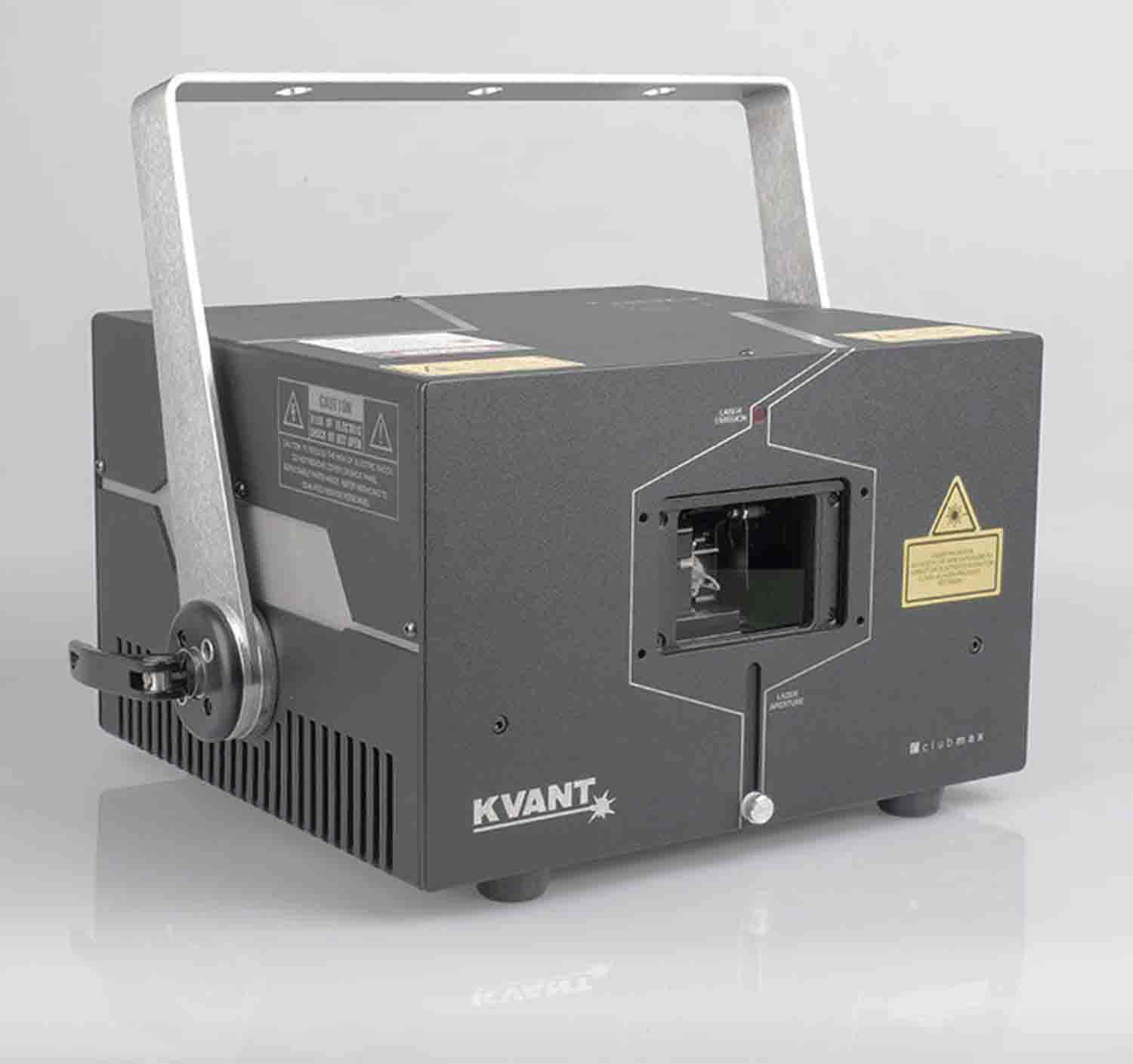

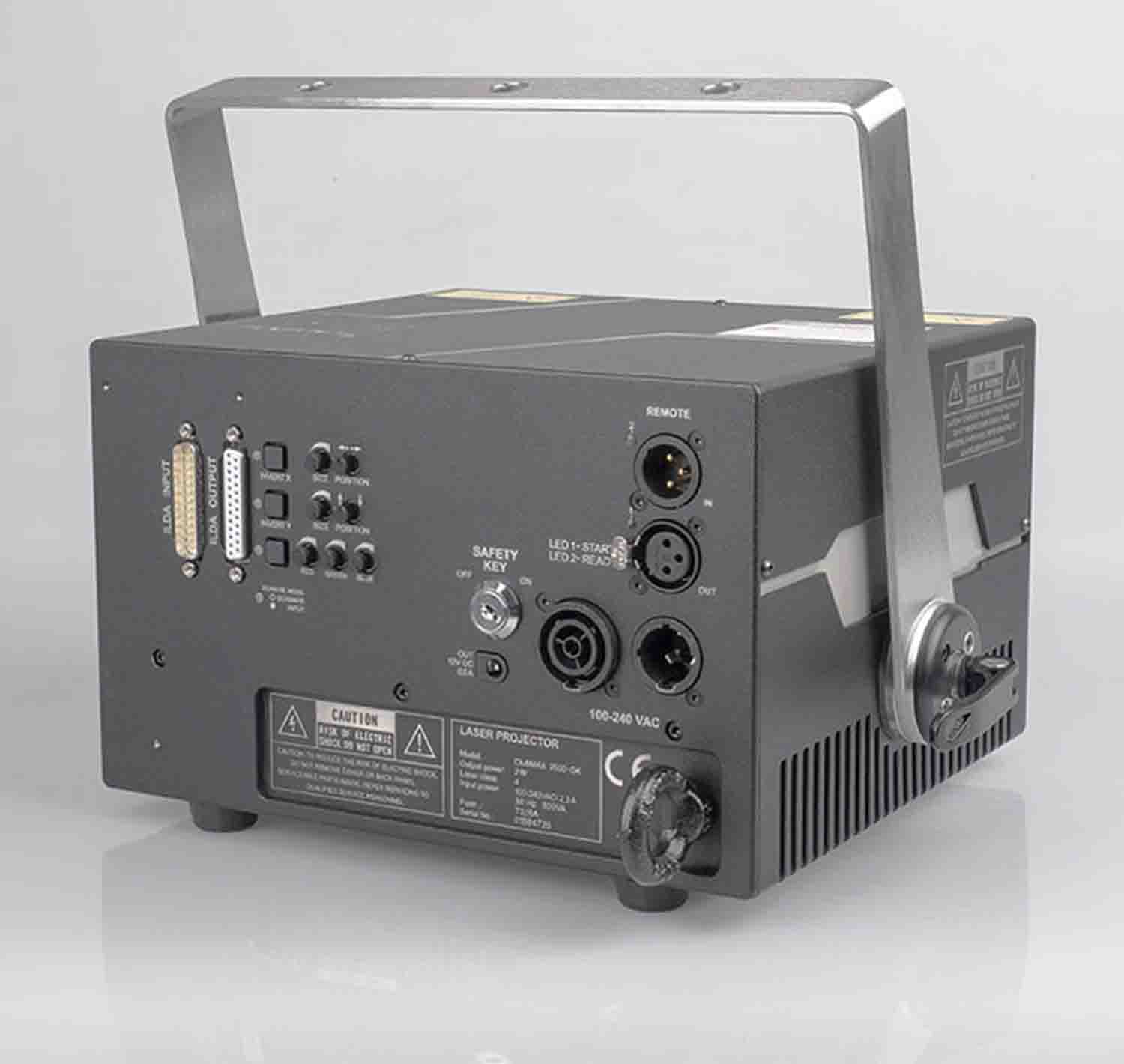

Kvant Lasers Clubmax 2000 ILDA Laser Display System

The Kvant Lasers Clubmax 2000 ILDA Laser Display System is the 3rd generation of our all-time bestseller that we crafted to perfection. Clubmax lasers are available in the range from 2 to 15W. The Clubmax series lasers are a radically simple solution for anything from several thousand people raves to the smallest private clubs and cozy venues. Developed with regard to challenging clubbing environments, the design is optimized to allow for long maintenance intervals and to ensure a long-life span of the system as a whole.

Low-Divergence Rgb Laser Source

The premium quality laser source is manufactured by us and uses the latest semiconductor diode laser technology in conjunction with the most advanced beam shaping techniques.

Fast Default Scanners

The system can reach up to 40 Kpps with default Scanner Max 506 scanner set, and up to 60 Kpps with optional Saturn1 scanners.

Simple and Efficient Design

Clubmax 2000 is an ILDA compatible laser projector, meaning that it will work well with any ILDA compatible laser control interface.

What is in the Package: Laser projector

Mains cable

ILDA cable

E-STOP with XLR cable

Interlock [US only]

Safety keys

USB drive with Manual

QC Certificate

Product Specifications:

Source | Type: Semiconductor laser diode | Full-color RGB laser projector

Suitability: Indoor laser displays [atmospheric, abstract, text, animations]

System control: ILDA [for Ethernet, Art Net, DMX see ACCESSORIES section of this page]

Compliant with: EN 60825-1 [tested by TÜV SÜD], FDA

Guaranteed opt. output [mW]: 2000

R | G | B [mW]: 340 | 700 | 1200 [*see note A below]

Wavelengths [nm, ±5nm]: 637 | 520 | 445

Beam size [mm]: 5.2 x 4.5

Beam divergence [mrad]: 0.58 [full angle, averaged value, see note B below]

Modulation [kHz] | type: 100 | analogue

X-Y scanners: ScannerMAX 506 Compact | 40 Kpps @ 8° [more options in UPGRADES section of this page]

Power requirements [V] | Input: 100-230/50-60Hz | Neutrik powerCON TRUE1

Max. power consumption [VA]: 340

Operation temperature [°C]: 10-40

Included in the set: 1.5M power lead, 10M ILDA signal cable, E-STOP remote with 10M 3-pin XLR cable, set of 4 safety keys, interlock connector [for the USA only], USB memory stick with the user manual.

Exterior Dimensions (L x W x H): 13.34 x 6.61 x 10.62"

Weight: 18.73 lb
