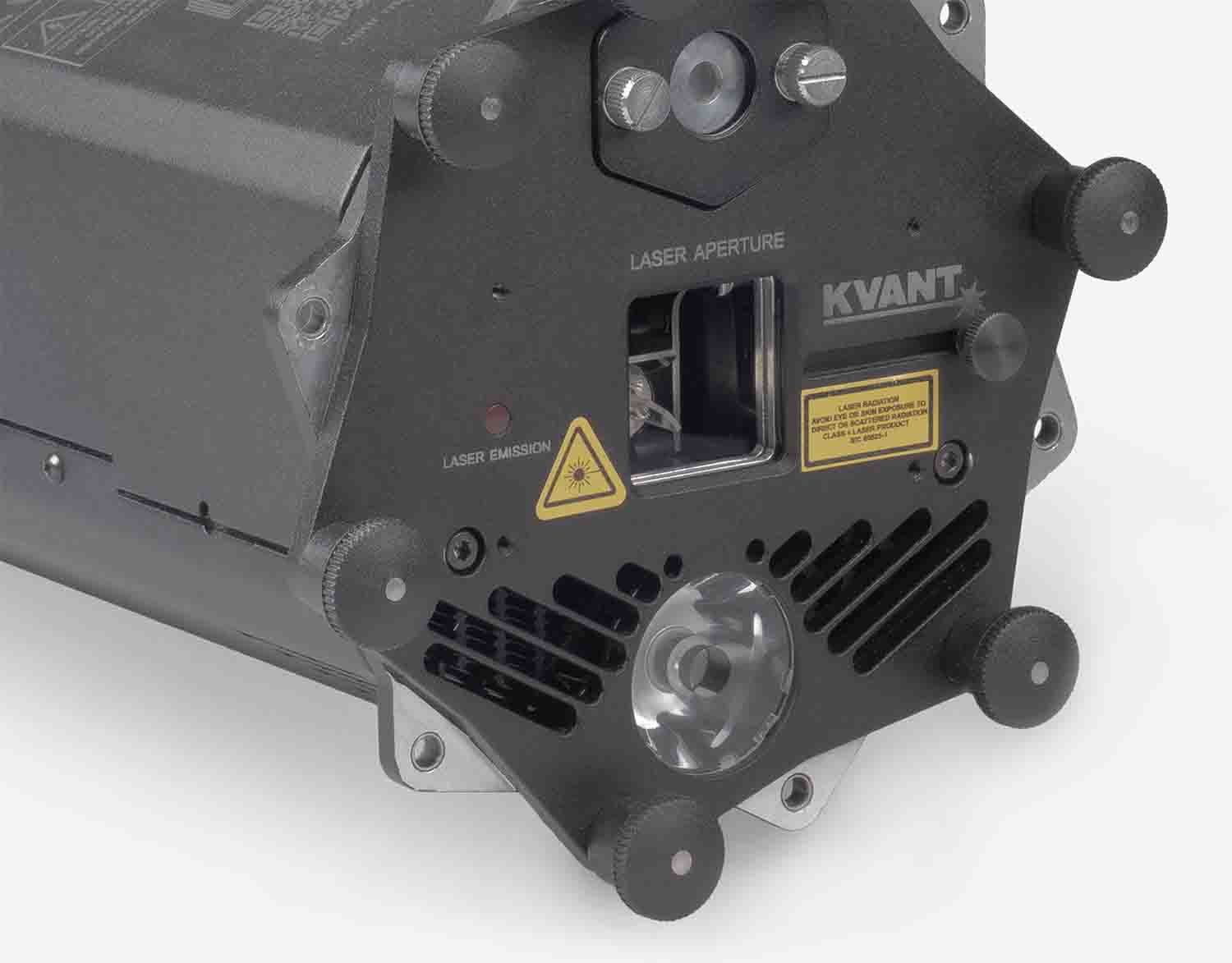

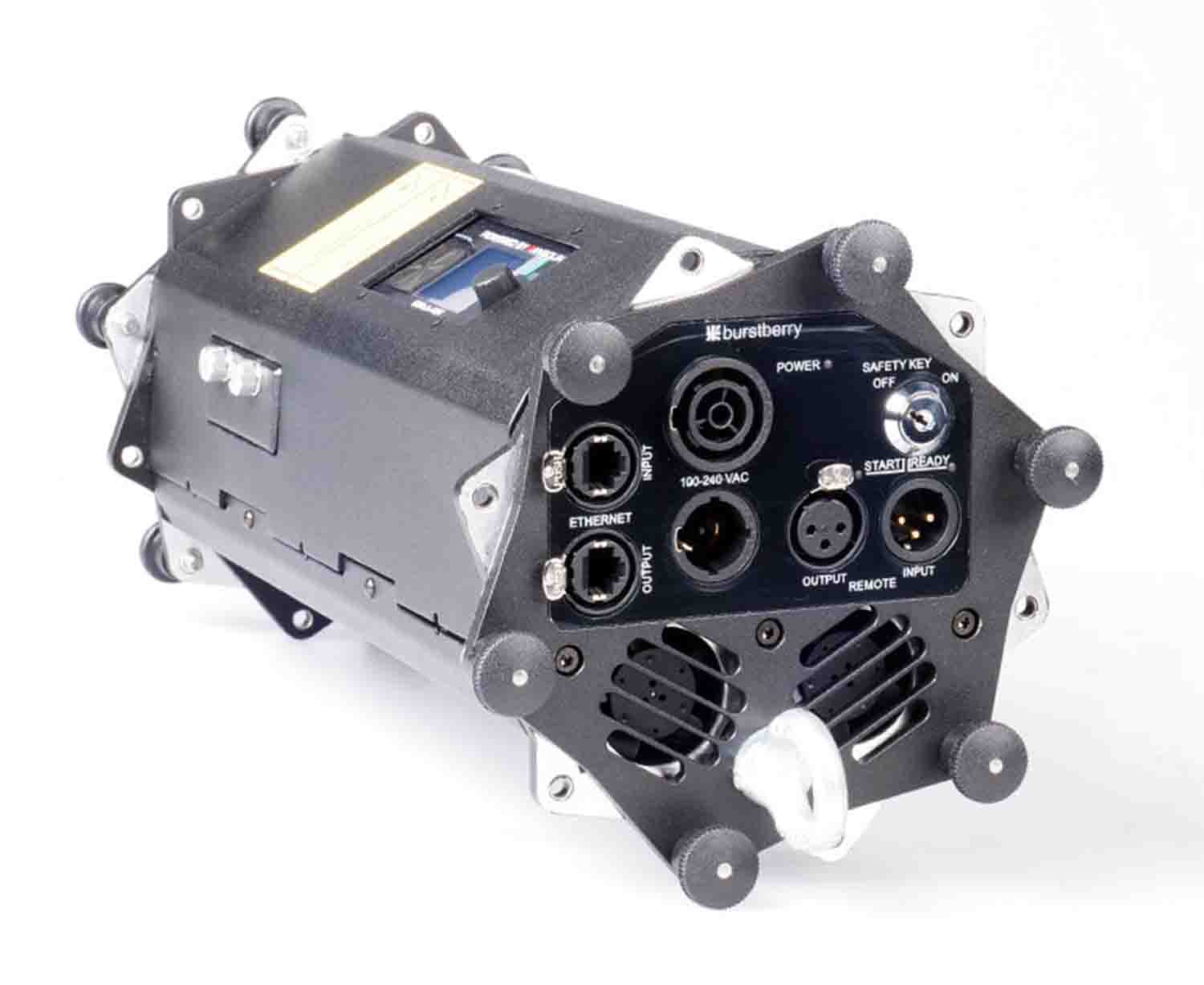

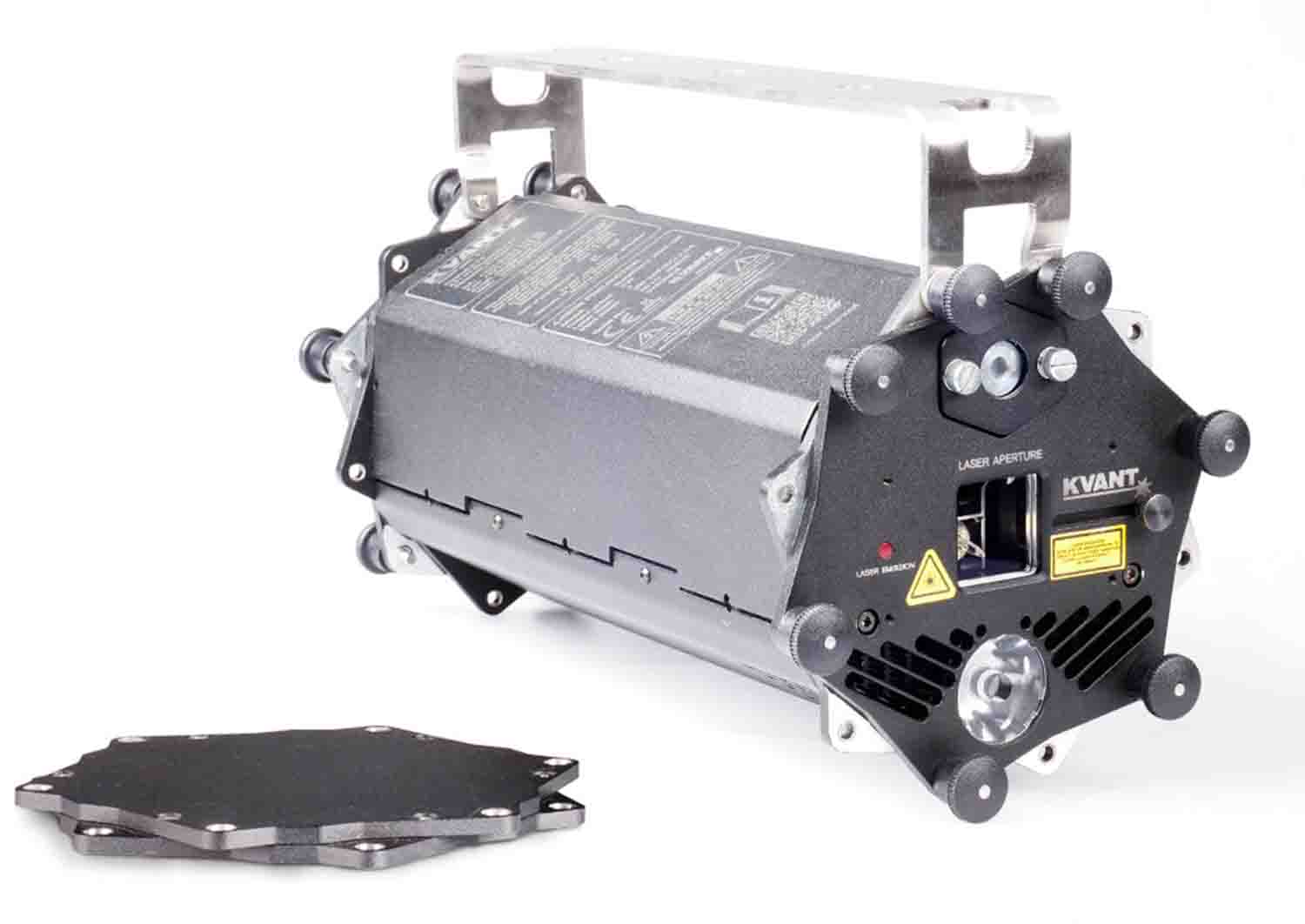

Kvant Lasers Burst Berry Unique Modular Laser Display System

The Kvant Lasers Burst Berry Unique Modular Laser Display System is Compact in size, being a fully equipped 2W full-color RGB laser display system with build-in burst effect and 3W white LED blinder - that’s Kvant Burst berry. With our Burst berry, you can now easily create all the super-cool laser effects that seemed impossible to accomplish before. Controlling a complex setup made of many Burst berries is now so simple thanks to the control via Art Net protocol.

Modular Laser/Lighting Fixture

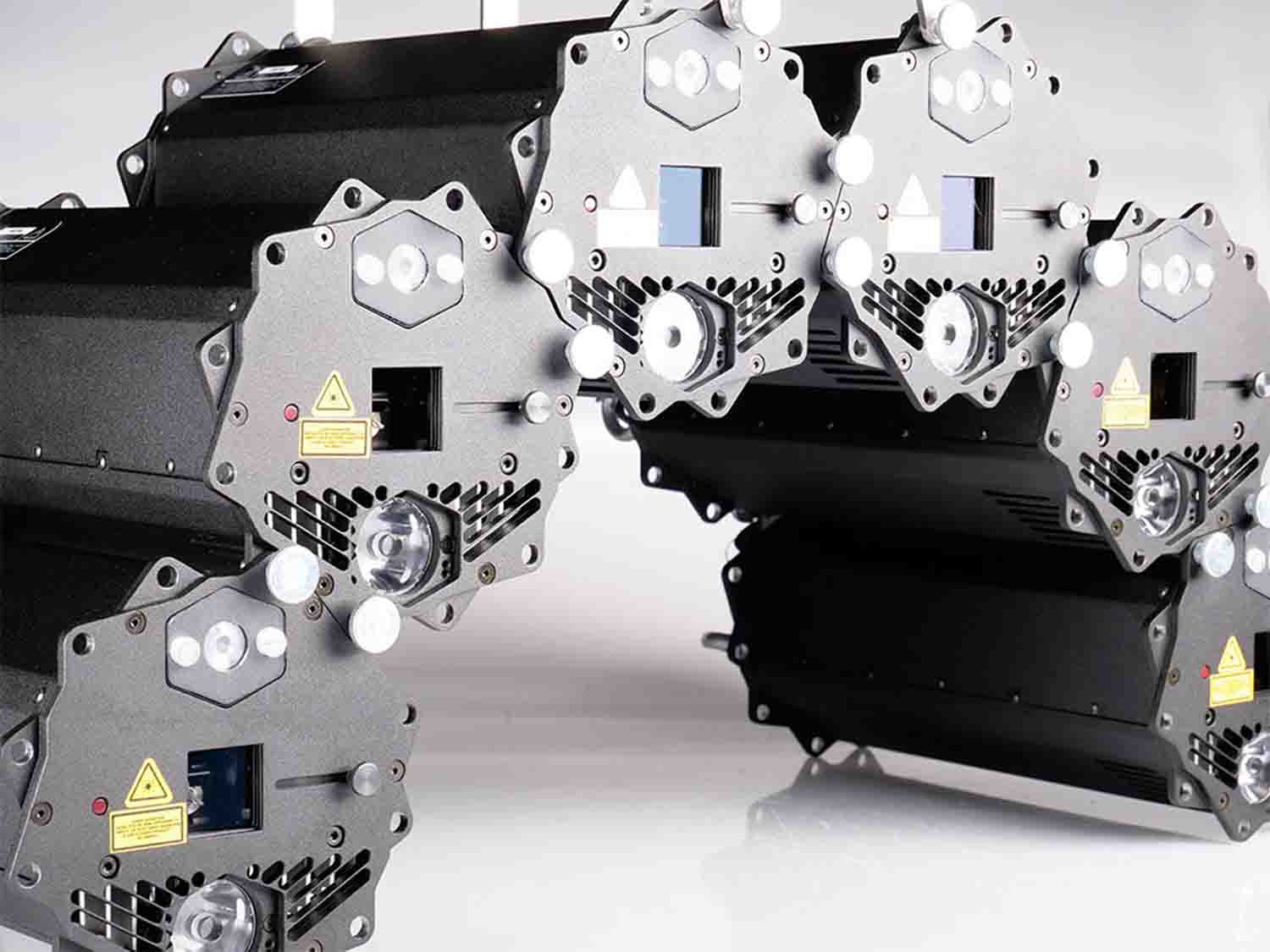

This system is designed to work as a multi-head laser projector and can be assembled into virtually any geometrical formation - offering phenomenal graphical performance.

Product Specifications:

Source | Type: Semiconductor laser diode | Full-color RGB laser projector/Lighting fixture

Suitability: Indoor/outdoor laser displays [atmospheric, abstract, text, animations]

System Control: FB4-STD [Ethernet, Art Net | PC, Lighting Console or Auto play]

Compliant With: EN 60825-1 [tested by TÜV SÜD], FDA

Guaranteed Opt. Output [Mw]: 2000

R | G | B [Mw]: 340 | 700 | 1200 [see note A below]

Wavelengths [Nm, ±5nm]: 637 | 520 | 445

Beam Size [Mm]: 5.2 x 4.5

Beam Divergence [Mrad]: 0.58 [full angle, averaged value, see note B below]

Modulation [Khz] | Type: 100 | analogue

X-Y Scanners: ScannerMAX 506 Compact | 28 Kpps @ 8°, max. 60°

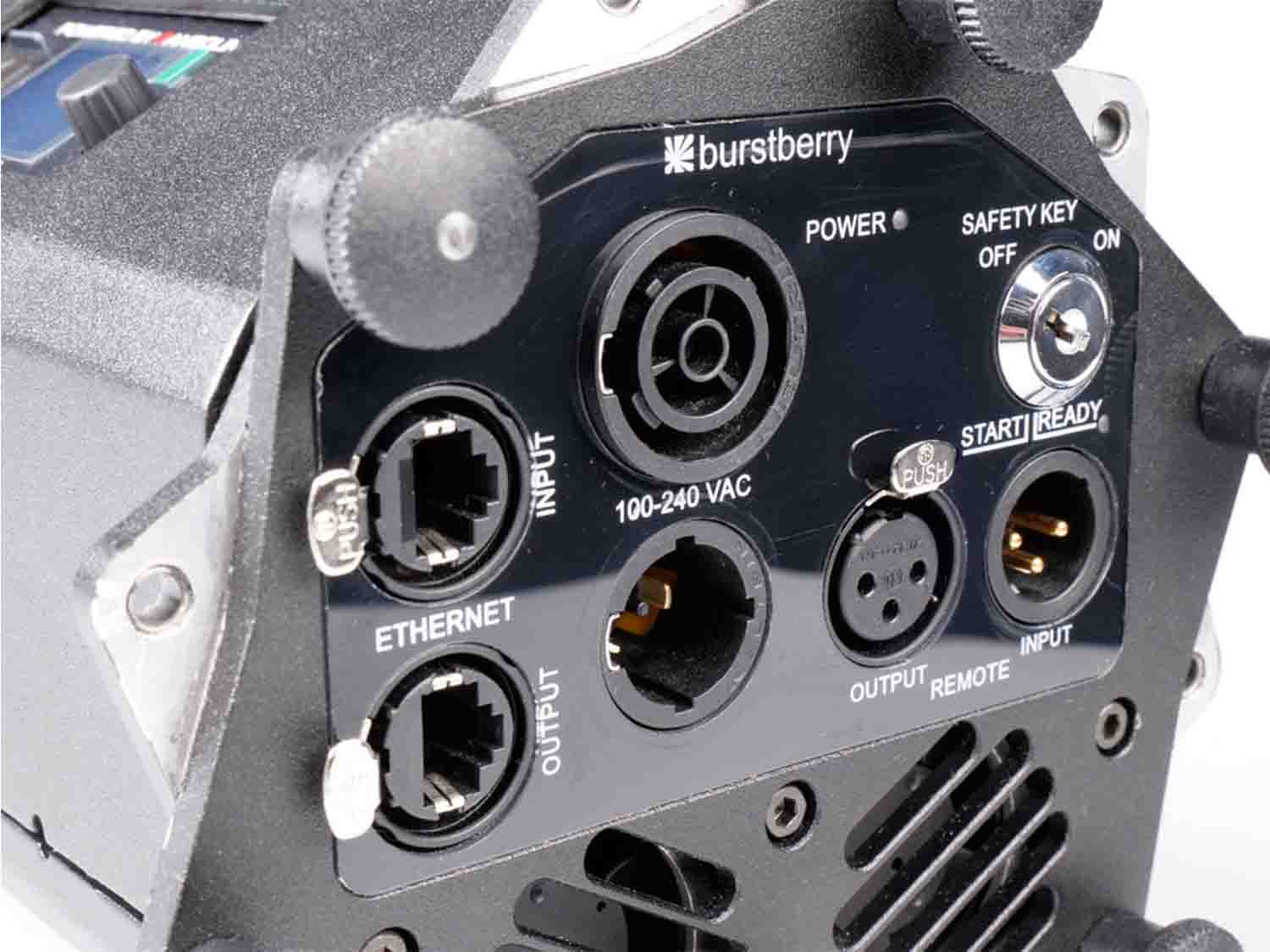

Power Requirements [V] | Input: 100-230/50-60Hz | Neutrik powerCON TRUE1

Max. Power Consumption [VA]: 340

Operation Temperature [°C]: 10-35

Exterior Dimensions (L X W X H): 6.73 X 6.73 X 14.13"

Weight: 8.37 Lb
