Kvant Lasers Berry Lite cluster (6-units) Clubbing Laser Projector

The Kvant Lasers Berry Lite cluster (6-units) Clubbing Laser Projector is compact in size, being a fully equipped 5W full-color RGB laser display system with build-in 3W LED blinder - that’s Kvant Berry Lite. A pack made of six Berries Lite offers more than 200.000 points-per-second drawing capability - that's at 8 degrees projection angle and 20 frames per second performed. And being virtually a single unit makes the handling extremely easy and practical because you don't have to worry about the misalignment between the projectors once they are set up - even if moved afterwards.

Just imagine what you could do with over 200.000 points per second; how complex the content could be with absolutely no flicker when projected. The Berry Lite offers endless creative possibilities and easy control when designing challenging laser effects. Because it is intended to be operated mainly via Art net or DMX, we see it ultimately as the product of choice for every lighting designer.

Unmatched!

One of the key features that a cluster of Berries Lite will give its user is phenomenal graphical performance.

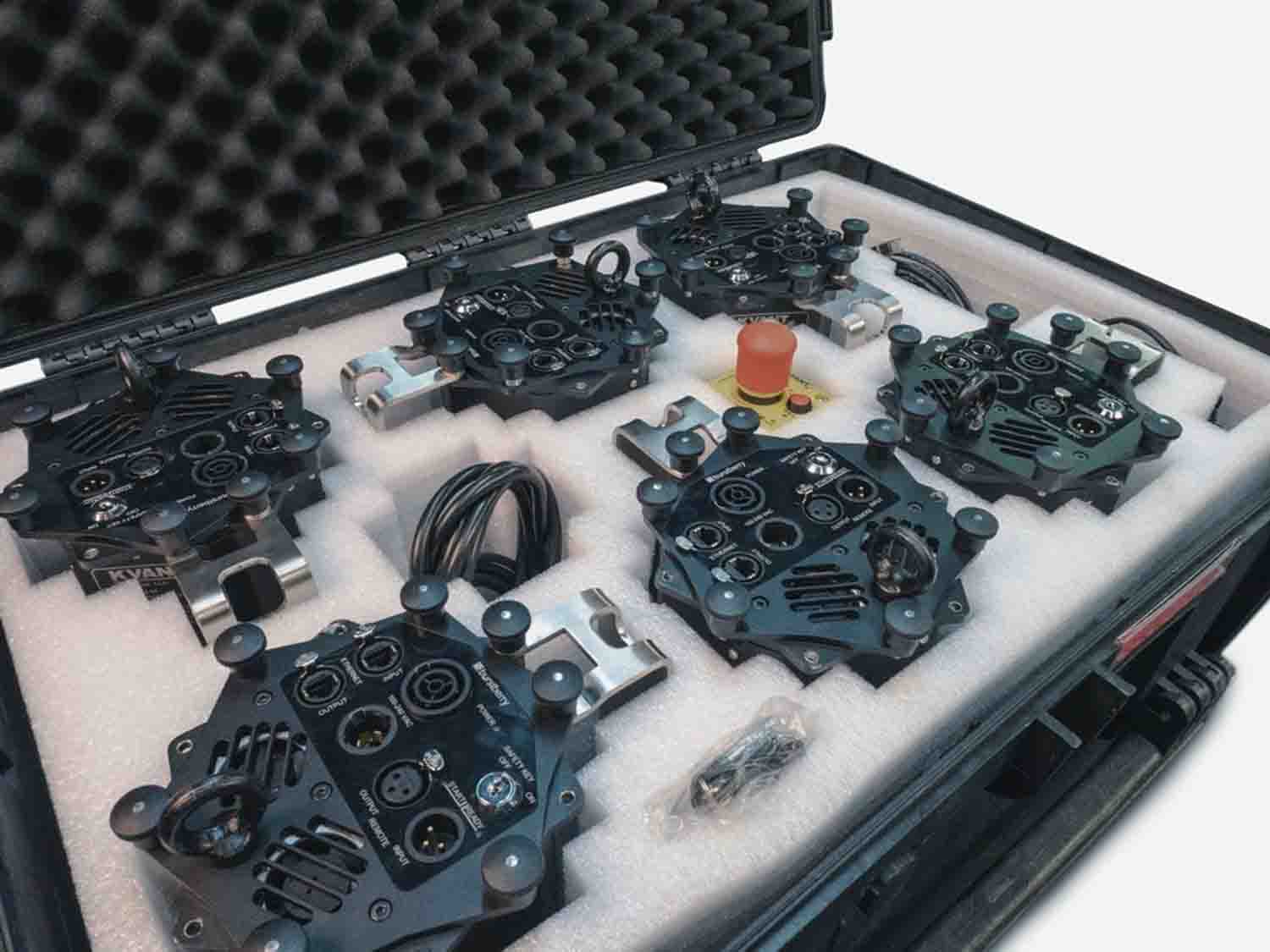

What is in the Package

Heavy-duty flight case

Six Berry Lite projectors

Hanging brackets

Mains/Jumper cables

Ethernet cables

E-STOP with XLR cable

Interlocks [US only]

Safety keys

USB drive with Manual

QC Certificates

Product Specifications:

Source | Type: Semiconductor Laser Diode [Fac] | Full-Color Rgb Laser Projector/Lighting Fixture

Suitability: Indoor/Outdoor Laser Displays [Atmospheric, Abstract, Text, Animations]

System Control: Fb4-Std [Ethernet, Art net | Pc, Lighting Console or AutoPay]

Compliant With: En 60825-1 [Tested by Tüv Süd], FDA

Guaranteed Opt. Output [W]: 30.6 [Per 6-Unit Cluster]

R | G | B [Mw]: 1200 | 1700 | 2400 [Each Sub-Unit | See Note A Below]

Wavelengths [Nm, ±5nm]: 637 | 520 | 445

Beam Size [Mm]: 6 X 5

Beam Divergence [Mrad]: 1.5 [Full Angle, Averaged Value, See Note B Below]

Modulation [Khz] | Type: 100 | Analogue

X-Y Scanners: ScannerMAX 506 Compact | 210 Kpps @ 8°, Max. 50° [Per 6-Unit Cluster]

Power Requirements [V] | Input: 100-230/50-60hz | Neutrik Powercon True1

Max. Power Consumption [VA]: 200 [Each Sub-Unit]

Operation Temperature [°C]: 10-35

Exterior Dimensions (L X W X H): 20.47 X 13.77 X 14.13"

Weight: 50.70 Lb
