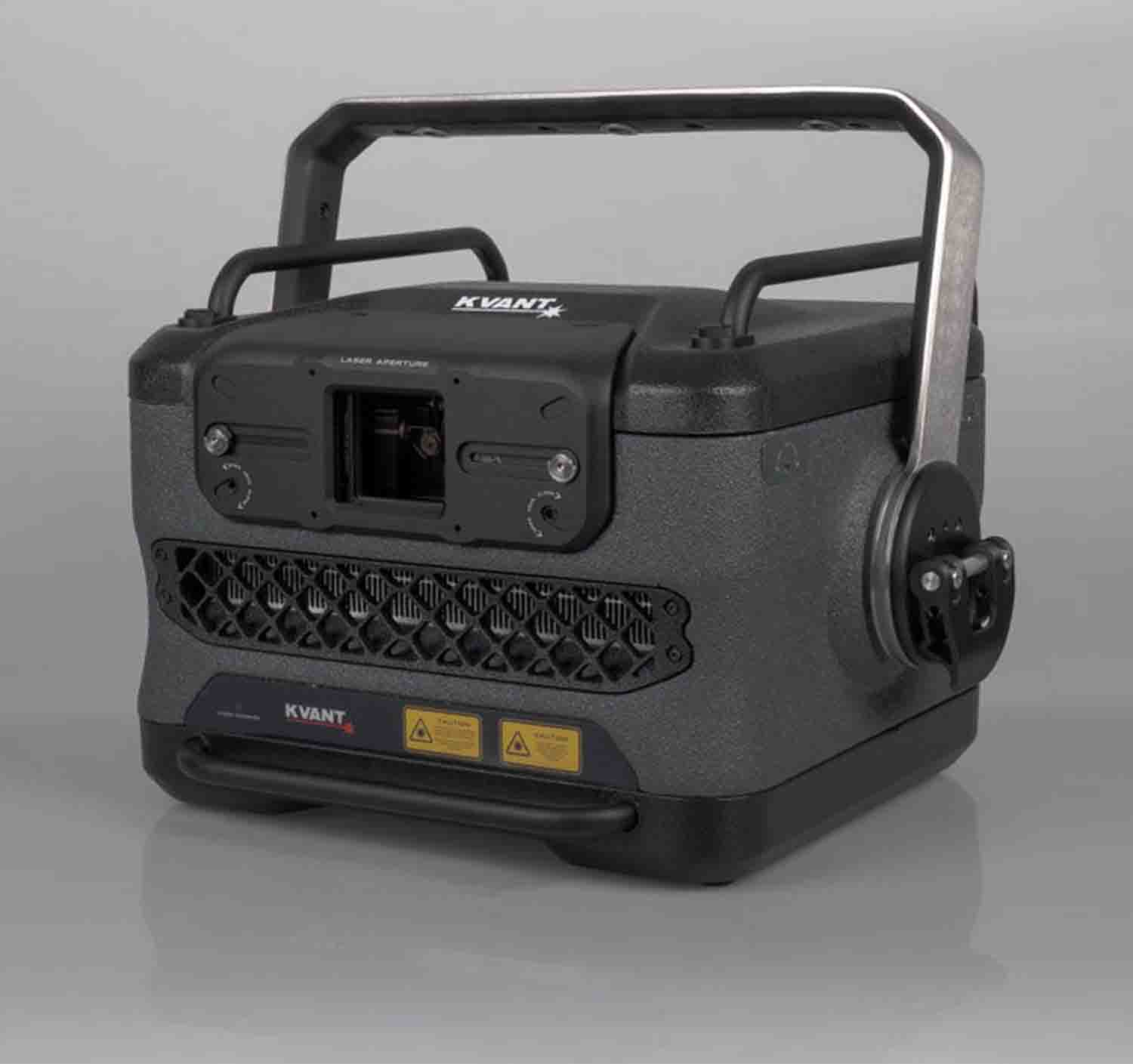

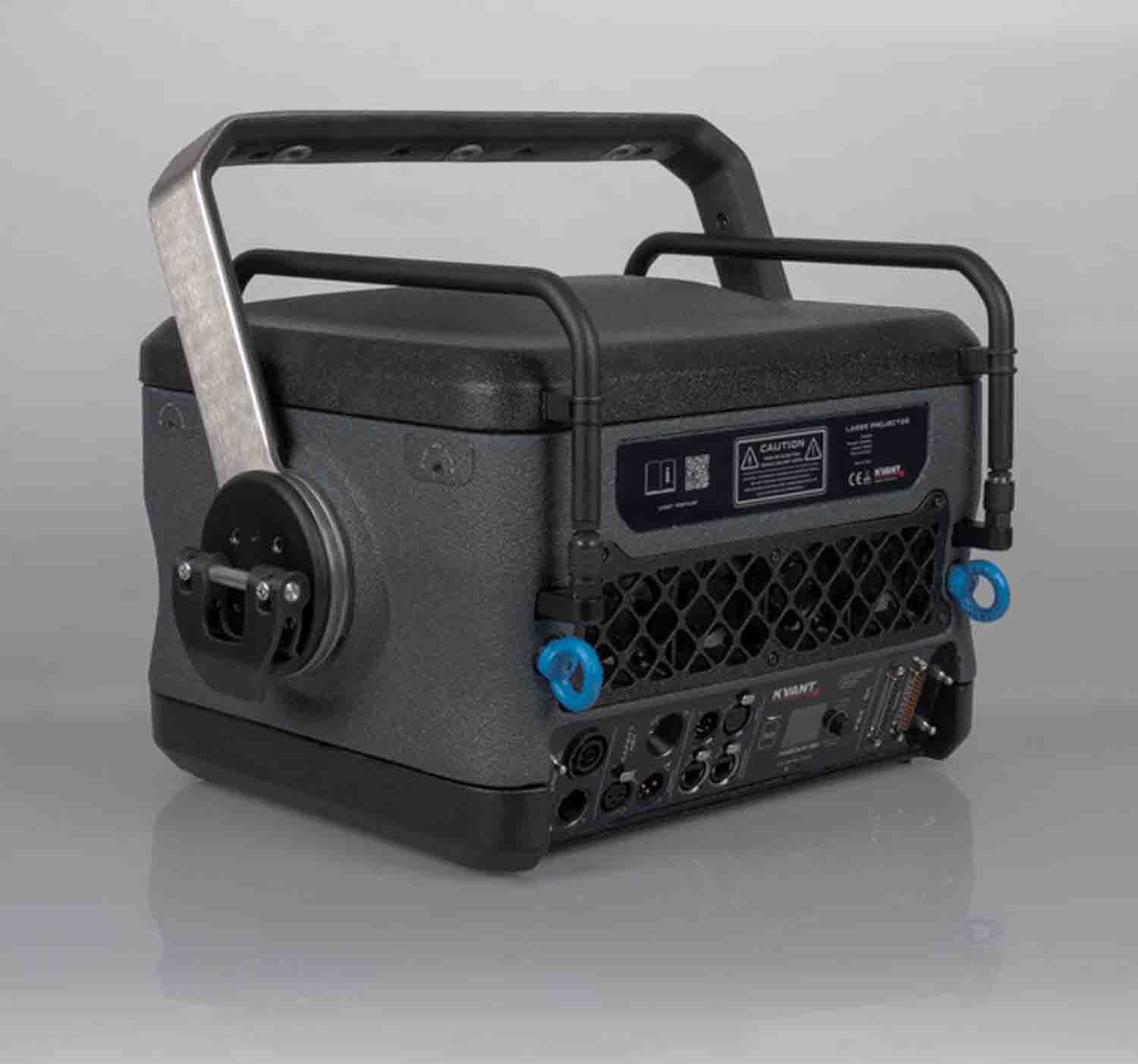

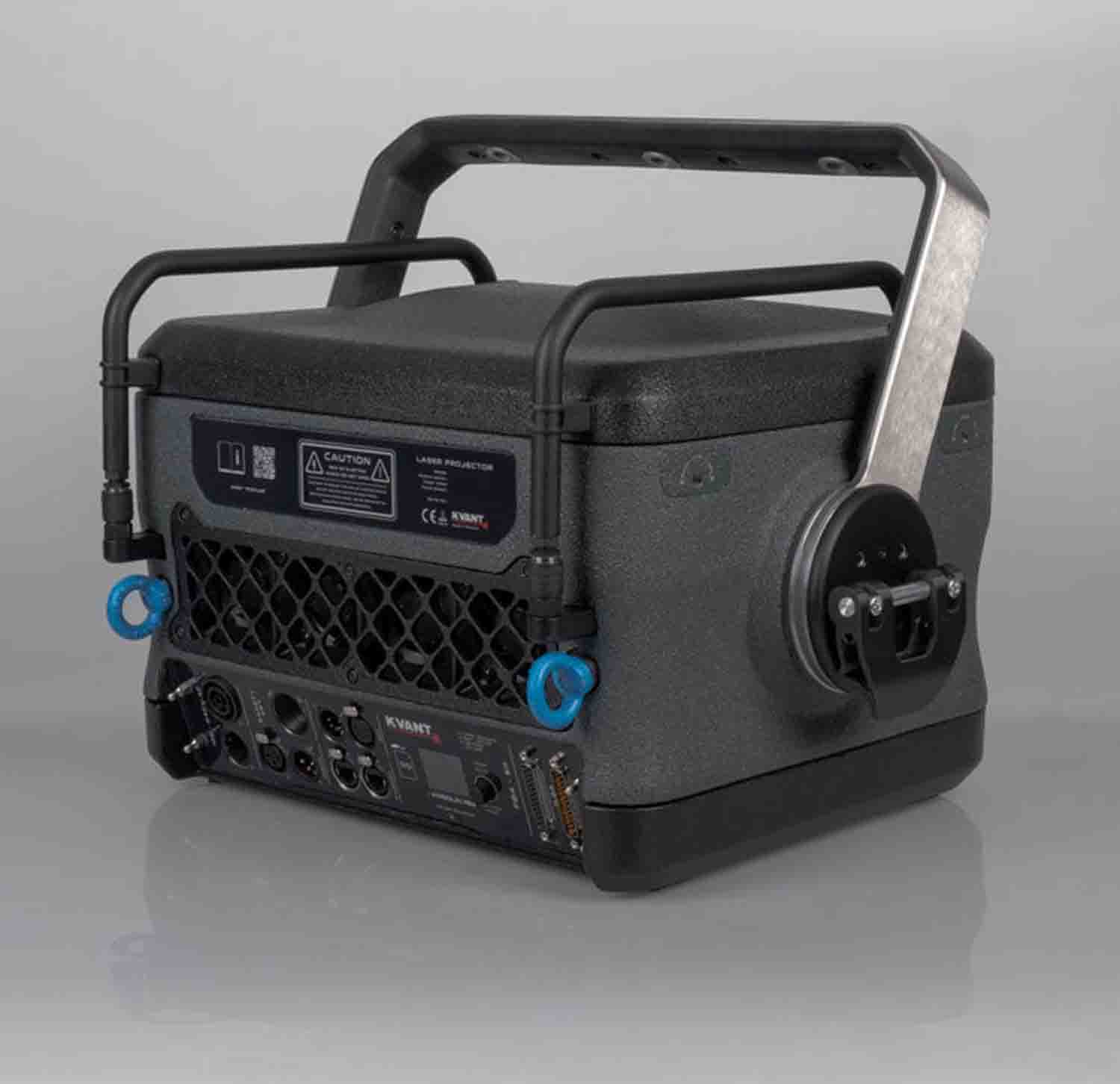

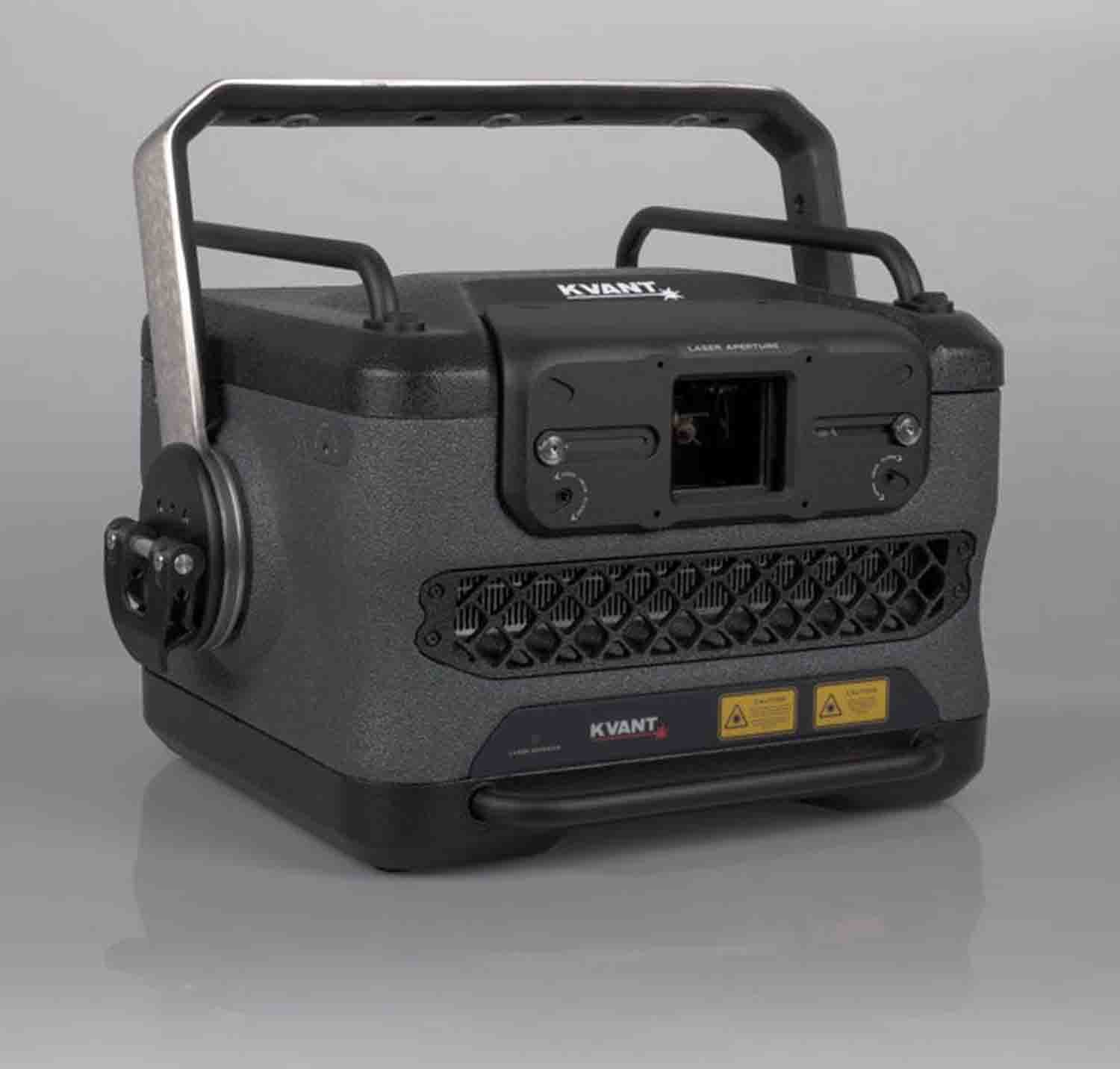

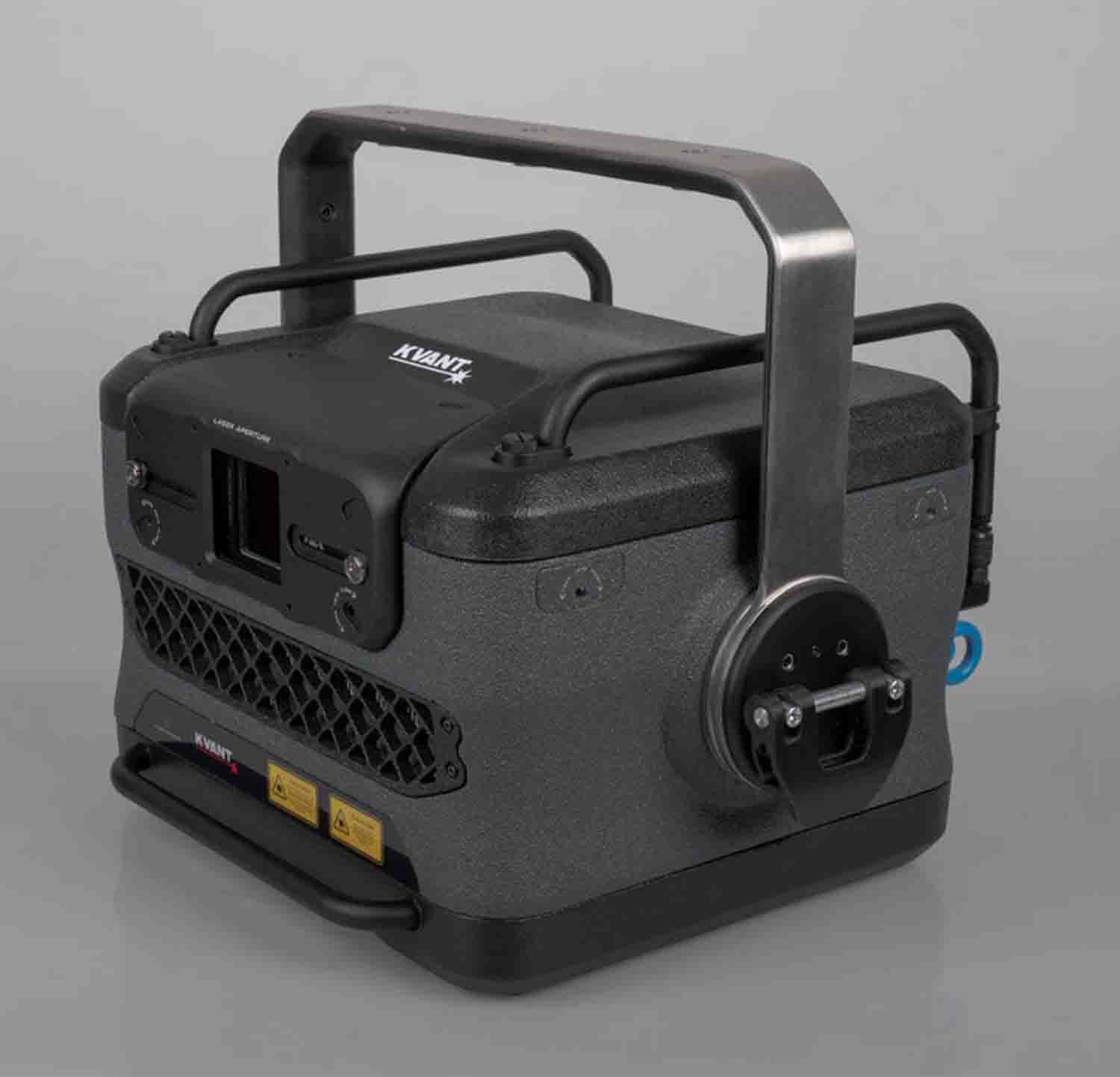

Kvant Lasers Atom 30 Professional Laser Display Projector

The Kvant Lasers Atom 30 Professional Laser Display Projector always represented the bridge between lower output Clubmax systems and our flagship Spectrum projectors. Atom units are structurally designed the same way as the new line of world-class Spectrums, using the same innovative foam aluminum material for the chassis, but with a few differences that allow for a more economical price tag. The latest Atom is a fine-crafted semiconductor FAC-diode based full-color laser display system that provides its user with powerful output, unified beams, crisp colors, and advanced control features and connections.

Our Atoms emit beams with unrivalled divergence while maintaining guaranteed power output across the entire scanning range. This is something pretty unique (important and unknown) that not many other manufacturers can offer. The Atoms are just better. Our Atoms already showed their potential in power demanding applications while we manage to keep their sales price at a reasonable level. They are offered in three versions, ranging from 20 to 42 Watts.

Foam Aluminum Chassis

The 2022 Atom chassis is 30% lighter, significantly smaller and more robust than its predecessor and most conventional projectors in its class.

Semiconductor Fac Diodes

These new diodes offer identical size beams across all colors and uniformity of their profiles, resulting in well-defined and clean projections.

Powerful Output

The beam and build quality and amount of optical power output of new Atoms designate them for large-scale outdoor events and touring.

Reliable Semiconductor Workhorse

Robust and powerful enough, elementary yet sophisticated. The Atoms are well balanced from about every aspect, including their cost-efficiency.

What is in the Package

Heavy-duty flight case

Laser projector

Mains cable

Ethernet cable

E-STOP with XLR cable

Interlock [US only]

Safety keys

USB drive with Manual

QC Certificate

Product Specifications:

Source | Type: Semiconductor Laser Diode [FAC] | Full-Color RGB Laser Projector

Suitability: Outdoor Laser Displays [Atmospheric, Abstract, Text, Animations]

System Control: FB4-SK [Ethernet, art net, DMX, ILDA | PC, Lighting Console Or auto play]

Compliant With: EN 60825-1

Ingress Protection Rating: IP20, Or IP54 With an Optional Rain Cover Installed [Certification in Progress]

Guaranteed Opt. Output: 30 Watts

R | G | B [W]: 7.5 | 10 | 13 [Note]

Wavelengths [Nm, ±5nm]: 637 | 525 | 455

Beam Size [Mm]: 7 X 7

Beam Divergence [Mrad]: 1 Mrad [Full Angle, Note]

Modulation [Khz] | Type: 100 | Analogue

X-Y Scanners: Juno 5 | 35 Kpps @ 8°, Max. Scanning Angle 60° On Both Axes

Power Requirements [V] | Input: 100-240/50-60Hz | Neutrik Powercon TRUE1

Max. Power Consumption [VA]: 1200

Operation Temperature [°C]: 10-35, Or -20 To 40 When Installed in The Monsoon Outdoor Enclosure

Dimensions (L X W X H): 19.33 X 12.20 X 15.59"

Weight: 68.34 Lb
