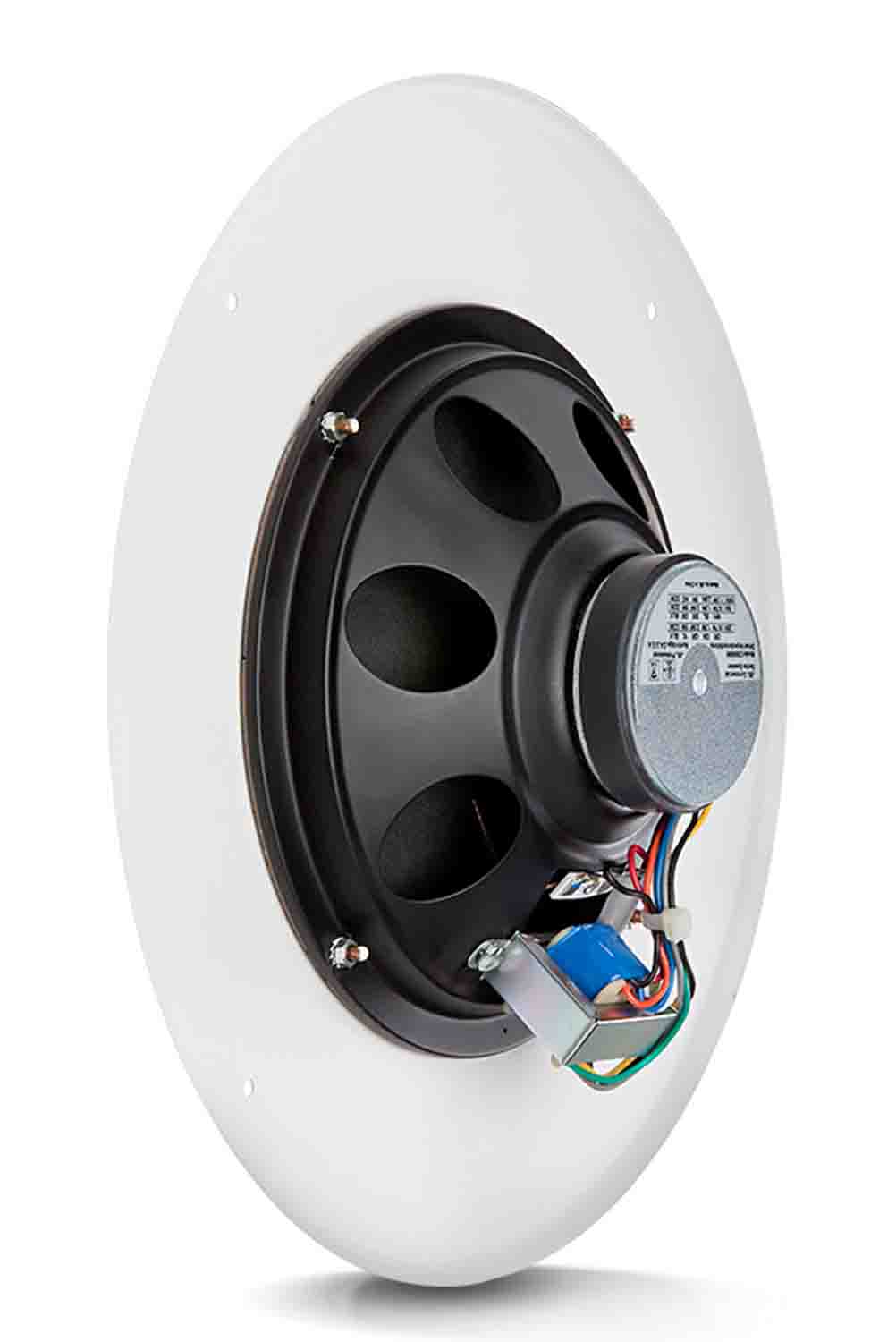

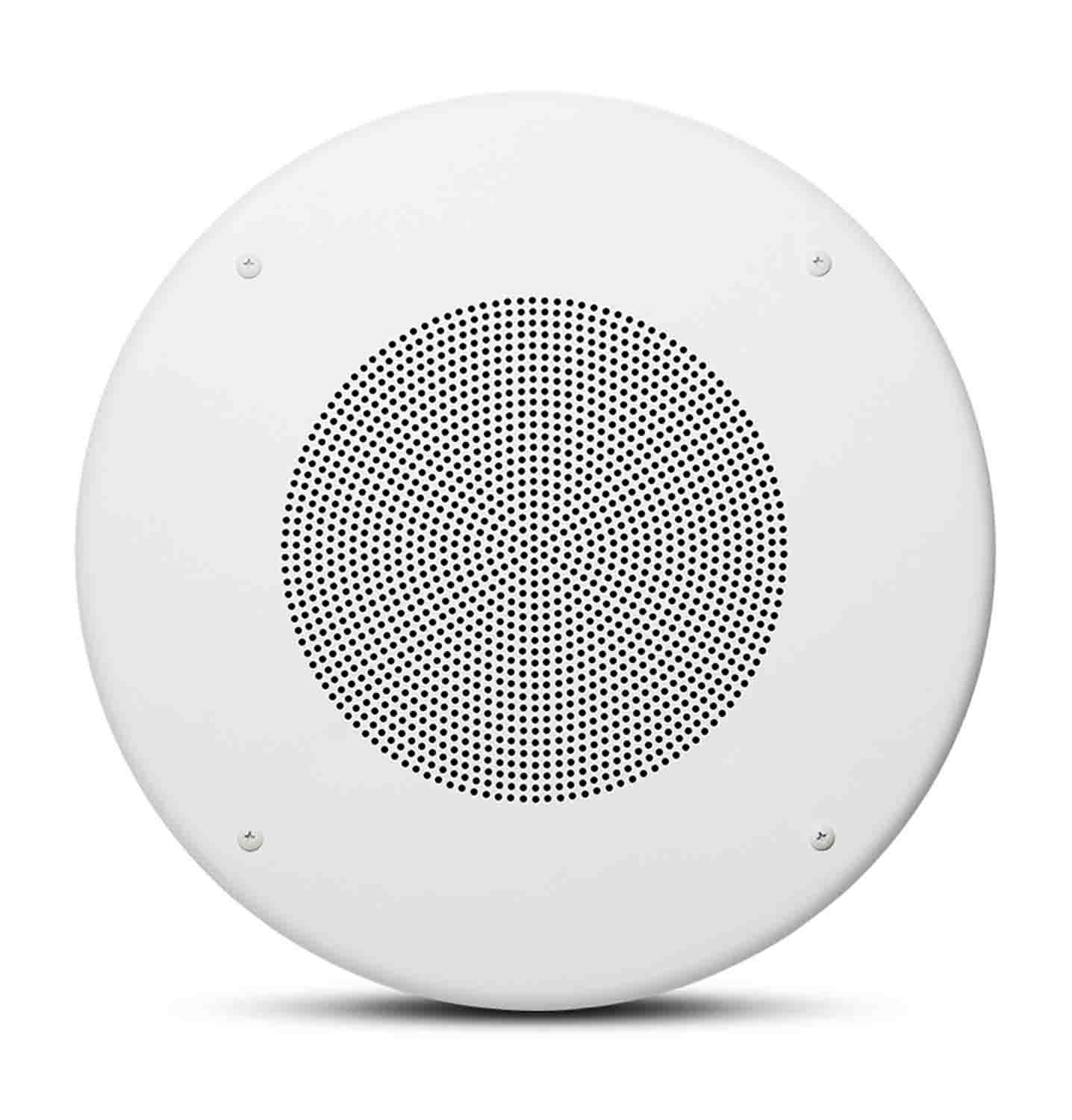

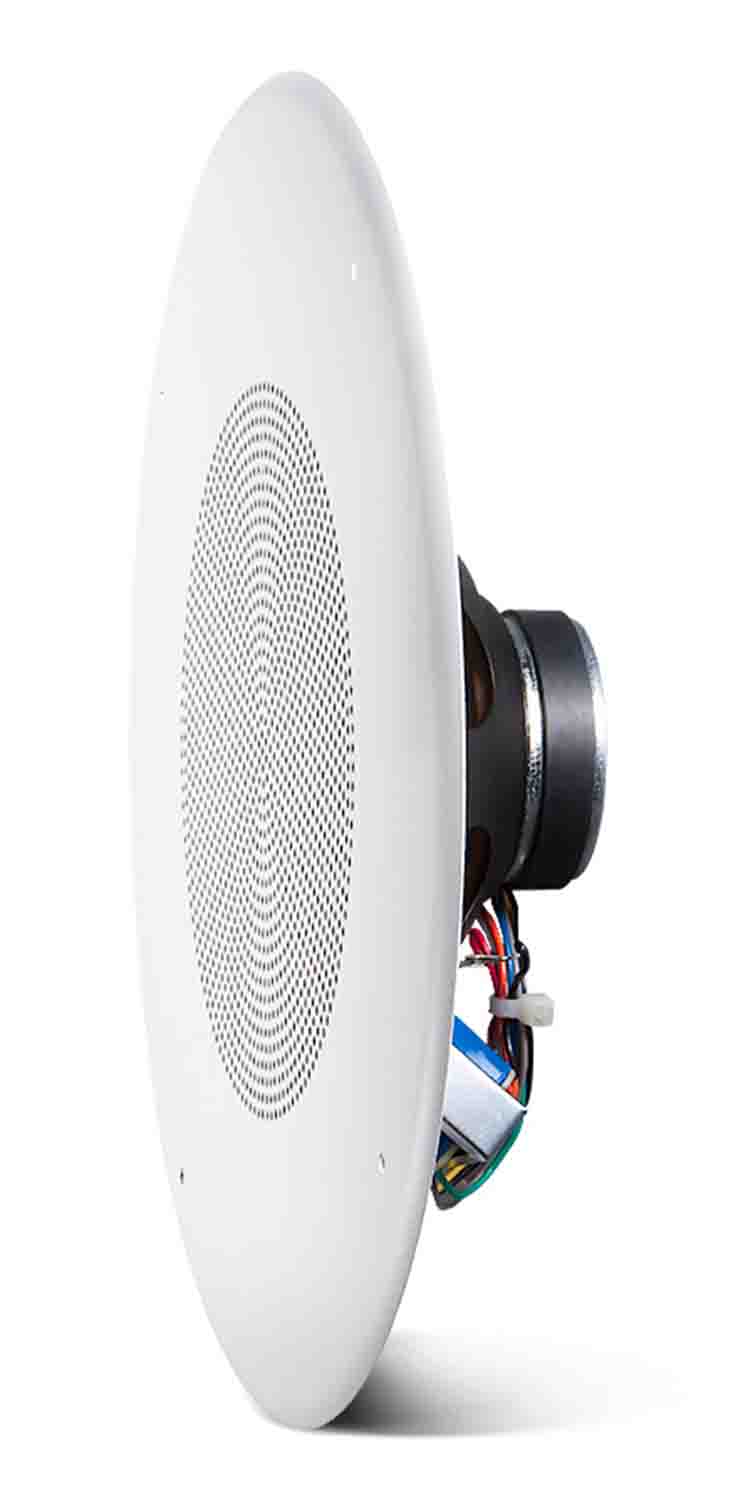

JBL CSS8008 8" Multi-Tap Ceiling Speaker

The JBL CSS8008 is an 8" Multi-Tap Ceiling Speaker provide excellent performance for paging and background music applications. High sensitivity across the product line provides maximum sound level, even at low tap settings.

Product Specifications:

Drivers: 200 mm (8 in) Full-Range

Sensitivity: 96 dB (2k - 6k Hz)

Coverage Angle: 120° conical

Driver Continuous Power Handling: 15 Watts

Transformer Taps: 5W, 2.5W, 1.3W

Transformer Taps: 5W, 2.5W, 1.3W, 0.7W

Transformer Taps: 5W, 2.5W, 1.3W, 0.7W

Transformer Insertion Loss: 1.5 dB Maximum

Transformer Connection: Bare wire

Motor Mass: 200 g (7 oz)

In CSS-BB backcan: 295 mm (11.7in)

Depth (behind grille): 71 mm (2.8 in)

Grille Diameter: 327 mm (12.9 in)

Net Weight (each): 1.27 kg (2.8 lb)

Shipping Weight (ea): 1.94 kg (4.3 lb)

Included Accessories: 4 pcs M4 x 40 mm sheet metal screws for attaching speaker/driver/transformer assembly to corresponding backcan
