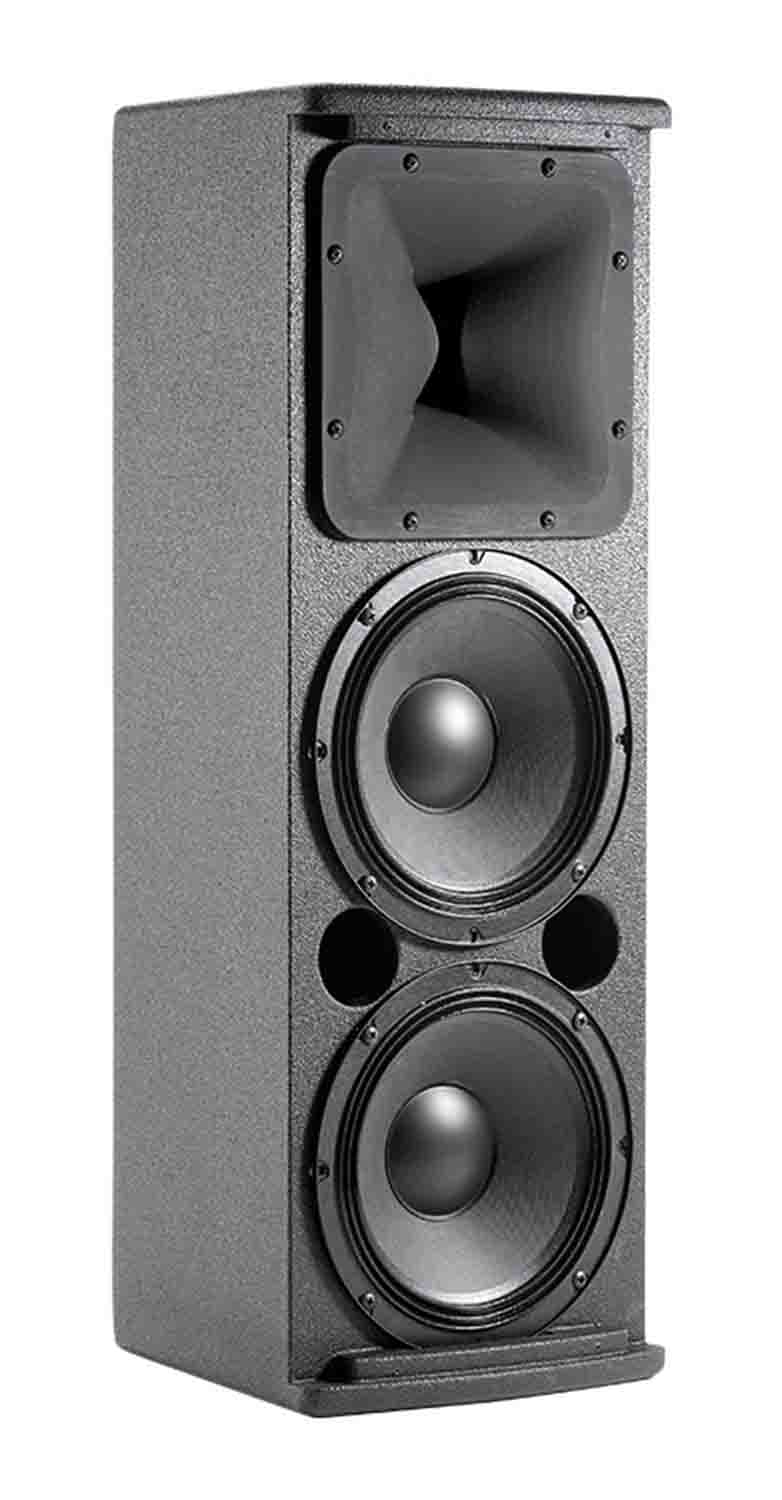

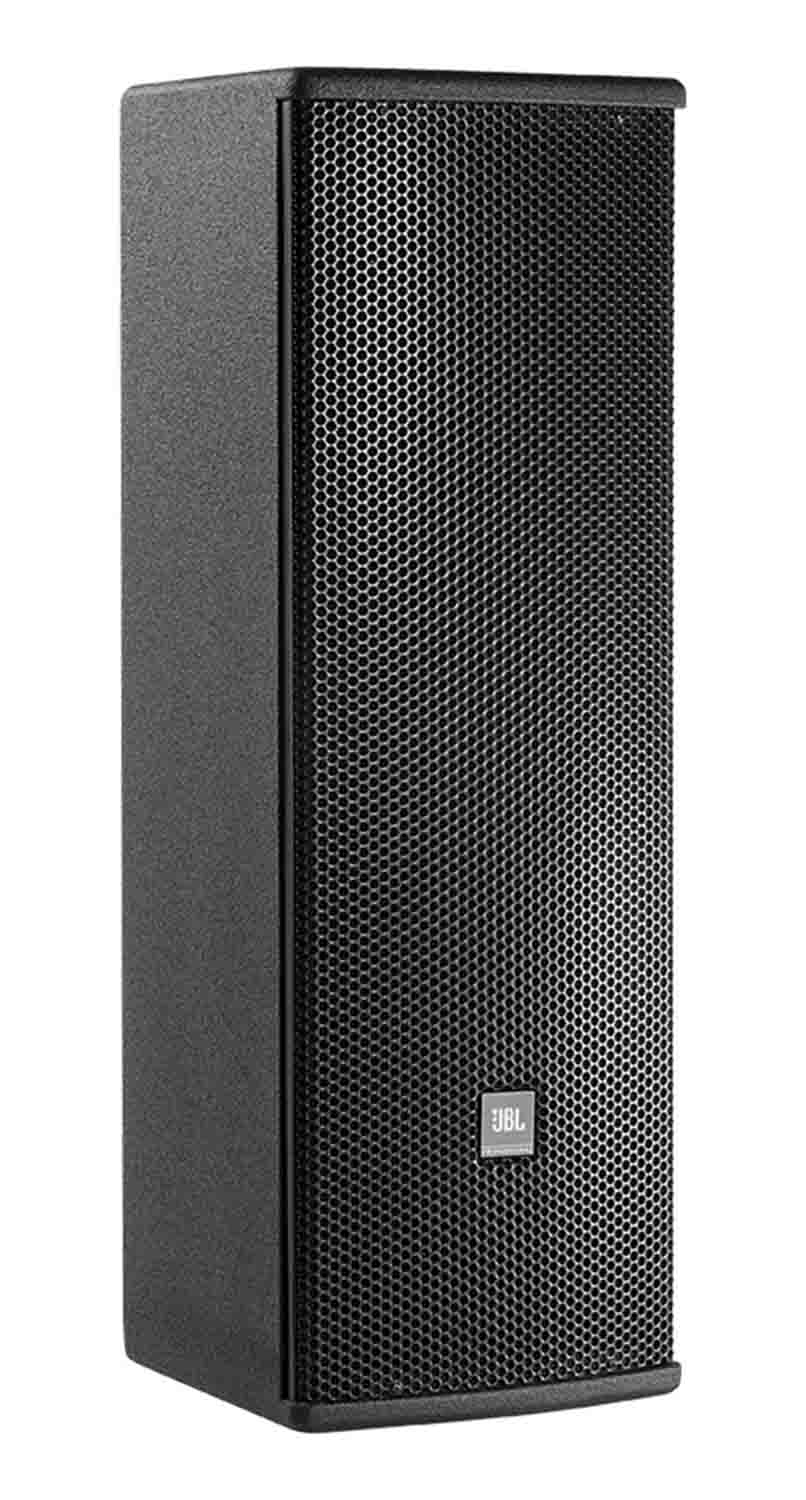

JBL AC28/95 Compact 2-way Loudspeaker with 2 x 8"LF

The JBL AC28/95 is a Compact 2-way Loudspeaker with 2 x 8"LF High output, 2-way loudspeaker systems combining flexibility with high fidelity.

Product Specifications:

Frequency Range (-10dB): 53 Hz - 20 kHz

Frequency Response (±3 dB): 65 Hz – 20 kHz

System Power Rating: 700 W (AES rated)

375 W / 750 W / 1500 W (Continuous/Program/Peak) (IEC rated)

Impedance: 8 ohms

Coverage Pattern: /26: 120° x 60°/95: 90° x 50°

Dimensions (H x W x D): 679.5 x 237.5 x 254.0 mm (26.8 x 9.4 x 10.0 in)

Net Weight (each): 18.6 kg (40.9 lb)

Crossover Modes: Passive

Maximum SPL (1m): 120 dB

System Sensitivity (1w @ 1m): 94 dB SPL

LF Driver: 2 x JBL 228J, 205 mm (8 in) SFG driver with 64 mm (2.5 in) edge wound voice coil

Nominal LF Driver Impedance: 8 Ohm
