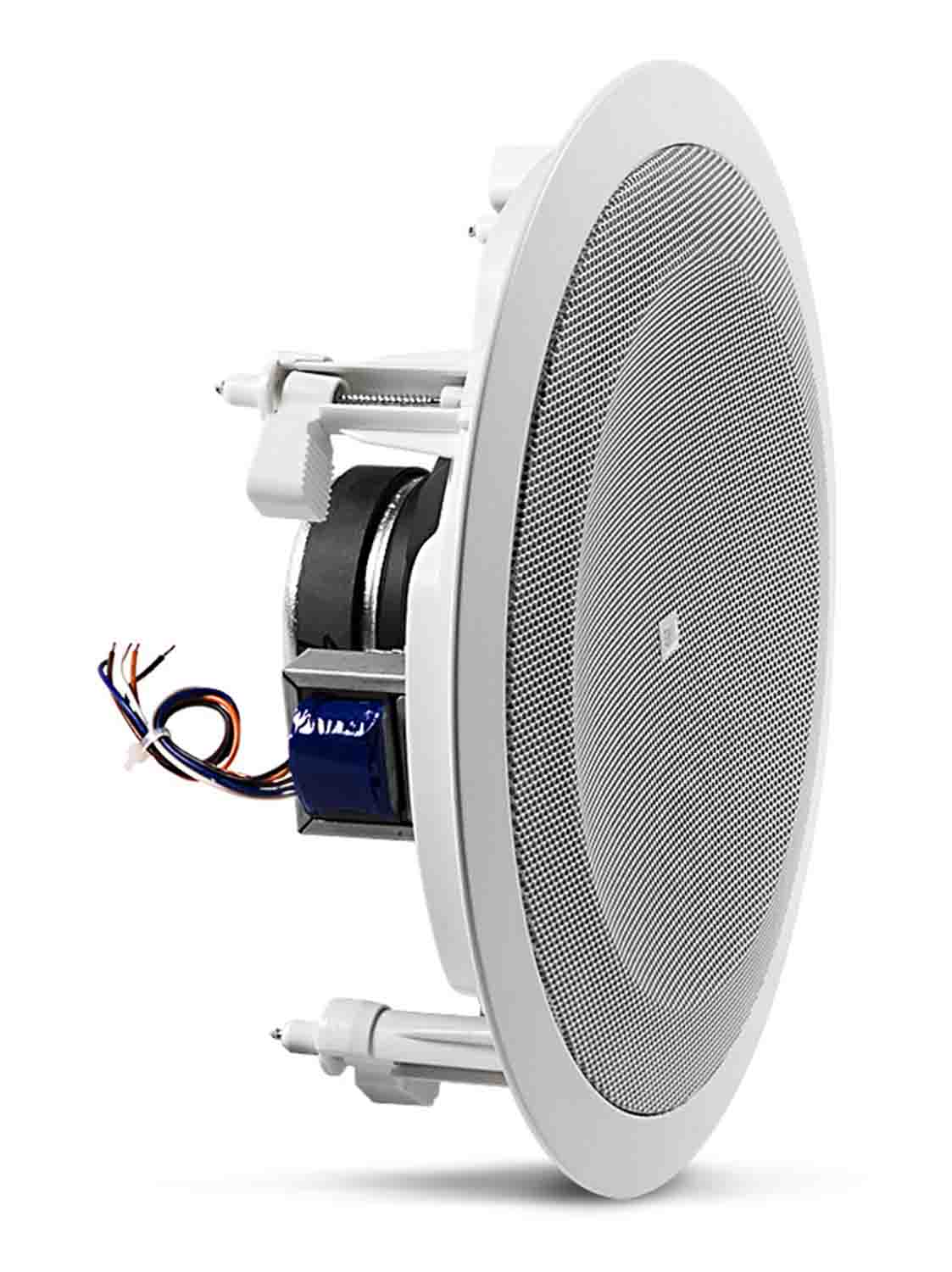

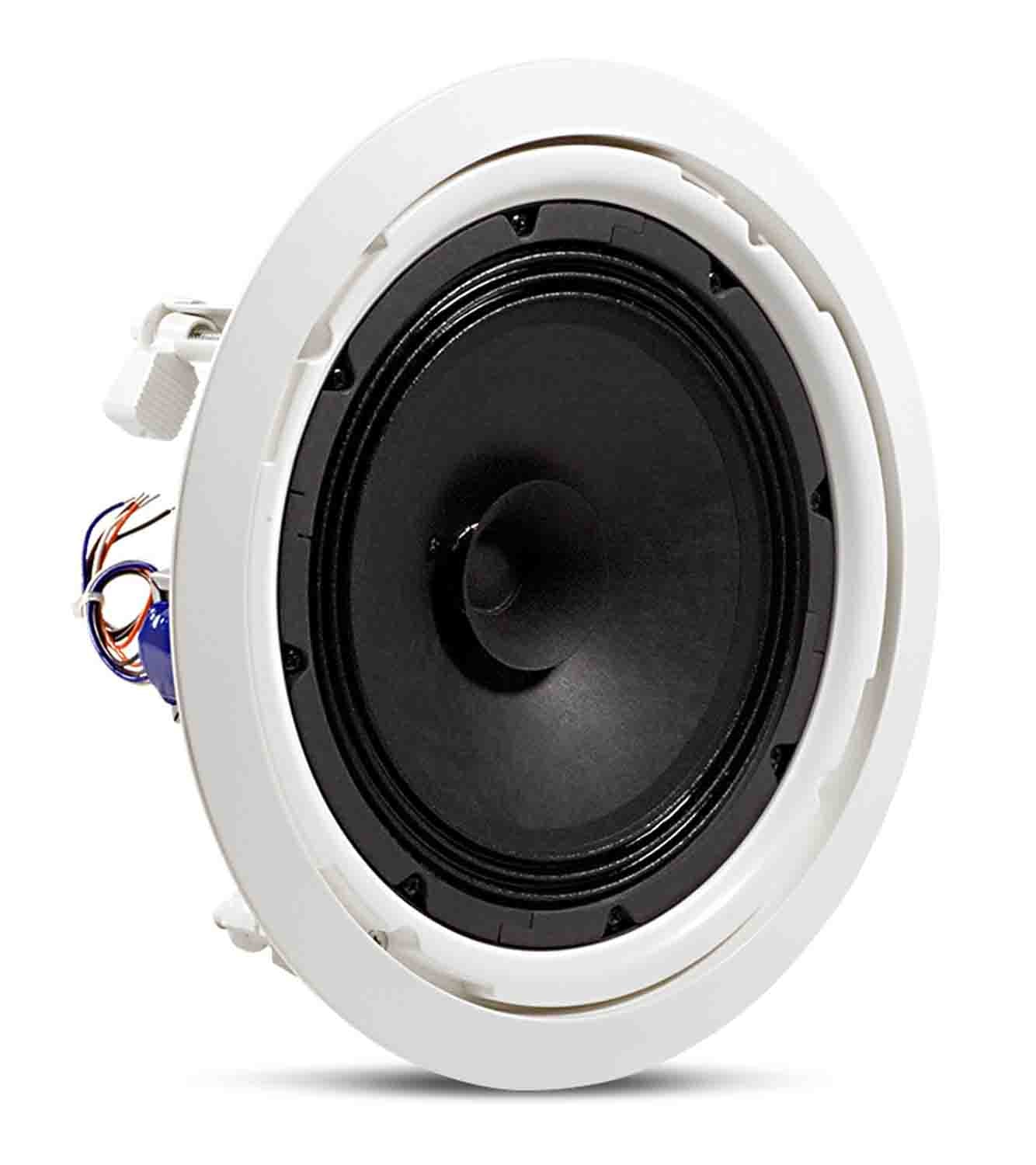

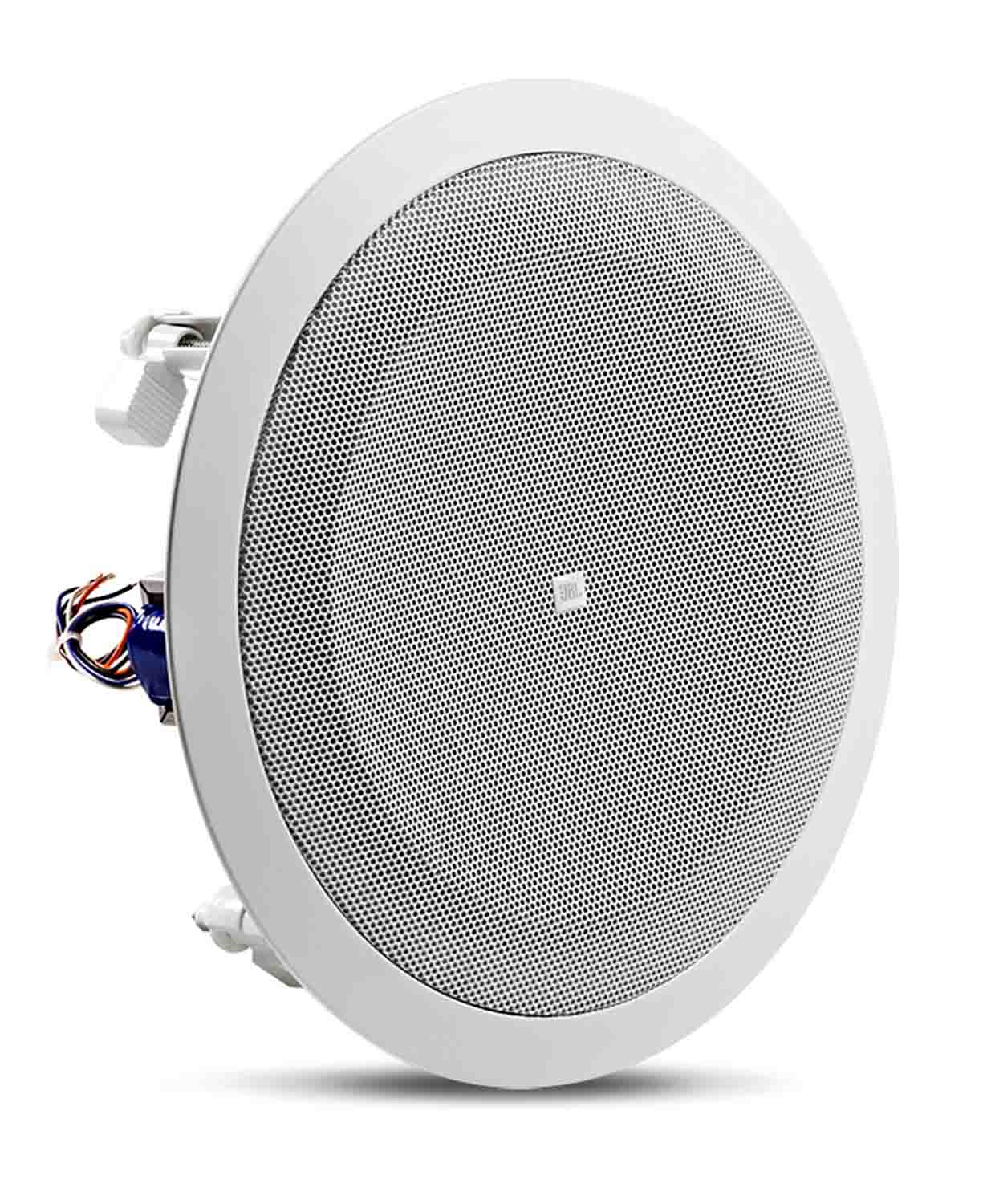

JBL 8128, 8" Full Range In-Ceiling Loudspeaker

The JBL 8128 is an 8" Full Range In-Ceiling Loudspeaker for commercial applications. The 8128 features high-fidelity performance in an easy to install package. The system’s high sensitivity drivers deliver maximum sound levels using minimal amplifier power. With its contemporary grill design, 70V/100V taps and an open-back design, the 8100 series brings elegance and performance to basic commercial sound systems, or any application not requiring a back can for installation.

Product Specifications:

Drivers: 8 in (200 mm), Full-range Driver

Frequency Range:  50 Hz – 16 kHz

Sensitivity: 97 dB (1 kHz – 8 kHz)

Coverage Angle : 90° conical

Transformer Taps: 6W, 3W, 1.5W (0.75W at 70V only)

Input Connectors:  Bare wires

Dimensions (Diameter x Depth): 11.3 in (287mm) x 4.1in (105mm)

Weight: 3lb (1.4kg)

Included Accessories: Sculpted Grille

Optional Accessories: MTC-8124C C-ring, MTC-Rail tile rails

Maximum SPL (1m): 105 dB (top 70V/100V tap)

Color: White

Backcan: No

Baffle/Rim: Plastic

Ceiling Cutout Size: 260 mm diameter (10.1 in)
