Palmer MONICON Passive Monitor Controller

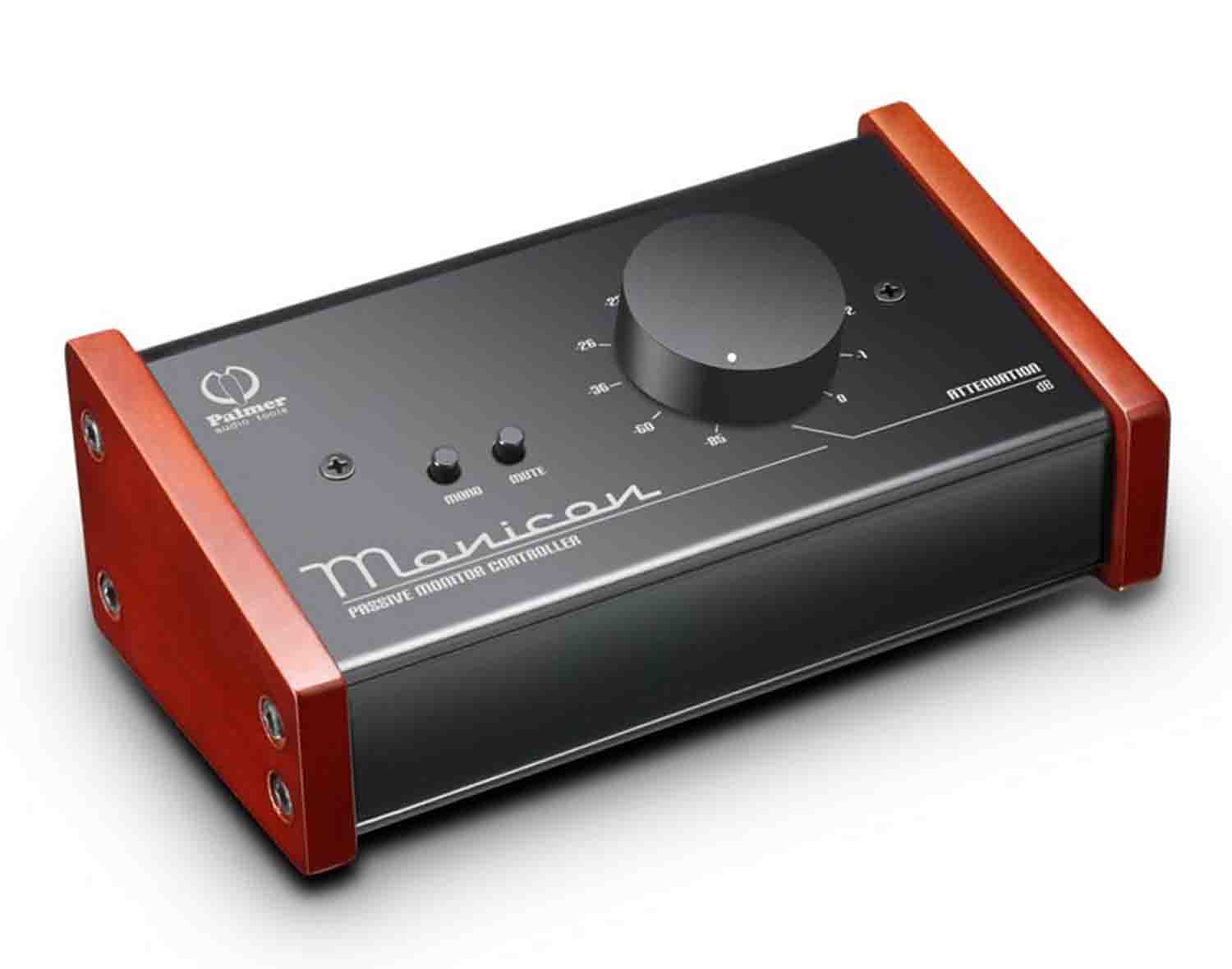

The Palmer MONICON Passive Monitor Controller is a passive monitor controller with an oversized control knob that is designed to be inserted between the stereo output of a notebook, PC, or audio interface and the inputs of a pair of active studio monitors. With Palmer Monicon, your monitor volume is always under control. The passive mini-mixer with the oversized control is inserted between the stereo output of the notebook, PC or interface and an active monitor system and thus permits convenient and precise volume control of the monitors from the workstation. The passive circuitry with only a few components has absolutely no effect on the sound. Mute and mono buttons make it possible to mute the outputs and merge the stereo output signal into a mono master signal.

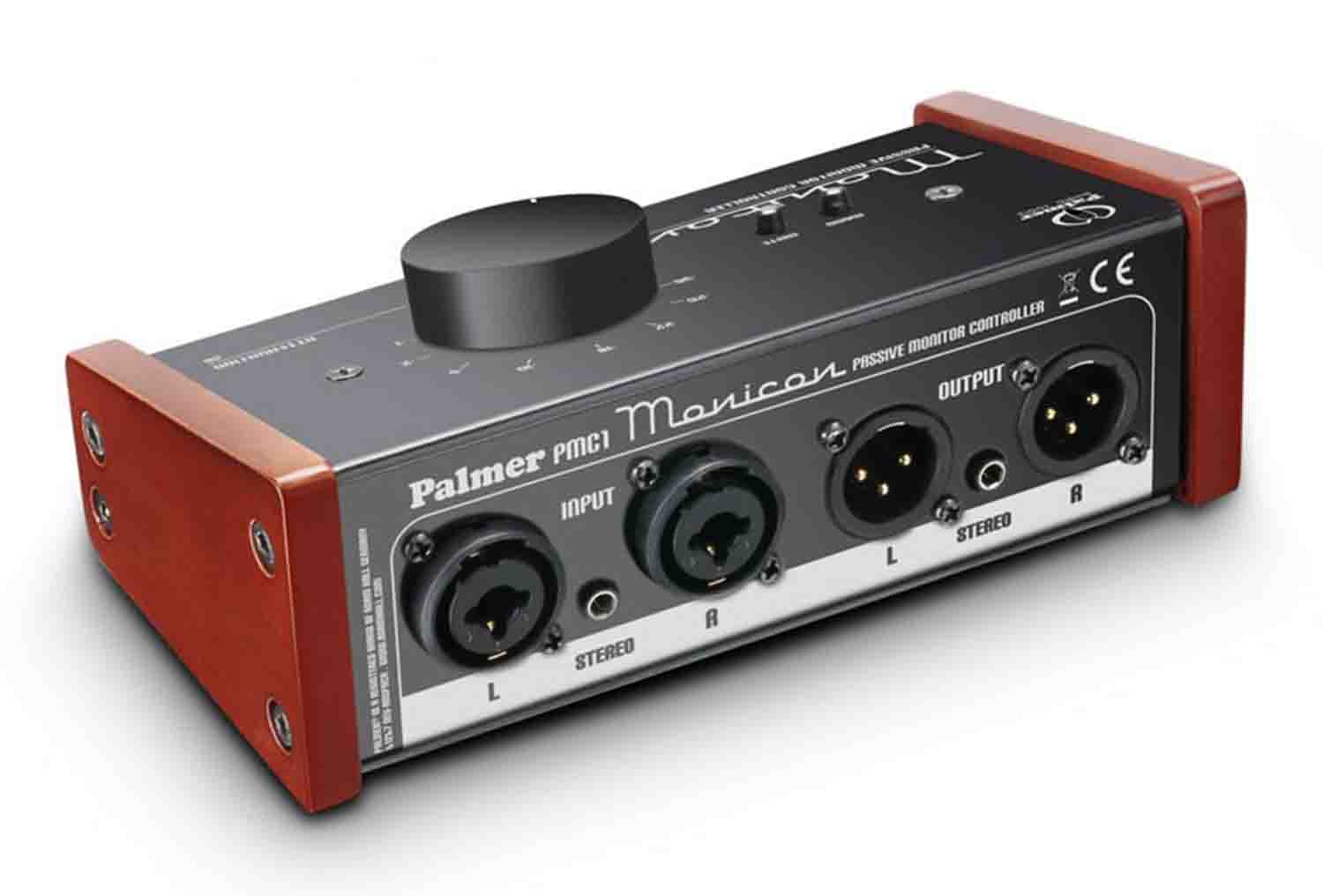

The inputs and outputs of the controller are equipped with XLR connectors and the 3.5mm stereo TRS sockets usually found on computers. Combo input sockets also permit connection with 6.3 mm TRS plugs. Thus, the Palmer Monicon is compatible with both professional and consumer equipment. Genuine wood sides make the practical studio tool in its massive powder-coated sheet steel housing an elegant looking "little helper" that is a typical Palmer product.

Product Specification:

Product Type: Other Studio and Recording Equipment

Channels: 1

Inputs: 2

Input Connectors: 3.5 Mm TRS, XLR

Input Type: Balanced/Unbalanced (Depending On TS/TRS Connection)

Max. Input Level: 20 Dbu

Input Impedance: (Balanced) 10k Ohm(S), (Unbalanced) 5k Ohm(S)

Outputs: 2

Output Connectors: 3.5 Mm TRS, XLR

Output Type: Balanced/Unbalanced (Depending On TS/TRS Connection)

Max. Output Level: 20 Dbu

Output Impedance: 600 Ohm(S)

Frequency Response: 10 - 40000 Hz

Total Harmonic Distortion (THD): 0.001 %

Max. Attenuation: (Attenuator + Mute) 112, (Attenuator) 85

Controls: Attenuation, Mono, Mute

Cabinet Material: Sheet Steel, Wood

Cabinet Surface: Powder Coated

Weight: 1.65 Lb / 0.75 Kg

Package Weight: 1.775 Lb

Box Dimensions (LxWxH): 8.2 X 3.85 X 3.15"
