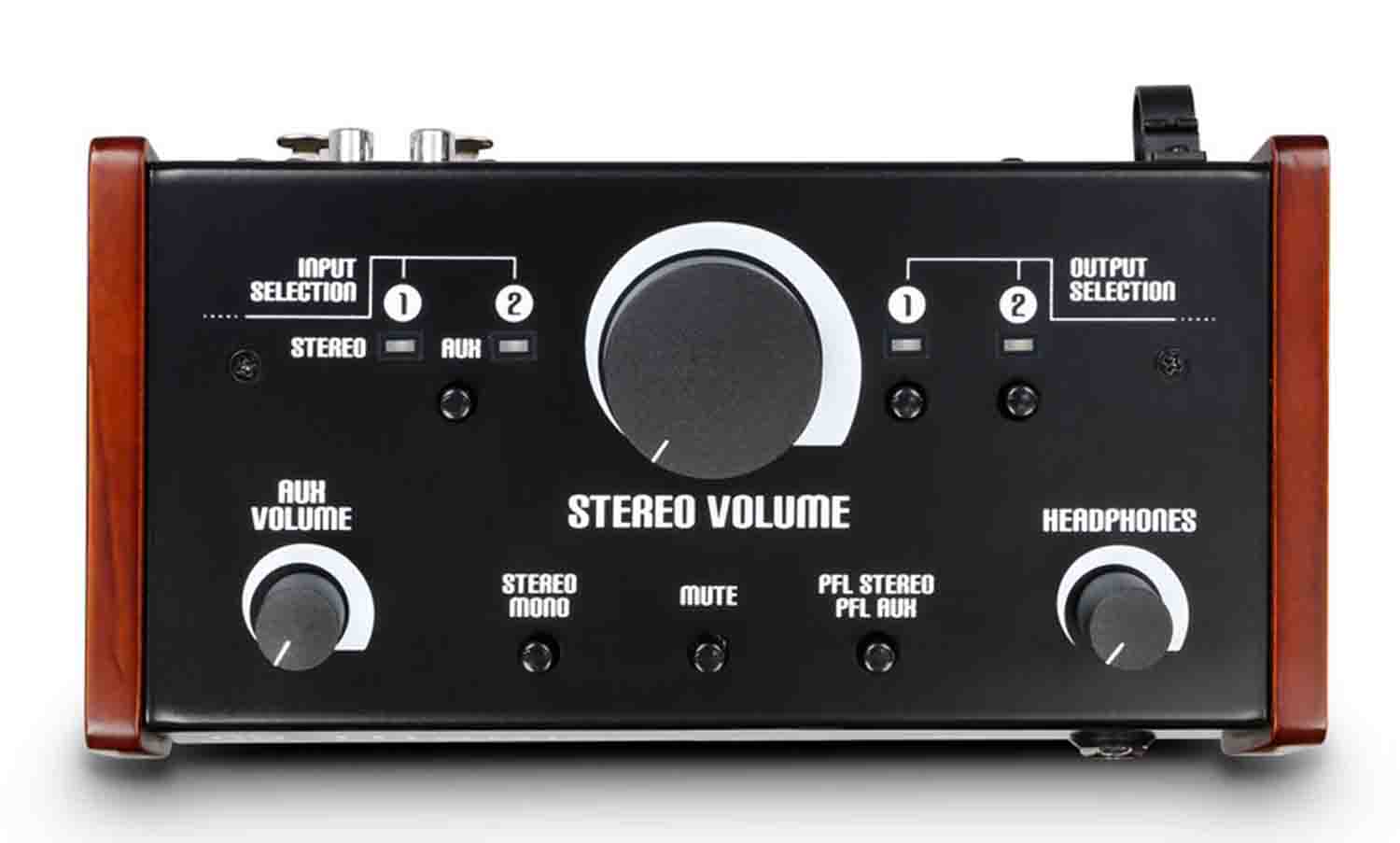

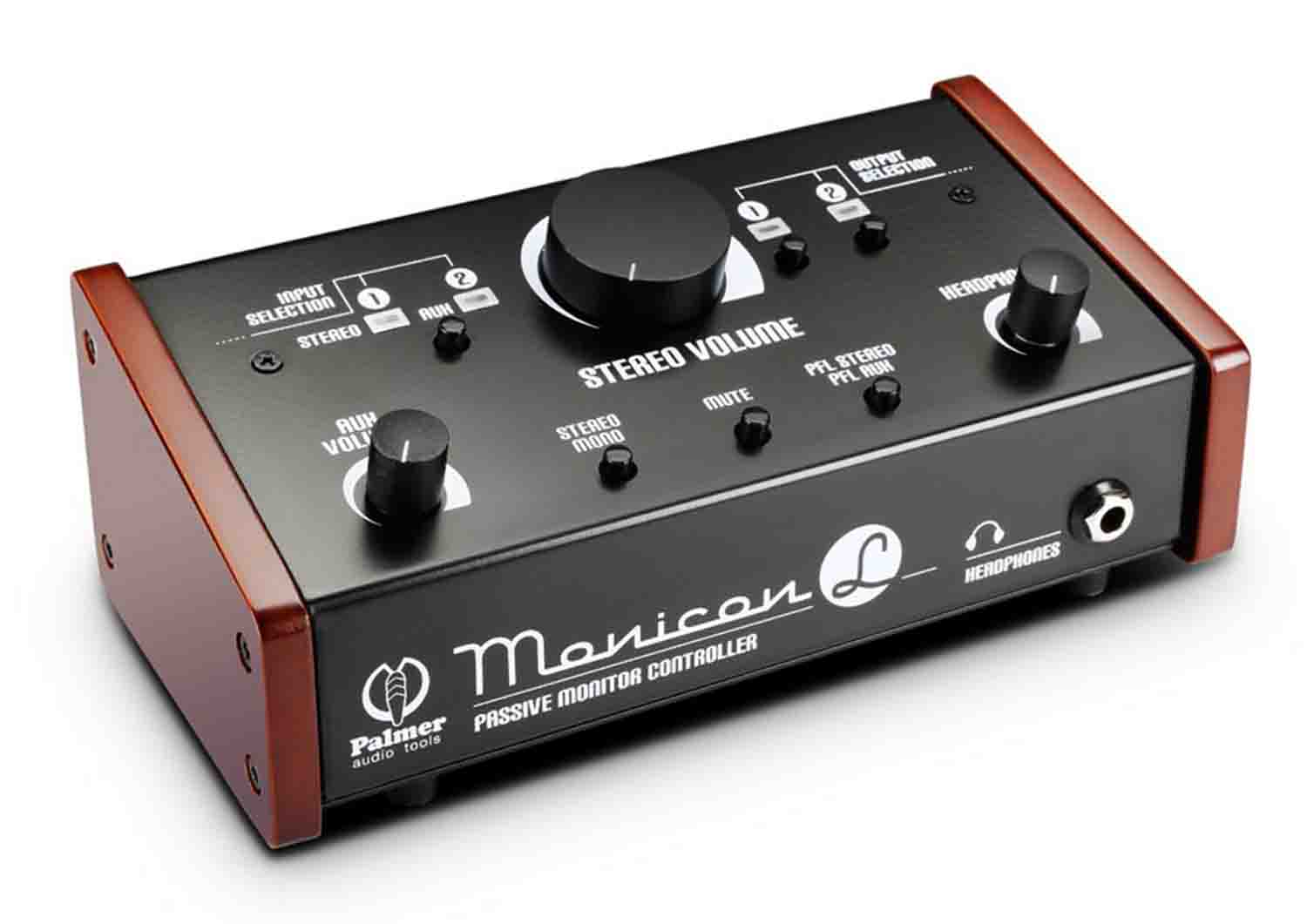

Palmer MONICON L Passive Monitor Controller

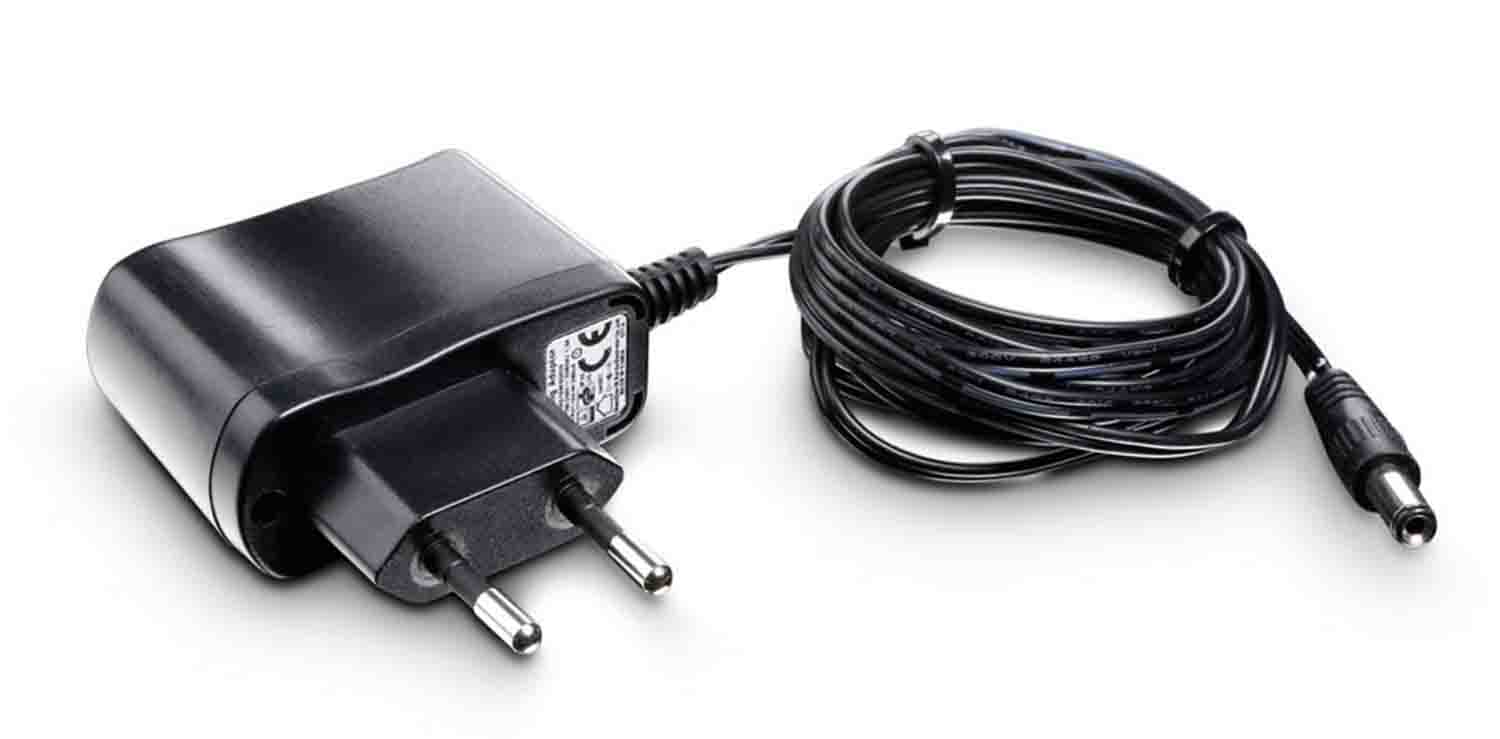

The Palmer MONICON L Passive Monitor Controller is a precise, analogue volume control that connects between a computer or audio interface and active monitor speakers. The switch is completely passive and distortion-free, the LED displays and built-in headphone amplifier are powered via the included power supply.

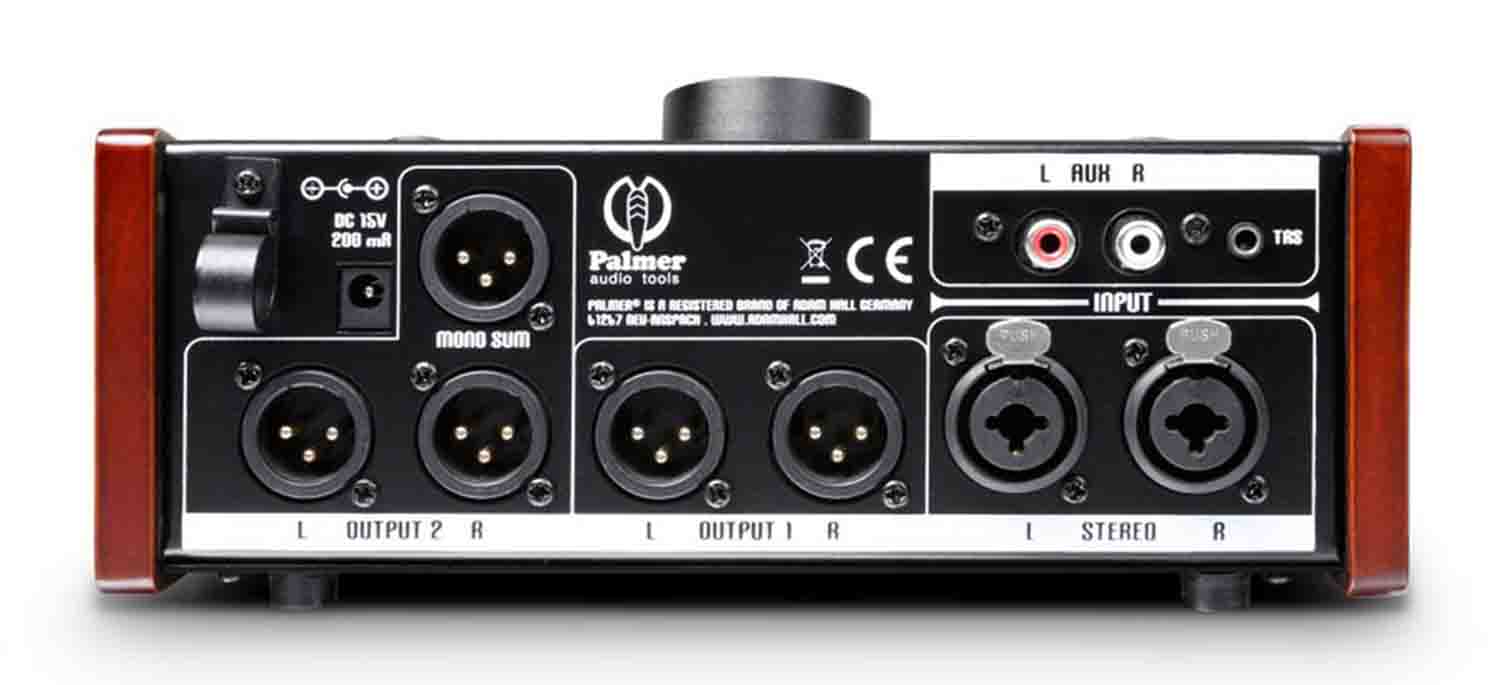

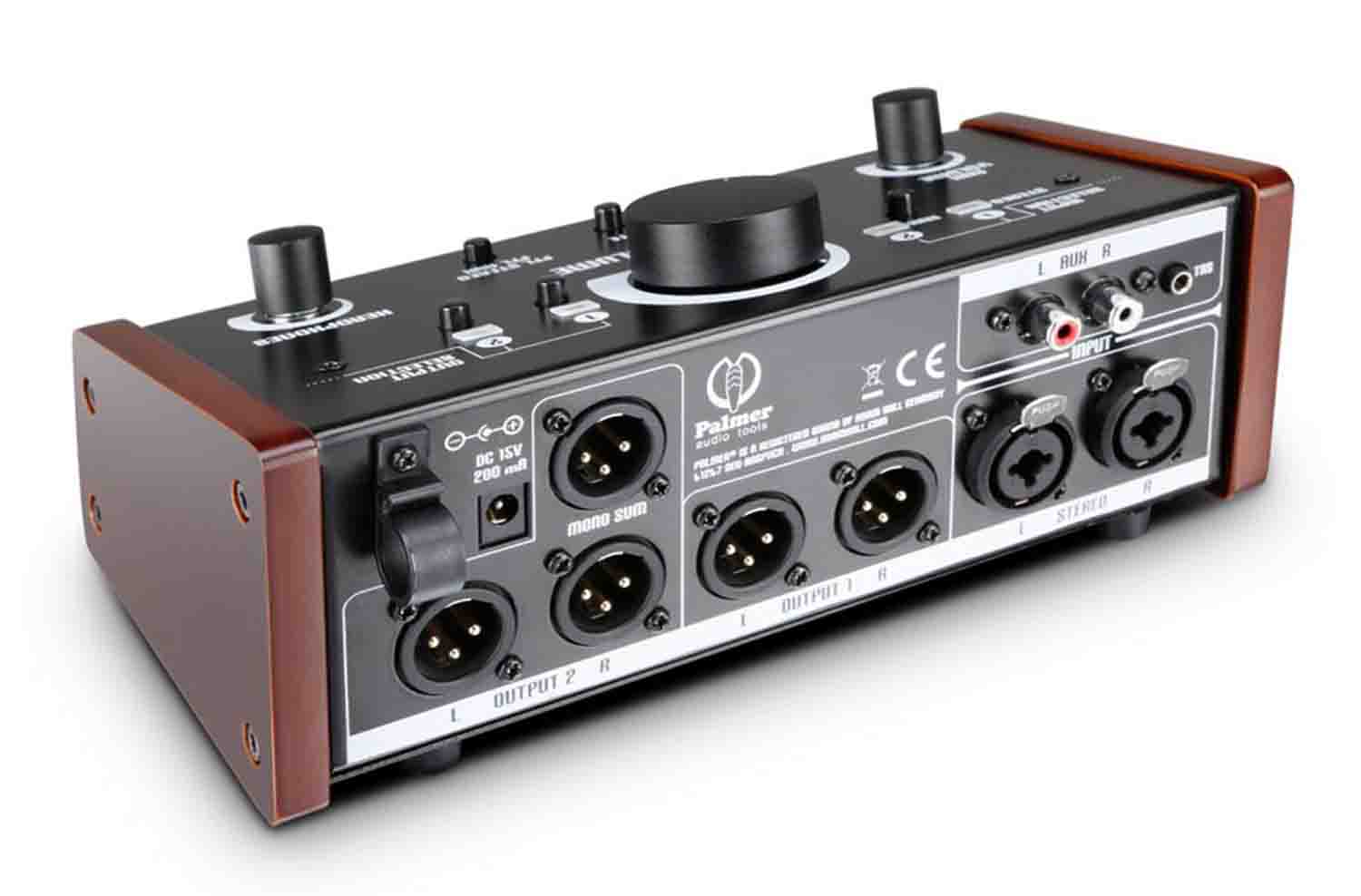

Symmetric combo sockets serve as stereo input. The Monicon L’s AUX input features RCA sockets and a 3.5 mm stereo jack. The compact console offers outputs for two monitor pairs and a mono summed output via XLR sockets. The stereo or AUX input can be selected alternately, the two outputs individually and together. In addition to its large volume controller, the Monicon L is also equipped with mono, mute and PFL switches, a 6.35 mm headphone output, and separate AUX and headphone controllers for convenient operation.

Product Specification:

Product Type: Other Studio and Recording Equipment

Channels: 2

Inputs: 2

Input Connectors: 3.5 Mm TRS, RCA, XLR

Input Type: Balanced/Unbalanced (Depending On TS/TRS Connection)

Max. Input Level: 20 Dbu

Input Impedance: (Balanced) 10k Ohm(S), (Unbalanced) 5k Ohm(S)

Outputs: 3

Output Connectors: XLR

Output Type: Balanced/Unbalanced (Depending On TS/TRS Connection)

Max. Output Level: 20 Dbu

Output Impedance: 600 Ohm(S)

Frequency Response: 10 - 40000 Hz

Total Harmonic Distortion (THD): 0.001 %

Max. Attenuation: (Attenuator + Mute) 112, (Attenuator) 85

Controls: Attenuation, Input Selector, Mono, Mute, Output Selector, PFL Source

Cabinet Material: Sheet Steel, Wood

Cabinet Surface: Powder Coated
