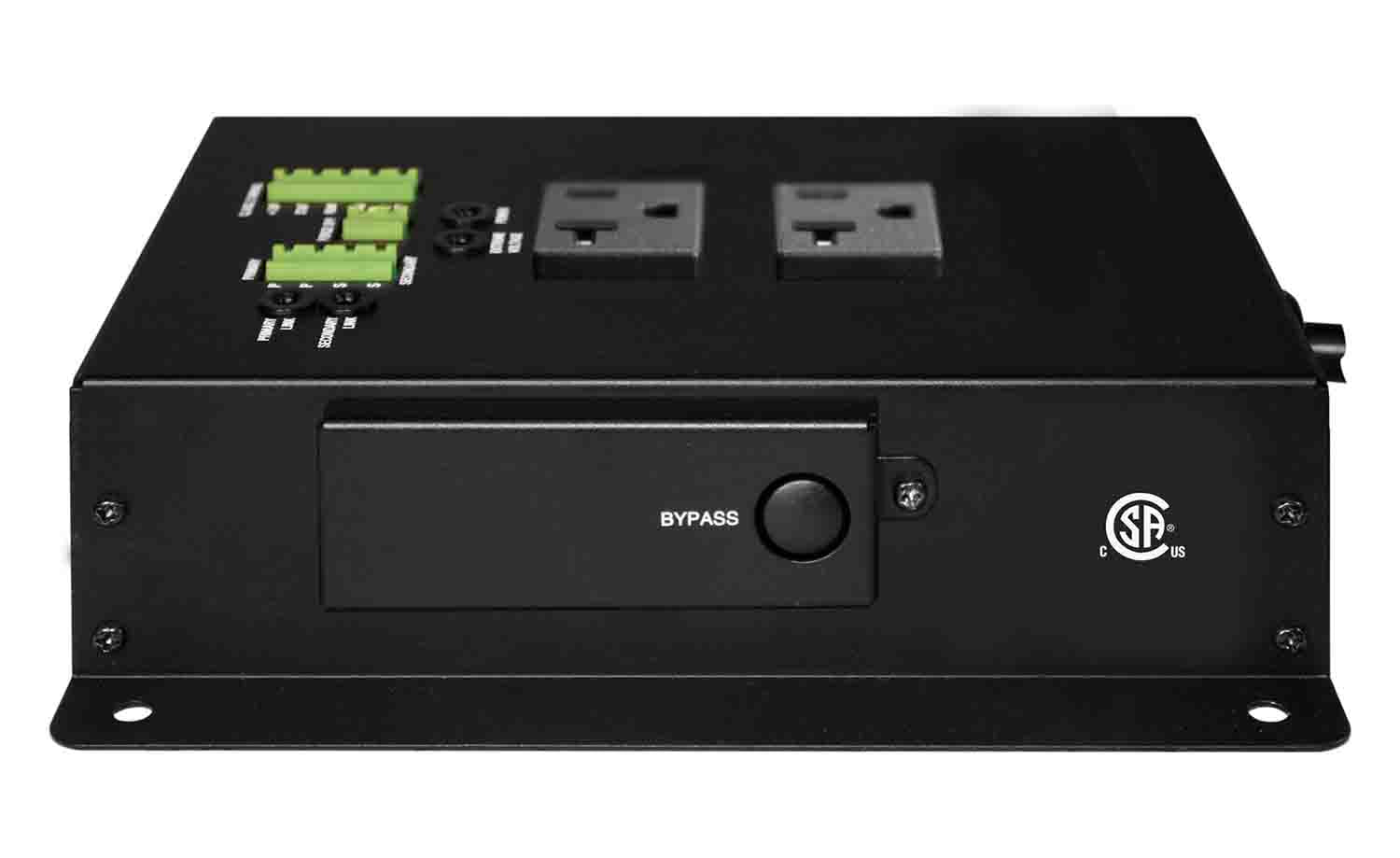

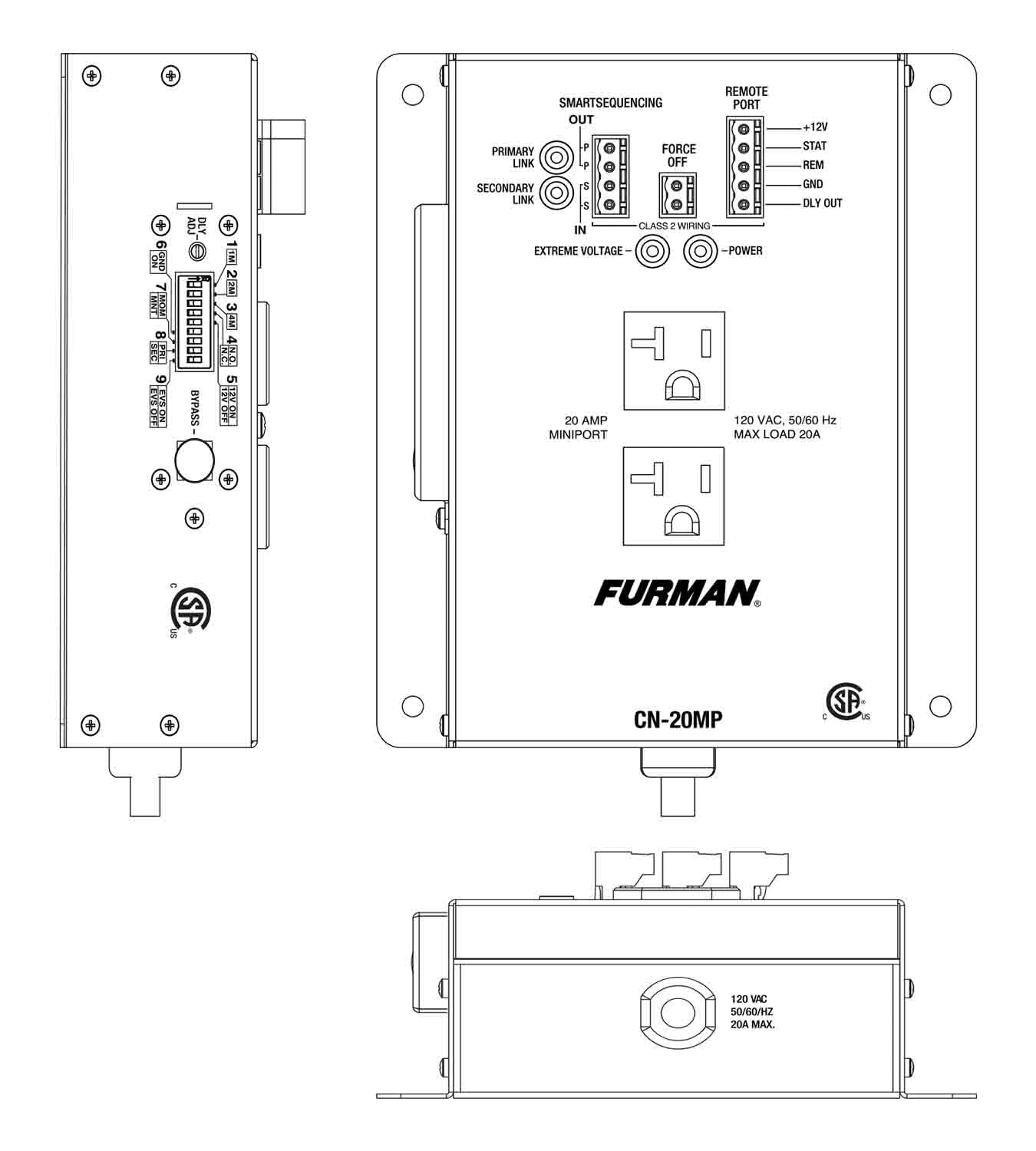

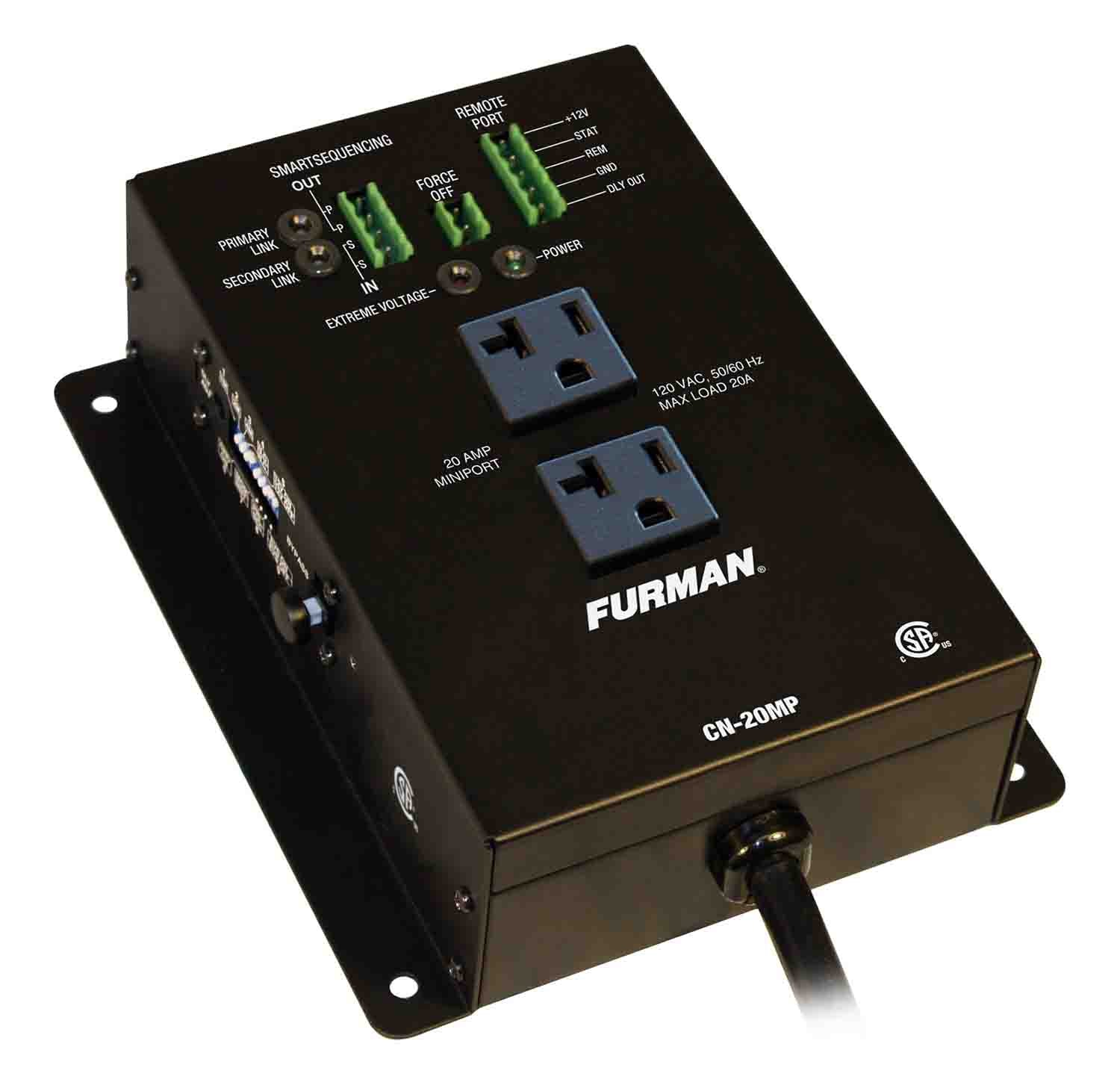

Furman CN-20MP Remote Duplex Power Sequencer

The Furman CN-20MP Remote Duplex Power Sequencer extend the benefits of Smart Sequencing to electronics outside of the equipment rack, providing tremendous flexibility to any installation scenario. Units may be daisy-chained and fully controlled via a Furman Smart Sequencer, legacy Furman sequencer, third-party sequencers, via the Internet (with BB-RS232 adaptor and Smart Sequencer), and/or control and automation systems.

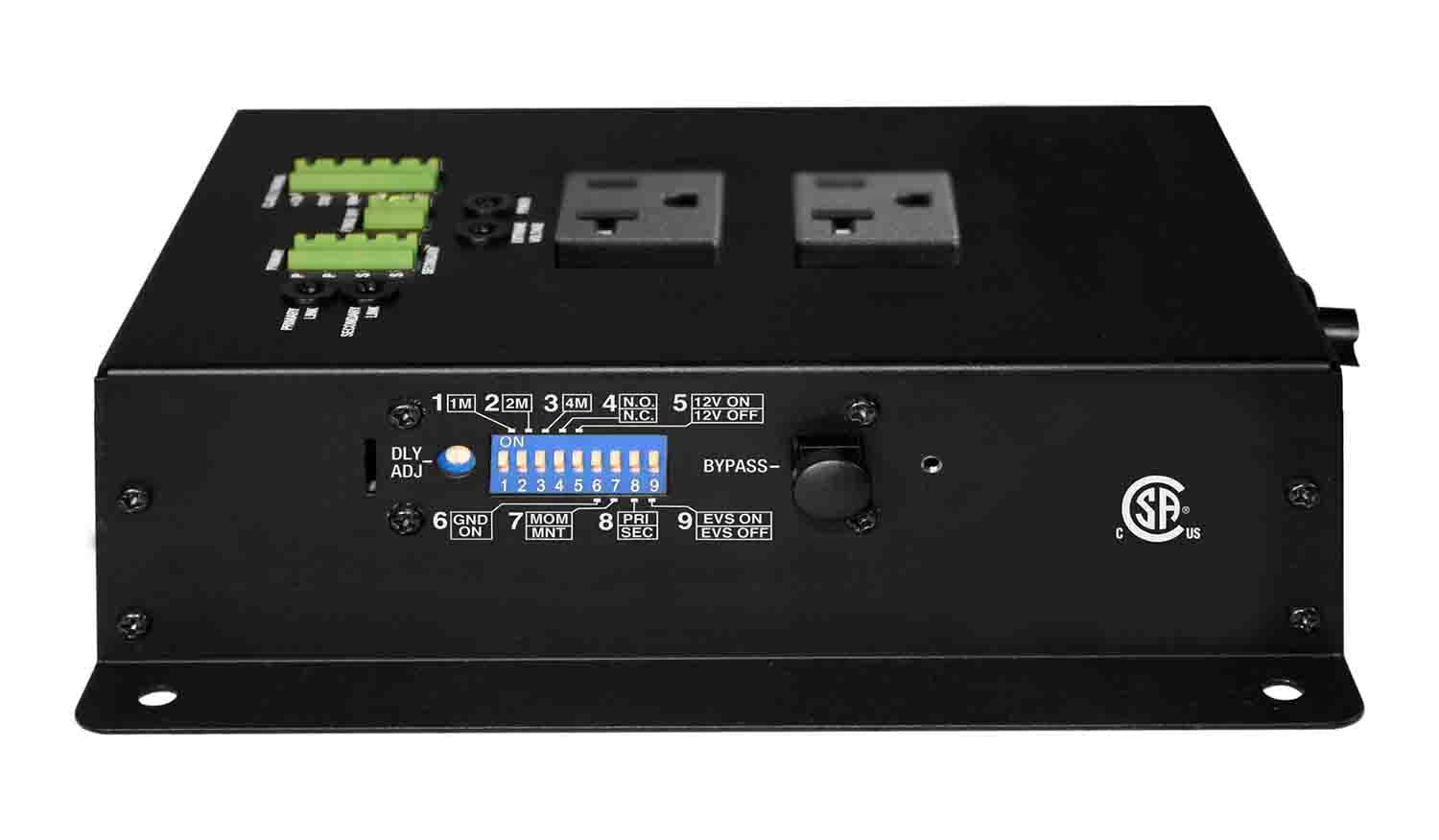

DIP switches and potentiometer allows customization of settings such as sequencing delays, 12V on/off, and more. Security covers are provided to prevent unauthorized personnel from tampering with DIP switches.

Sequencing of duplex initiated remotely by standard analog triggering (remote terminal) or data link (Smart Sequencing from CN-1800S or CN-2400S).

The CN-20MP can shut itself off automatically when triggered by a fire alarm.

Product Specification:

Form Factor: Wall mount

Type: Sequencer

Metering: None

Integrated Lamps: None

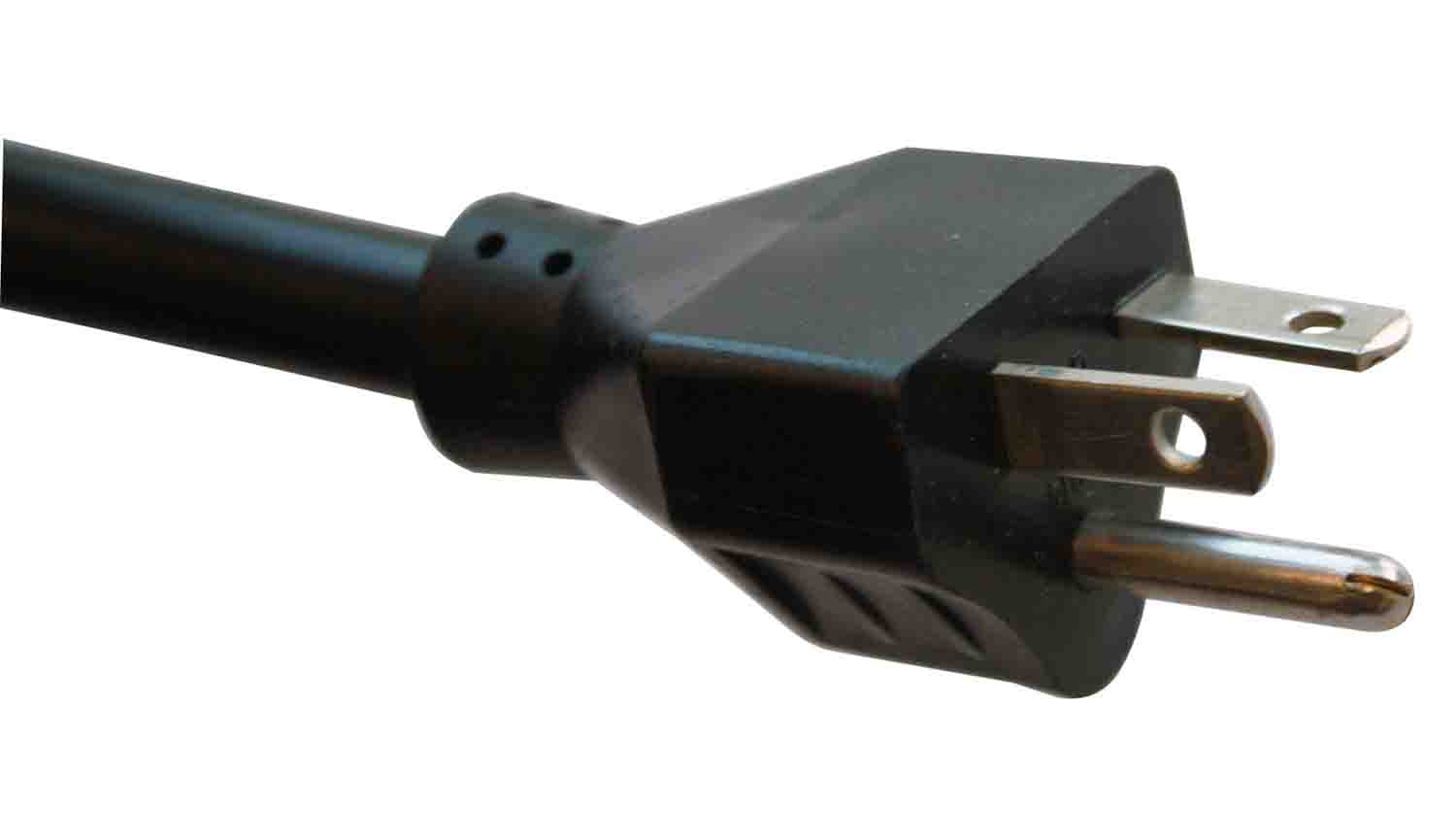

Cable Length: 10' / 3 m

Wire Gauge: 16 AWG

Dimensions: 7.4 x 6.3 x 2.5" / 18.7 x 15.9 x 6.4 cm

Weight: 3.8 lb / 1.7 kg

Package Weight: 5.5 lb

Box Dimensions (LxWxH): 11.7 x 9.1 x 4.6"
