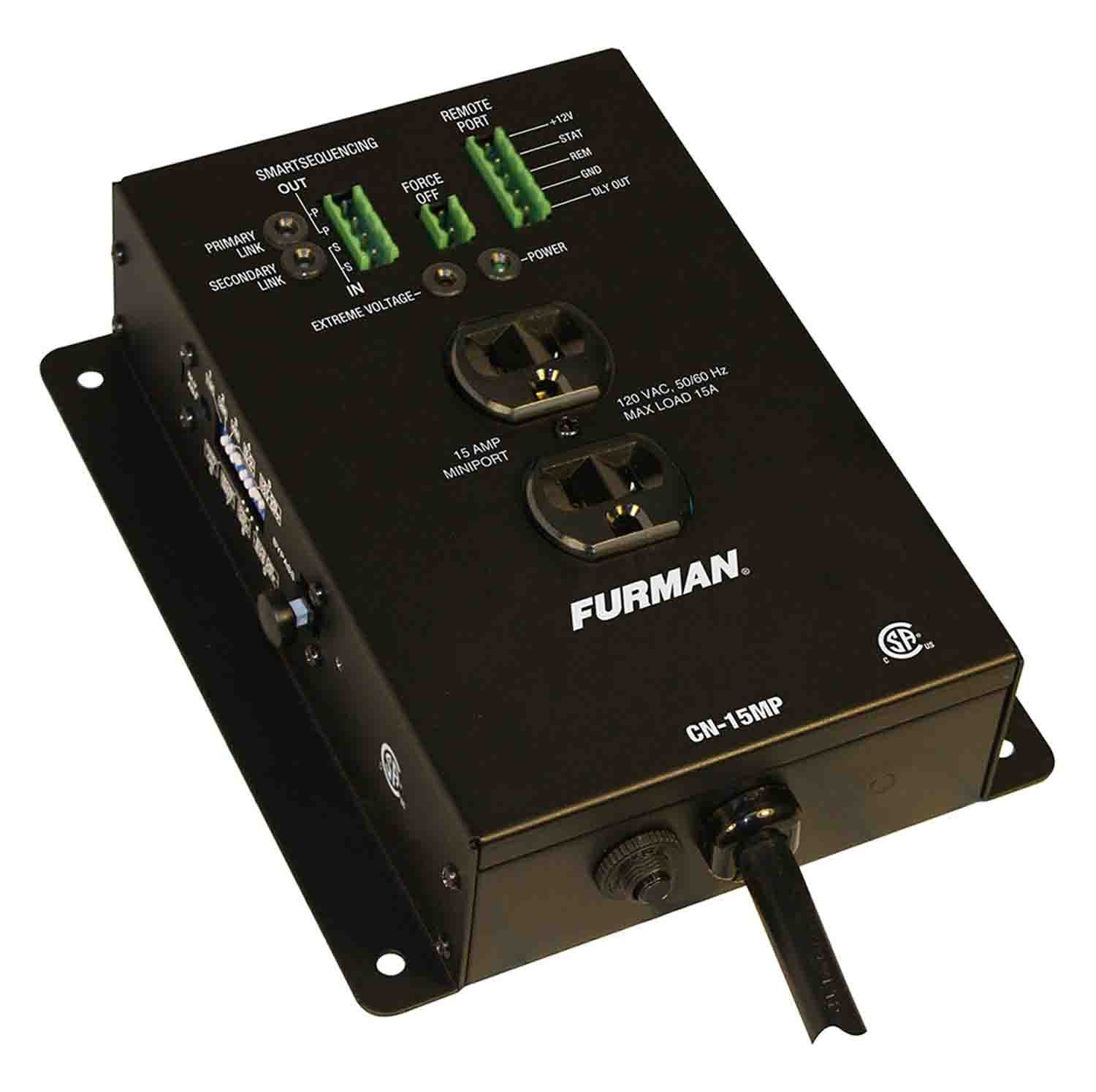

Furman CN-15MP Contractor Series 15A Miniport

The Furman CN-15MP Contractor Series 15A Miniport extend the benefits of Smart Sequencing to electronics outside of the equipment rack, providing tremendous flexibility to any installation scenario. Units may be daisy-chained and fully controlled via a Furman Smart Sequencer, legacy Furman sequencer, third-party sequencers, via the Internet (with BB-RS232 adaptor and Smart Sequencer), and/or control and automation systems.

DIP switches and potentiometer allows customization of settings such as sequencing delays, 12V on/off, and more. Security covers are provided to prevent unauthorized personnel from tampering with DIP switches.

Sequencing of duplex initiated remotely by standard analog triggering (remote terminal) or digital link (Smart Sequencing from CN-1800S or CN-2400S).

Product Specification:

Form Factor: Wall mount

Metering: None

Integrated Lamps: None

Cable Length: 10' / 3 m

Wire Gauge: 14 AWG

Dimensions: 7.37 x 6.25 x 2" / 187.19 x 158.75 x 50.8 mm

Weight: 3.75 lb / 1.7 kg

Package Weight: 5 lb

Box Dimensions (LxWxH): 11.7 x 9.1 x 4.5"
