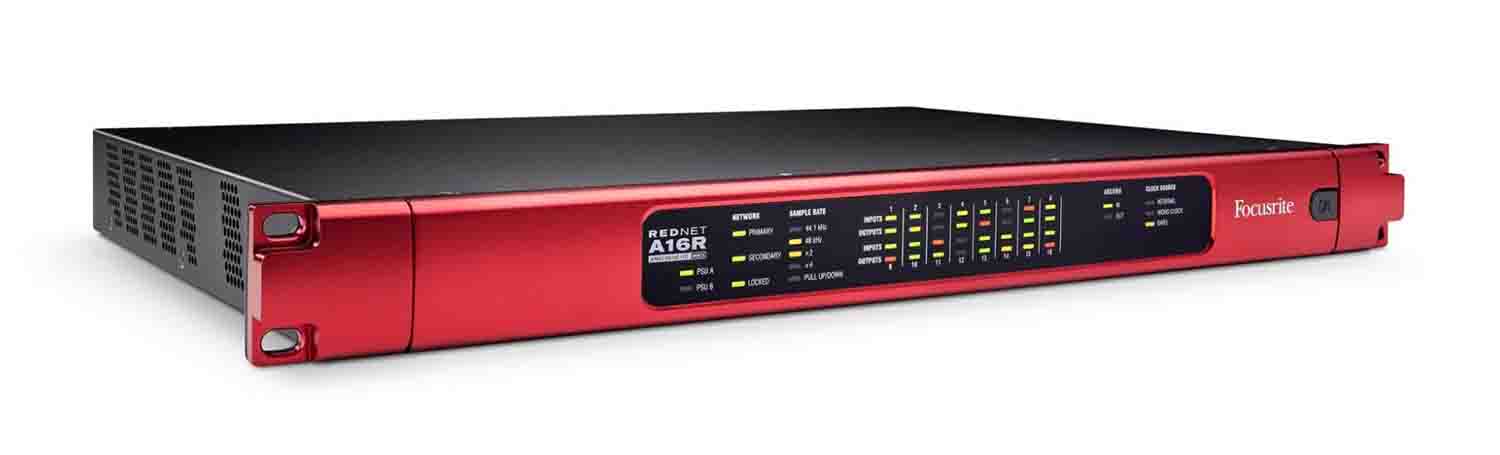

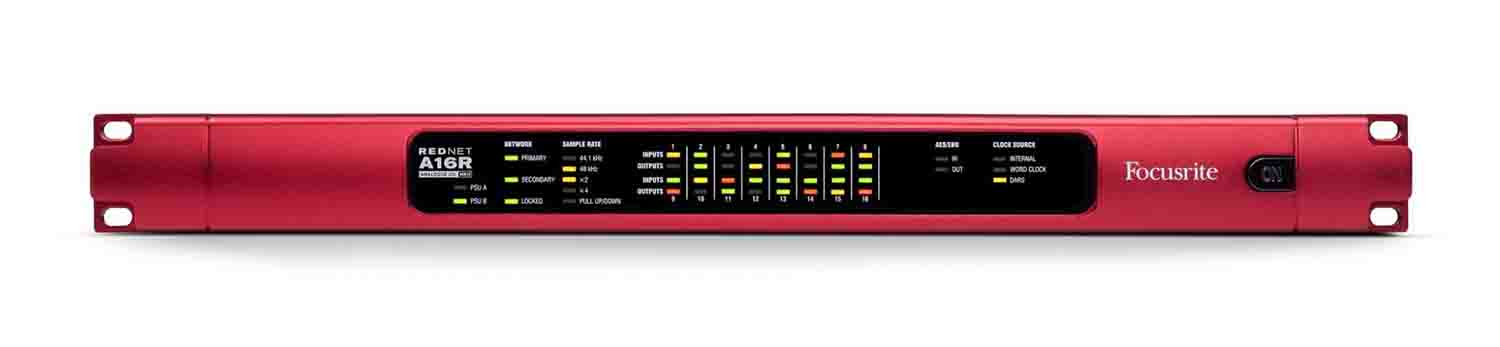

Focusrite Pro RedNet A16R MkII Rackmount 16x16 Dante Analog Audio Interface

The Focusrite Pro RedNet A16R MkII Rackmount 16x16 Dante Analog Audio Interface is a 16-channel analogue interface for Dante networks, with two channels of AES3 I/O. Precision A-D and D-A conversion provides 119dB of dynamic range, flat from 20Hz - 20kHz (+/- 0.15dB). Individual input and output channel level controls allow for precise adjustment of all I/O levels using RedNet Control. With two power supplies and primary and secondary EtherCON network connectors, RedNet A16R MkII is perfect for critical-path applications in recording, post production, live sound and broadcast. Built-in redundancy features allow for silent fail-over in the event of power or network outage, providing reassurance for system technicians.

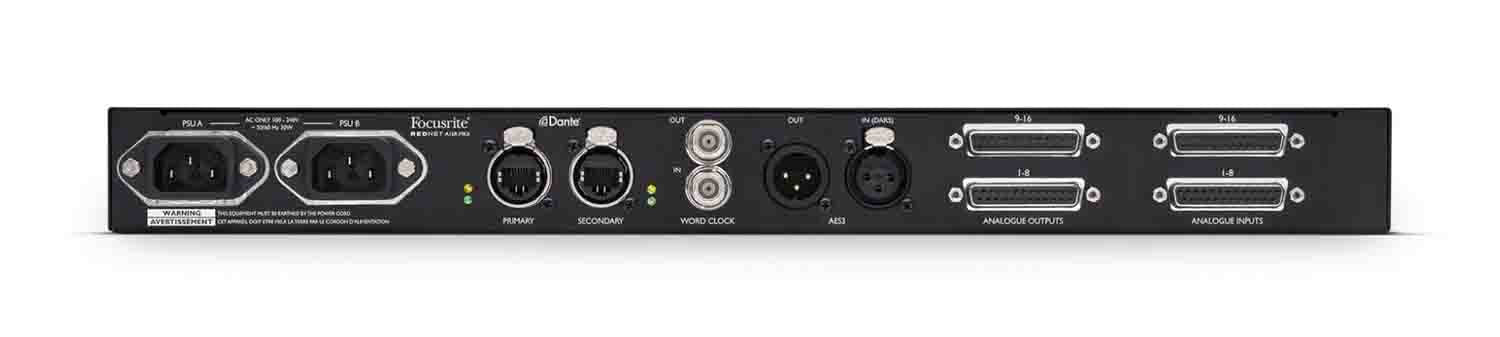

Analogue inputs and outputs are connected through four rear-panel AES59 standard DB25 connectors, while an additional pair of AES3 I/O is provided through male and female XLR for added flexibility. The XLR input can accept DARS signals in addition to AES3. Word Clock I/O on BNC connectors allows external devices to clock to RedNet A16R MkII, or alternatively allows RedNet A16R MkII to act as a network clock grand master, following an external input.

RedNet A16R MkII is well suited to both permanent installation and repeated strike and setup: all connectors lock and remain terminated even under stress, providing worry-free installation and peace of mind once situated in a rack. In addition, all Focusrite Pro products come with a three-year warranty and award-winning customer support.

Product Specification:

Form Factor: Rackmount

Simultaneous I/O: 16 x 16

A/D Resolution: Up to 24-bit/192kHz

Analog Inputs: 2 x DB-25

Analog Outputs: 2 x DB-25

Digital Inputs: 1 x XLR (AES3)

Digital Outputs: 1 x XLR (AES3)

Data I/O: 2 x Ethernet (Dante)

Network: Dante, RedNet

Clock I/O: 2 x BNC (1 x word clock)

Software: RedNet Control

OS Requirements - Mac: OS X 10.9.5 or later

OS Requirements - PC: Windows 7 SP1 or later

Rack Spaces:1U

Power Supply: 2 x Standard IEC AC cables

Weight: 10.0 lb / 4.5 kg

Package Weight: 13.985 lb

Box Dimensions (LxWxH): 23.8 x 17.2 x 4.4"
