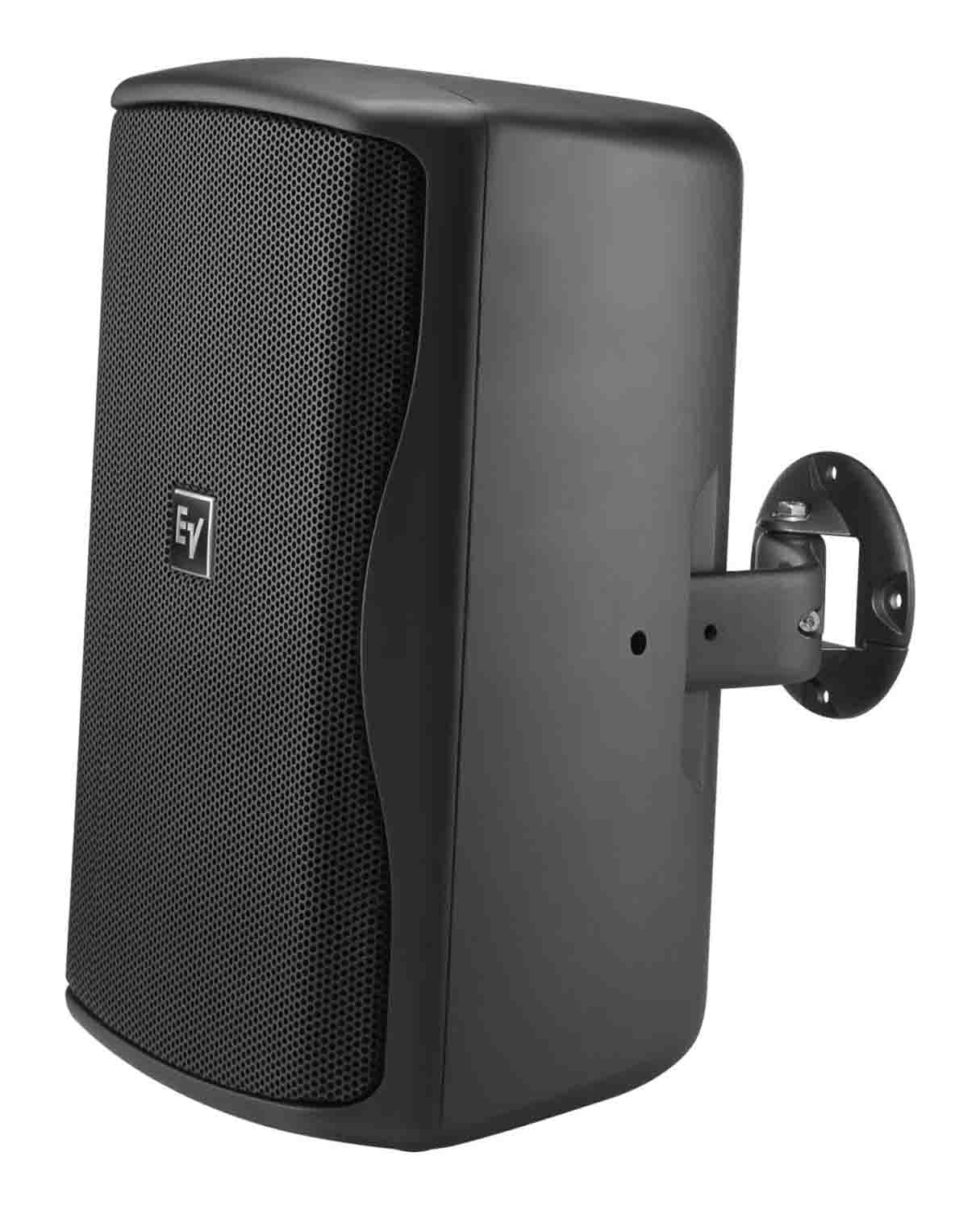

Electro-Voice ZX1I-90, 8" 2-Way 200W Weather-Resistant Passive Loudspeaker (Black)

The Electro-Voice ZX1I-90 is an 8" 2-Way 200W Weather-Resistant Passive Loudspeaker in Black. The full-range sound reinforcement for indoor and outdoor installed applications in arenas, stages, and patios. The ZX1i-90's 8" woofer and titanium high-frequency compression driver yield a 60 Hz to 20 kHz frequency response and boast a 200W continuous power handling rating (800W peak). The high-frequency driver is mounted in a rotatable 90 x 50° horn for long-throw and cluster applications. The input to the loudspeaker provided by a removable 4-pin Euroblock connector is fed to an internal crossover that properly distributes frequencies to the drivers. The lightweight ABS resin cabinet is outfitted with a heavy-duty QuickSAM mounting system, which enables fast and secure installation. With its molded enclosure design, two-layer grille, and IEC 529 and MIL-SPEC-810 ratings, the ZX1i-90 loudspeaker is built to withstand the stress of outdoor use. 8" EV8L long-excursion, high-output woofer with a weatherized, treated cone delivers smooth low-frequency performance and reliability. The velocity-compensated port design overcomes the limitation of many small cabinet loudspeakers and enables enhanced low-frequency response.

Product Specifications:

Configuration: Passive 2-Way

Enclosure Type: Bass-Reflex Loudspeaker

Total Power Capacity Passive:

200 W RMS

400 W Program

800 W Peak

System Impedance:

8 Ohms (Nominal)

6 Ohms (Minimum)

Drivers

HF Driver: 1 x Horn-Loaded Titanium Compression Driver with 1" / 25.4 mm Throat

HF Voice Coil: 1.25" / 31.75 mm

LF Driver: 1 x 8" / 20.32 cm Woofer

Performance

Frequency Range: 48 Hz to 20 kHz -10 dB (Half-Space)

Frequency Response: 60 Hz to 18 kHz -3 dB (Half-Space)

Maximum SPL: 123 dB (Half-Space)

Coverage Angle: 90° H x 50° V

Speaker Sensitivity: 94 dB (Half-Space)

Protections: Crossover Overload

Connectivity

Audio I/O: 1 x Euroblock 4-Pin Speaker Input

Signal Processing:

Crossover: 1.7 kHz

EQ: None

Physical

Mounting Handle: 1 x Bracket Point (Side)

Construction Material: Metal Grille, Polypropylene

Dimensions: 17.8 x 11.1 x 10.4" / 451 x 282 x 263 mm

Weight: 18.5 lb / 8.4 kg
