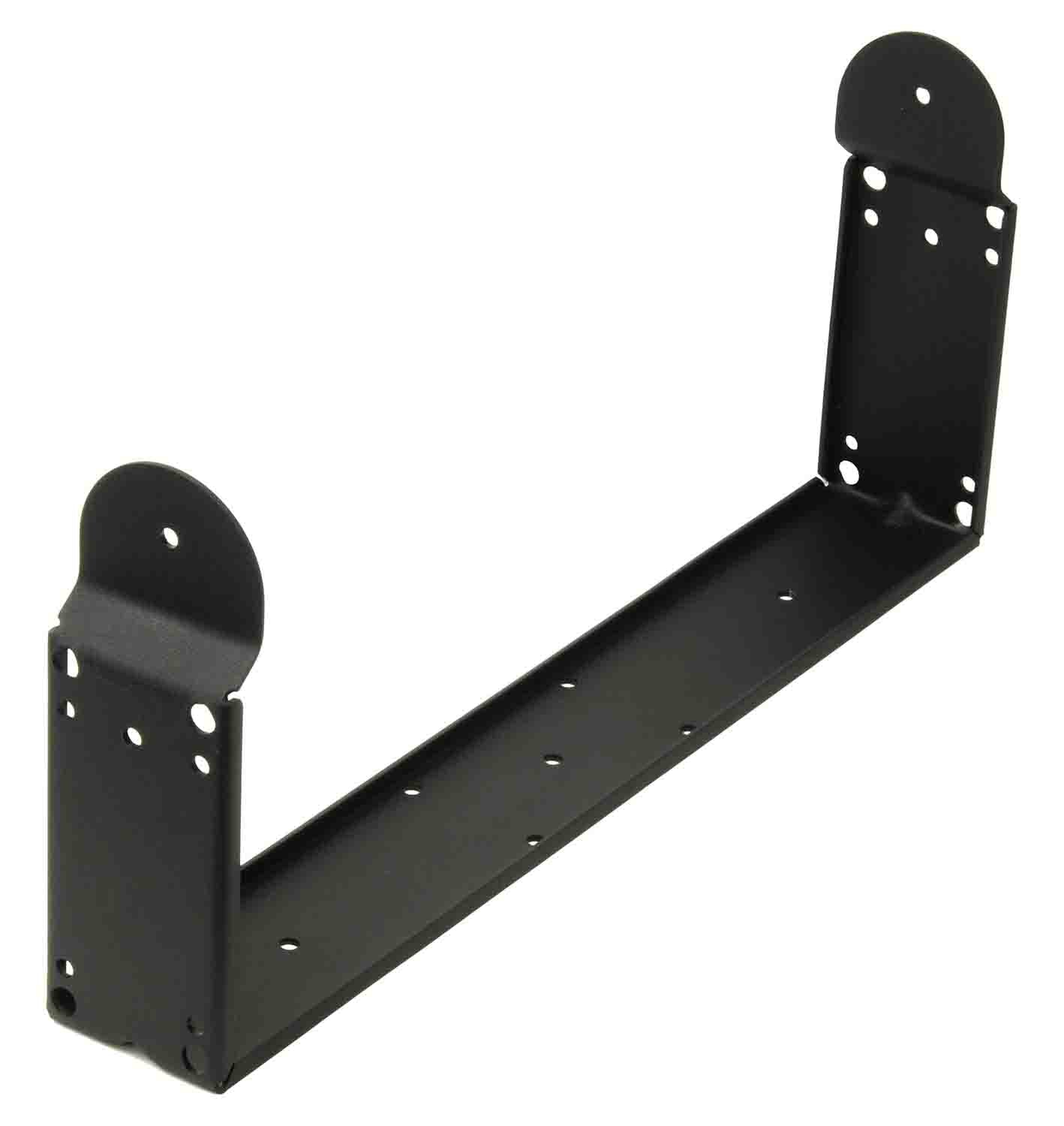

Electro-Voice MB200 U-Bracket Installation Kit for SX300 and SB122

The Electro-Voice MB200 is a U-Bracket Installation Kit for SX300 and SB122 consists of a U-bracket, two M8 x 1.25 hex-head bolts, four lock washers, two friction pads, and two ⅜-24 hex-head b

Wall or Ceiling Mounting

The robust design of the Mb200 installation bracket allows the System 200 speakers to be mounted in almost any position to obtain the desired sound coverage.

Flying Installations

The Mb200 bracket "captures" the speaker in a rigid frame which has structurally sound locations for attaching rigging hardware. These attachment points are four 12.7-mm (½-in) diameter holes located on the ends of the bracket. A ⅜-in "quick link" (or similar hardware) can be readily connected to each attachment point.

System 200 Horizontal Arrays

Arrays of two to six speakers are securely supported in a frame comprised of Mb200 and Mb300 brackets. To create a horizontal array, two Mb200 brackets are simply locked into the correct alignment position using the brackets from the Mb300 Horizontal Array Kit. The array is extended by using one additional Mb200 bracket and one Mb300 kit for each additional speaker. To complete the circle for a six speaker array, one additional Mb300 kit is required.

Product Specifications:

Color: Black or white

Bracket Width (wall attachment): 97 mm (3.8 in

Min Length: 584 mm (23 in

Max Length: 914 mm (36 in)

Arm length: 299 mm (11.8 in)

Net Weight: 4.8 kg (10.7 lb)

Shipping Weight: 5.5 kg (12 lb)

Tilt (from 0° axis): Up to 60°
